Removing Valve Body/Unhooking Operating Rod

When removing the valve body the manual selector valve -1- remains in valve body.

• Do not interchange manual selector valves of valve bodies.
• Shift selector lever/shaft into position "1".
• Pull manual selector valve out until it is just possible to unhook the operating rod -2-. See Fig 1 .

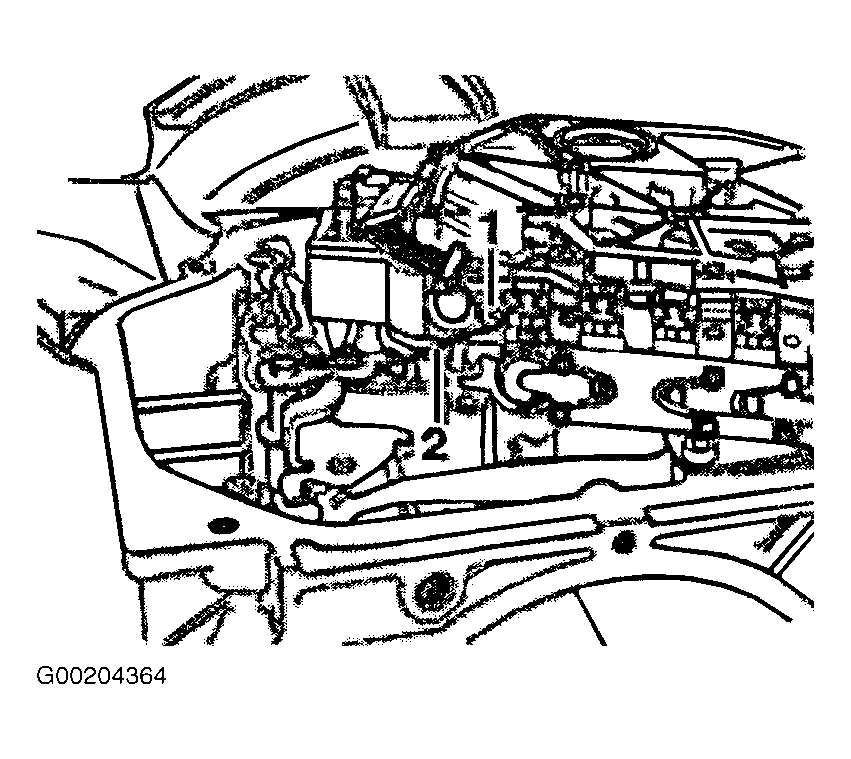

  Fig 1: Removing Valve Body & Unhooking Operating Rod

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• Secure manual selector valve so that it cannot fall out.
