Installing ATF Screen

Before installing the ATF screen insert seal in valve body. See Fig 1 .

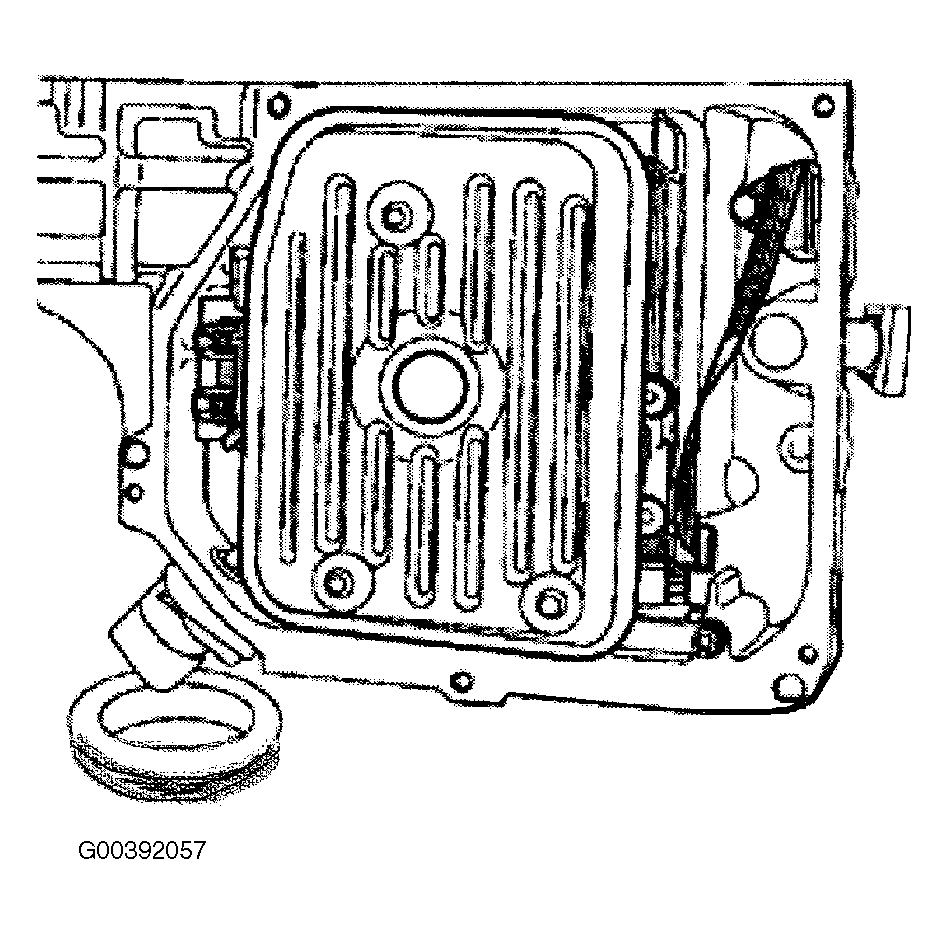

Fig 1: Installing ATF Screen

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Firmly press ATF screen onto valve body.
