Home >> Volkswagen >> 2000 >> EuroVan GLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Freewheel With -B1- Piston, Disassembling And Assembling >> Notes

Freewheel With -B1- Piston, Disassembling And Assembling: Notes

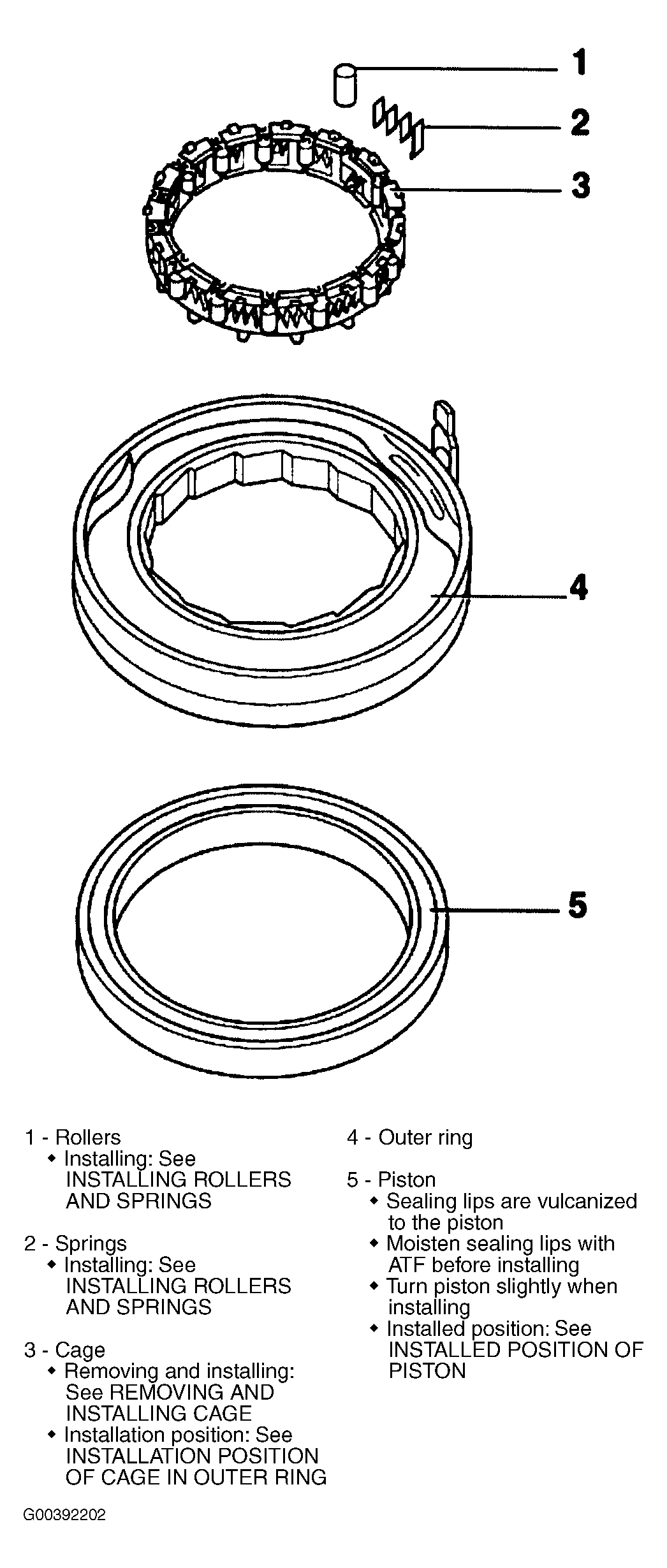

Fig 1: Overview Of Freewheel With -B1- Piston

G00392202

Courtesy of VOLKSWAGEN UNITED STATES, INC.
