Removing Input Gear

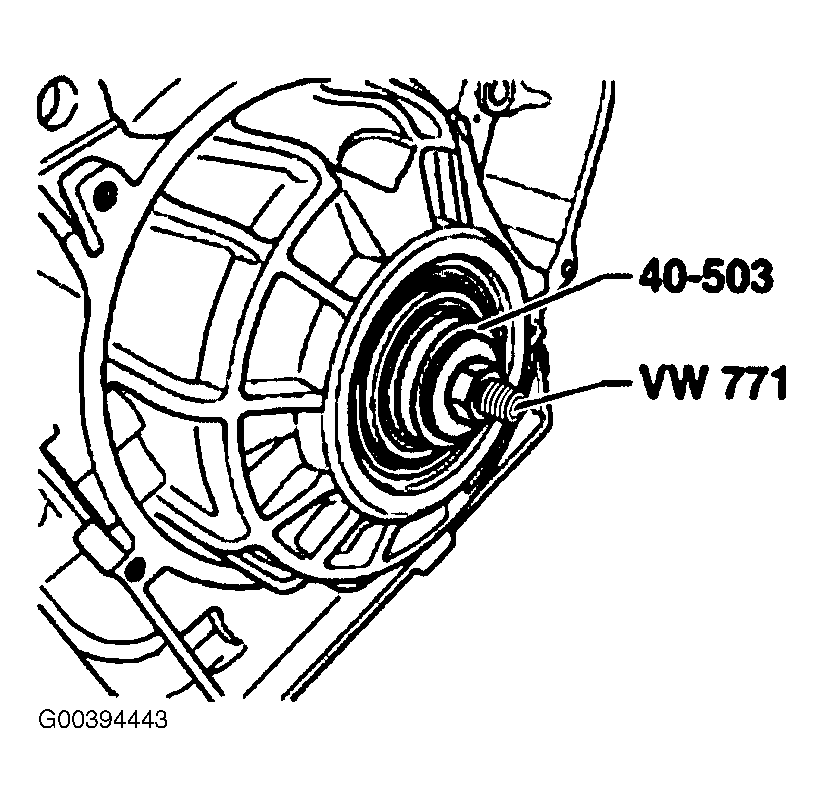

Fig 1: Removing Input Gear

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install press tool 40-503 with shoulder in threaded hole of input gear.

Join press tool with VW 771 through hole of input gear.

Drive out input gear carefully.
