Overview Of Differential Disassembly And Assembly Components

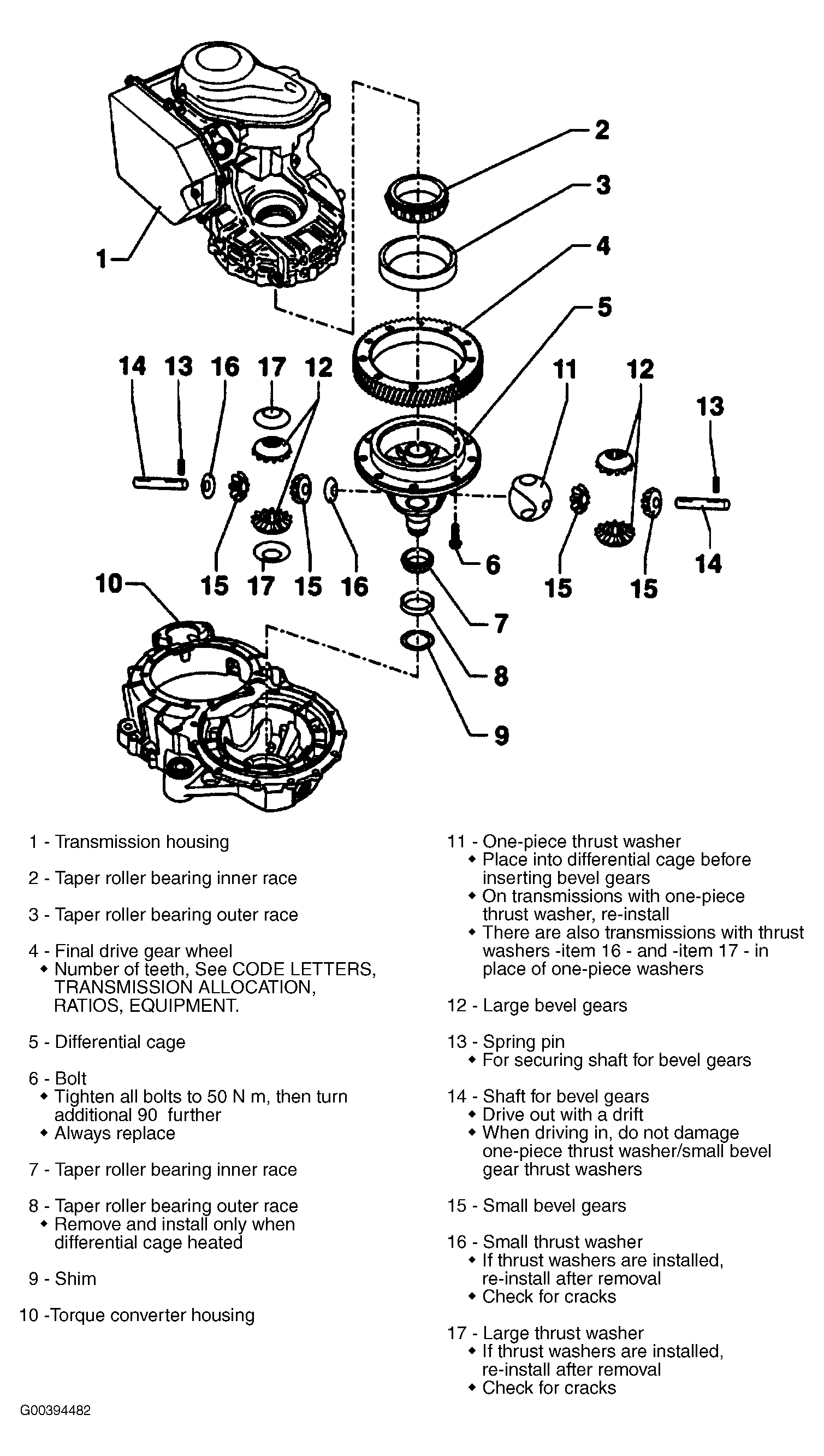

Fig 1: Overview Of Differential Disassembly & Assembly Components

G00394482

Courtesy of VOLKSWAGEN UNITED STATES, INC.
