Test Table

Fig 1: List Of Test Steps (Multi-Pin Connector With 68 Pins)

G00387865

Courtesy of VOLKSWAGEN UNITED STATES, INC.

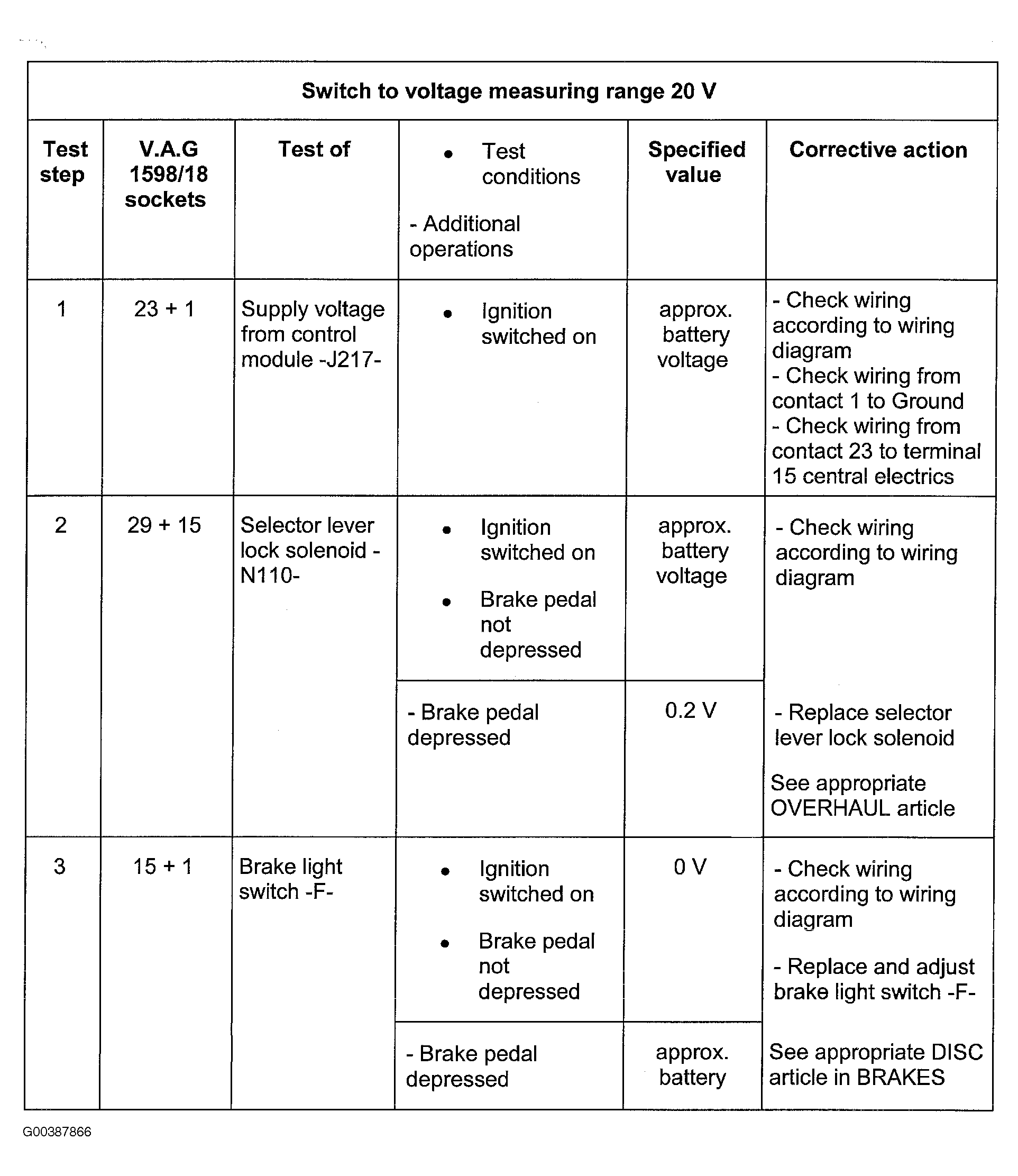

Fig 2: Electrical Test Table (Steps 1-3)

G00387866

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Electrical Test Table (Step 4 - 1 Of 2)

G00387867

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Electrical Test Table (Step 4 - 2 Of 2)

G00387868

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Electrical Test Table (Steps 5-8)

G00387869

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Electrical Test Table (Steps 9-12)

G00387870

Courtesy of VOLKSWAGEN UNITED STATES, INC.

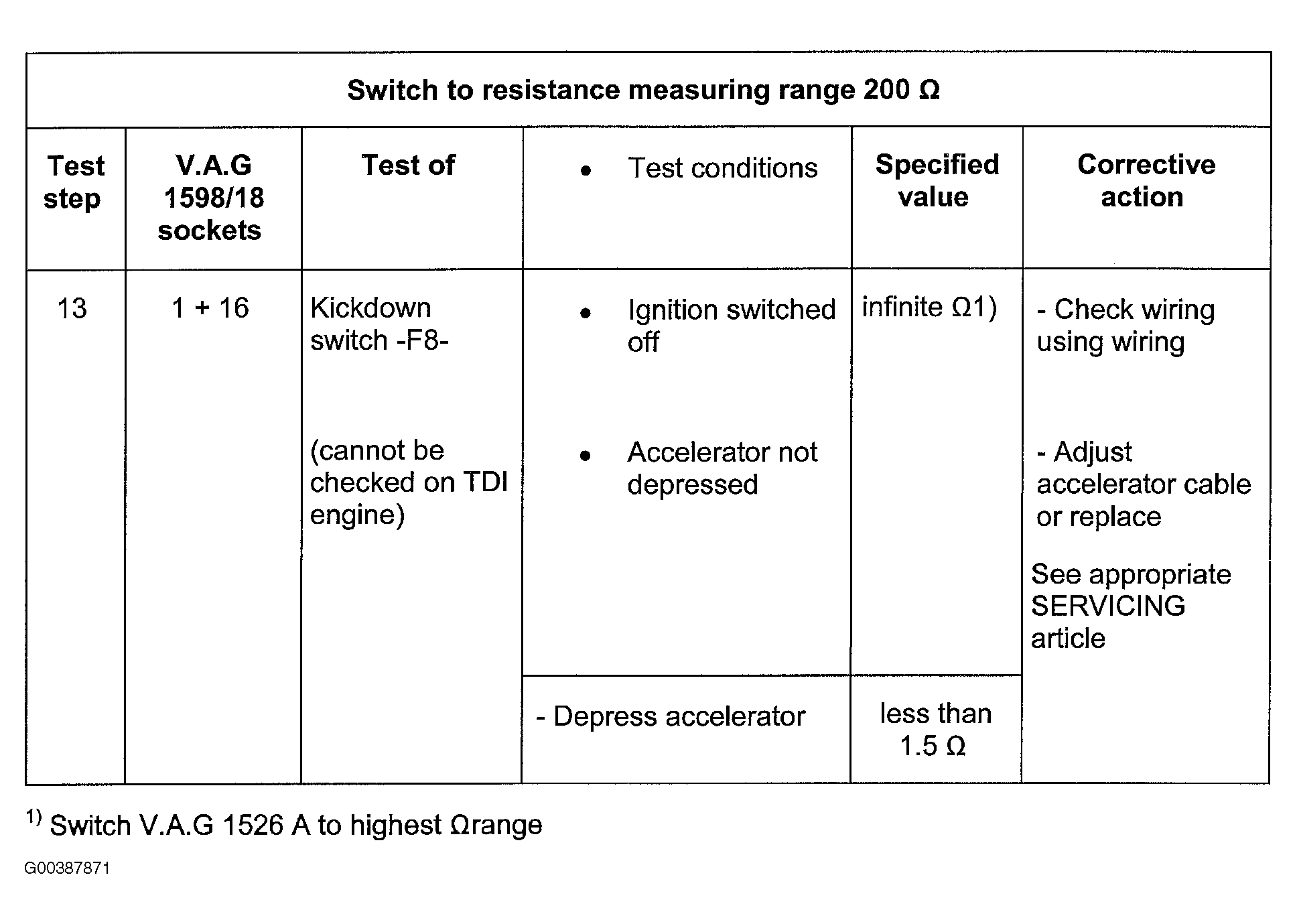

Fig 7: Electrical Test Table (Step 13)

G00387871

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 8: Electrical Test Table (Step 14)

G00387872

Courtesy of VOLKSWAGEN UNITED STATES, INC.

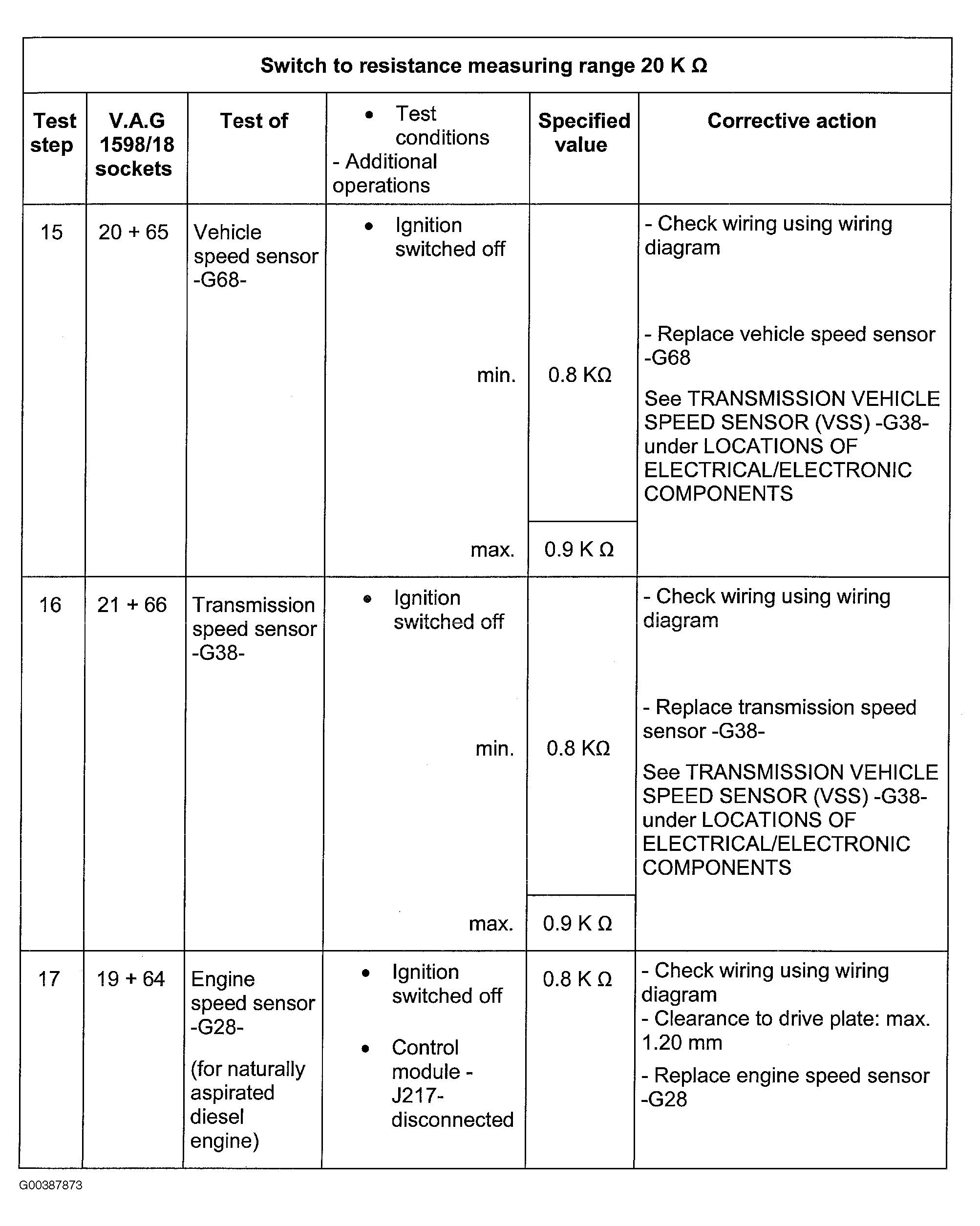

Fig 9: Electrical Test Table (Steps 15-17)

G00387873

Courtesy of VOLKSWAGEN UNITED STATES, INC.
