Valve Body: Notes

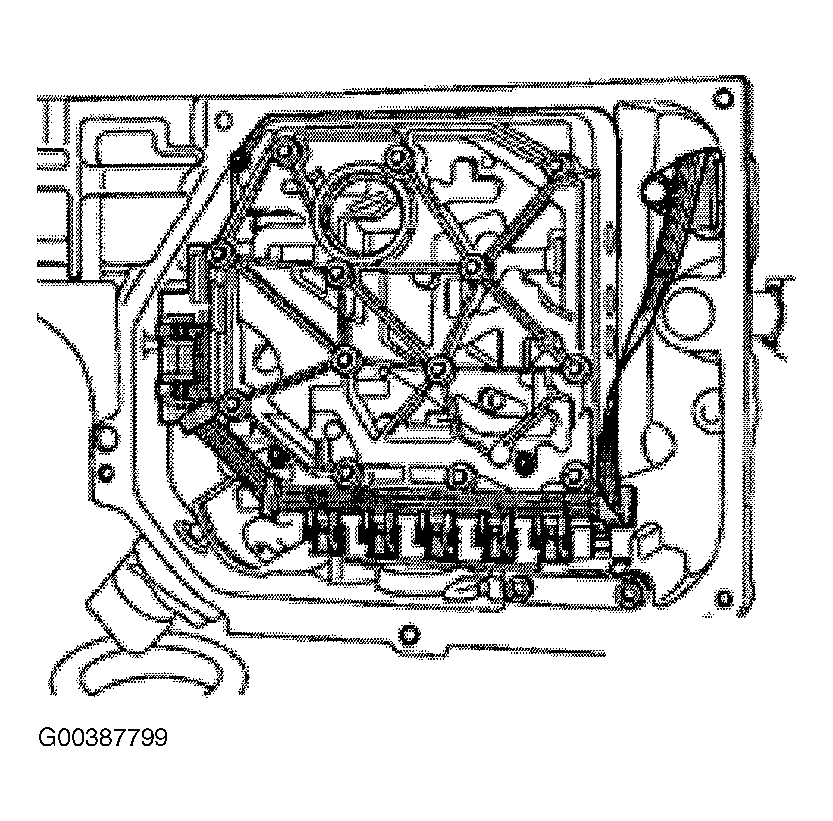

Fig 1: Identifying Valve Body

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Location: The valve body is bolted to the underside of transmission housing inside the sump.

The solenoid valves -N88-, -N89-, -N90-, -N91-, -N92-, -N93- and -N94- are attached to the valve body.
