B-pillar outer trim, removing
Pull off door and side window seal.
Drill out rivets -2- and remove trim -1-.

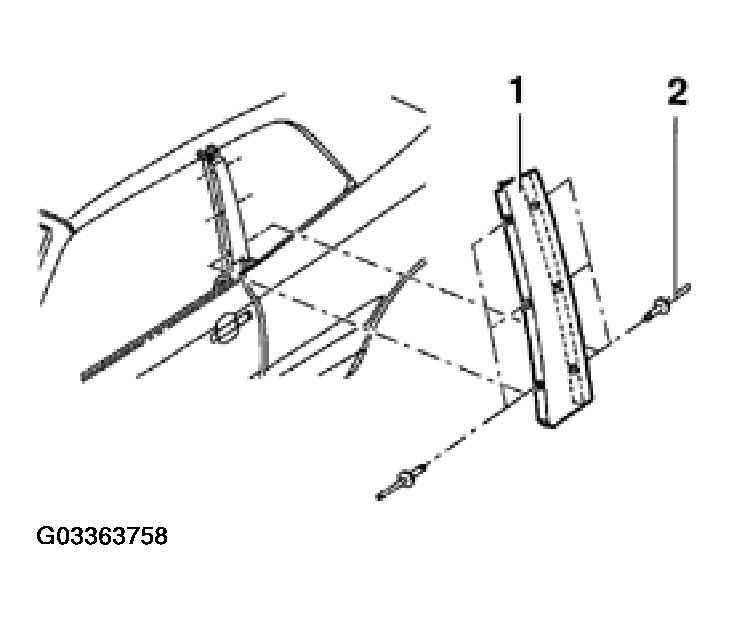

Fig 1: Removing B-Pillar Outer Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
