Component Locations

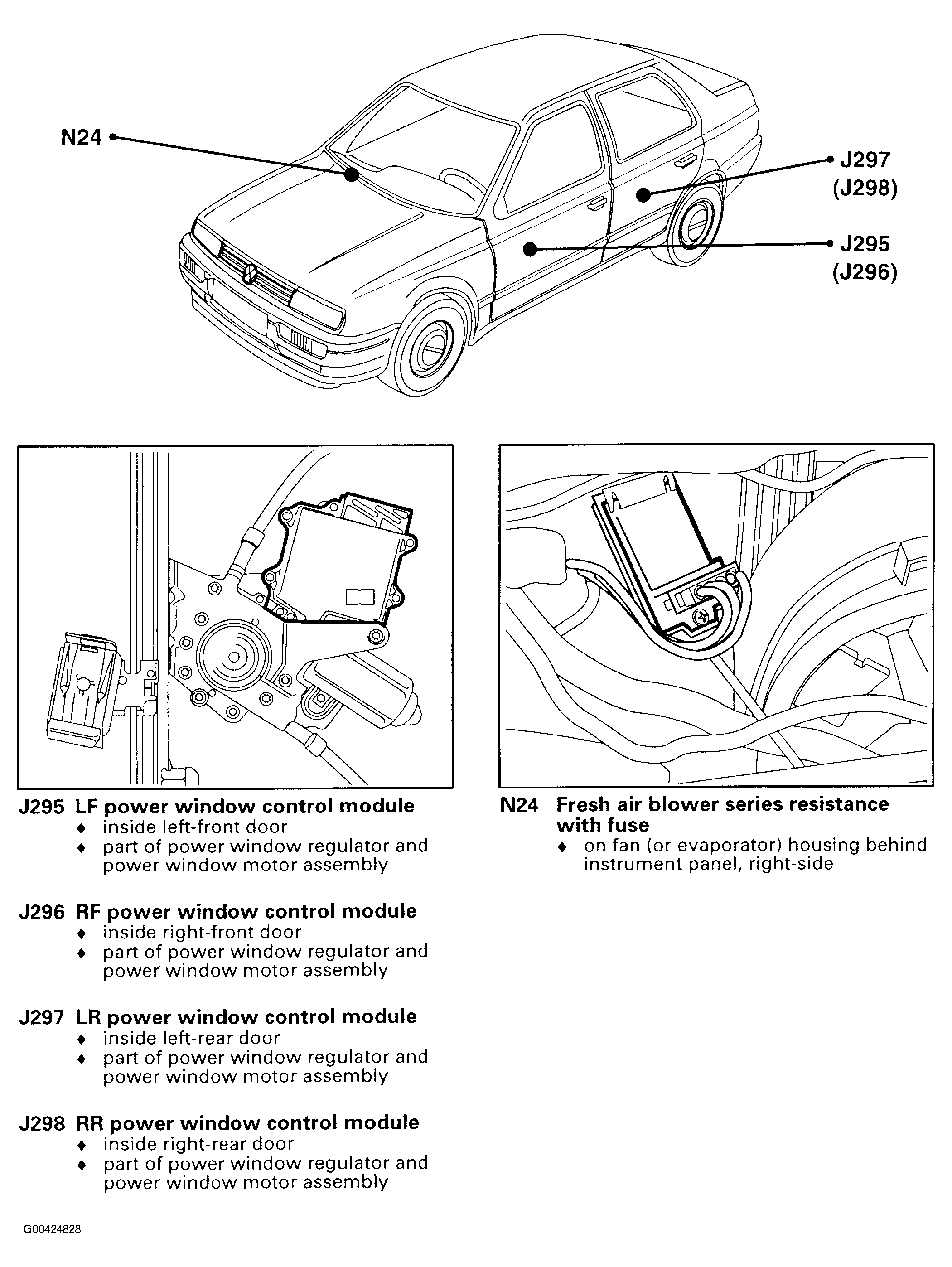

Fig 1: Locating J295-J298 & N24

G00424828

Courtesy of VOLKSWAGEN UNITED STATES, INC.

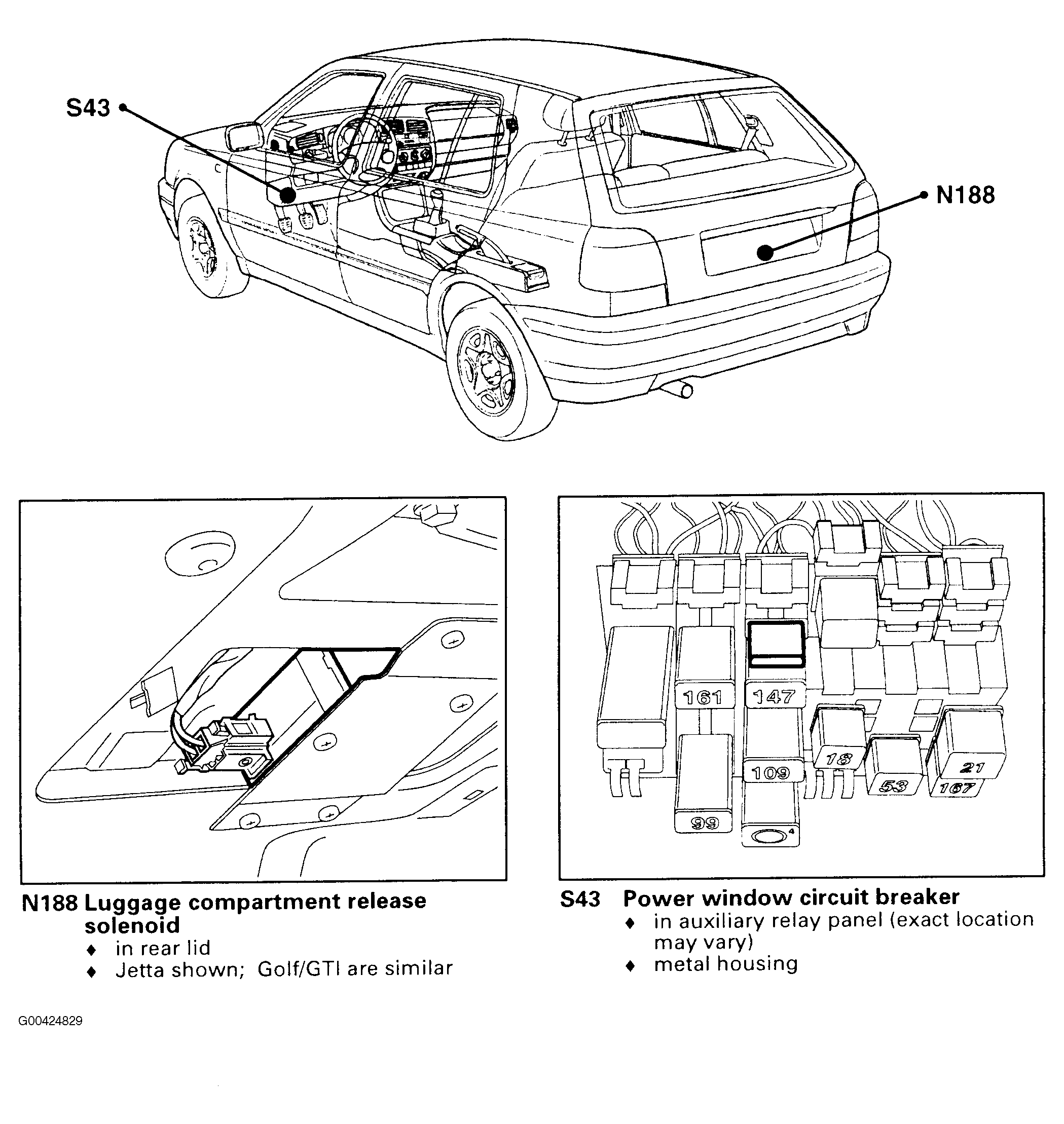

Fig 2: Locating N188 & S43

G00424829

Courtesy of VOLKSWAGEN UNITED STATES, INC.
