Planetary Transmission Overview

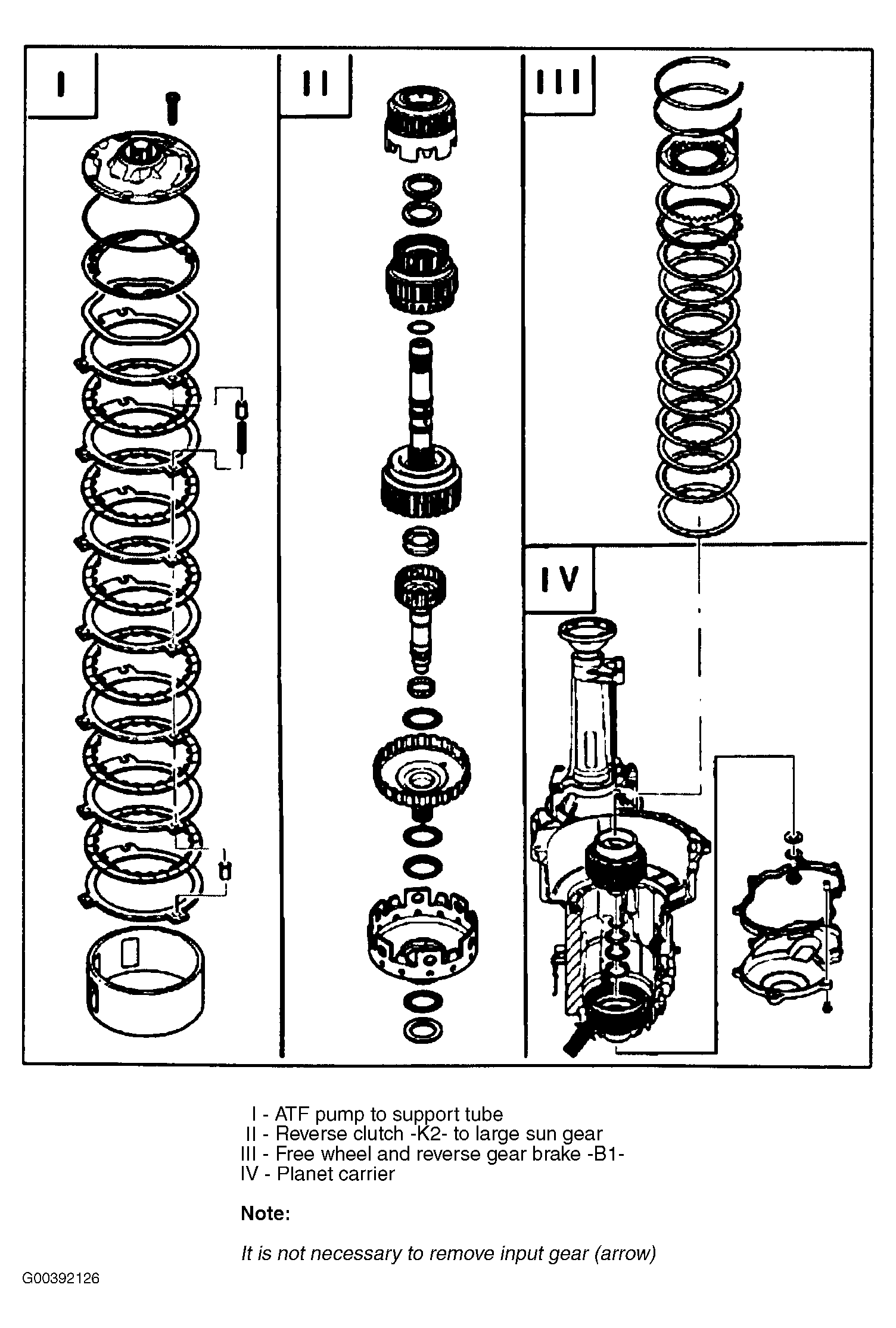

Fig 1: Overview Of Planetary Transmission
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
