Overview Of Drive Pinion Components

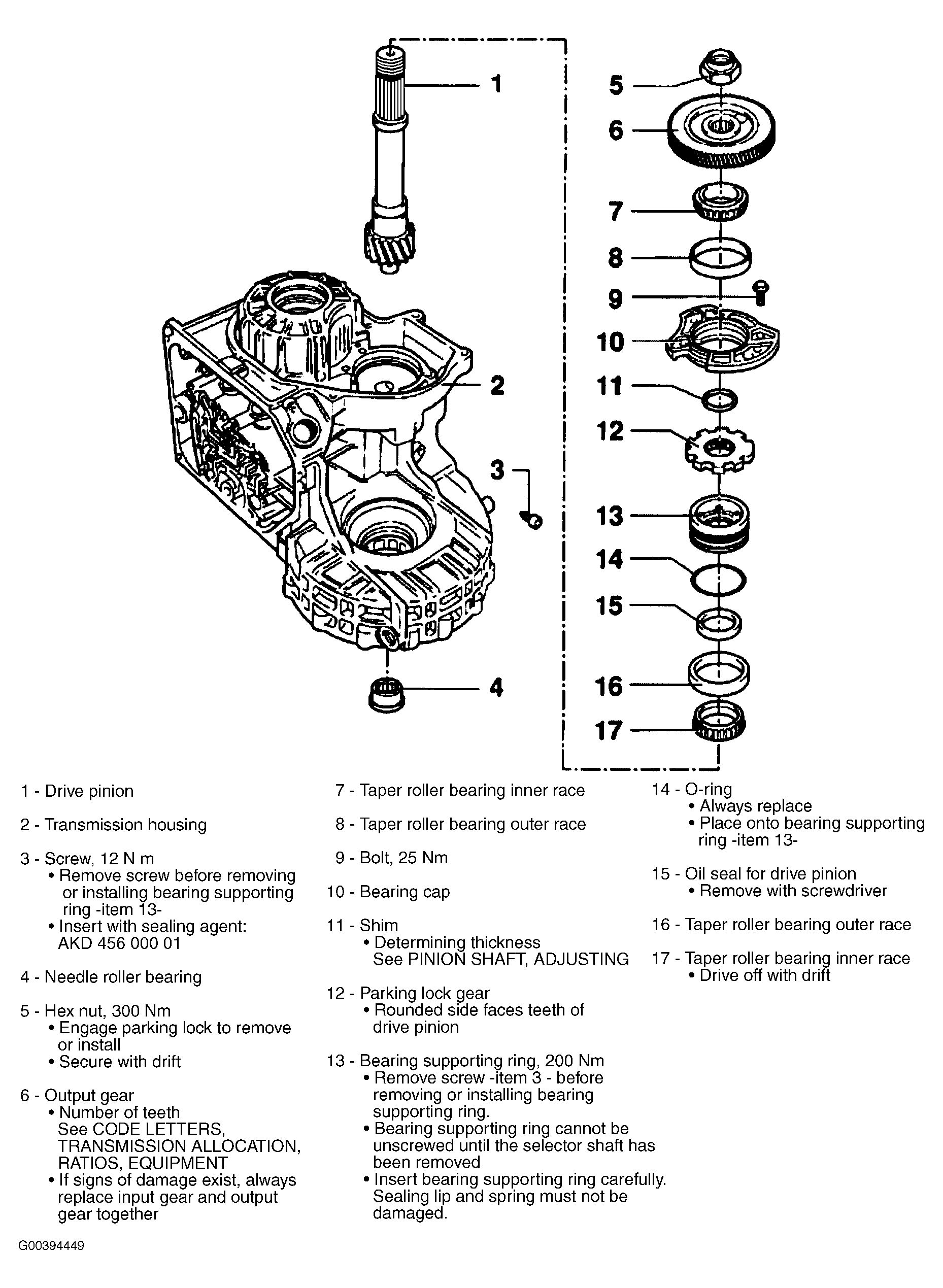

Fig 1: Overview Of Drive Pinion Components
G00394449Courtesy of VOLKSWAGEN UNITED STATES, INC.
