Air Bag Module: Installation

To install, reverse removal procedure. Tighten air bag module retaining screws to specification. See TORQUE SPECIFICATIONS  table. Reactivate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Check air bag indicator lights to ensure system is functioning properly. See SYSTEM OPERATION CHECK  .

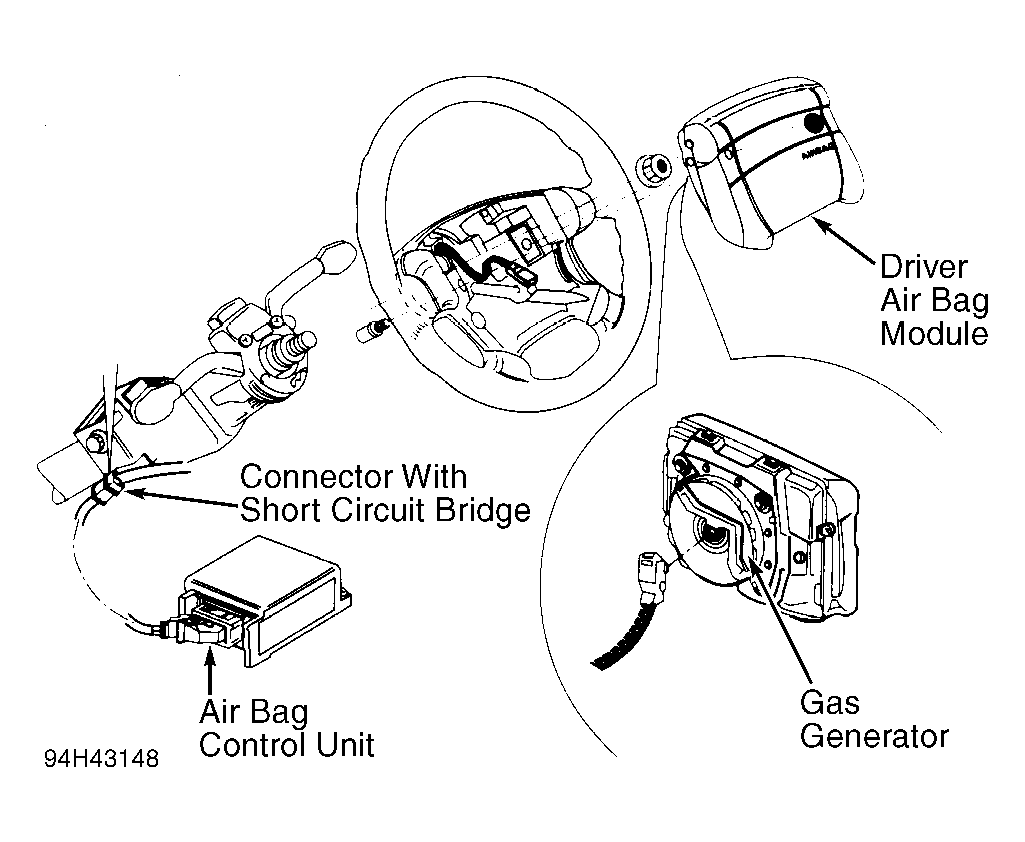

Fig 1: Exploded View Of SRS Components

Courtesy of VOLKSWAGEN OF UNITED STATES, INC.
