Passat GLS, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Component Locations
Component Locations
COMPONENT LOCATIONS
Component
Location
Fuse/Relay Panel
Behind Left Side Of Dash
Mirror Assembly
Outside Of Front Door, See
Fig 2
Power Mirror Switch
On Door Trim Panel, See
Fig 3
Fig 1: Identifying Fuse Panel Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

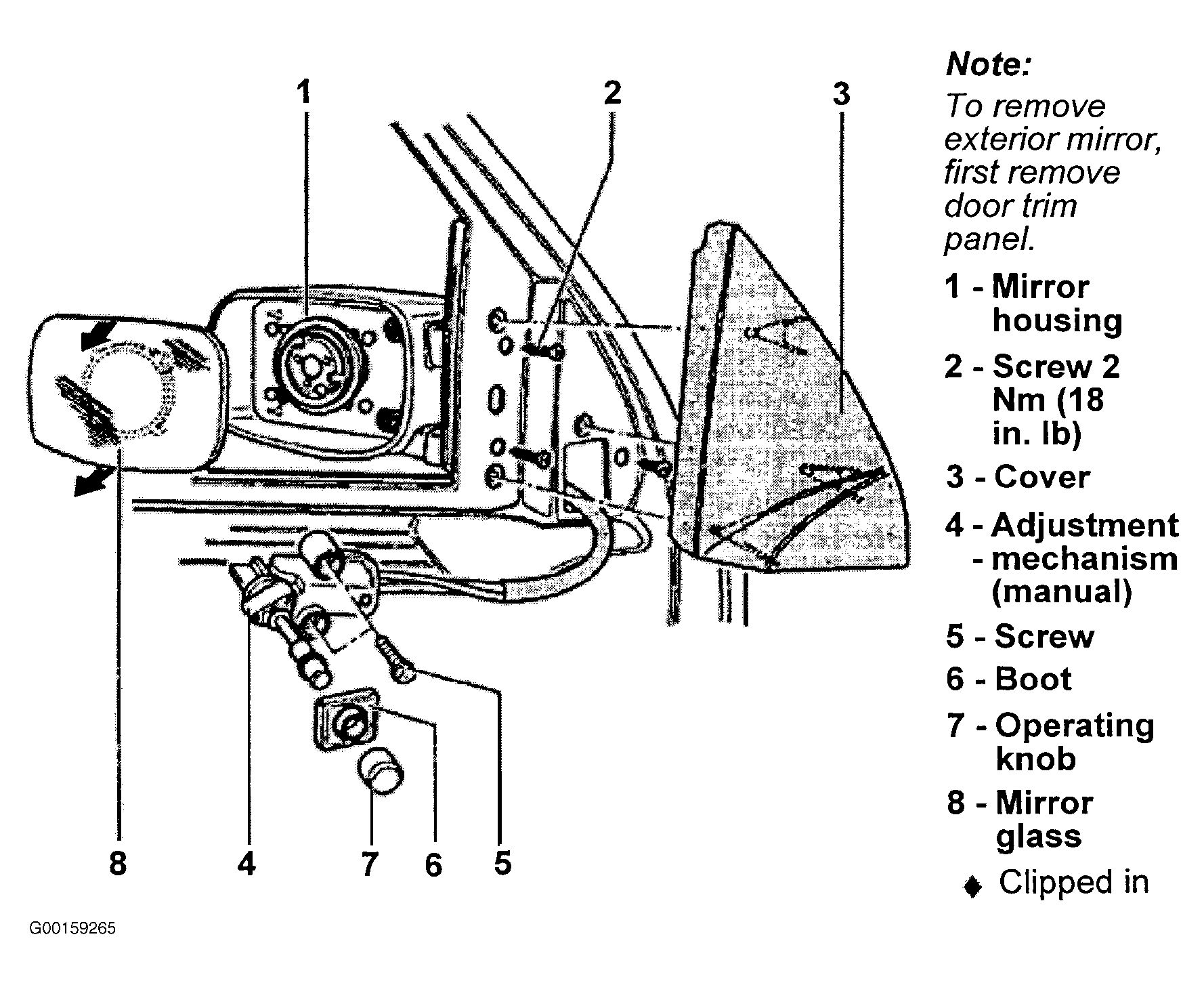

Fig 2: Exploded View Of Mirror Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

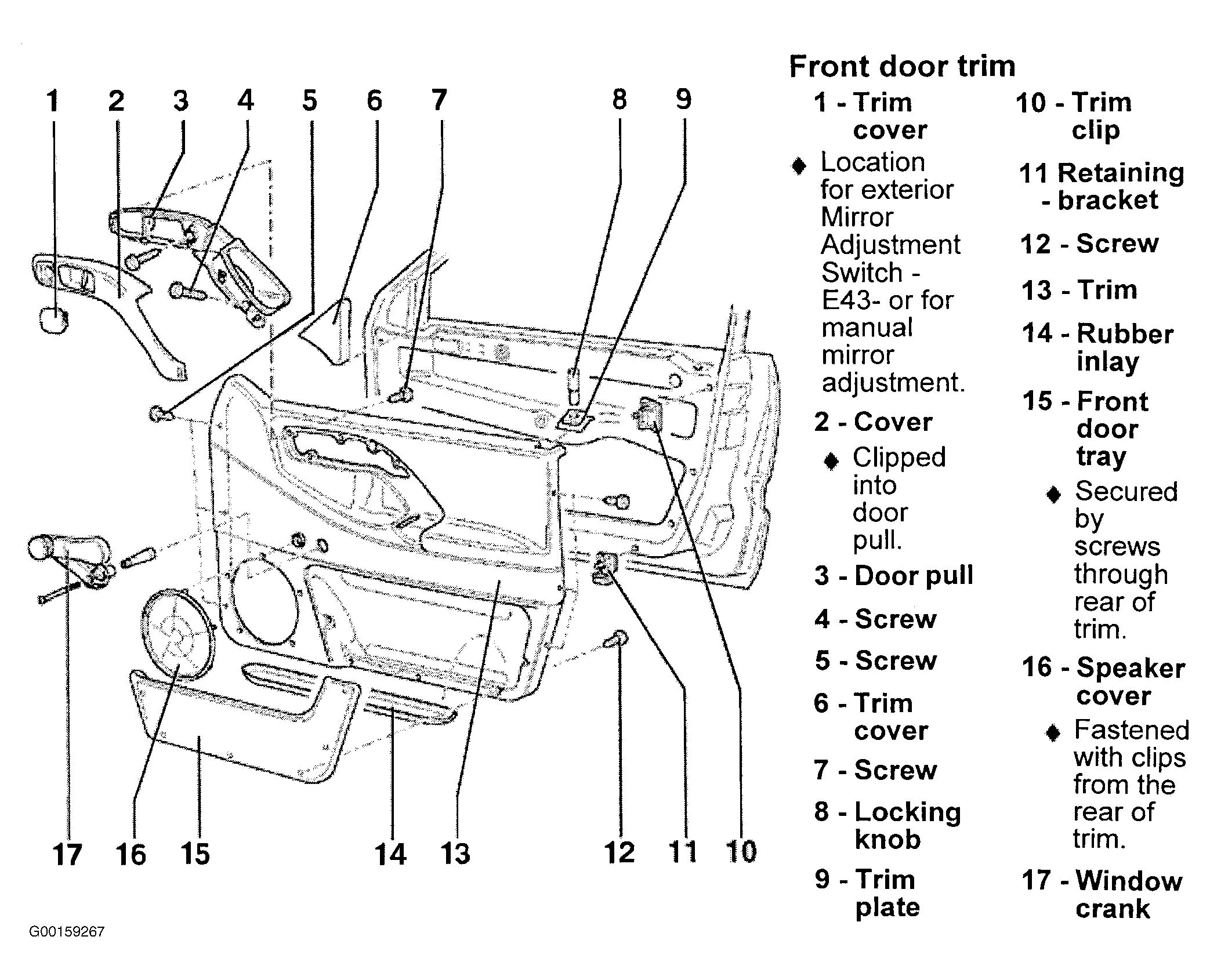

Fig 3: Exploded View Of Door Trim Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
