Firing Order & Timing Marks

NOTE: To identify firing order and distributor rotation, See Fig 1 .

Timing mark location is on flywheel. Timing pointer is on timing hole on transaxle bellhousing.

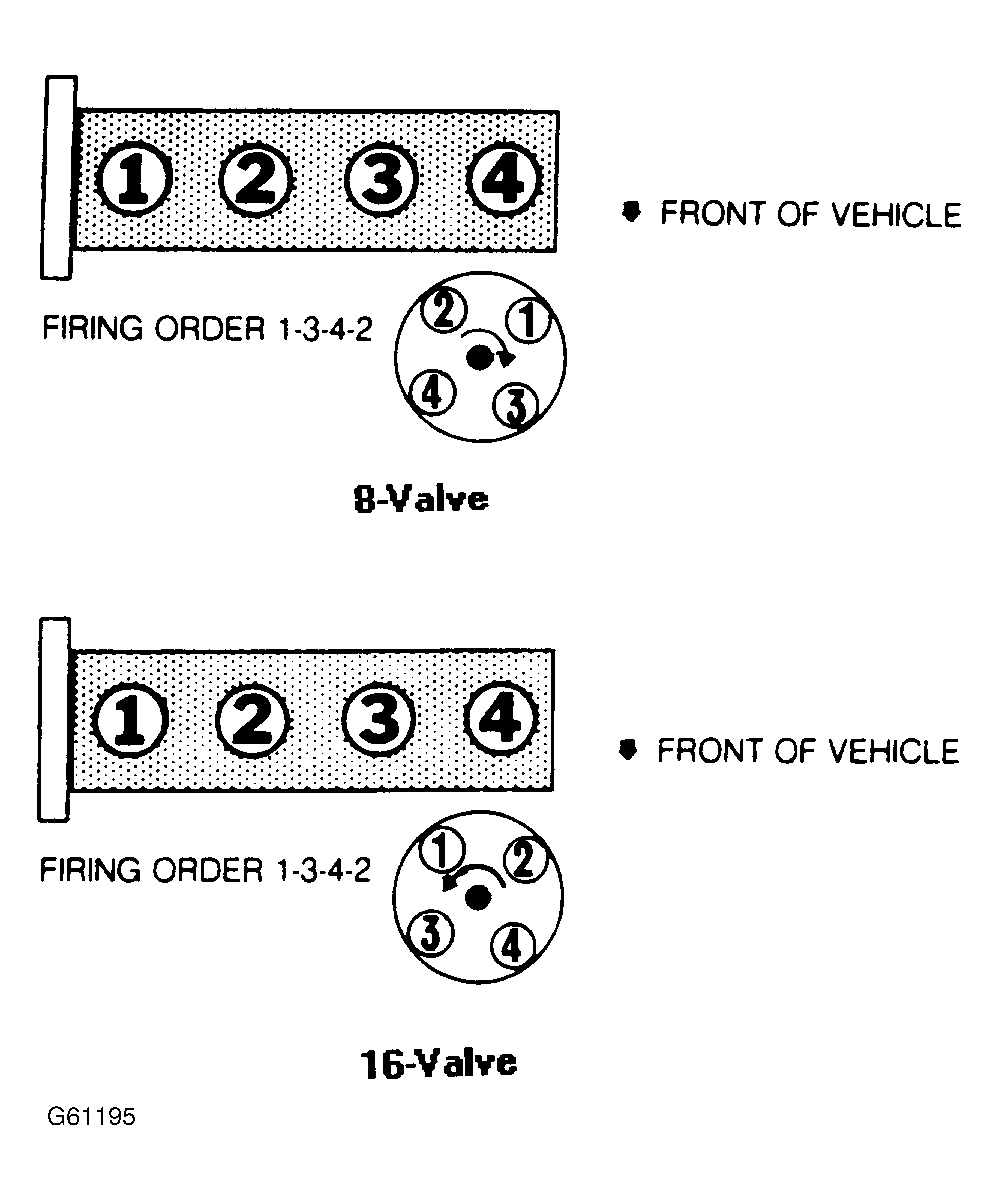

Fig 1: Firing Order & Distributor Rotation (1.8L & 2.0L)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
