Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

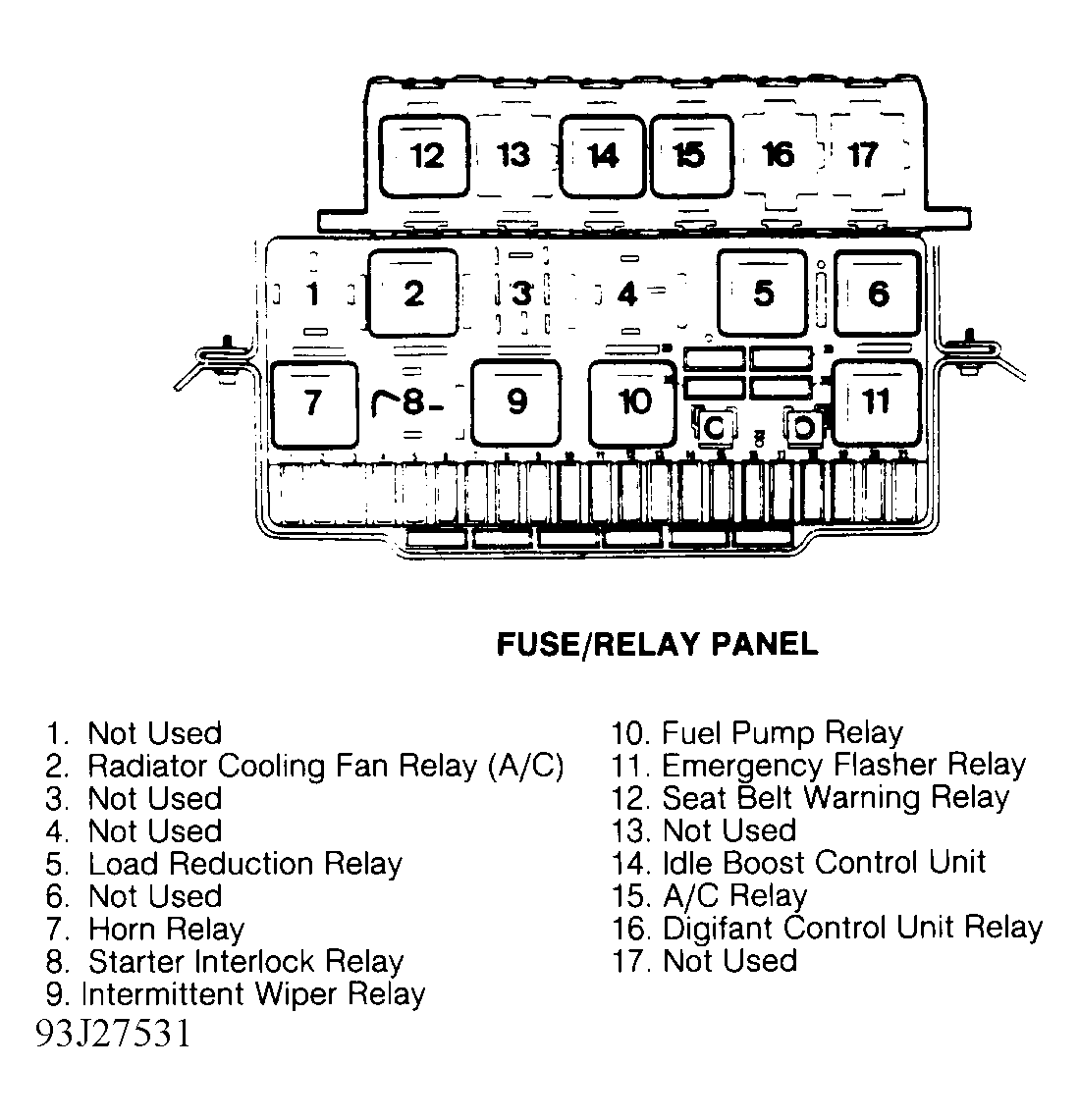

Fuse/Relay Panel	Under left side of dash. See Figure .
