Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Under right side of rear seat. | |
| Auto. Shoulder Belt Control Unit | Under left of rear seat. | |
| Central Locking Pump/Control Unit | ||
| Sedan | On left side of luggage compartment, behind trim panel. | |
| Wagon | On right rear of luggage compartment floor. | |

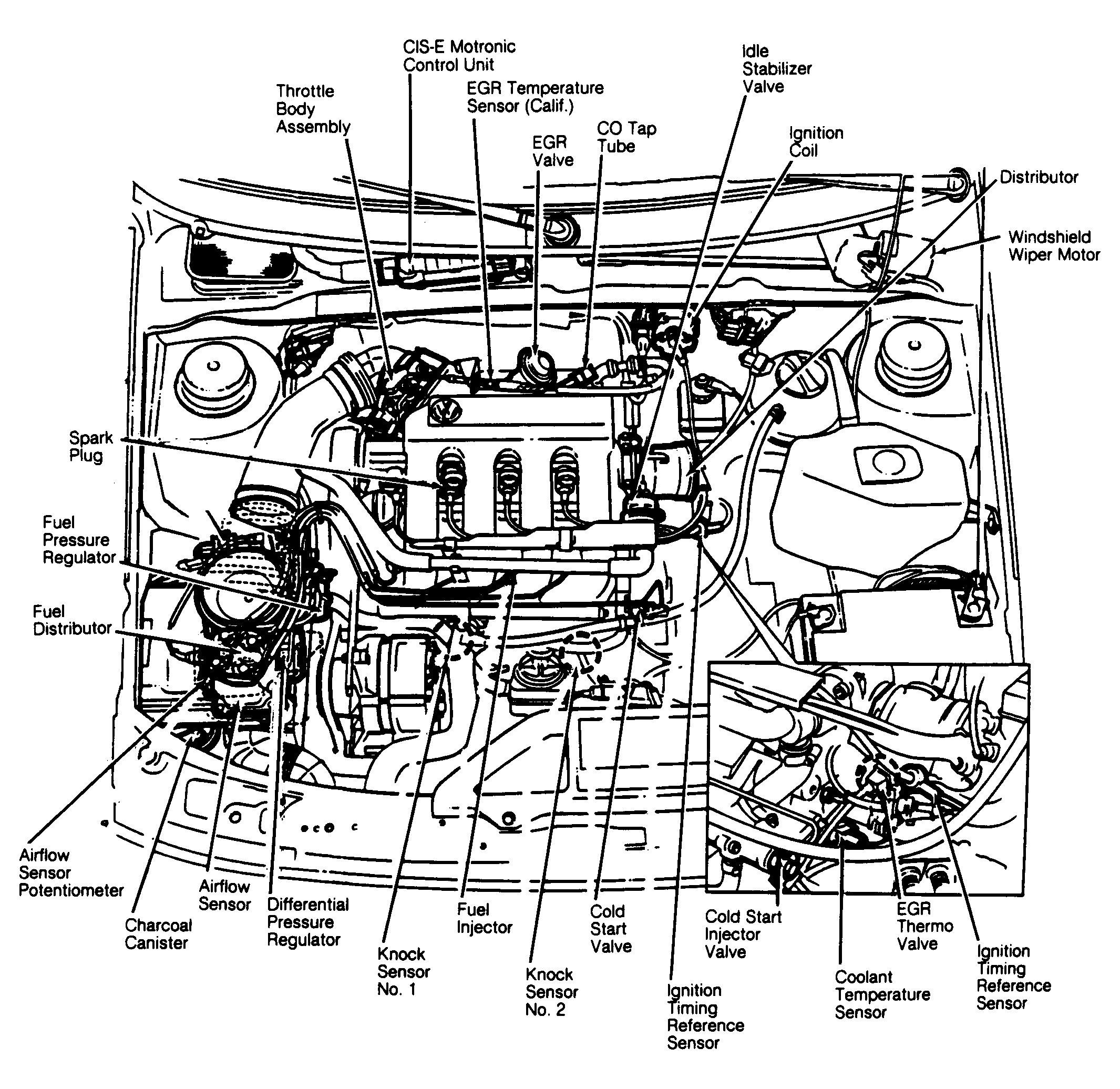

| CIS-E Motronic Control Unit | In engine compartment, on center of plenum panel. See Figure . | |
| Cooling Fan After-Run Control Unit | On fuse/relay block. See Figure . | |
| Cruise Control ECU | Under center console. | |
| Low Coolant Level Control Unit | On fuse/relay block. See Figure . | |
| Power Window Control Unit | Under Rear Seat. | |
| Seat Belt Warning Control Unit | Behind right side of dash, below glove box. | |
