Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

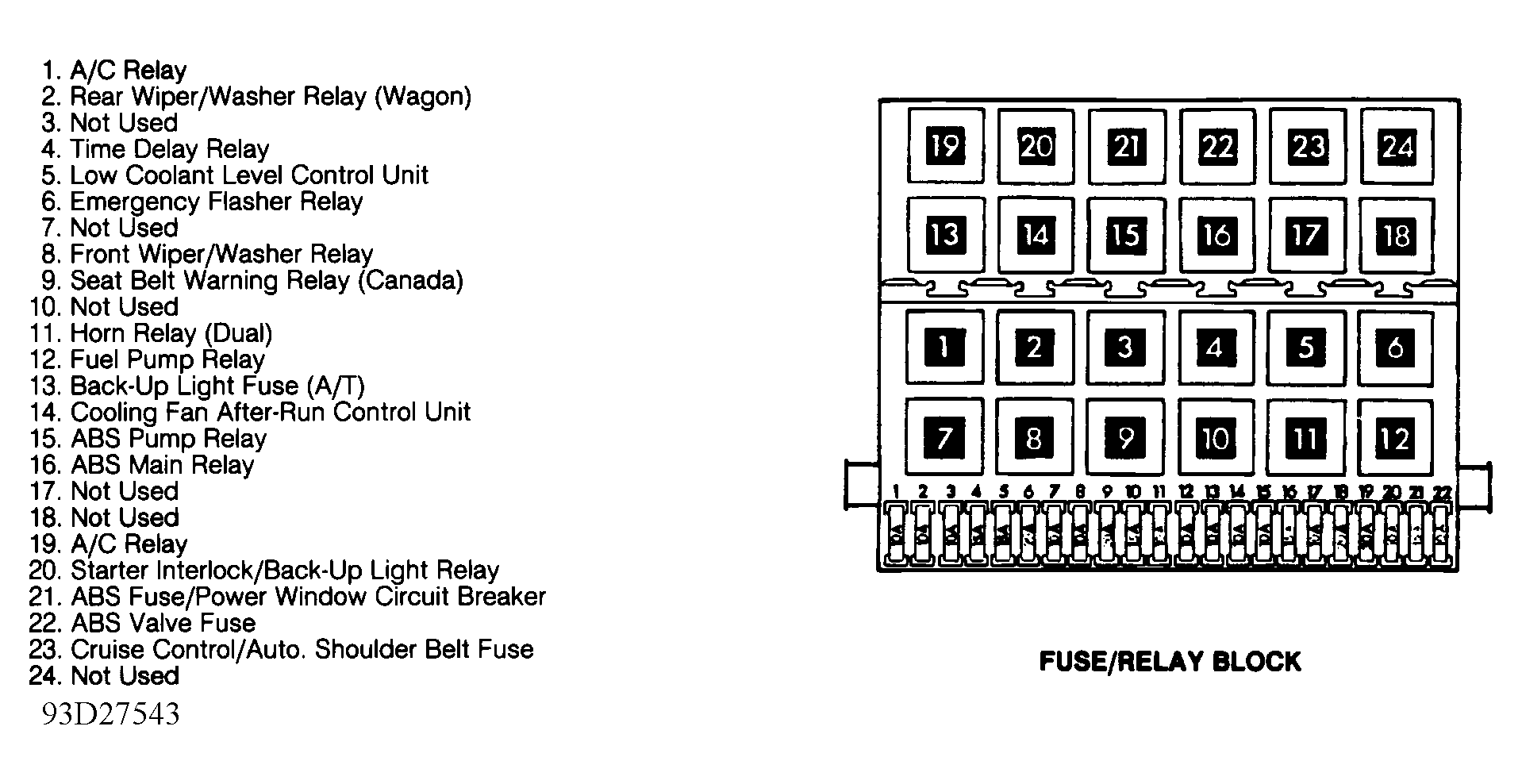

ABS Fuse/Power Window Circuit Breaker On fuse/relay block. See Figure .
ABS Valve Fuse On fuse/relay block. See Figure .
Back-Up Light Fuse (A/T) On fuse/relay block. See Figure .
Cruise Control/Auto. Shoulder Belt System Fuse On fuse/relay block. See Figure .
Fuse/Relay Block Under left side of dash. See Figure .
