Anti-Lock Brake System: Description

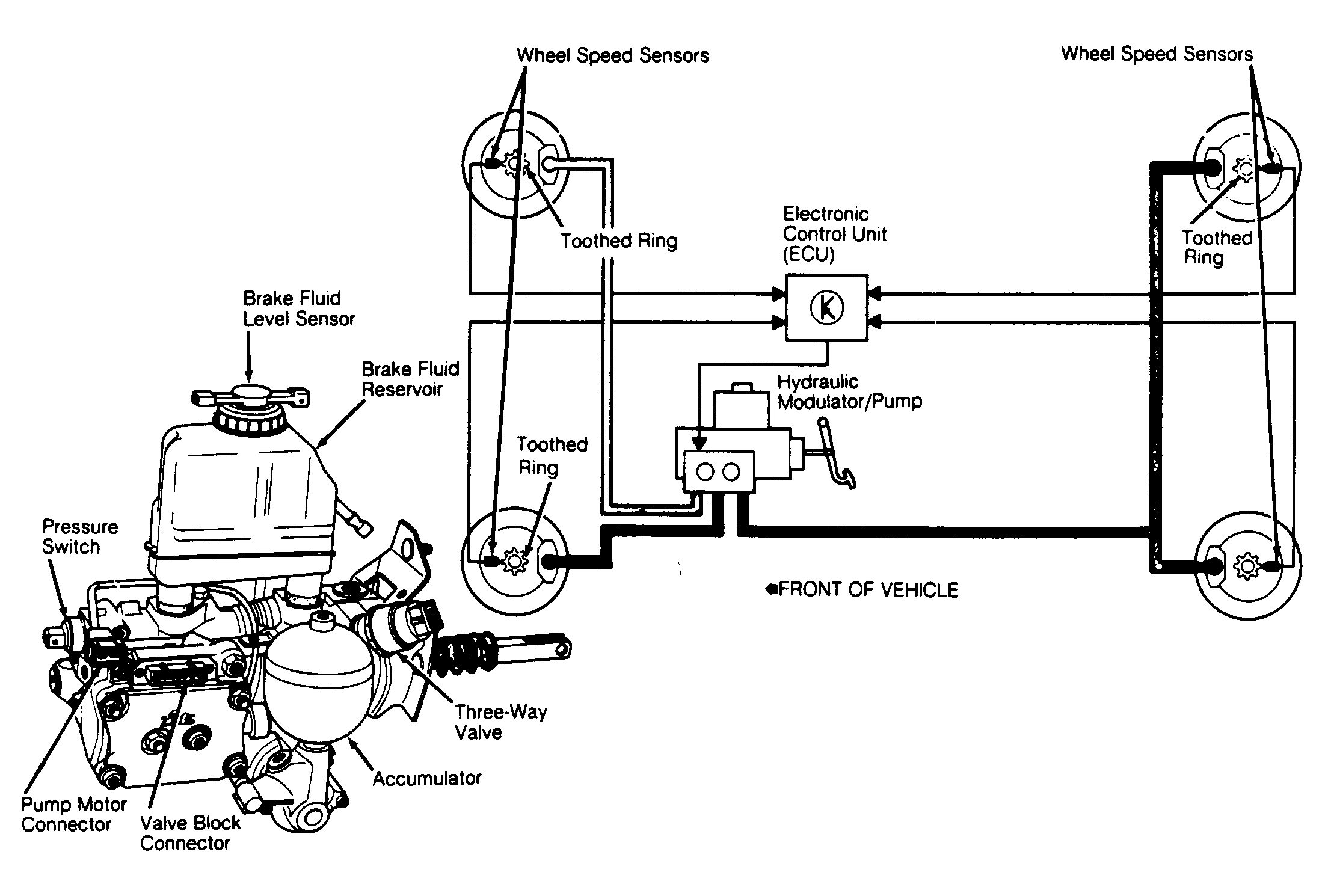

All models use a Teves Anti-Lock Brake System (ABS). See Figure . This system reduces the chance of wheel lock-up during heavy braking. The system consists of 4 wheel speed sensors, Electronic Control Unit (ECU), hydraulic modulator/pump and solenoid valves, ANTI-LOCK warning light and BRAKE warning light. There are 2 relays located at fuse/relay panel, to protect the hydraulic modulator and ECU.

NOTE: For more information on brake system, see appropriate BRAKE SYSTEM article.
