Control Units

CONTROL UNITS LOCATION

Component Location

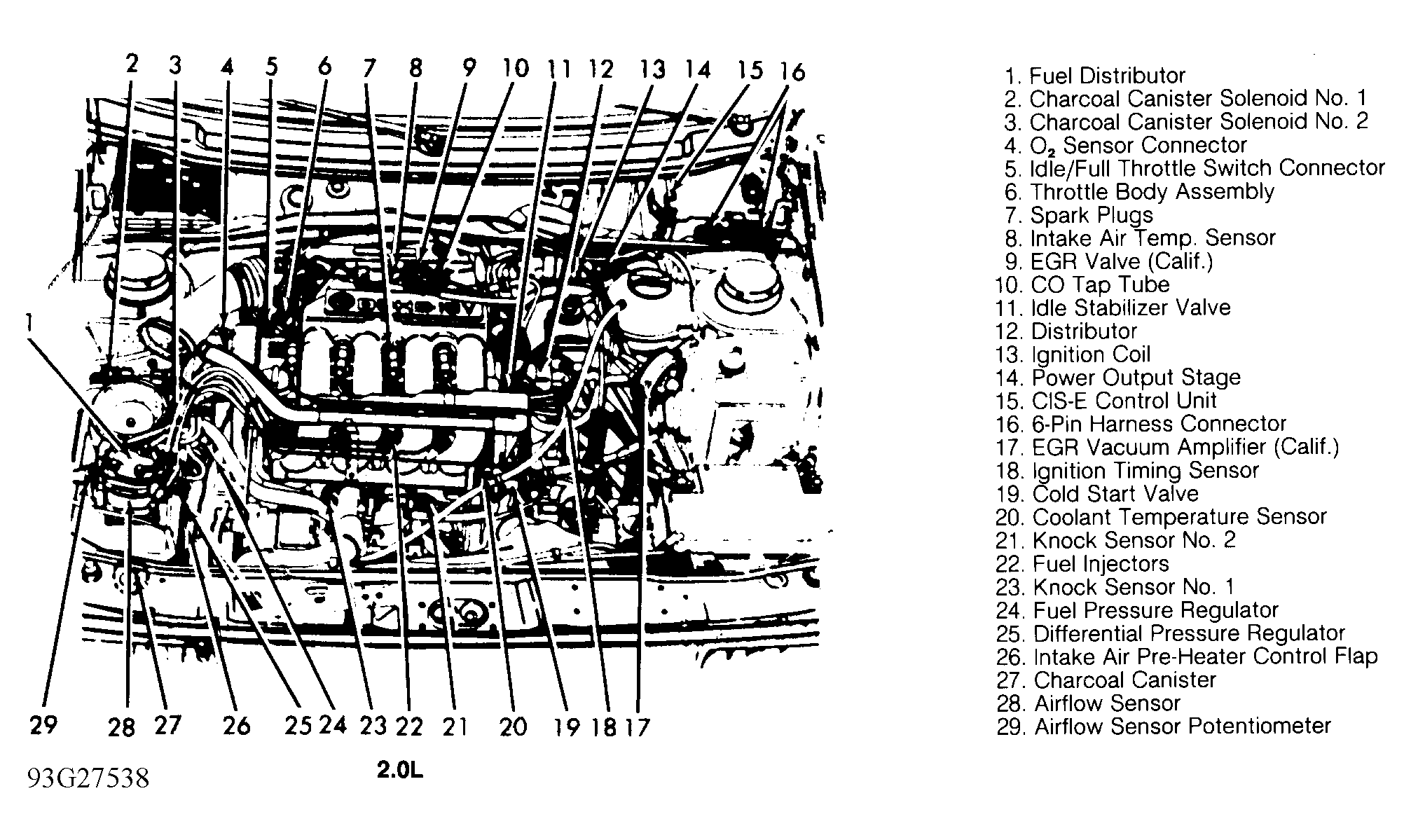

CIS-E Control Unit On left plenum panel. See Figure .
Cooling Fan After-Run Control Unit On fuse/relay panel. See Figure .

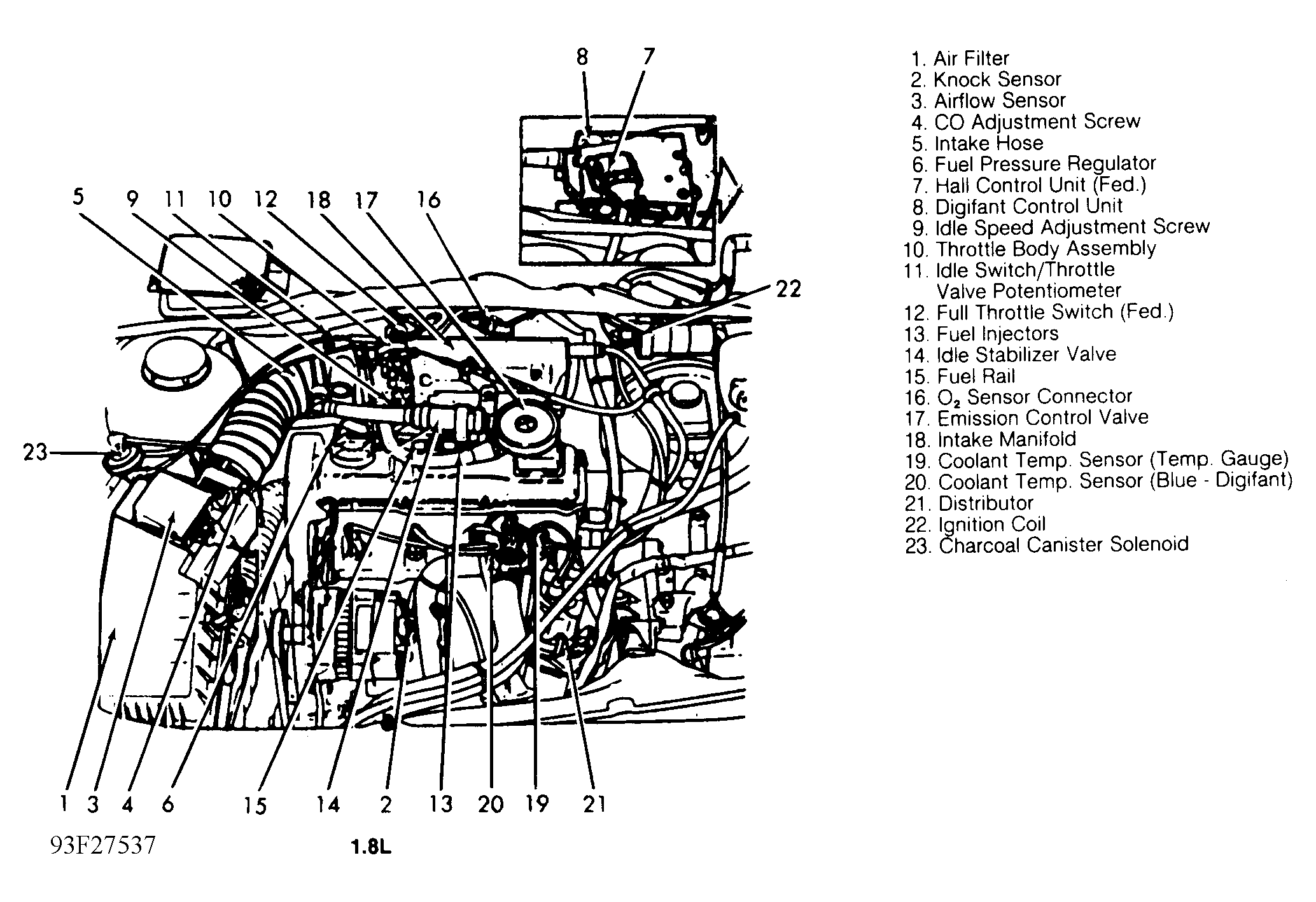

Digifant Control Unit On left plenum panel. See Figure .
Hall Control Unit (Fed.) Mounted on Digifant control unit. See Figure .
Seat Belt Warning System Control Unit (Jetta 2.0L & GTI 2.0L) On fuse/relay panel. See Figure .
