Steering Column: Description

Vanagon has an energy-absorbing 2-piece steering column, attached to the dash with brackets and to floorboard with a boot flange. Lower steering shaft connects to steering gear. See Fig 1 .

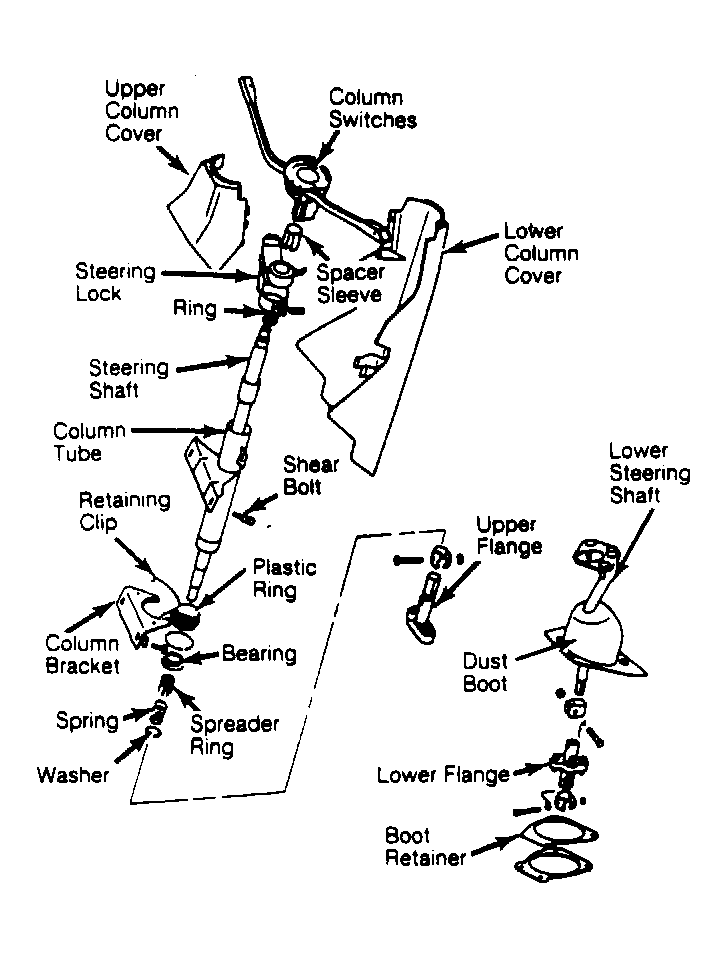

Fig 1: Identifying Steering Column Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.
