Wiring Diagrams

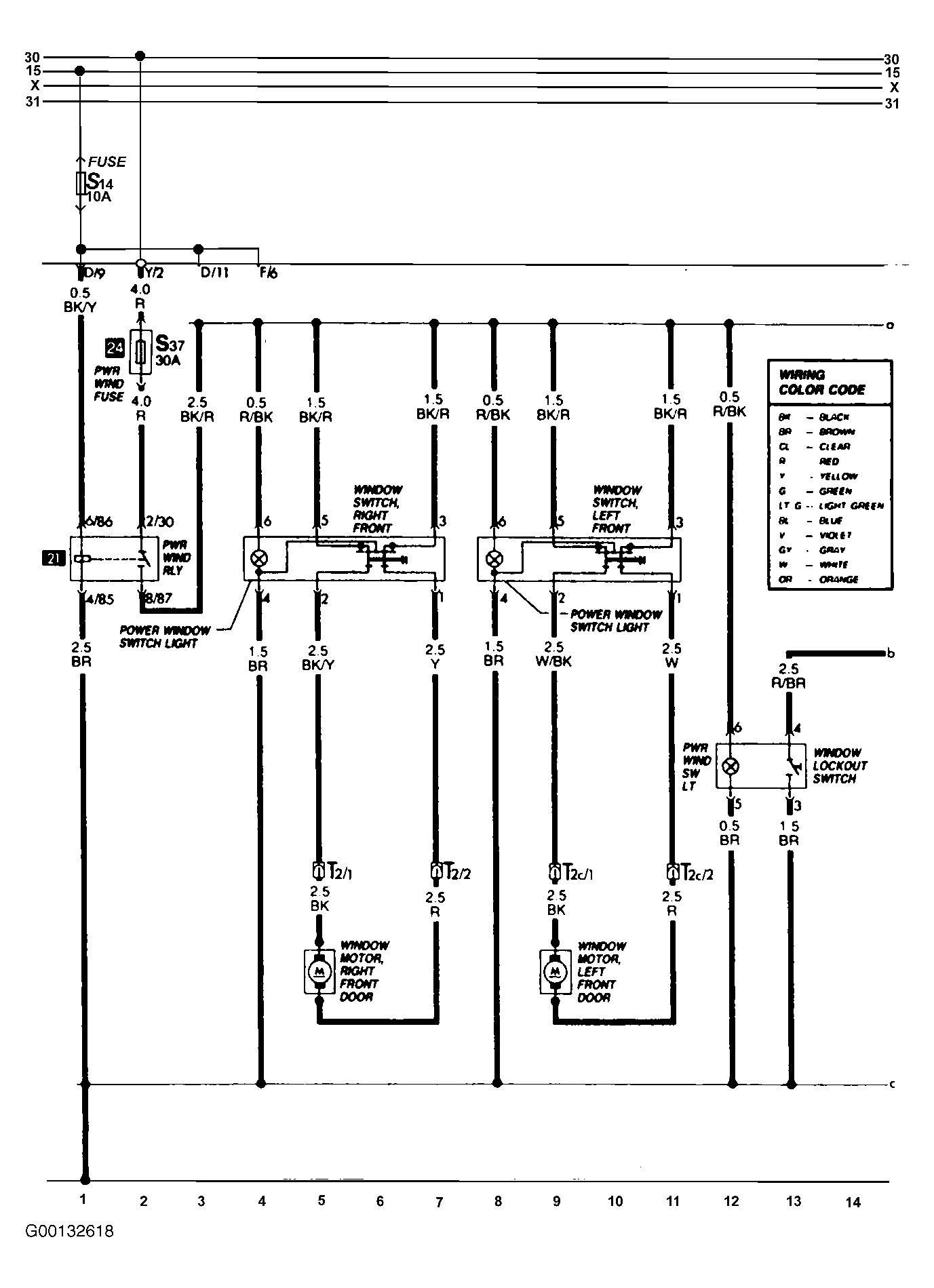

Fig 1: Power Window Circuit Wiring Diagram (1 Of 2)
G00132618Courtesy of VOLKSWAGEN UNITED STATES, INC.

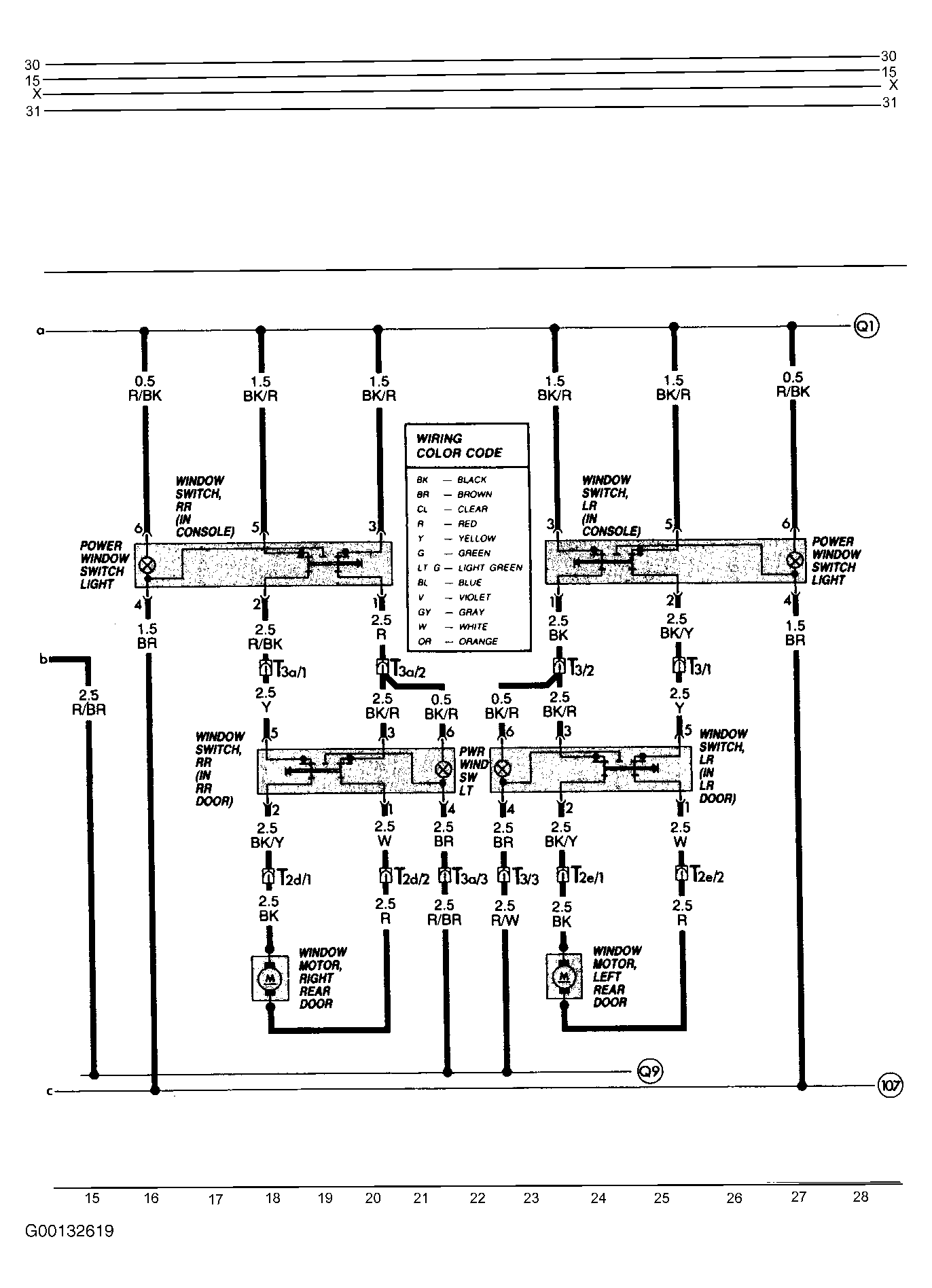

Fig 2: Power Window Circuit Wiring Diagram (2 Of 2)
G00132619Courtesy of VOLKSWAGEN UNITED STATES, INC.
