Central Locking Switch Check

Leave Black (-) test lead connected to terminal No. 31 (Brown wire). Connect Red (+) lead to terminal No. 26 (Red/Yellow wire). If battery voltage is indicated, replace central locking switch or switches as necessary. If battery voltage is not indicated, replace power window control unit.

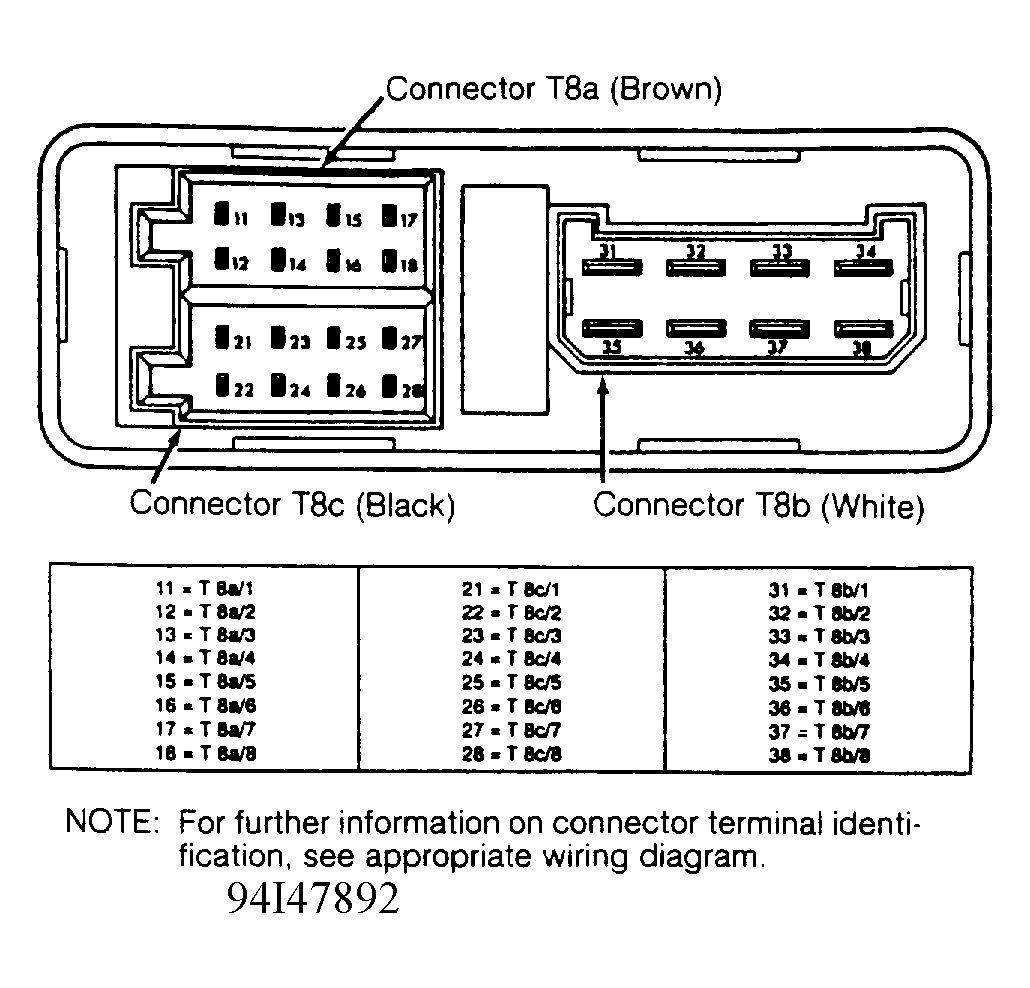

Fig 1: Identifying Power Window Switch Connector Terminals

Courtesy of VOLKSWAGEN UNITED STATES, INC.
