Hydraulic System Bleeding

  1. Start engine and let idle. Ensure fluid is at proper level. Turn steering wheel from lock to lock several times quickly.
  2. Continue until fluid level remains at reservoir mark. Ensure no bubbles appear in reservoir when steering wheel is turned. Shut off engine. Ensure oil level does not rise more than 3/8" (10 mm).

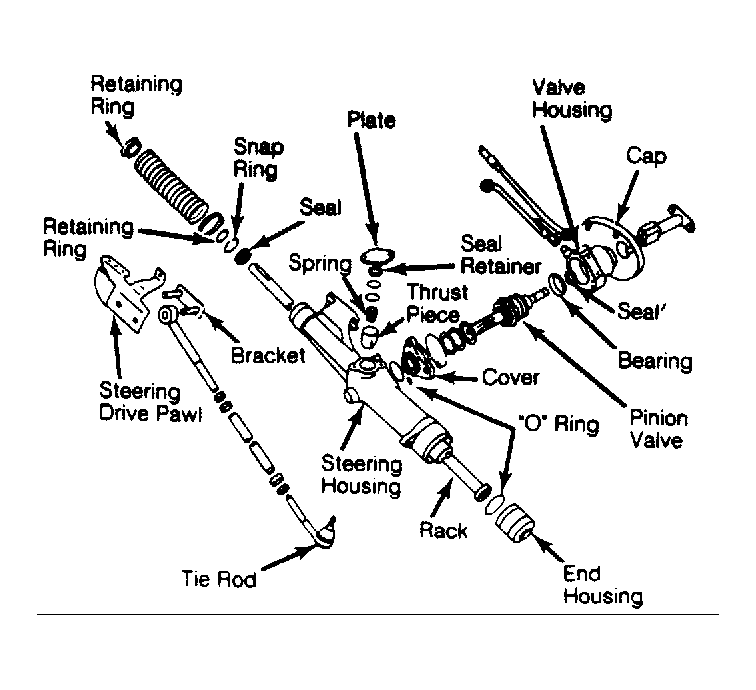

Fig 1: Identifying Typical Power Rack & Pinion Components
G50576Courtesy of VOLKSWAGEN UNITED STATES, INC.
