Wiring Diagrams

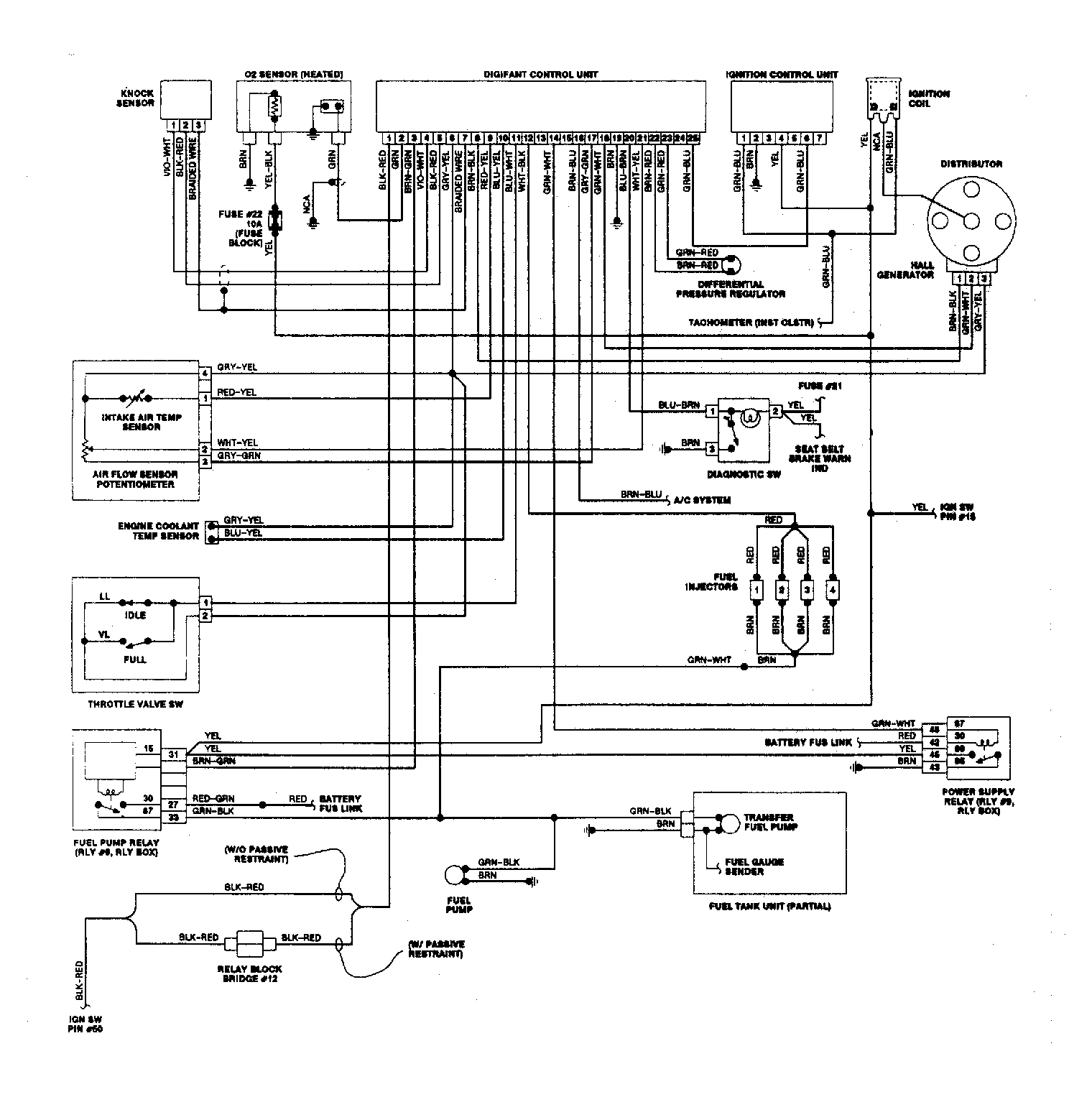

Fig 1: Golf Bosch Digifant II Fuel Injection Wiring Diagram

G95484

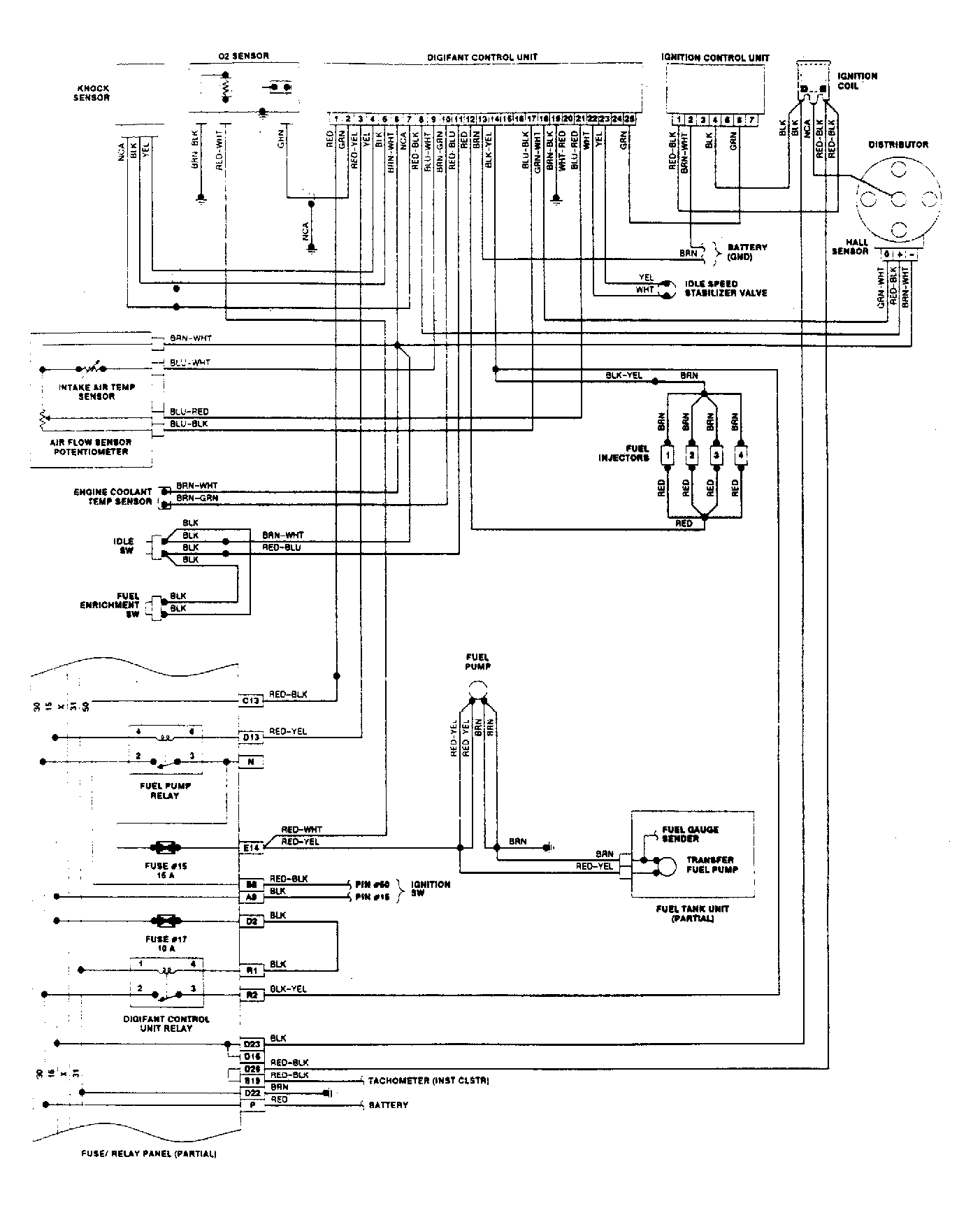

Fig 2: Jetta Bosch Digifant II Fuel Injection Wiring Diagram

G95485

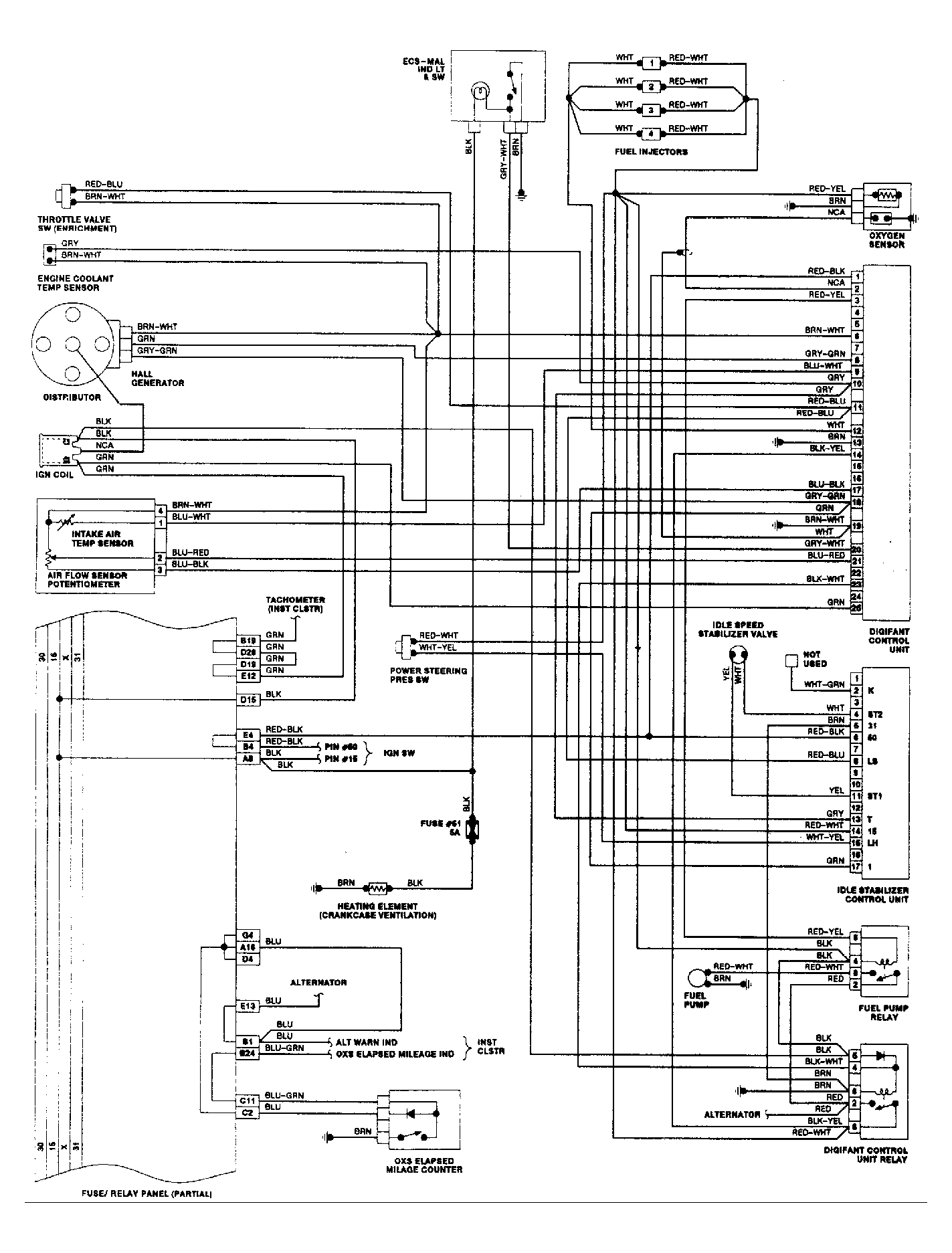

Fig 3: Vanagon Bosch Digifant Fuel Injection Wiring Diagram

G95486
