Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Cruise Control Unit (Scirocco) | Under right side of dash. See Figure . | |
| Dynamic Oil Pressure Control Unit | On back of instrument cluster. | |
| Fuel Injection Control Unit | ||
| 8-Valve | Under right side of dash, behind glove box. | |

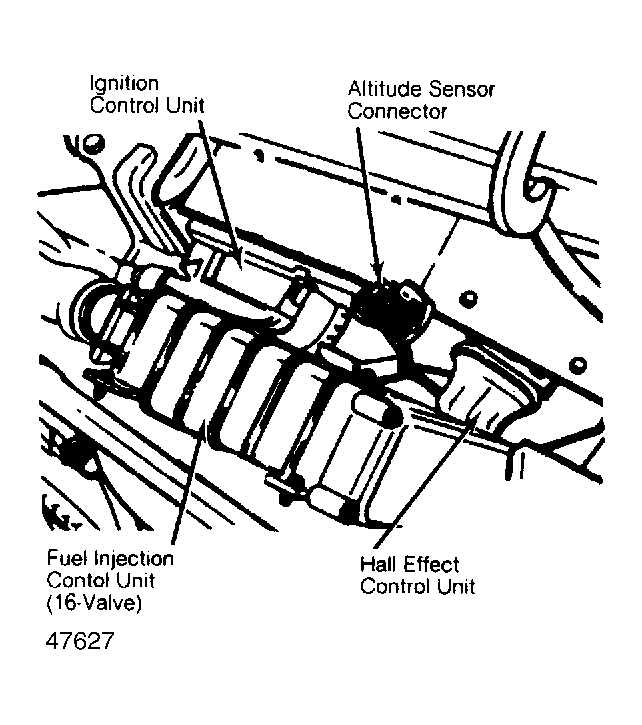

| 16-Valve | In tray are, at left rear of engine compartment. See Figure . | |
| Hall Effect Control Unit | In tray area, at left rear of engine compartment. See Figure . | |
| Idle Stabilizer Control Unit | In tray area, at left rear of engine compartment. | |
| Ignition Control Unit | In tray area, at left rear of engine compartment. See Figure . | |
| Oxygen Sensor Control Unit | ||
| 8-Valve Engine | Under right side of dash, behind glove box. | |
| 16-Valve Engine | In tray area, at left rear of engine compartment. | |
