Wiring Diagrams

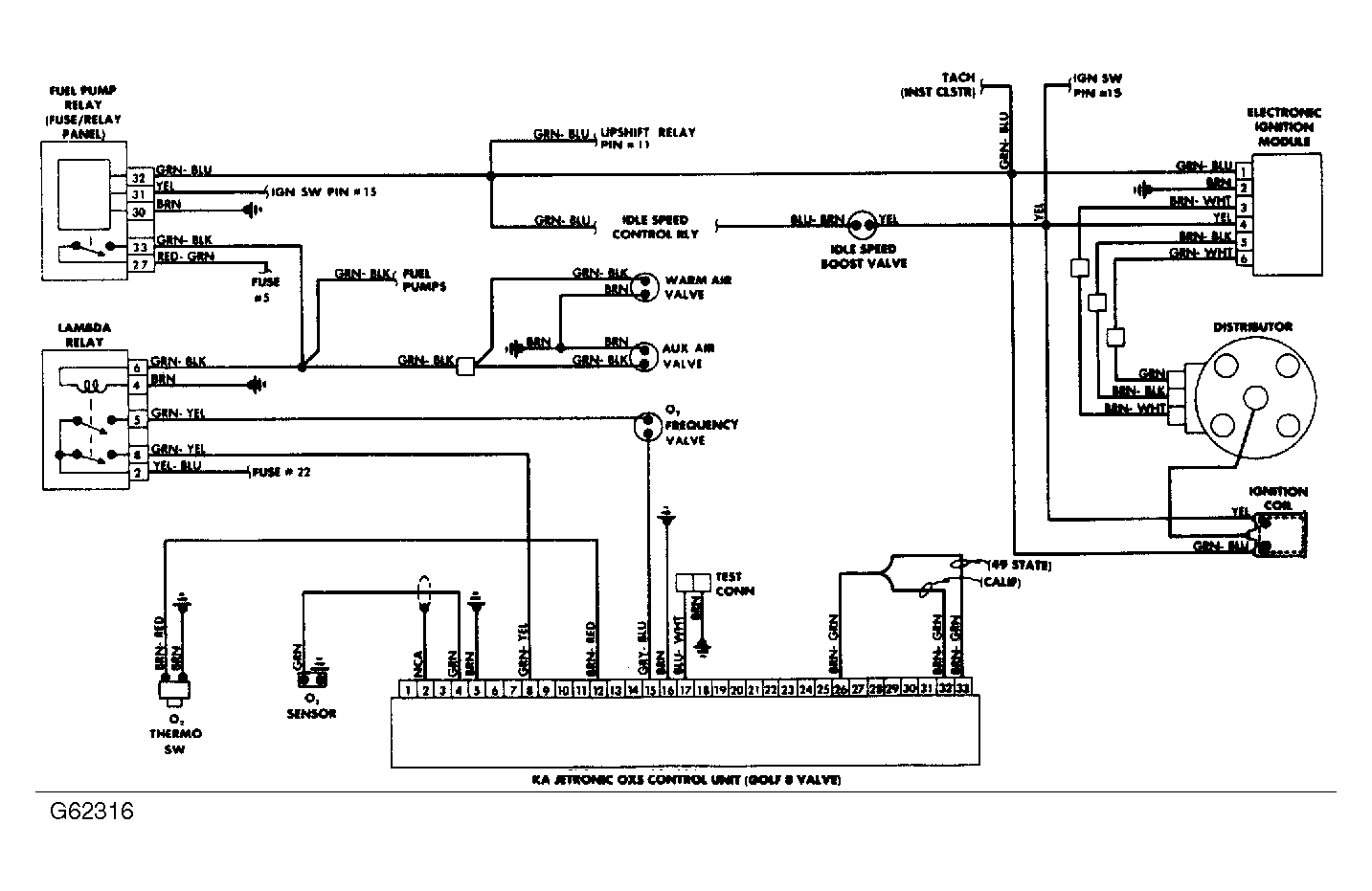

Fig 1: CIS (Lambda) Wiring Diagram for Volkswagen Cabriolet

G62316

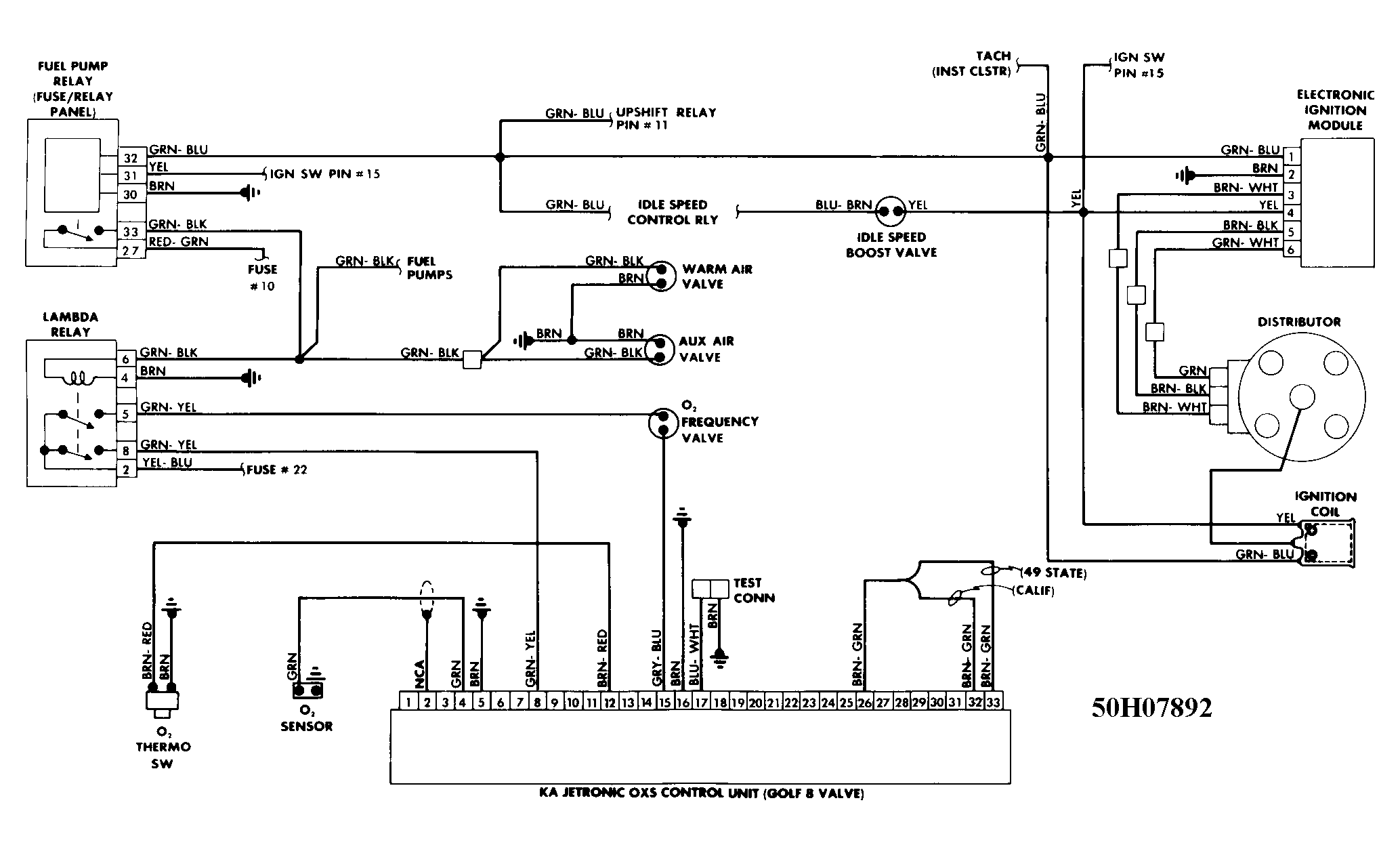

Fig 2: CIS (Lambda) Wiring Diagram for Volkswagen Golf

G50H07892

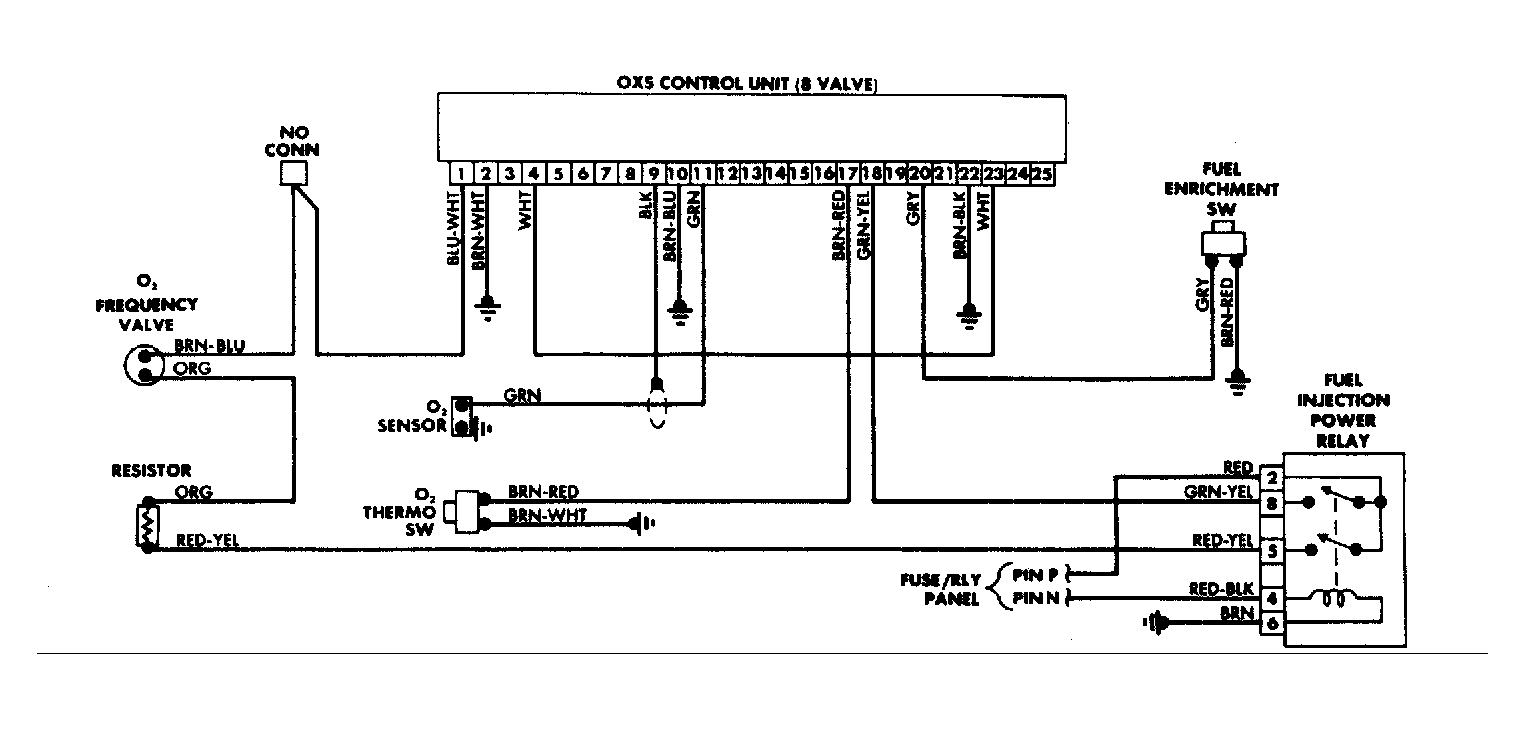

Fig 3: CIS (Lambda) Wiring Diagram for Volkswagen Jetta

G62317
