Volkswagen
>>
1984
>>
Rabbit GL, 1.7 A
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Wiring Diagrams
Wiring Diagrams

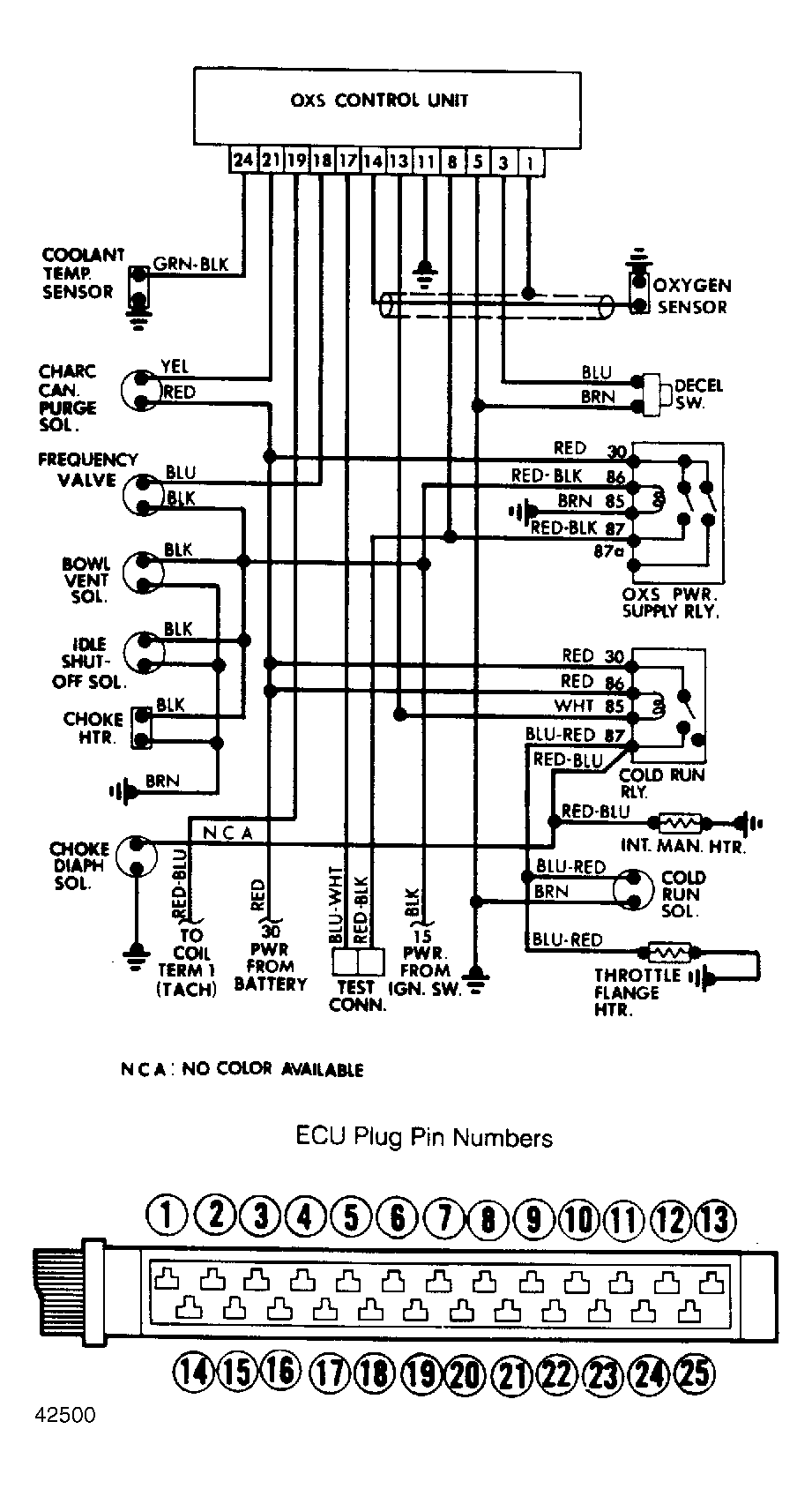

Fig 1: Wiring Diagram for Rabbit Feedback Carburetor Use pin numbers shown at ECU plug for testing procedure.
