Fuse Panel Identification: Notes

NOTE: Two separate 30 amp fuses for power windows & air conditioning are placed above fuse panel.

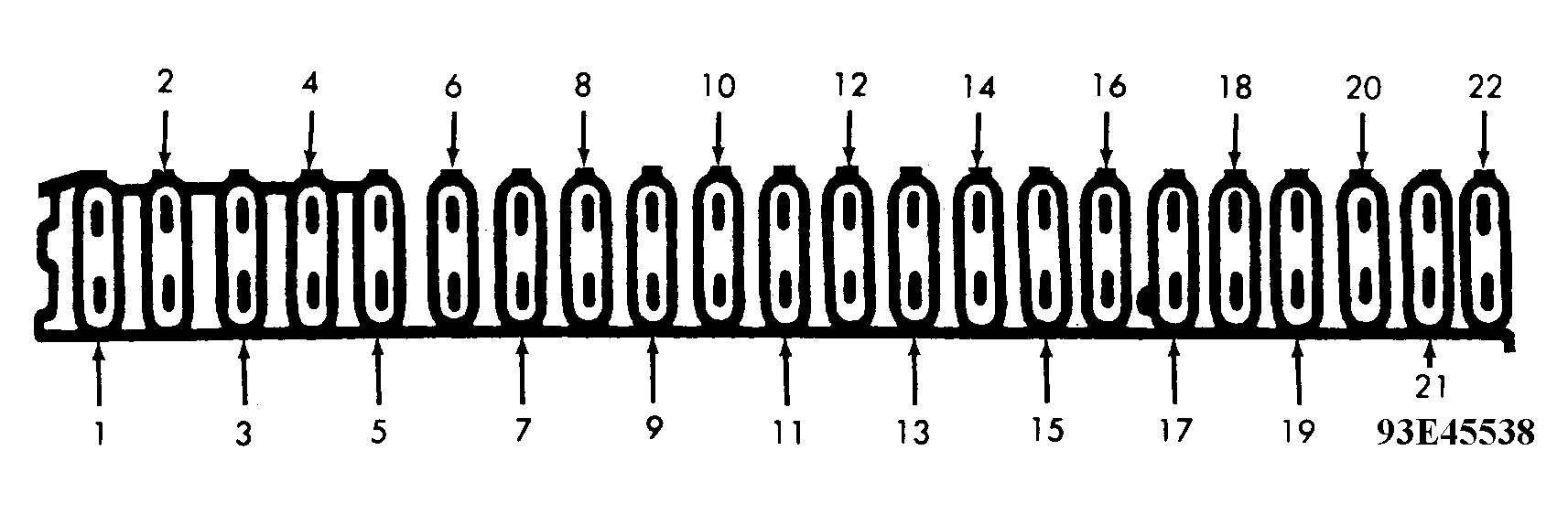

Fig 1: Fuse Panel Identification
G93E45538Courtesy of VOLKSWAGEN UNITED STATES, INC.
