Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location | |
|---|---|---|
| Back-Up Light Switch (Man. Trans.) | On transaxle. | |
| Brake/Stop Light Switch | On master cylinder. | |
| Cooling Fan Thermo Switch | Left side of radiator, just below center. | |
| Dynamic Oil Pressure Switches | ||

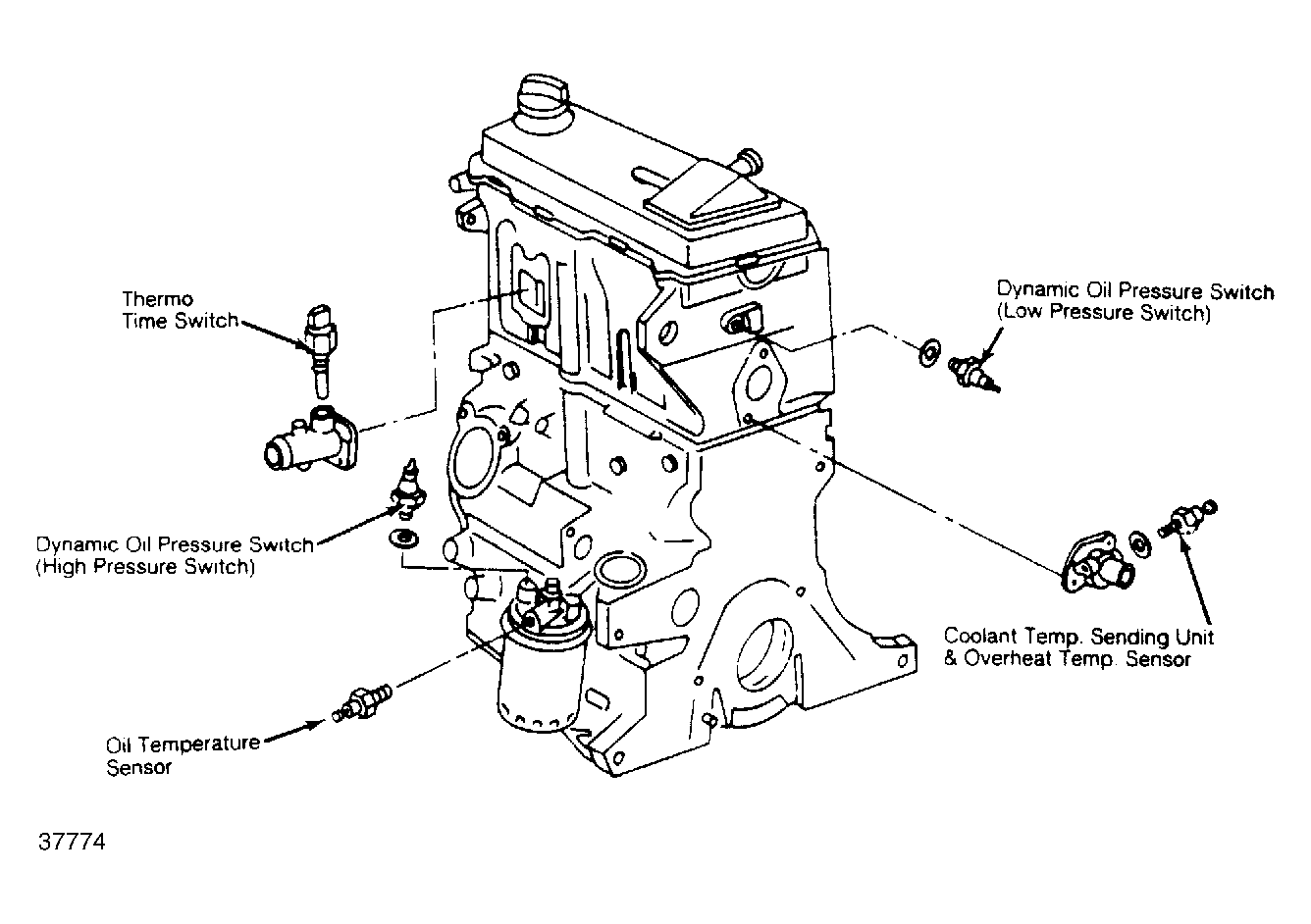

| Low Pressure Switch | At rear of cylinder head. See Figure . | |
| High Pressure Switch | On oil filter bracket. See Figure . | |
| Neutral/Start Switch (Auto. Trans.) | Under console, at bottom of selector lever. | |
| Oxygen Sensor Thermo Switch | In catalytic converter. | |
| Parking Brake Switch | At base of parking brake lever. | |
| Thermo Time Switch | In coolant supply flange between No. 1 & No. 2 cylinders. See Figure . | |
| Upshift Indicator Pressure Switch | In vacuum line to distributor vacuum chamber. | |
