Engine Compartment

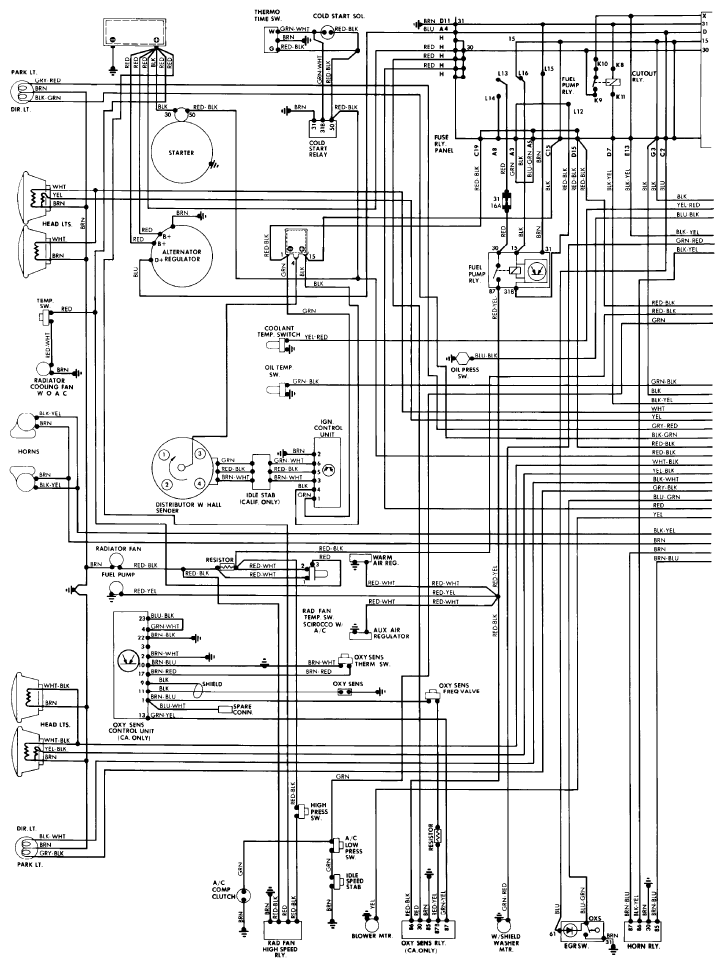

Fig 1: Wiring Diagram - Volkswagen SCIROCCO (1 of 4)

G09304580

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
