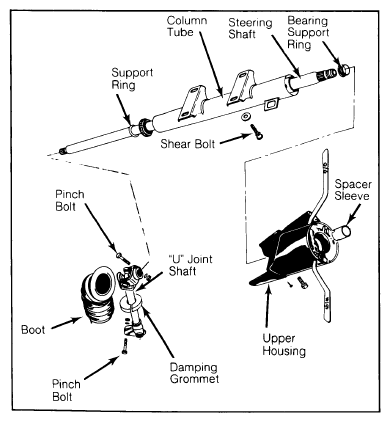

Steering Column Assembly: Removal
- Disconnect battery ground cable. Remove steering wheel. See Volkswagen in Steering Wheel & Column Switches article in this Section.
- Remove socket head bolt and Phillips head screw from switch housing recess. Tilt switch unit toward instrument panel. Pry off spacer sleeve on steering column.
- Pull switch unit up enough to disconnect wires. Remove switch unit from column. Disconnect steering shaft from "U" joint shaft. Disconnect brake pedal push rod.
- Separate clutch pedal from actuating cable under instrument panel. Push leaf spring retainer clip down with a screwdriver and disengage it from mounting slot.
- Remove bolts retaining column under instrument panel. Shear bolts will have to be centerpunched and drilled out. Pull entire column (with shaft) out of vehicle.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
