Steering Column Assembly: Installation
- To install, reverse removal procedures. Make sure front wheels point straight-ahead before tightening pinch bolt.

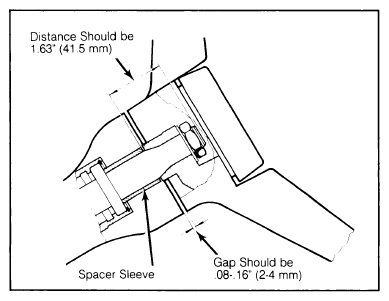

- Before fitting column switch unit, install spacer to dimensions shown in Fig 1 . Adjust both brake pedal and clutch pedal height.
