Sub-System Wiring Diagrams - Fuel Injection Systems
>>
Wiring Diagrams
Wiring Diagrams

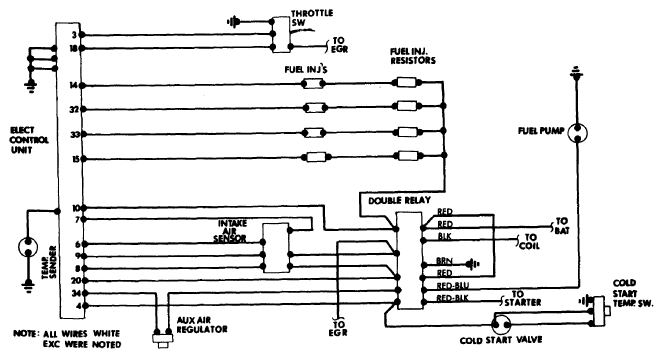

Fig 1: Fuel Injection System Wiring Diagram (Volkswagen Type 1 and Type 2)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
