Relay With Temperature Compensation

With armature in cutin position, adjust bending of spring to "a" 0.008 - 0.020" (0.2 - 0.51 mm), by bending bracket "C" (see Fig 1).

1. 2) With armature in cutout position, adjust gap "b" to 0.015 - 0.047" (0.38 - 1.19 mm) by bending "B" (stationary relay point). The necessary pressure "c" for closing the points has to be 4.22 ozs. (see Fig 1).
2. 3) Adjust cutin voltage by bending bracket "C". If further adjustment is needed, bend stop "D". To increase reverse current, decrease clearance "a" by bending "B" and vice versa.

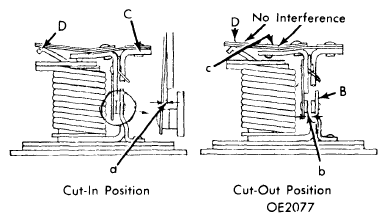

   Fig 1: Cut-Out Relay With Temperature Compensation
