Steering Column Dash Inner Seal Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove front sub frame/engine cradle. Refer to FRONT SUB FRAME/ENGINE CRADLE REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

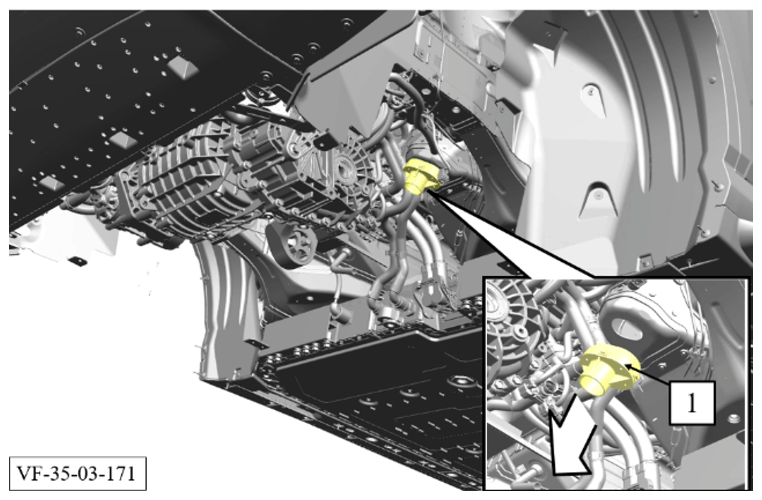

2. Remove the steering column dash inner seal (1) in the direction of the arrow.

   Installation note: Coat the steering column dash seal (1) with suitable assembly lubricant before install.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front sub frame/engine cradle. Refer to FRONT SUB FRAME/ENGINE CRADLE REMOVAL AND INSTALLATION/REPLACEMENT
3. Perform wheel alignment adjustment the front axle. Refer to WHEEL ALIGNMENT ADJUSTMENT - FRONT AXLE
4. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING IDS IN SERVICE
