Power Outlet Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove right c-pillar lower trim panel. Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

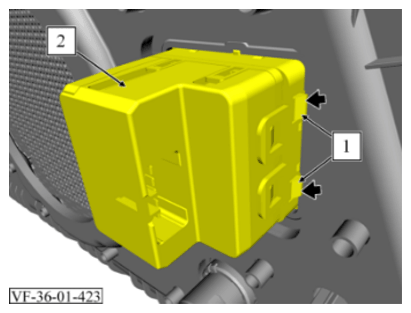

2. Press latching lugs (1) in the direction of the arrow and unthread AC socket (2) on the left side.

   Courtesy of VINFAST, LLC

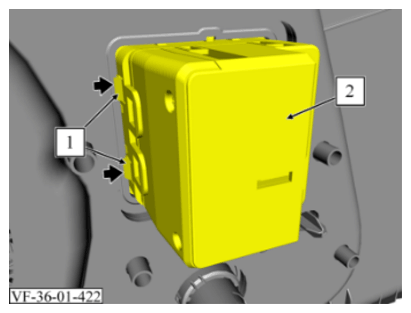

3. Press latching lugs (1) in the direction of the arrow and unthread AC power outlet (2) on the right side.

   Courtesy of VINFAST, LLC

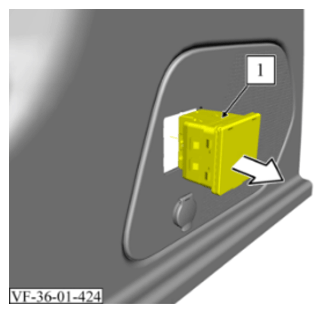

4. Remove the AC socket (1) in the direction of the arrow.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following
2. Install right c-pillar lower trim panel. Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
