Battery Negative Cable Removal And Installation/Replacement
Mobile Repair Possible: Van/Car
NOTE:
Damage
Failure to follow specified procedures may result in damage to the vehicle's electrical system.
Failure to follow specified procedures may result in damage to the vehicle's electrical system.
- Read Warnings and Instructions before disconnecting the battery.
- Refer to DANGER AND WARNINGS
- Refer to General Warnings and Safety Regulations, See HIGH VOLTAGE SAFETY AND SYSTEM INFORMATION .
Removal Procedure:
- Remove Front Trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
- Only loosen nut (1) do not remove it.
Torque: 6 Nm
- Only loosen Nut (1) do not remove it.
Torque: 11 Nm
- Remove Nut (2).
Torque: 8 Nm
- Unlock and disconnect electrical connector (3) from the battery sensor.
- Remove 12V Battery Negative Cable (1).
Replacement Procedure:

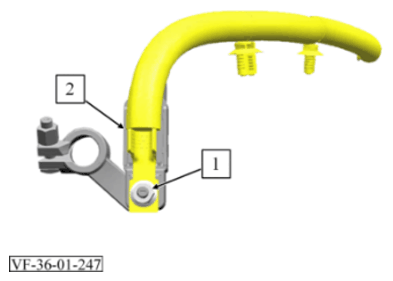

- Remove nut (1).
Torque: 11 Nm
- Rebuild 12V Battery Sensor (2).
Installation Procedure:
- Installation is the reverse of removal procedure, noting the following
All fasteners must be tightened to torque specification!
- Install Front Trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
