Damaged Wire And Insulation Repairs

Mobile Repair Possible: Van/Car

Special Tools Required:

Wire stripper - No part number

Crimping tool - No part number

WARNING: Electricity hazard
Failure to follow specified procedures may result in death or serious injury from electric shock when working on or near high-voltage components.

Only authorized and appropriately trained persons may carry out work on high-voltage vehicles and components.
Perform High Voltage isolation procedure prior to commencing work
Ensure appropriate Personal Protective Equipment is worn until the system is verified safe

WARNING: Overhead Suspended Load and Falling Parts
Failure to follow specified procedures may result in death or serious injury when elevated load or components are incorrectly secured/supported.

All lifting equipment weight rating must meet or exceed the weight of the vehicle and any contents
The lifting equipment must be in good condition and approved for use
Only lift the vehicle from the identified lift points
Ensure vehicle is stable before performing any work underneath
Ensure there are no loose components which may fall
Always use personal protective equipment (PPE)
Seek assistance when handling larger components

Repair:

Repair note: HV and SRS cables must not be repaired. These must always be replaced! In case of severe damage, replace the wiring harness.

Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION

Courtesy of VINFAST, LLC

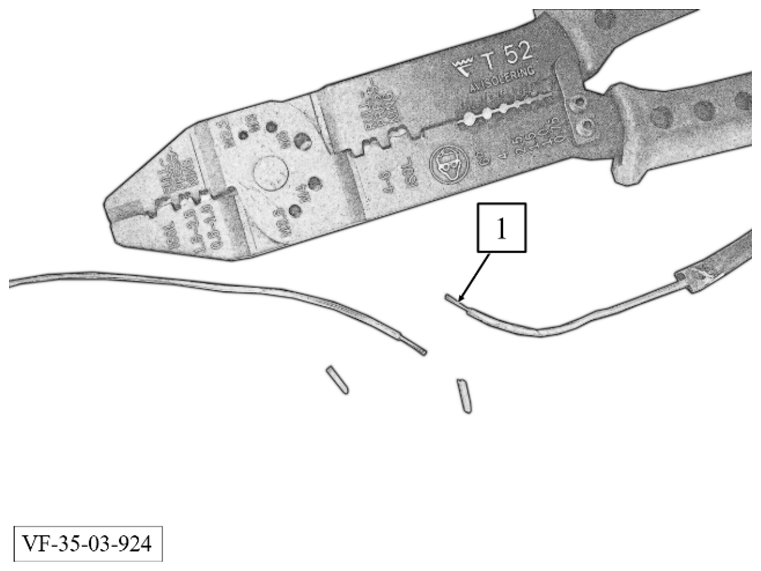

Strip the insulation from the ends of the repair cable and the vehicle's own cable by at least 7 mm.

Courtesy of VINFAST, LLC

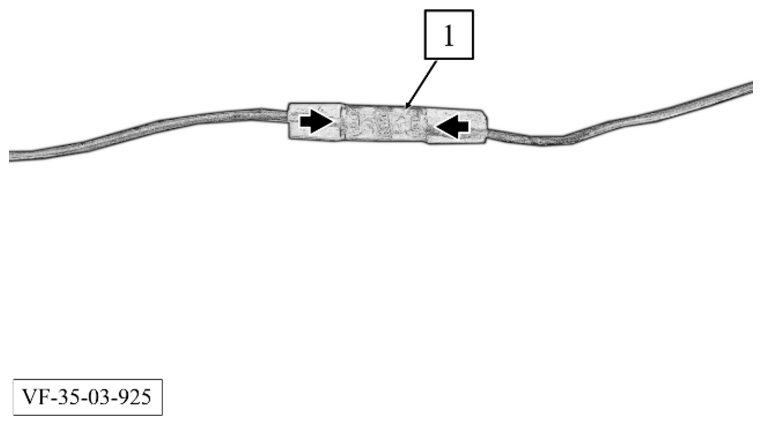

Insert stripped ends into crimp connectors and crimp using crimping tool.

Courtesy of VINFAST, LLC

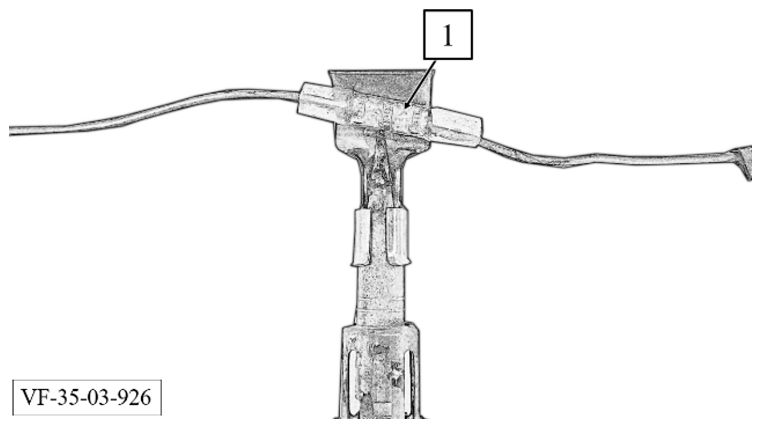

Seal the crimp connector (1) using a hot-air gun.
Repair note: Make sure that the crimp connectors are not directly next to each other when several cables are to be repaired. To prevent the circumference of the cable from becoming too large, arrange the crimp connectors slightly offset.

If the repair area was previously wrapped, this area must be re-wrapped with yellow insulating tape after the repair.

If necessary, secure the repaired wiring harness with a cable tie to prevent rattling noises during driving.
