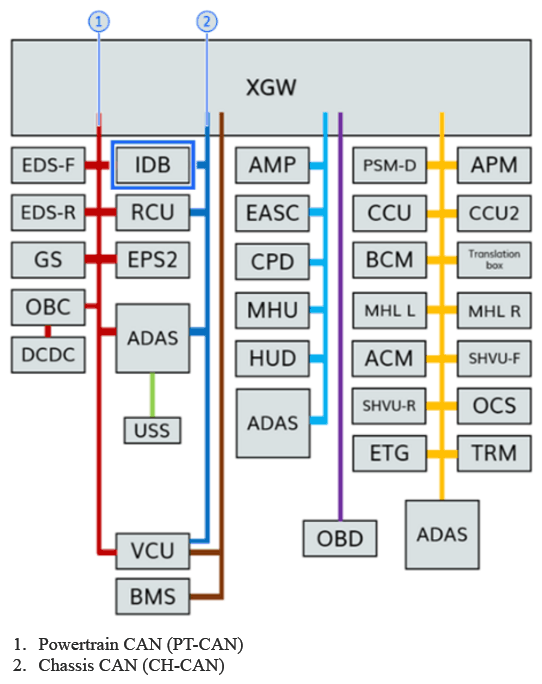

Integration in communication network

The integrated dynamic brake (IDB) system communicates within 2 controller area network CAN bus systems.

All Information and messages between these buses are exchanged via a central gateway module - XGW.

Courtesy of VINFAST, LLC
