Hood Frunk Weatherstrip Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

  1. Open the Hood.

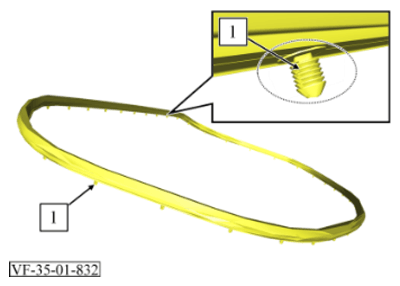

  2. Using a suitable tool, detach the weatherstrip retainers from the luggage compartment and remove the weatherstrip (1).
G16023736Courtesy of VINFAST, LLC

Installation note: When installing, make sure that the weatherstrip retainers (1) are not damaged.

Installation Procedure:

  1. Installation is the reverse of removal procedure.
