HVAC Component Reference
HVAC Component Reference:
- Condenser
- Refrigerant pipes
- Radiator and fan
- AC compressor
- Sunlight sensor
- Heater pipes from radiator
- HVAC assembly
- HV heater
- Air condition cut-off valve
- Chiller, for battery cooling
- Climate control unit - CCU
- Outside temperature sensor
- Windscreen defrost outlet
- Face outlets
- Foot outlets
- Side defrost outlet
- Rear air central vent
- Rear footwell air outlet
- Drain tube
- Cabin filter
- Ionizer
- AQS (air quality sensor)

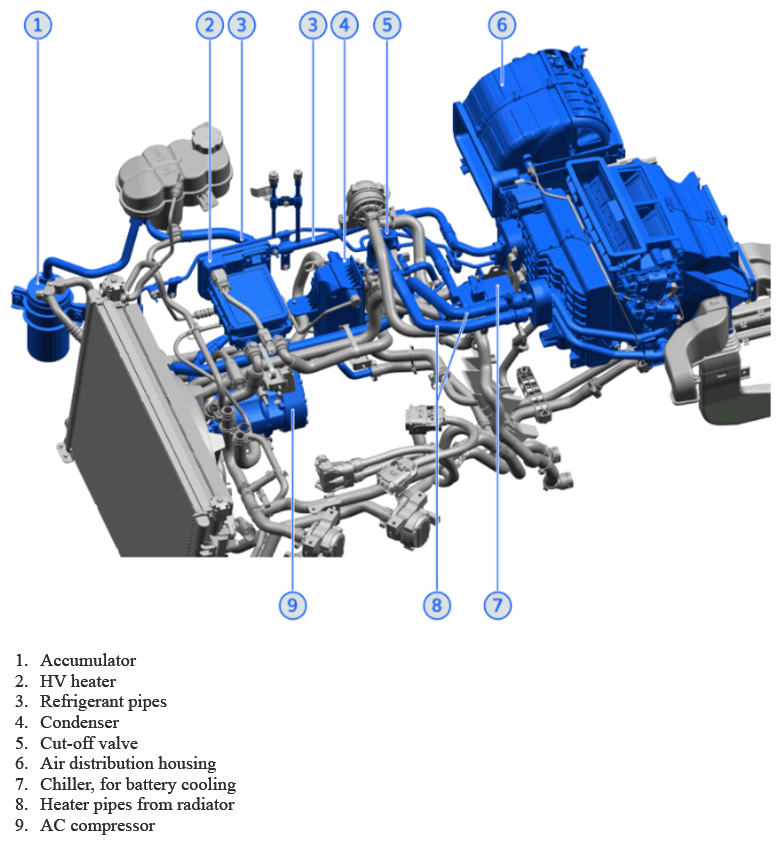

System Overview: Installation Position of Main Components in Front:

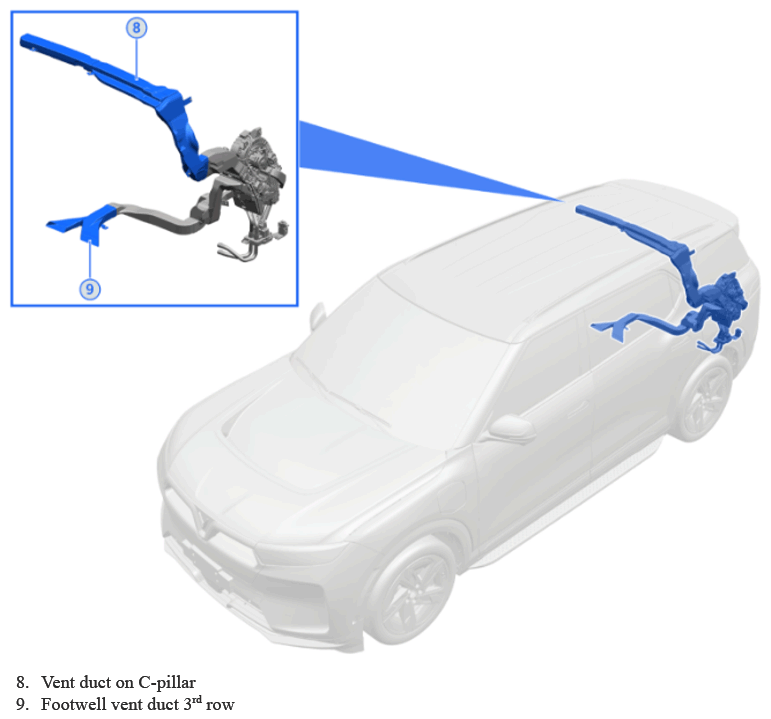

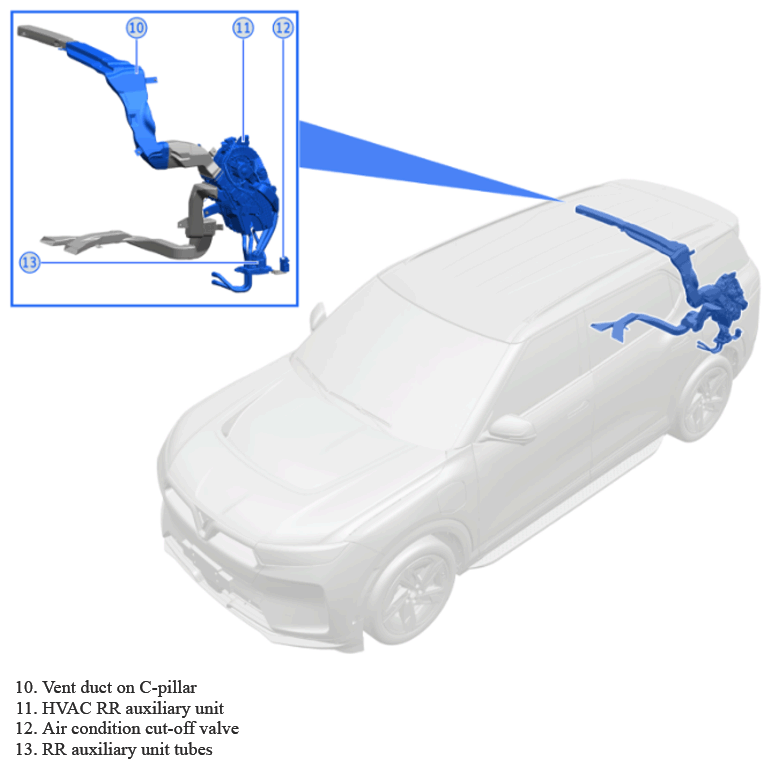

Main Components Rear:
NOTE:
Second HVAC is installed in equipment level "Plus".

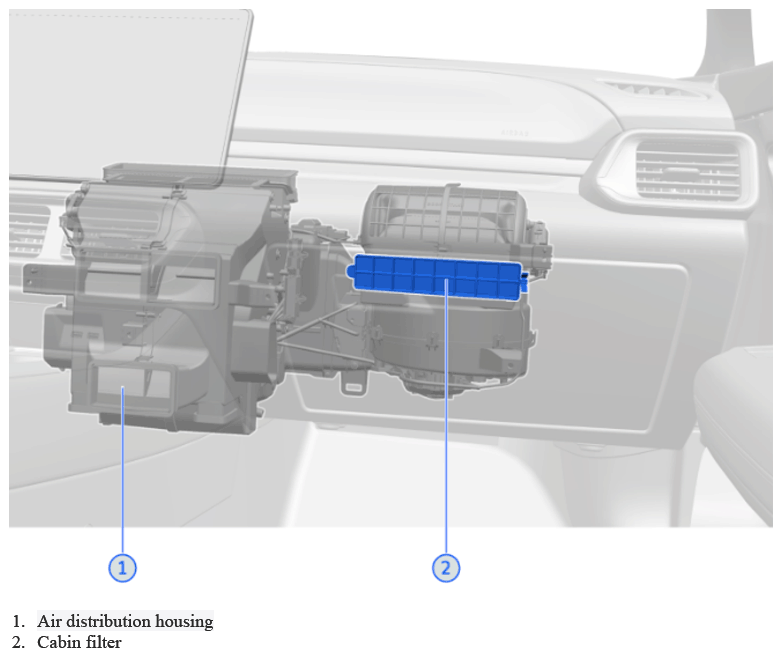

Installation Location of Cabin Filter:

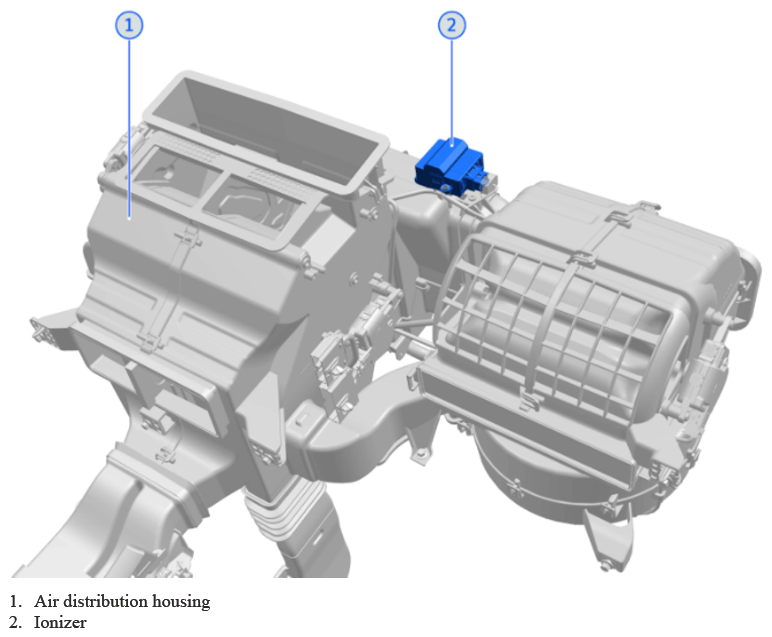

Installation Position of Ionizer:

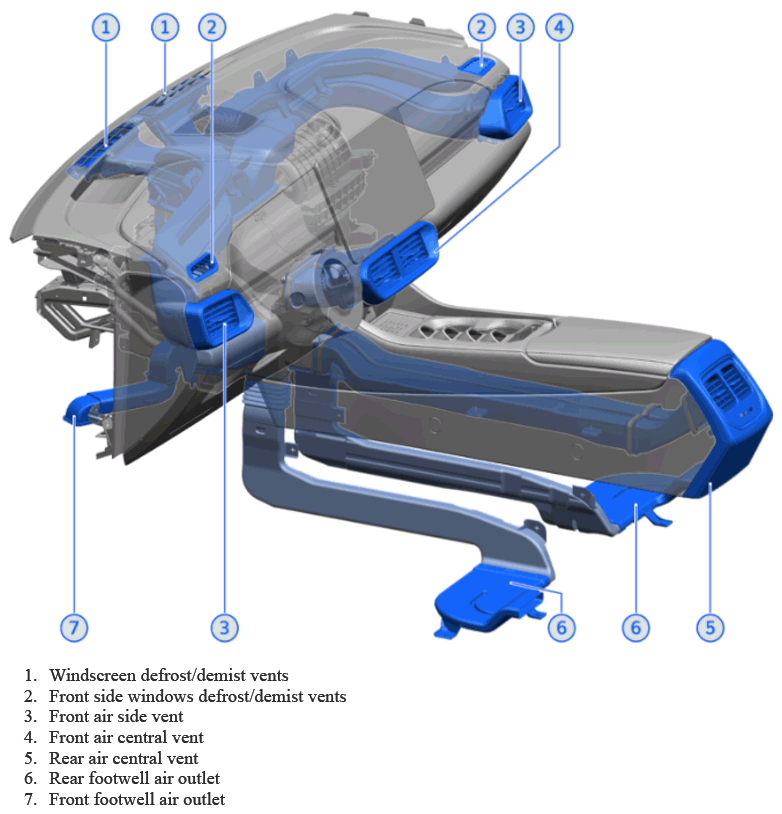

Air Vents:
Compressor and Operating Materials:
WARNING:
Refrigerant system hazard
- Only properly trained and authorized persons may carry out work on air conditioning systems
- Always use personal protective equipment (PPE)
Mobile repair possible: No
| Item | Specification |
|---|---|
| Refrigerant - Vietnam | R-134A (also known as HFC-134A) |
| Refrigerant - Rest of World (ROW) | R-1234yf |
| AC Compressor Oil - Vietnam | PAG oil 46 SP - A2, P/N SVC30000215 |
| AC Compressor Oil - Rest of World (ROW) | PAG oil 46 SP - A2, P/N SVC30000215 |
Details of the amount of refrigerant for repairs can be found in the currently valid repair guide. Refer to APPROXIMATE FLUID CAPACITIES AND SPECIFICATIONS .
Part numbers for
- R134a: FLU10006075
- R1234yf: FLU3011005
