Windshield Rain And Light Sensor Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove inside rearview mirror wiring harness cover. Refer to INSIDE REARVIEW MIRROR WIRING HARNESS COVER REMOVAL AND INSTALLATION/REPLACEMENT

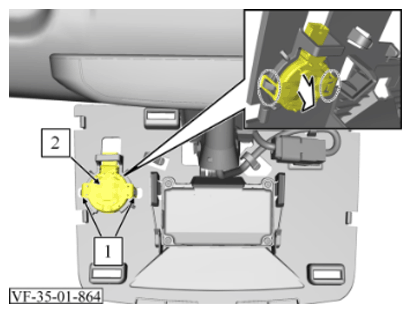

2. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

3. Slightly bend open fixings (1) and remove windshield rain and light sensor (2)

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install inside rearview mirror wiring harness cover. Refer to INSIDE REARVIEW MIRROR WIRING HARNESS COVER REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING IDS IN SERVICE
