Technical Description - Door Opening Warning

Door opening warning (DOW) is a driver assistance system that warns the occupants inside a stationary vehicle when other road users are approaching the vehicle from behind and there is a high risk of collision. As a no autonomy system, this feature only assists occupants to safely exit the vehicle. It uses radars in the rear bumpers to detect oncoming traffic. The system uses LEDs on the side mirrors to warn the driver, and if an attempt is made to open the driver's door, it will be locked once. When it is locked, the door can only be opened if the driver pulls the handle three times. The doors of all other occupants are not locked. Additionally, ambient lighting is used as a warning mechanism, in combination with directional audible warnings for everybody inside the vehicle.

The DOW function detects and predicts the path of the following target objects:

Cars
Motorcycles
Bicycles
Shopping carts

Activation/Deactivation:

Driver can enable or disable the DOW function from MHU
Activate feature when the vehicle is traveling at a speed less than 0.5 m/s
Deactivate feature when the vehicle is traveling at a speed greater than 0.7 m/s
DOW detects and estimates the risk of collision with incoming objects when a door is being opened
The feature reads the signal to check the status of all doors from the BCM
The function causes LEDs to flash on the side mirror when a risk of collision is identified
The function sets off an audible alarm when a risk of collision is detected and the door is opened
The function triggers an AMBER light at the opened door if a risk of collision is identified
Driver can set Mode (Off/On)
If the function detects any failure of itself or ADAS systems, it triggers a MALFUNCTION warning, and sends it to the infotainment system, to alert the driver. If the ADAS system detects some hardware/software failure that prevents the function from working properly, the 'function not available' alert is sent to HMI/IPC, etc.

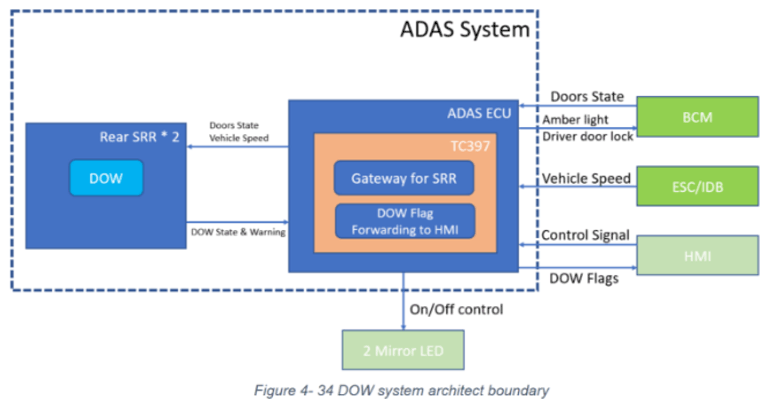

System Architecture:

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

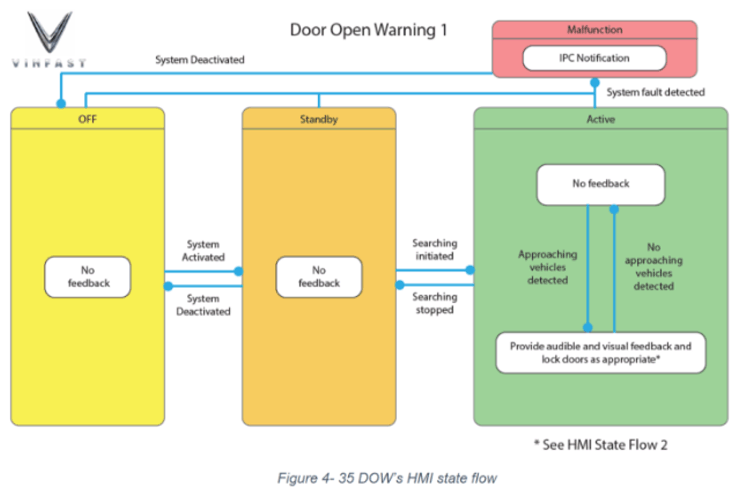

HMI state flow

Courtesy of VINFAST, LLC

Operation: (Use Cases):

Door opening warning (DOW) is a driver assistance system that warns an occupant of an approaching road user prior to opening a vehicle door. The system assists occupants to safely exit a vehicle and prevent serious accidents associated with vehicle doors opening in front of oncoming traffic.

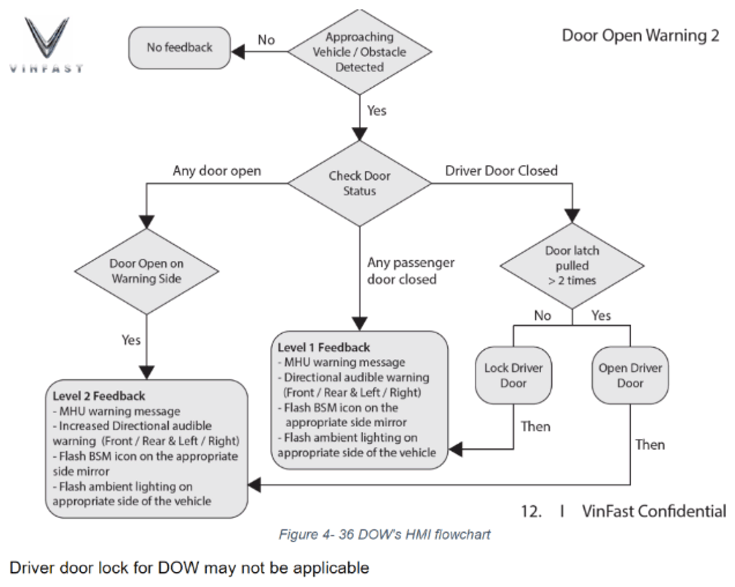

When the door opening warning system detects any other road users approaching the vehicle from behind and the risk of collision is high, then the HMI gives a warning sign on the left if the risk is coming from the left, on the right if it is coming from the right, and on both sides if it is coming from both sides.

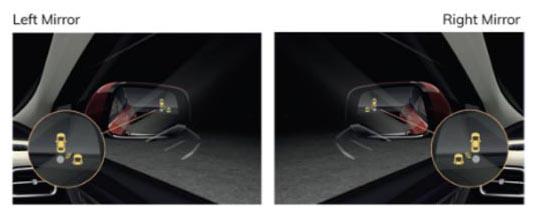

Driver Warning Mirror:

When the DOW is active, the following will occur:

An icon is shown on the mirror on the door on the corresponding side
If the door affected is opened, this icon will start flashing and a chime is heard
If the door is closed, then the icon on the mirror will disappear

Courtesy of VINFAST, LLC

Driver Warning MHU Screen/CarBuddy:

Sr. No.	Type of warning	Warning icon on MHU screen/CarBuddy
1.	Left side warning when door is closed	Courtesy of VINFAST, LLC
2.	Right side warning when door is closed	Courtesy of VINFAST, LLC
3.	Both side warning when door is closed	Courtesy of VINFAST, LLC
4.	Left side warning when door is opened	Courtesy of VINFAST, LLC
5.	Right side warning when door is opened	Courtesy of VINFAST, LLC
6.	Both side warning when door is opened	Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Turn Door Opening Warning On/Off:

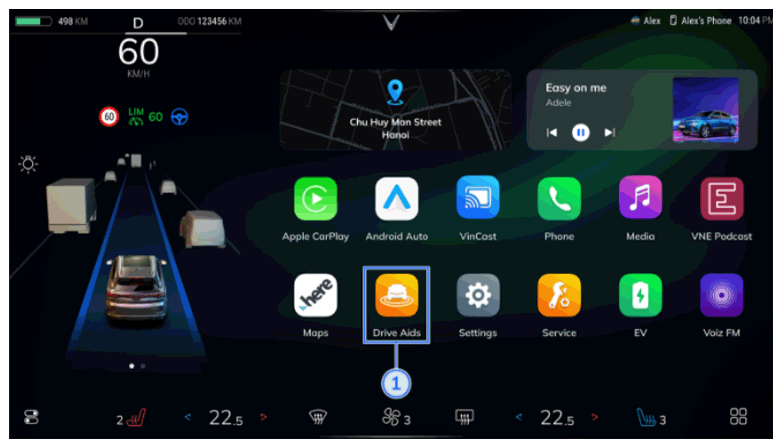

Open Driver Aids app from home page

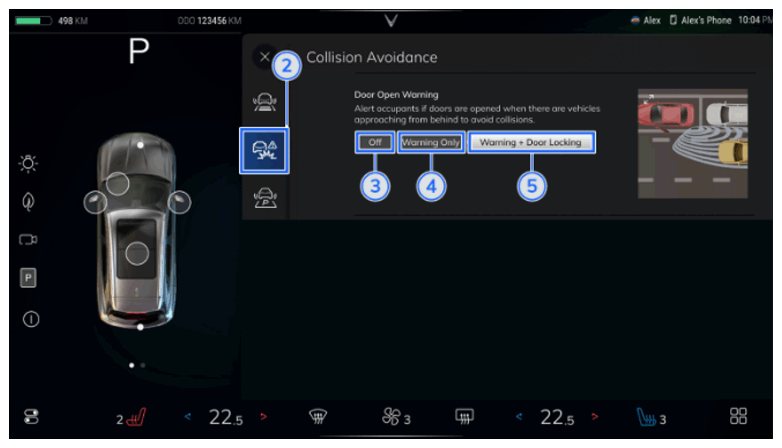

Open the Collision Avoidance menu
Select "Off" to switch the system off
Select "Warning Only" to receive only a warning that an object is approaching
Select Warning + Door Locking to receive a warning that an object is approaching and to activate the automatic door locking function
