Front Seat Belt Retractor Removal And Installation/Replacement

Mobile Repair Possible: Van/Car

WARNING: Explosive materials
Failure to follow specified procedures may result in death or serious injury due to improper handling of seatbelt tensioners possible.

Only appropriately trained persons may carry out work on pyrotechnic components or the Airbag Control Unit.
Perform SRS disabling procedure prior to commencing work.
When replacing components of the SRS system, never install used or non-genuine components.
Pyrotechnic Components must be handled and scrapped appropriately.

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

There is potential for inadvertent deployment of SRS systems during repairs if the system has not been properly disabled. Refer to SRS DISABLING AND ENABLING
NOTE: Ensure the 2-minute wait time has been observed before proceeding to next step.
Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
Remove B-pillar lower trim panel. Refer to B-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

Courtesy of VINFAST, LLC

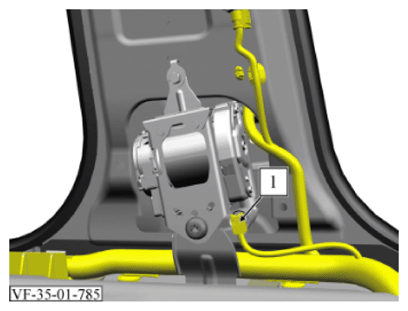

Unlock and disconnect electrical connector (1).

Courtesy of VINFAST, LLC

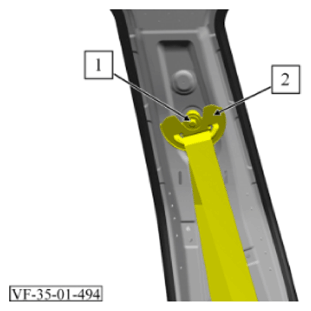

Remove and discard the torque prevailing bolt (1).
Replace with new only.

Torque: 45 Nm

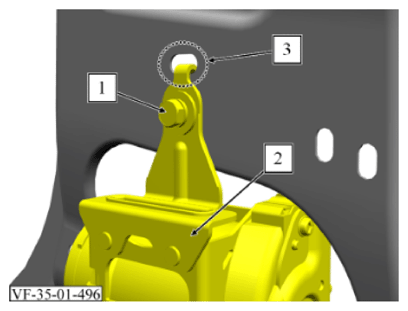

Remove the belt guide (2).

Courtesy of VINFAST, LLC
Remove and discard the torque prevailing bolt (1).
Replace with new only.

Torque: 45 Nm

Courtesy of VINFAST, LLC

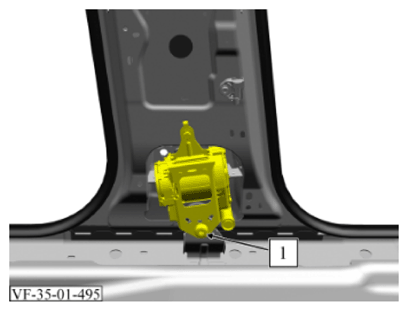

Remove and discard the torque prevailing bolt (1).
Replace with new only.

Torque: 8 Nm
Unhook the seat belt (2) from the indicated area (3) and remove it. Proper care must be taken when handling and disposing of SRS components. Refer to PRETENSIONER HANDLING AND SCRAPPING

Installation Procedure:

NOTE: Safety-relevant procedure step
Failure to discard the specified component(s) may cause damage to the vehicle or vehicle components.

Fasteners highlighted as torque prevailing must be discarded and not re-used
Replace with new bolts only.

Installation is the reverse of removal procedure, noting the following.
All fasteners must be tightened to torque specification!
Install B-pillar lower trim panel. Refer to B-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
