Accelerator Pedal Assembly Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION

   Courtesy of VINFAST, LLC

2. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

3. Remove protective cap (1.)

   Courtesy of VINFAST, LLC

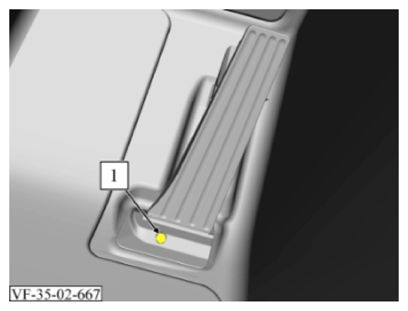

4. Remove screw (1).

   Torque: 8 Nm

   Courtesy of VINFAST, LLC

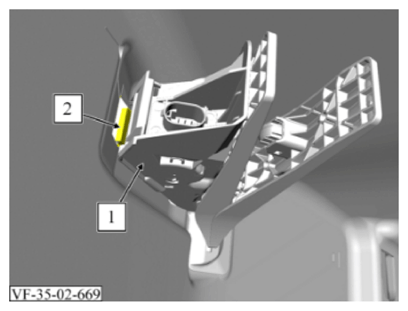

5. Guide out the accelerator pedal (1) from the floor panel carpet (2).

   Courtesy of VINFAST, LLC

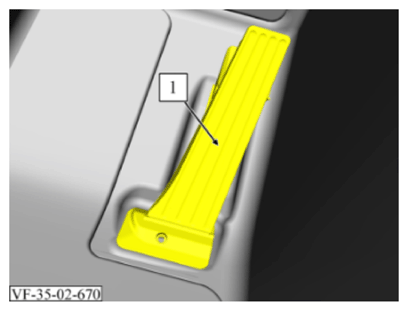

6. Remove the accelerator pedal (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
