Cooling System Expansion Tank Removal And Installation/Replacement

Mobile Repair Possible: No

WARNING: Hot surface
Failure to follow specified procedures may result in severe injuries due to burns or scalds.

NOTE: Contamination
Contamination or moisture entering the cooling system can lead to malfunction or functional failure.

The vehicle cooling system and any removed components should be capped/sealed during work to prevent contamination entry.

Removal Procedure:

Remove front underbody air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
Remove the front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT

Courtesy of VINFAST, LLC

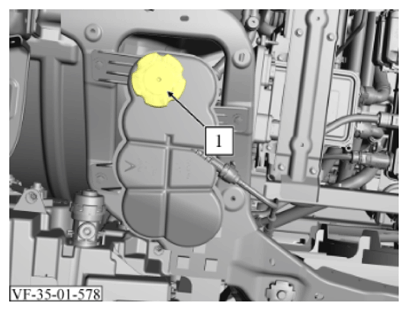

Remove the lid (1).
Extract coolant with a conventional pump.

Courtesy of VINFAST, LLC

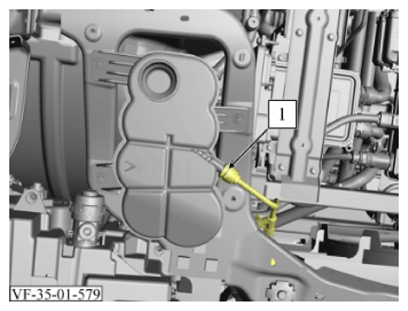

Unlock and detach the coolant pipe (1).
NOTE:
Environmental Risk
- Collect and dispose of leaking liquids.
- Observe country-specific disposal regulations.
Courtesy of VINFAST, LLC

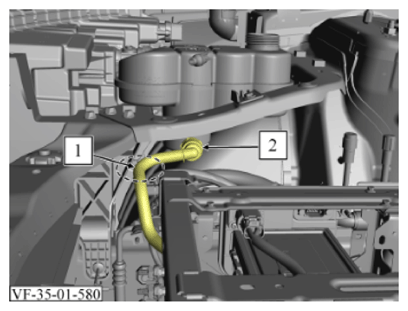

Clamp off the coolant pipe as indicated (1).
Only clamp off flexible hose pipes.

Use conventional clamping tools to clamp the pipes.
Unlock and disconnect the coolant pipe (2).
NOTE:
Environmental Risk
- Collect and dispose of leaking liquids.
- Observe country-specific disposal regulations.
Courtesy of VINFAST, LLC

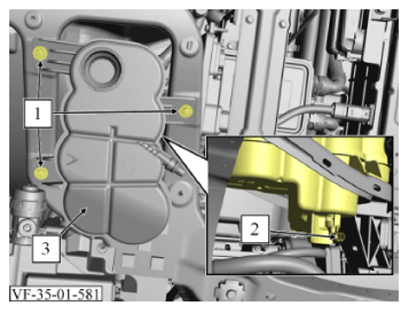

Remove 3 bolts (1).
Torque: 8 Nm
Unlock and disconnect electrical connector (2).
Unthread and remove the cooling system expansion tank (3) upwards.

Installation Procedure:

Installation is the reverse of removal procedure, noting the following.
All fasteners must be tightened to torque specification!
Install the front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
Install front underbody air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
Check coolant level and top up if necessary.
