Service Schematics (Complete Vehicle)

INDEX

INDEX
S. No.	Sys Code	SYSTEM NAME	SHT NO
1		INDEX, TOPOLOGY	1-2
1		LEGEND	3

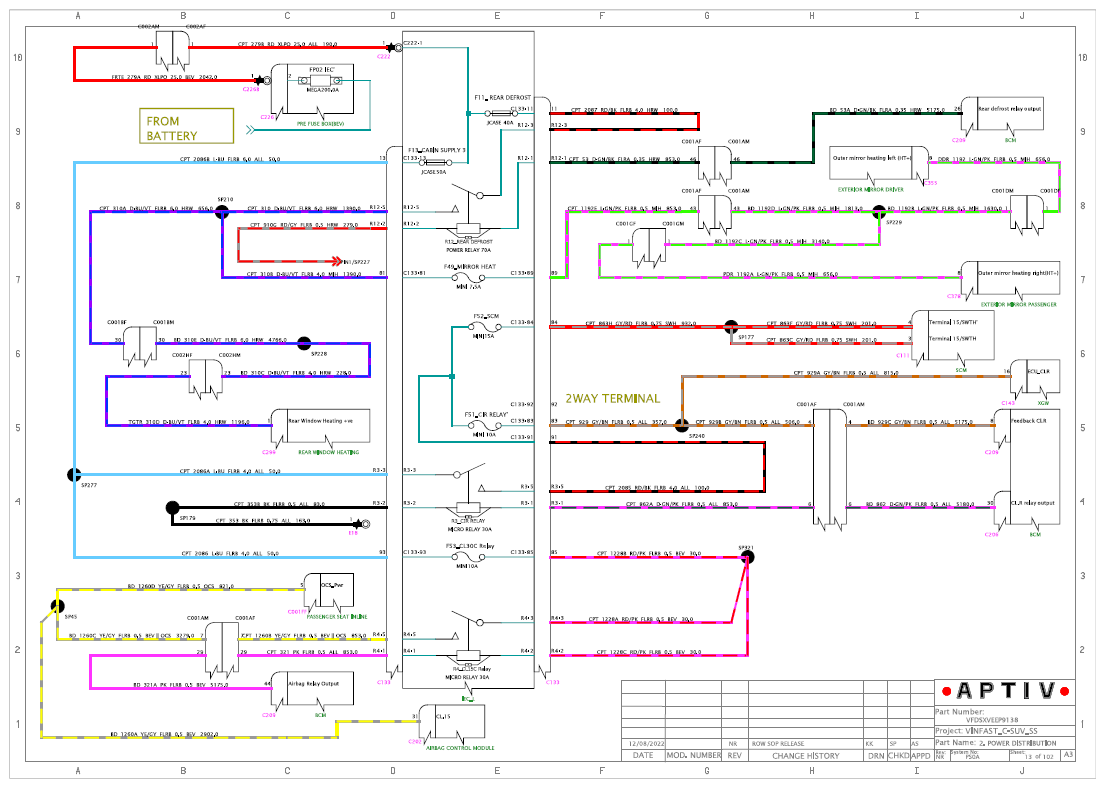

2	PS0A	POWER SUPPLY	4-15
3	EA0A	EARTH	16-22
4	CA0A	CAN SYSTEM	23-27
5	LI0A	BCM LIN SYSTEM	28

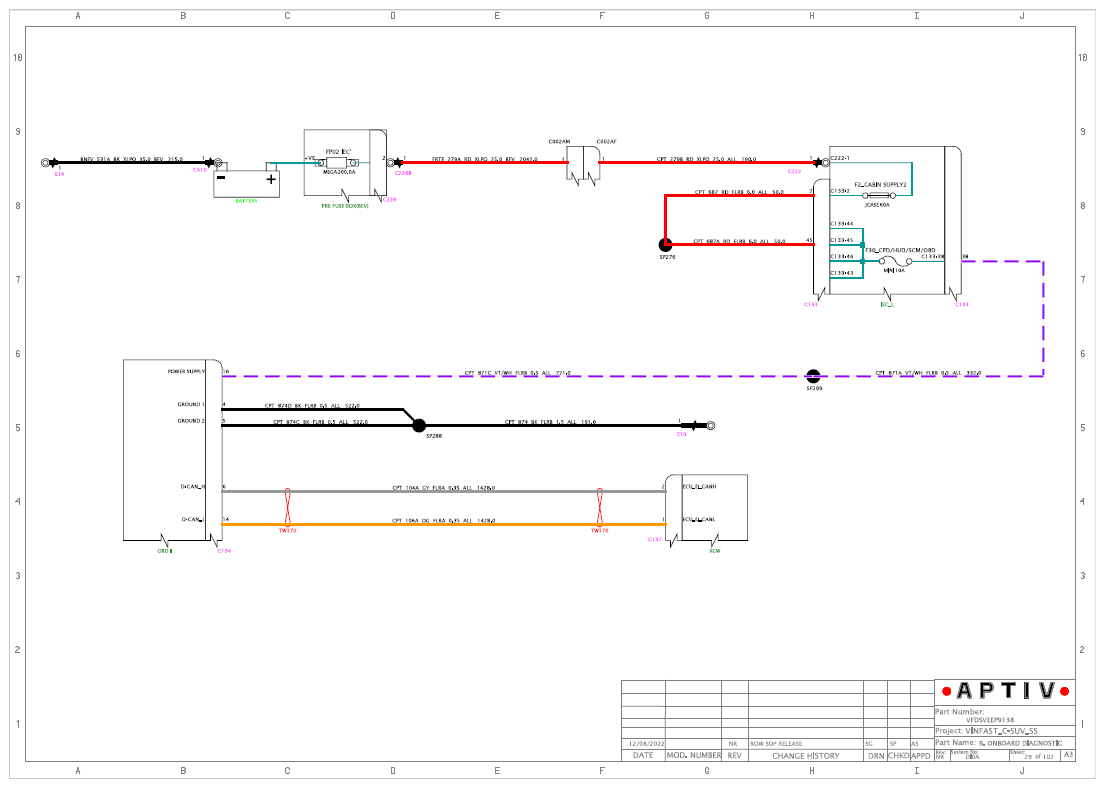

6	DI0A	ONBOARD DIAGNOSTIC	29
7	BC0A	BCM	30-34
8	BL0A	BRAKE LIGHT SWITCH	35
9	XC0A	XGW (GATEWAY)	36-37

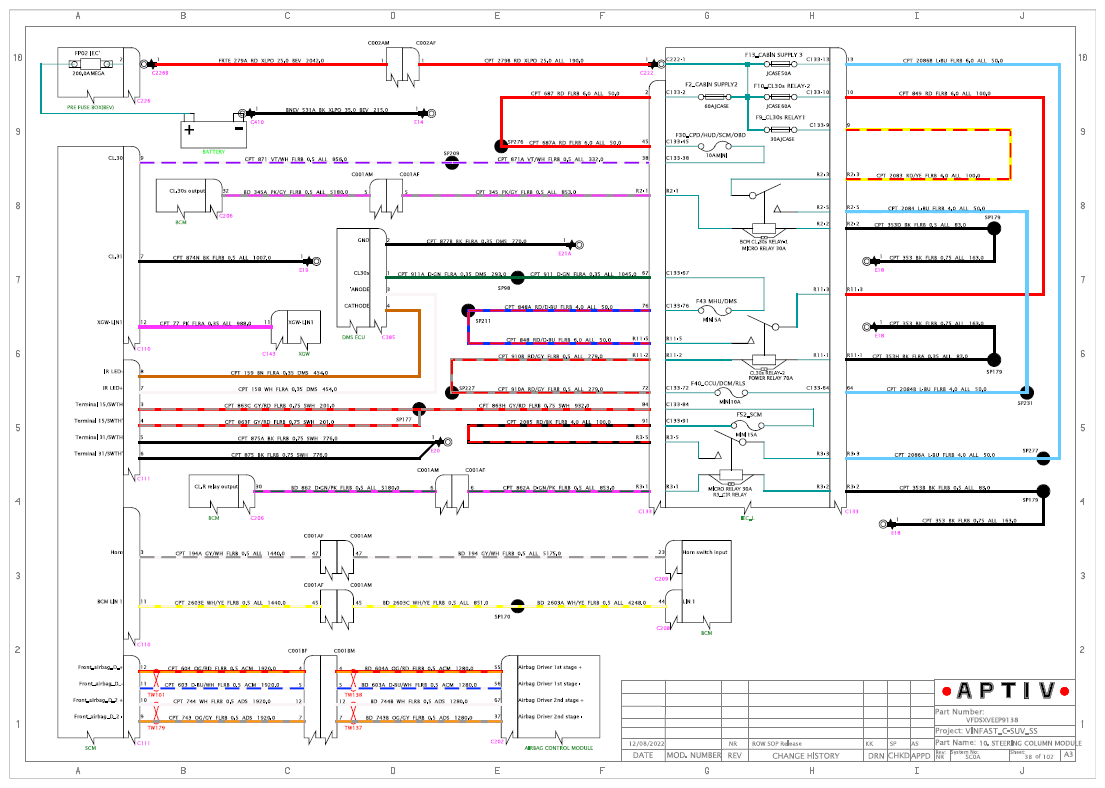

10	SC0A	SCM (Steering Column Module)	38
11	CL0A	Central locking system with ETC	39-40

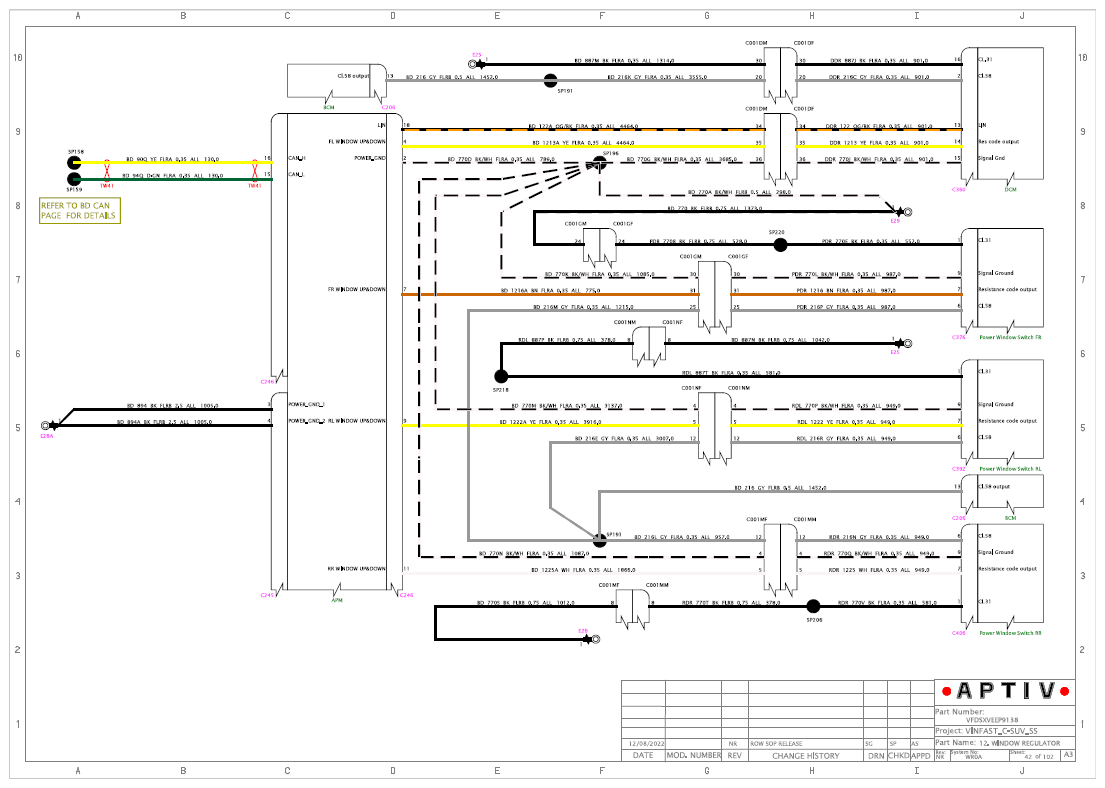

12	WR0A	WINDOW REGULATOR	41-42
13	HN0A	HORN	43
14	SB0A	SWITCH BLOCK TUNNEL	45
15	EM0A	EXTERIOR MIRROR	45-46
16	WP0A	WIPER MOTOR & FRT WASHER PUMP	47

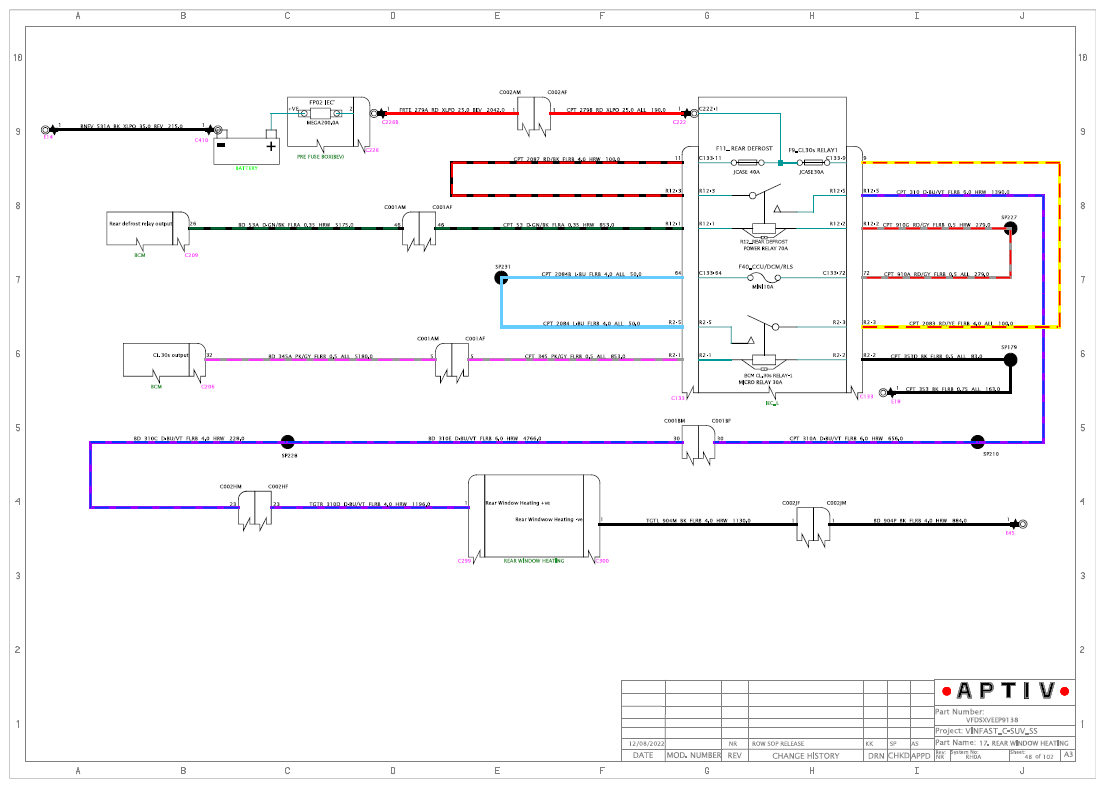

17	RH0A	REAR WINDOW HEATING	48
18	EC0A	ELECTRIC TAILGATE	49-50
19	IM0A	INNER VIEW MIRROR	51
20	IL0A	INTERIOR LIGHTING	52-54
21	EX0A	EXTERIOR LIGHTING	53-56

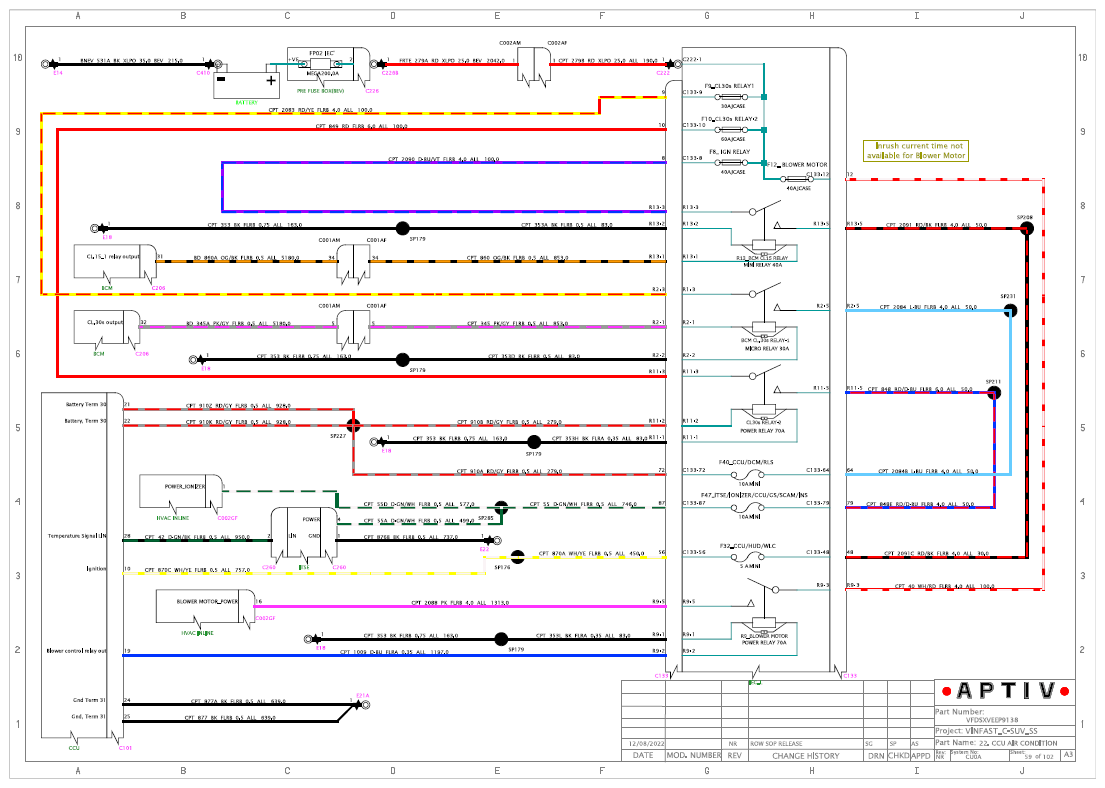

22	CU0A	CCU	59-60
23	SE0A	SEATS	61-64
24	NV0A	MHU (Multimedia head unit) with Navigation	65-67

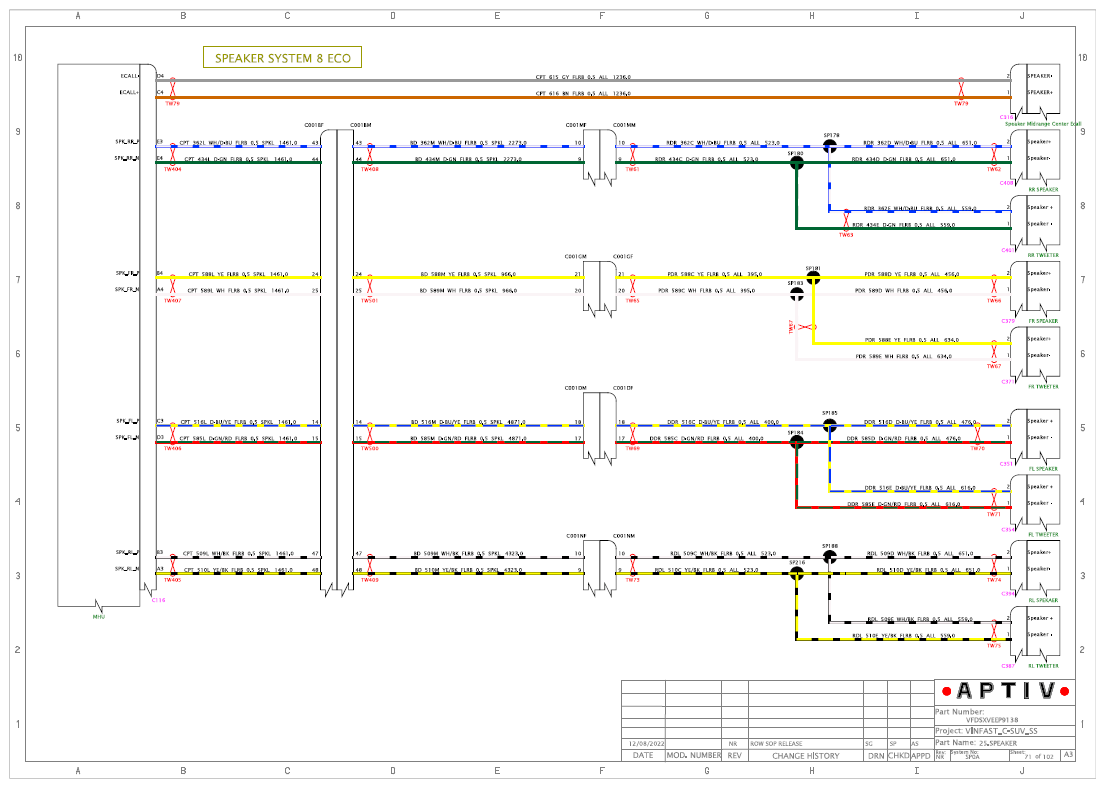

25	SP0A	SPEAKERS & AMPLIFIER	68-71
26	WC0A	WLC (Wireless charging for cellphones)	72
27	AB0A	ACM (Airbag Controle Module)	73-74
28	GS0A	GEAR SHIFTER BEV	75
29	EP0A	EPS & STEERING ADJUSTMENT	76
30	EC0A	IDB & RCU	77-79
31	ADOA	ADAS (Advance driver Assistance System	80-85
32	UB0A	USB CONNECTOR SYSTEM	86
33	RF0A	RADIATOR FAN	87
34	TM0A	TRM INLINE	88

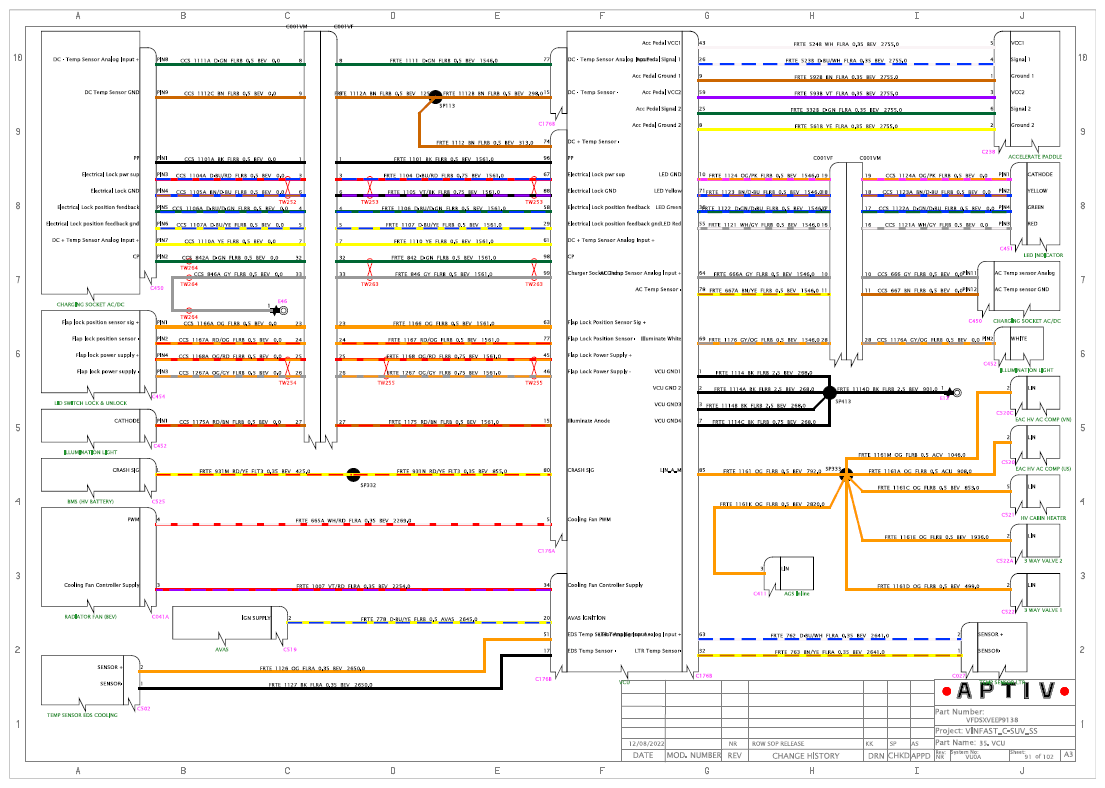

35	VU0A	VCU (Vehicle Control Unit)	89-91
36	PD0A	PDU_DC-DC_OBC	92
37	ES0A	EDS	93
38	BS0A	BMS (Battery Management System)	94
39	AH0A	AC COMPRESSOR_CABIN HEATER	95
40	WV0A	WAY VALVE	96
41	FK0A	FOOT KICK SENSOR & ALCOHOL SENSOR	97
42	SS0A	SUNROOF_SUNSHADE	98
43	CS0A	CHARGING SOCKET ASSEMBLY	99-100
44	CP0A	COOLING PUMP	101
45	AL0A	ALCOHOL SENSOR	102

CIRCUIT OPTION CODE

S. No.	CODE	FUNCTION NAME
1	ABL	AMBIENT LICHT
2	ACM	AIRBAG CONTROL MODULE ALL
3	ACS	AIRBAG CENTRAL 1 ST STAGE
4	ACU	AC COMPRESSOR US & EU
5	ACV	AC COM PRESSOR VN
6	ADM	AUTO DIMMING MIRROR
7	ADS	AIRBAG DOUBLE STAGE FRONT
8	ALL	ALL
9	ANTH	ANTENNA (GNSS+AMFM+ LTE1 +LTE2)
10	ANTL	ANTENNA (GNSS+AMFM+ LTE1)
11	ARS	AIRBAG REAR SEAT SIDE
12	AVAS	ACOUSTIC VEHICLE ALERTING SYS
13	BEV	BATTERY ELECTRIC VEHICLE
14	BSD	BLIND SPOT DETECTION
15	BSRB	BUCKLE SW REAR 2ND ROW 5 SEATER
16	CPD	CHILD PROTECTION DETECTION
17	DMS	DRIVER MONITORING SYSTEM
18	EDSR	REAR EDS
19	ETG	ELECTICAL TAIL GATE
20	EUR	EUROPE
21	FKS	FOOT KICK SENSOR
22	FSML	FRONT SIDE MARKER LAMP
23	FWL	FOOTWELL LIGHT
24	HRW	HEATED REAR WINDOW
25	HUD	HEAD UP DISPLAY
26	IDB	IDB
27	IDBB	IDB BASE
28	INS	INERTIAL NAVIGATION SYSTEM
29	MIH	MIRROR HEATING
30	MUM	MAKEUP MIRROR
31	OCS	OCCUPANT CLASSIFICATION SYSTEM
32	ODSR	OCCUPANT DETECTION SYSTEM REAR
33	PDC	PARK DISTANCE CONTROL
34	PDL	PUDDLE LAMP
35	PYS	PYRO SW
36	RCU	RCU
37	RDL	REAR DOOR LH
38	RDR	REAR DOOR RH
39	RFL	REAR FOG LAMP
40	RWP	REAR WIPER
41	SEATH	SEAT HEATING
42	SEATV	SEAT VENTILATION
43	SMS	SEAT MOVEMENT SW
44	SOS	SOS SWITCH
45	SPKH	SPEAKER HIGH
46	SPKL	SPEAKER LOW
47	SRF	SUNROOF
48	SRR	SHORT RANGE RADAR
49	STM	SEAT TRACK MOTOR
50	SUW	SUBWOOFER
51	SVM	SURROUND VIEW MIRROR
52	SWA	STEERING WHEEL ADJUSTMENT
53	SWH	STEERING WHEEL HEATING
54	TPS	12V TRUNK POWER SOCKET
55	TRM	TRAILER MODULE
56	WLC	WIRELESS CHARGER
57	MEM	EXTERIOR MIRROR MEMORY
58	RVC	REAR VIEW CAMERA
59	FISL	FRONT IMPACT SENSOR LEFT
60	FISR	FRONT IMPACT SENSOR RIGHT
61	SRR_LH	SHORT RANGE RADAR LH
62	UEC	UNDERHOOD ELECRIC CENTRE
63	IEC	INTERIOR ELECRIC CENTRE
64
65
66

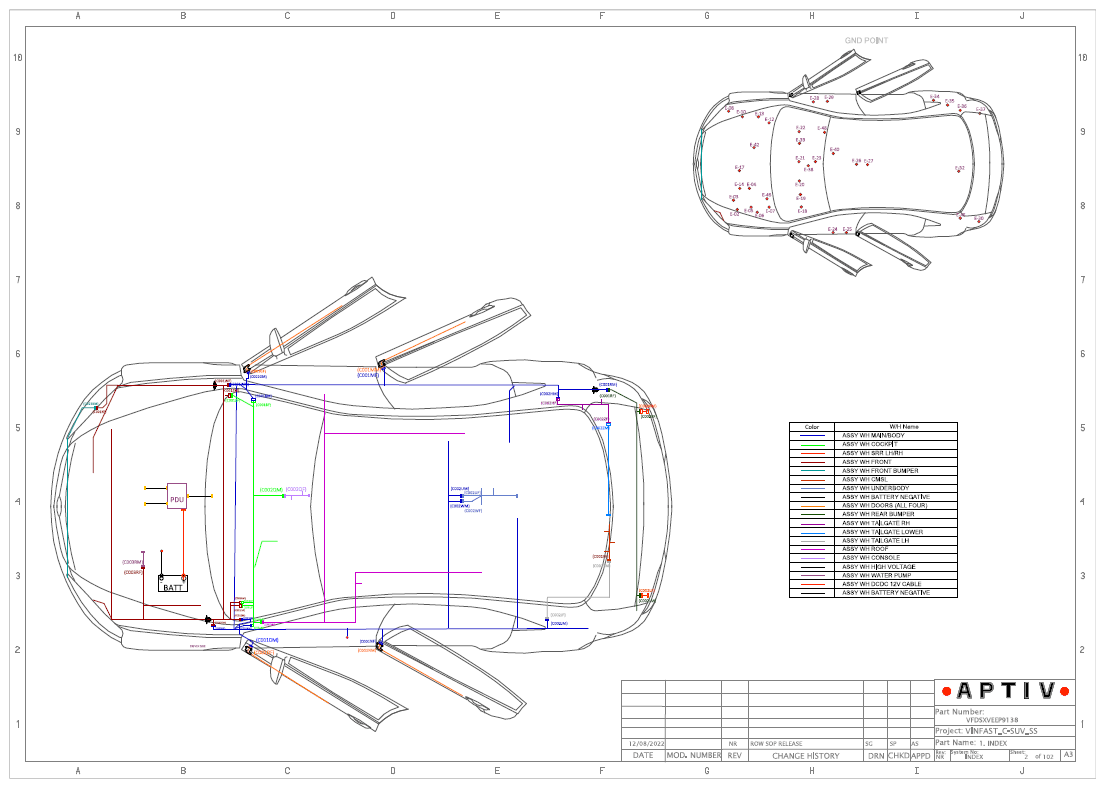

TOPOLOGY

Courtesy of VINFAST, LLC

LEGEND

HARNESS CODES
CODE	HARNESS
BD	WH BODY
CPT	WH COCKPIT
FRT/FRTE	WH FRONT
SRR	SHORT RANGE RADAR PIGTAIL
SRR_LH	SHORT RANGE RADAR LH
FISL	FRONT_IMPACT_SENSOR_PIGTAIL_LH
FISR	FRONT_IMPACT_SENSOR_PIGTAIL_RH
FBPR	WH FRONT BUMPER
RBPR	WH REAR BUMPER
TGTL	BACK DOOR LH
TGTR	BACK DOOR RH
TGTD	BACK DOOR LOWER
DDR	WH DRIVER DOOR
PDR	WH PASSENGER DOOR
RDL	WH REAR DOOR LH
RDR	WH REAR DOOR RH
ROOF	WH ROOF
CON	WH CONSOLE
UNB	WH UNDERBODY
CHMSL	WH CHMSL
EWP	EDS1 WATER PUMP PIGTAIL
BNE	WH BATTERY NEGATIVE
HVB	WH HV BATTERY
HVCV	WH AIR COMPRESSOR VN
HVCU	WH AIR COMPRESSOR US/EU/CA
HVCH	WH HV HEATER

COLOR CODES
CODE	CABLE COLOR
D-GN	DARK GREEN
D-BU	DARK BLUE
OG	ORANGE
GY	GREY
BN	BROWN
BK	BLACK
PK	PINK
YE	YELLOW
L-BU	LIGHT BLUE
RD	RED
VT	VIOLET
L-GN	LIGHT GREEN
WH	WHITE

SYMBOL	DESCRIPTION
	RING TERMINAL
	SPLICE/JOINT
	JCASE FUSE
	MEGA FUSE
	MIDI FUSE
	MINI FUSE
	RELAY WITH DIODE
	RELAY WITH RESISTOR
	INLINE CONNECTOR
	TWIST WIRES
	SHIELD WIRES
	MULTICORE
	CROSSOVER WITH JOINT
	CROSSOVER WITHOUT JOINT

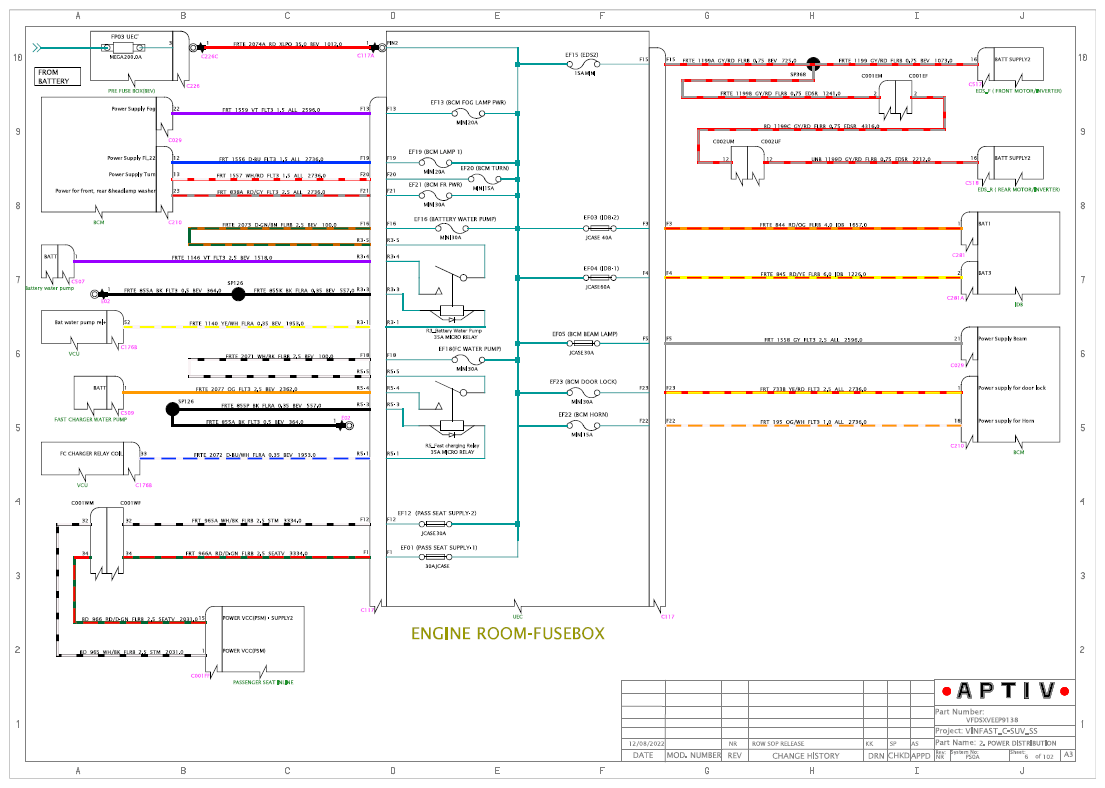

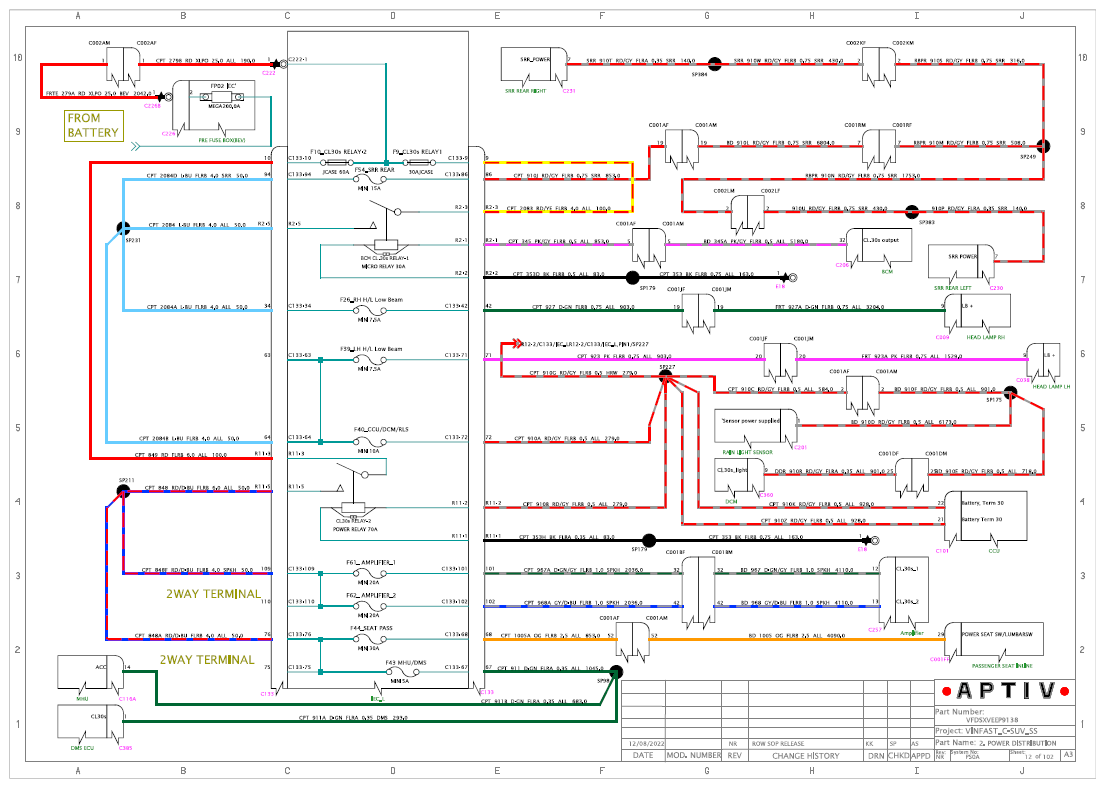

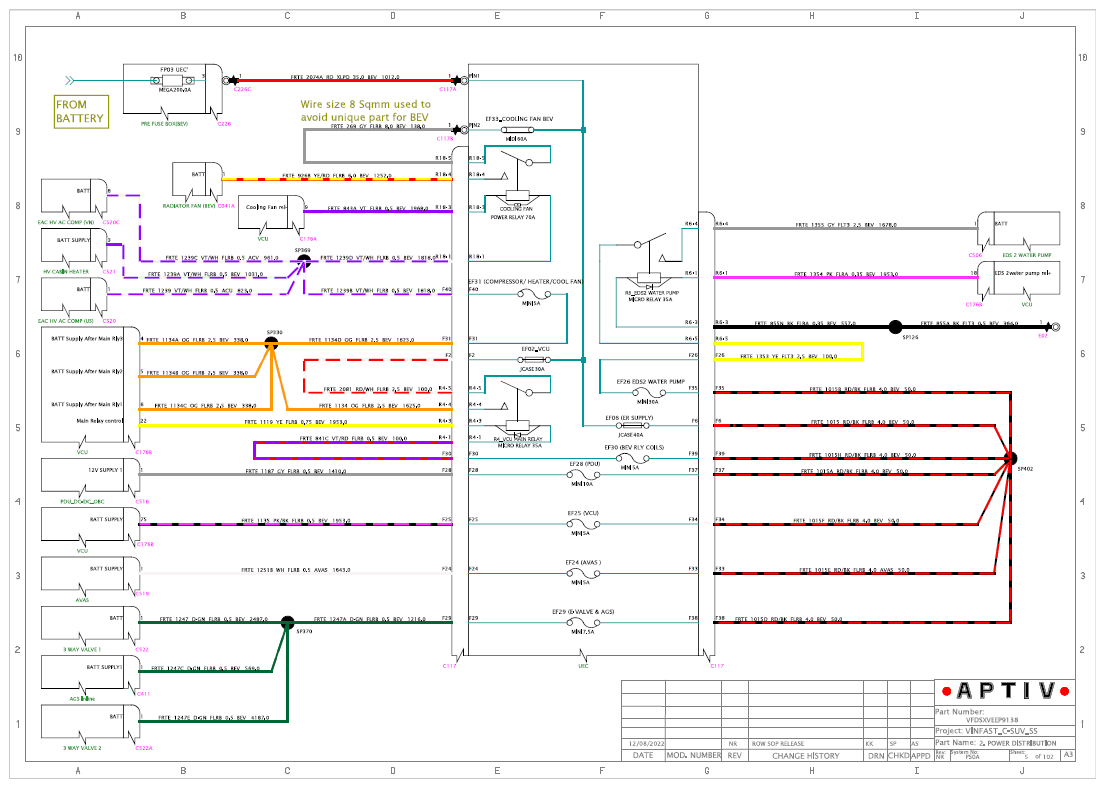

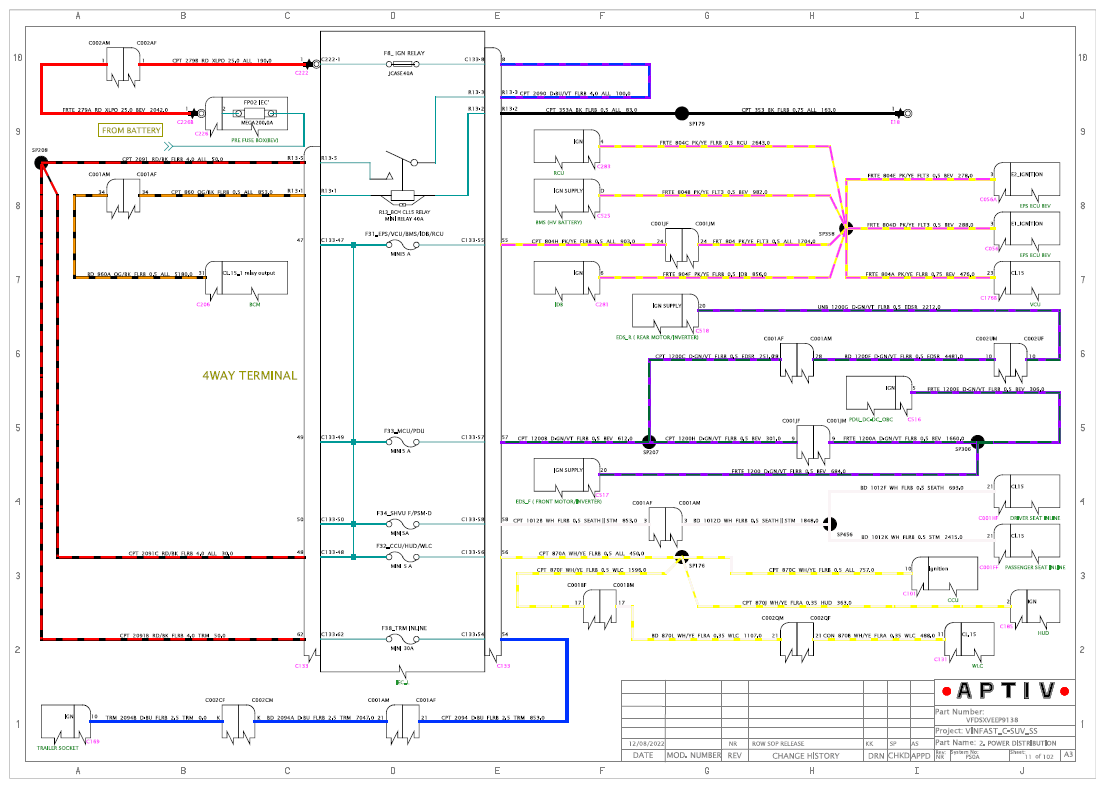

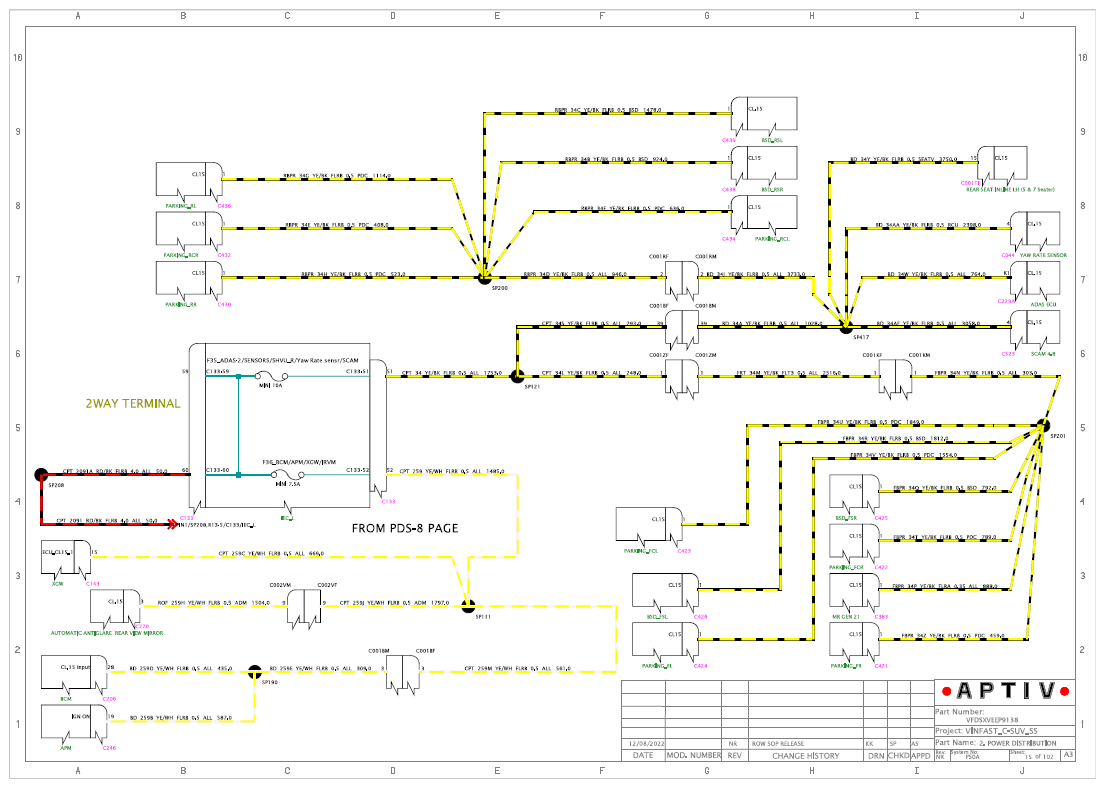

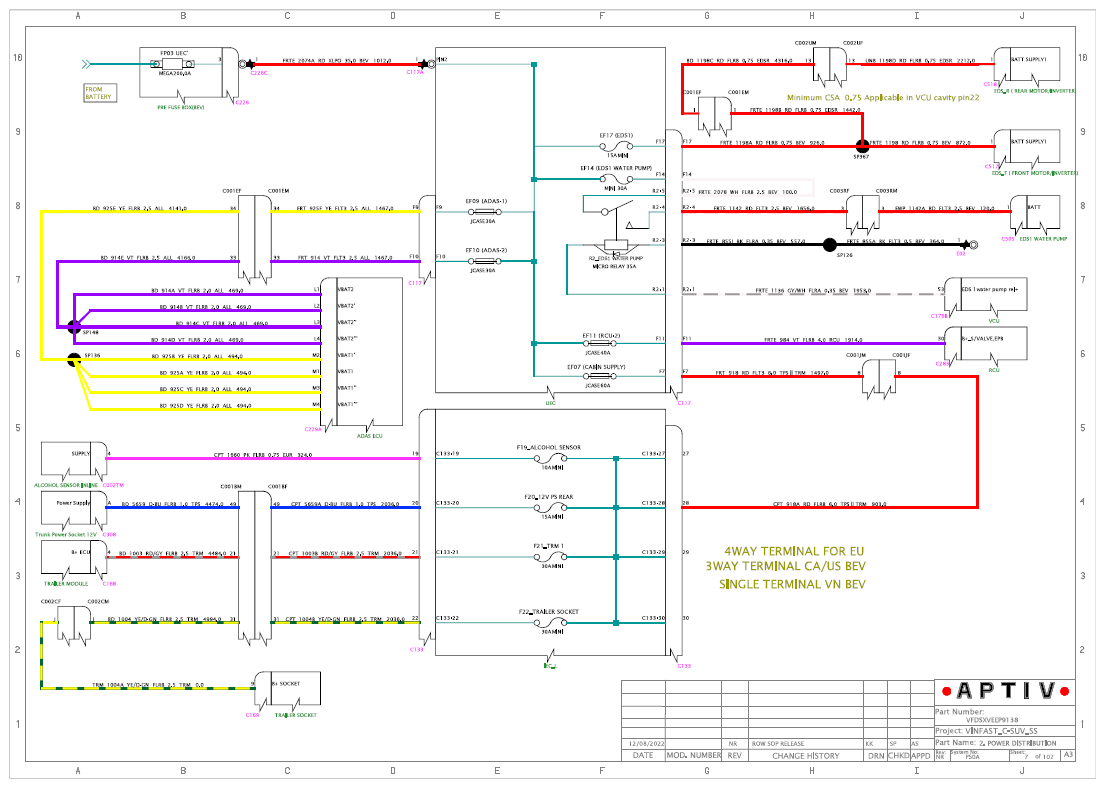

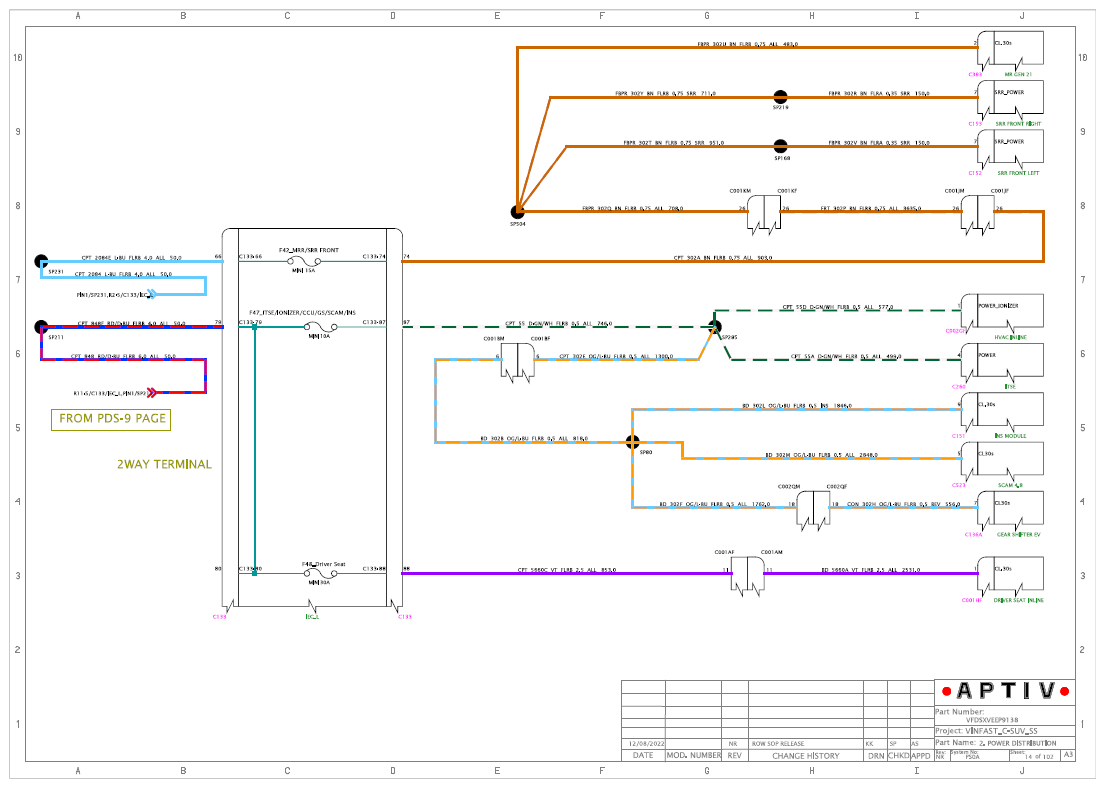

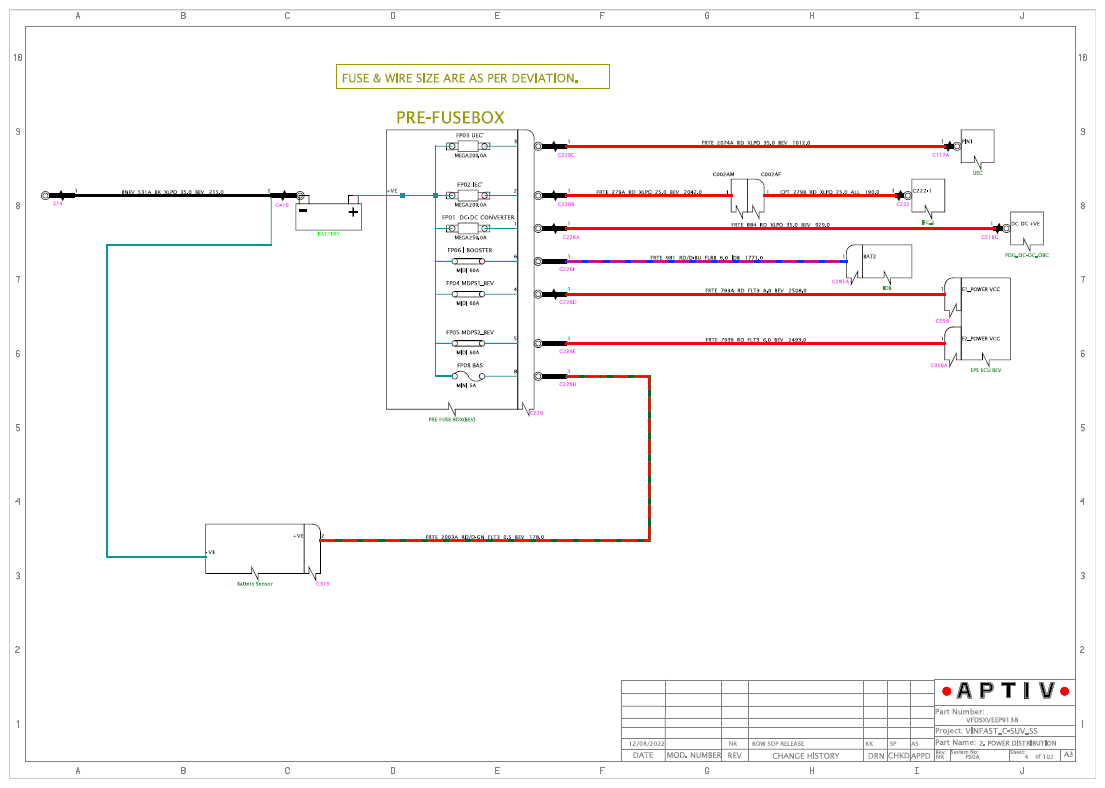

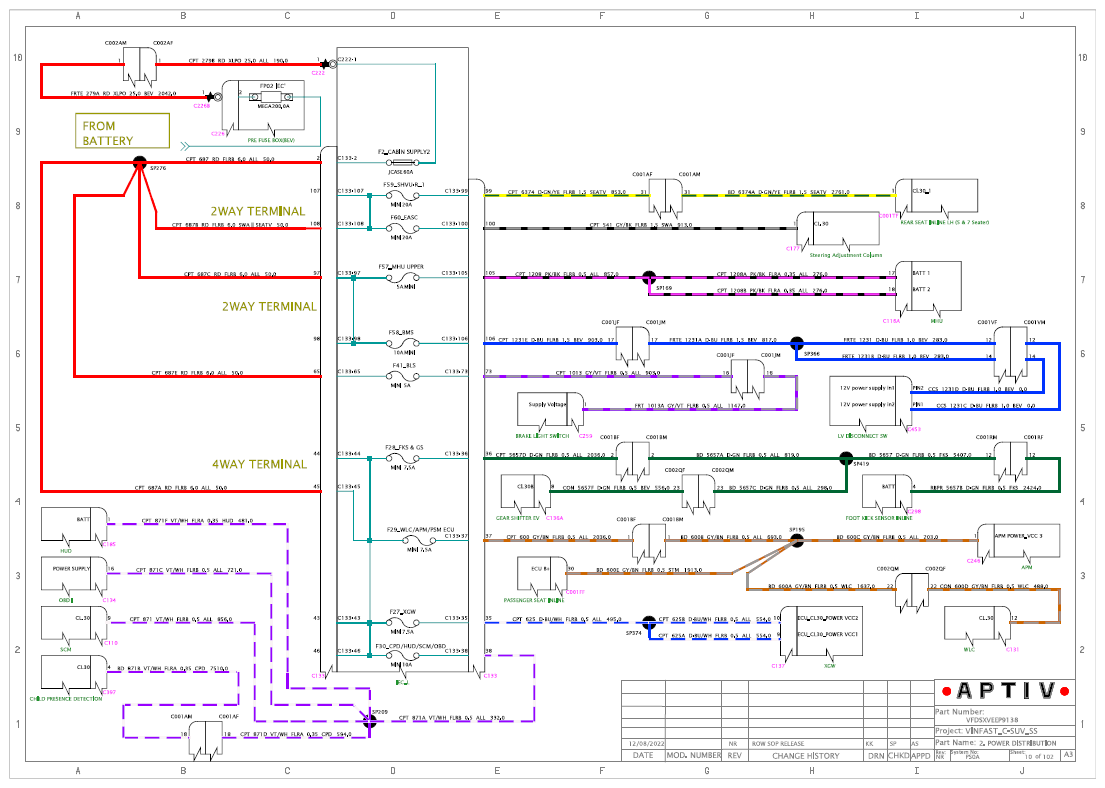

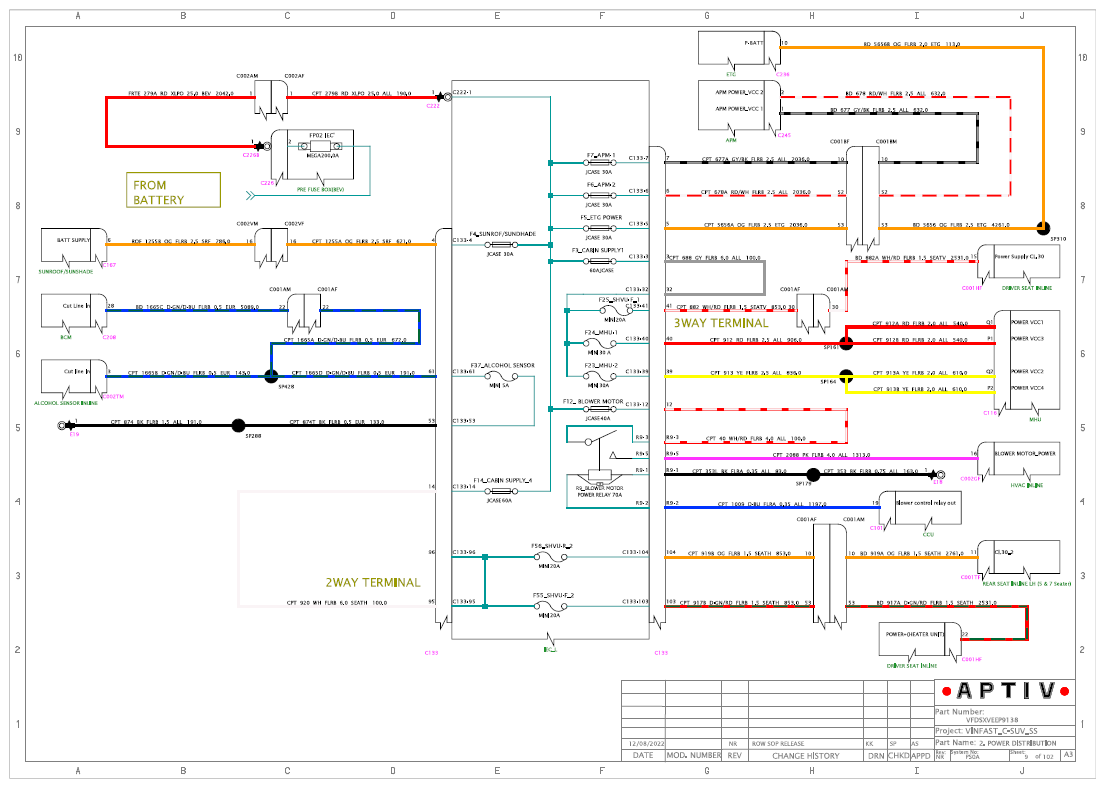

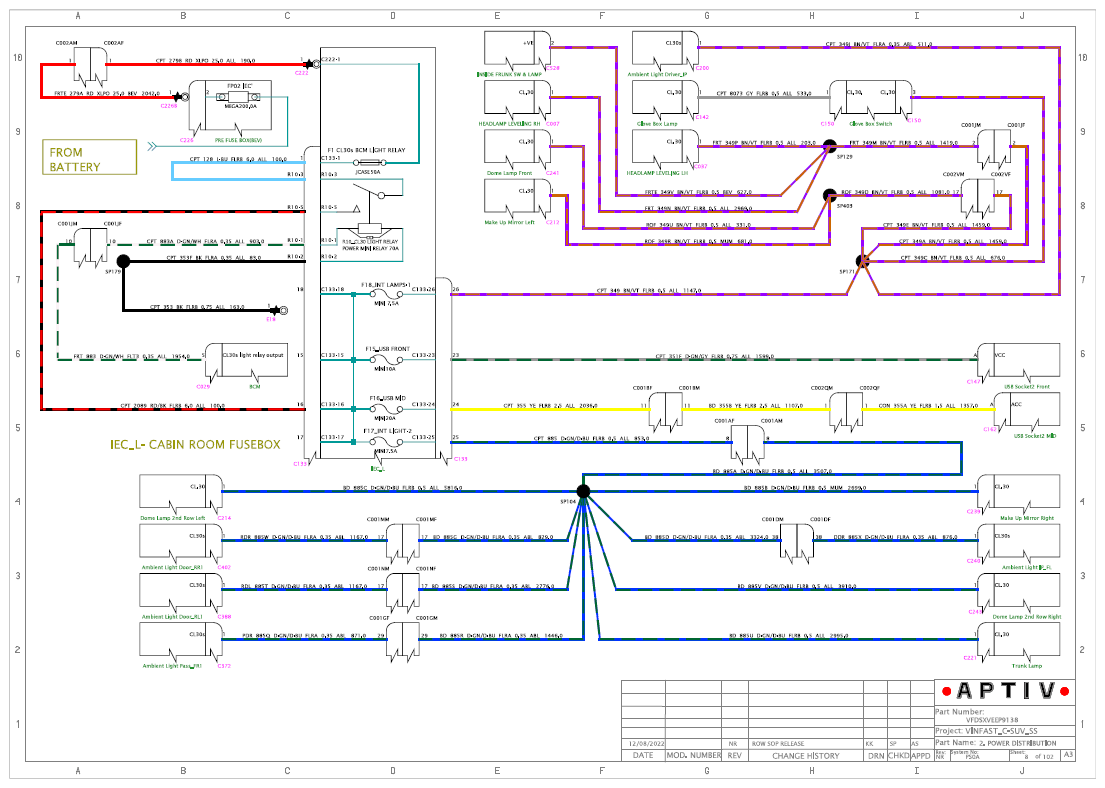

PDS1

Courtesy of VINFAST, LLC

PDS2

Courtesy of VINFAST, LLC

PDS3

Courtesy of VINFAST, LLC

PDS4

Courtesy of VINFAST, LLC

PDS5

Courtesy of VINFAST, LLC

PDS6

Courtesy of VINFAST, LLC

PDS7

Courtesy of VINFAST, LLC

PDS8

Courtesy of VINFAST, LLC

PDS9

Courtesy of VINFAST, LLC

PDS10

Courtesy of VINFAST, LLC

PDS11

Courtesy of VINFAST, LLC

PDS12

Courtesy of VINFAST, LLC

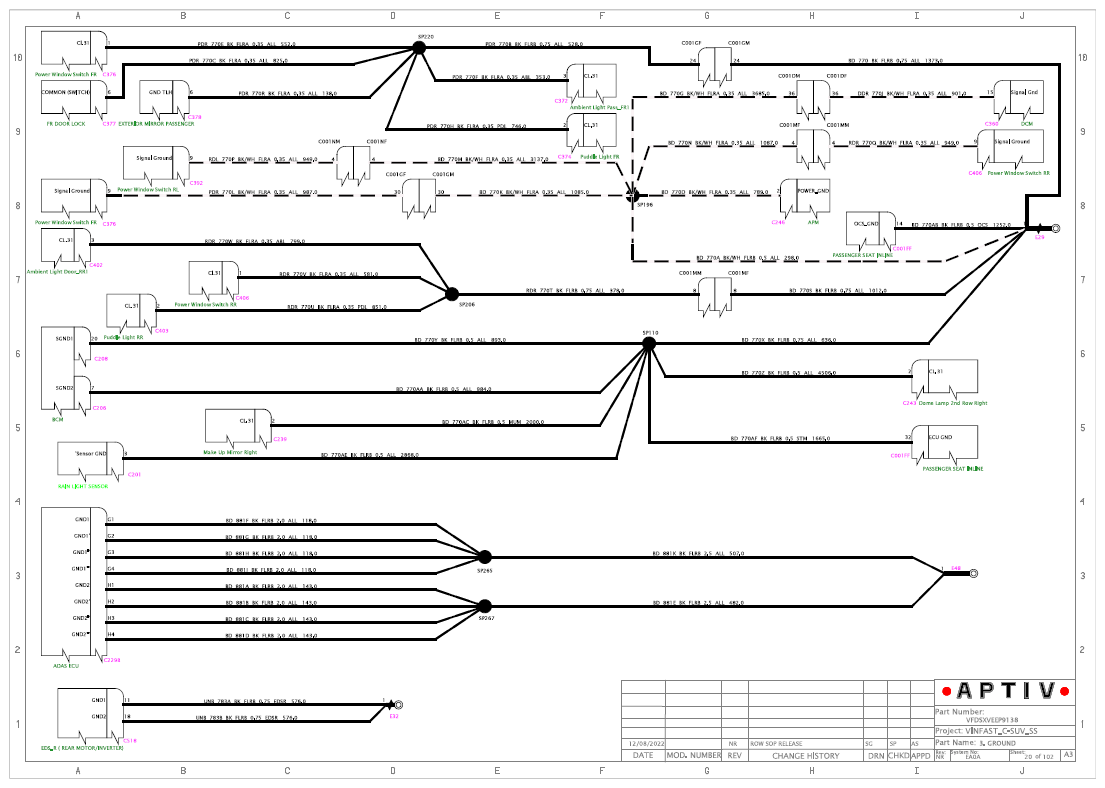

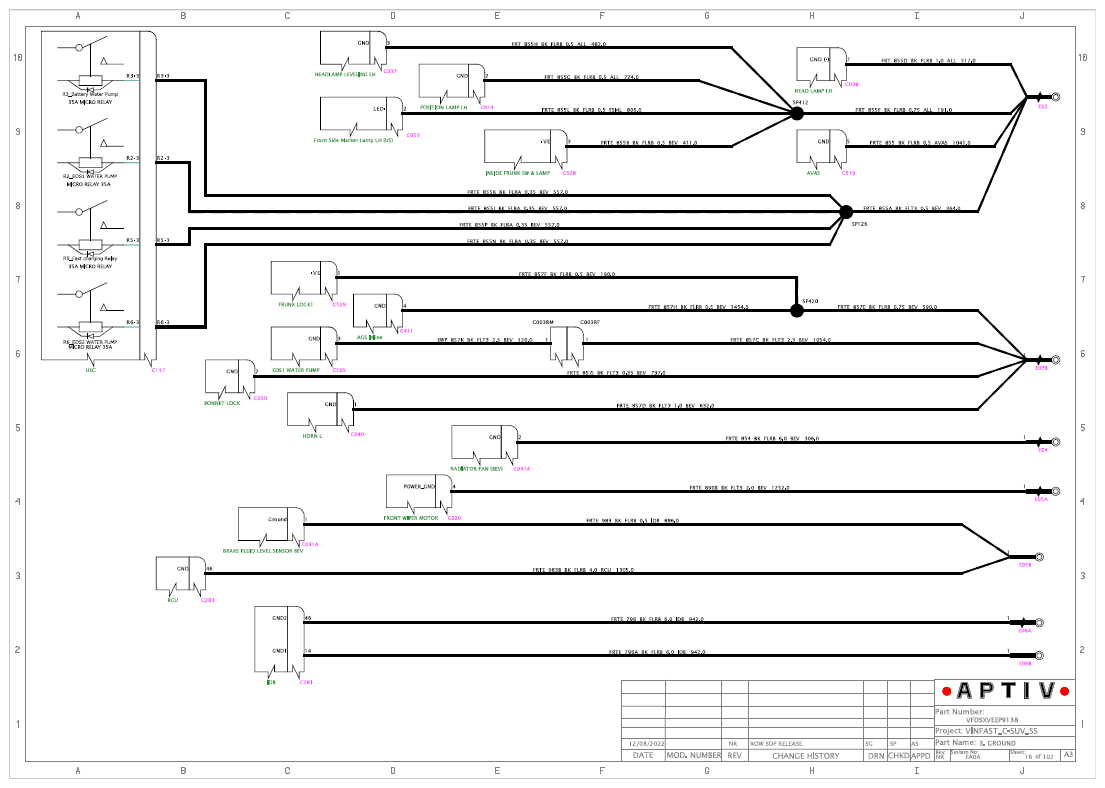

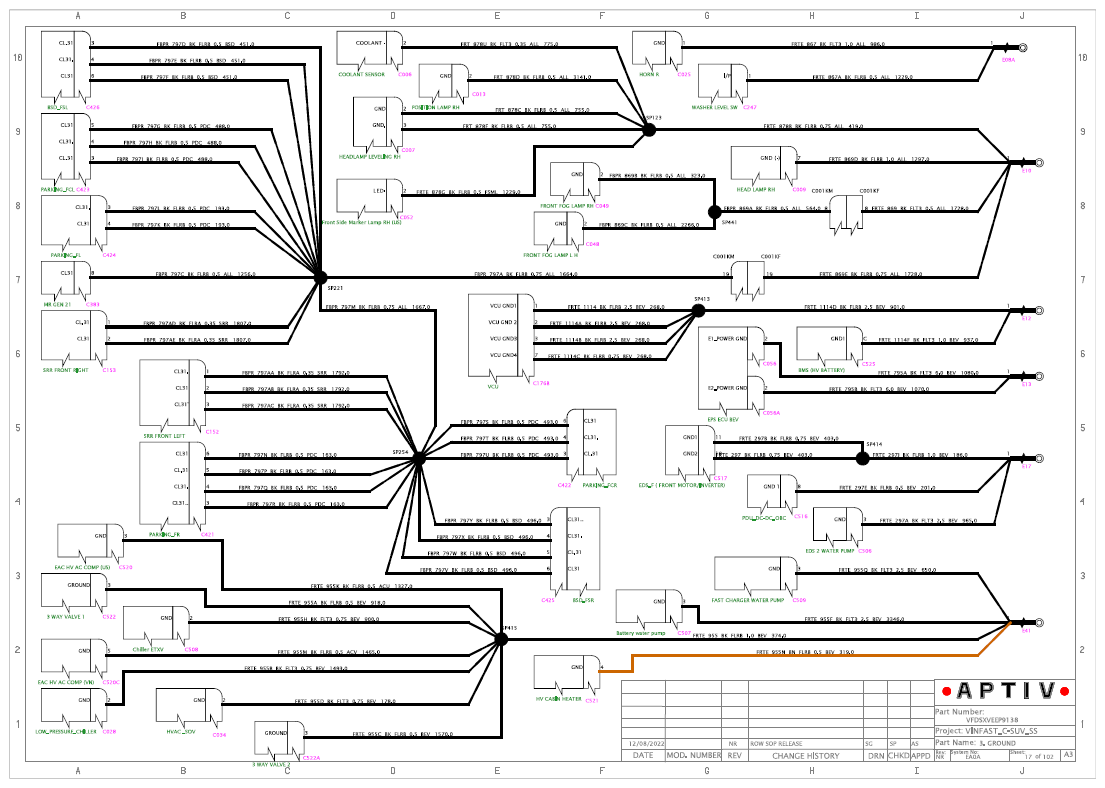

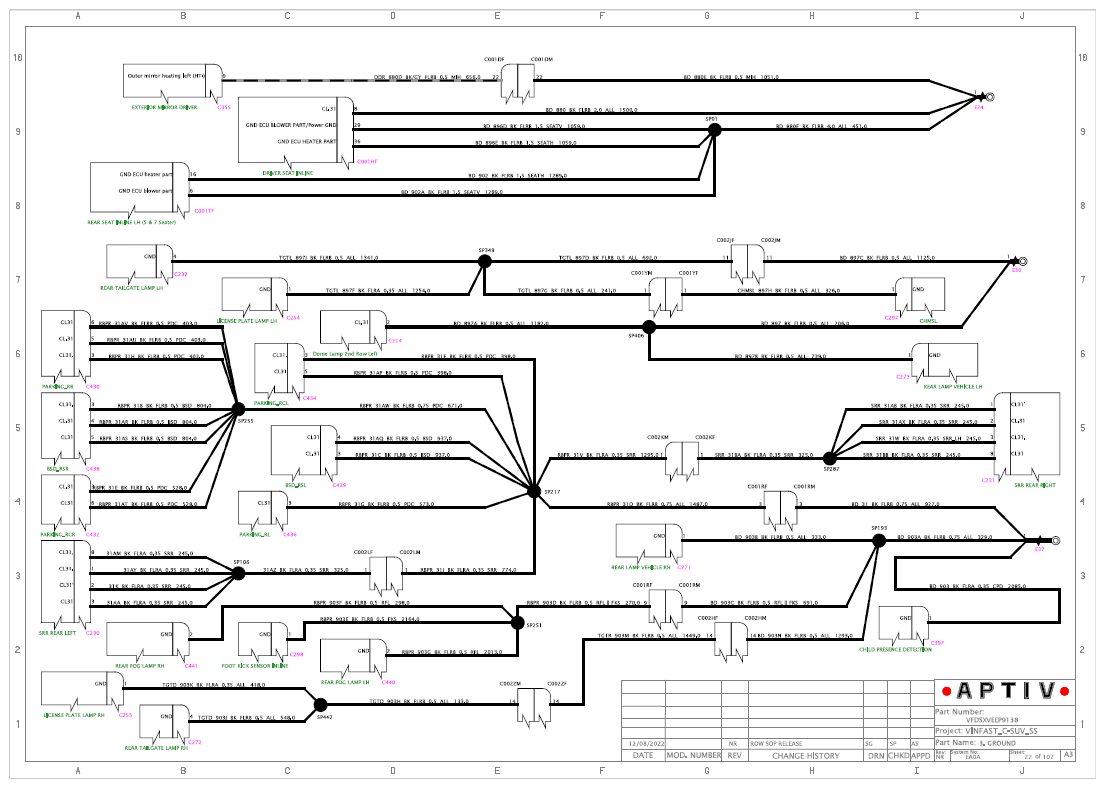

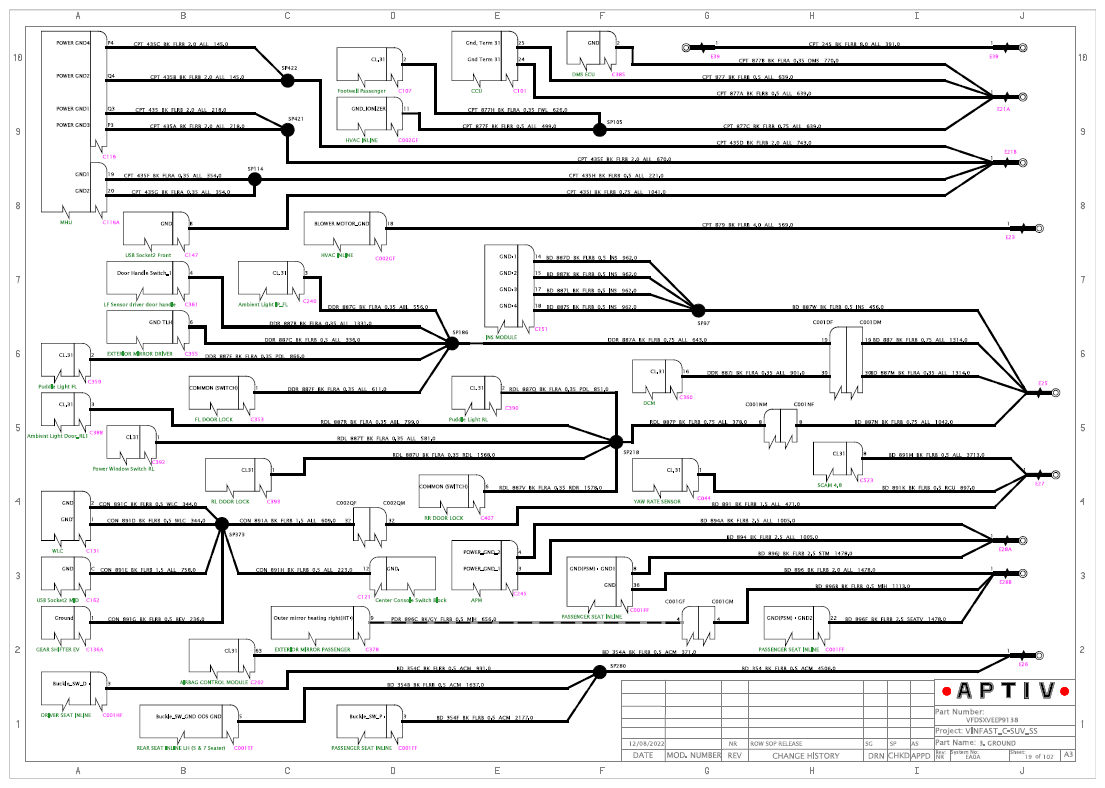

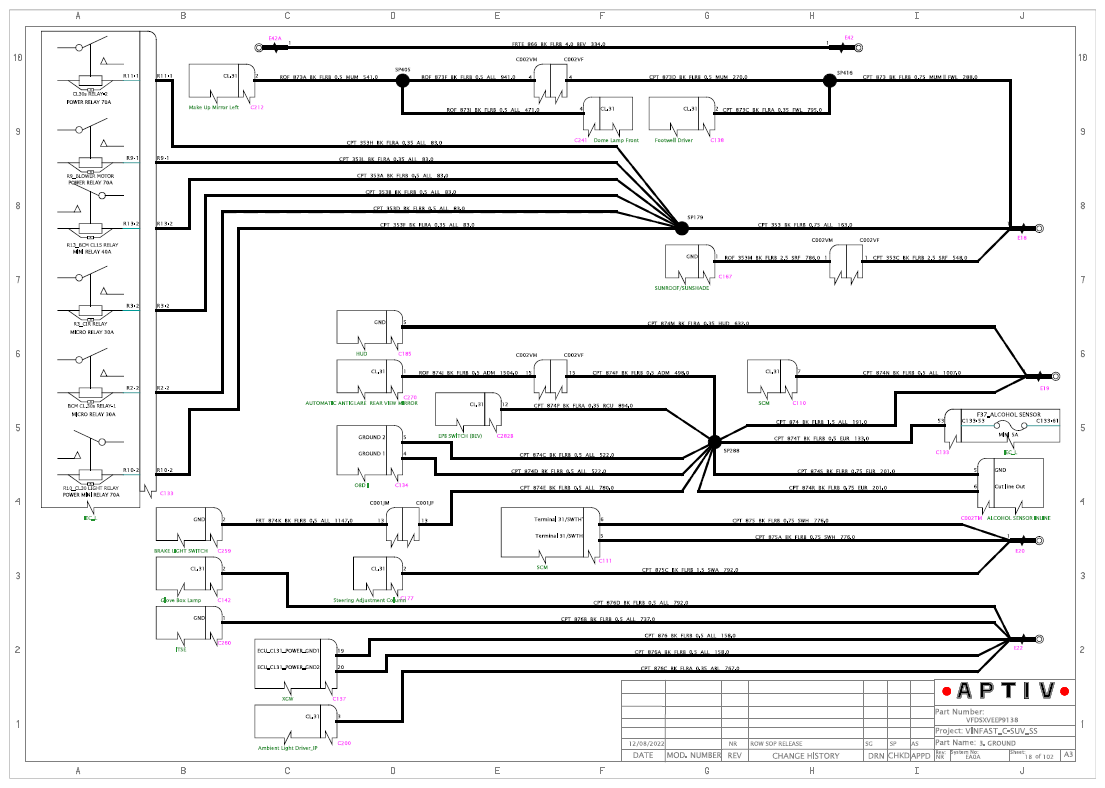

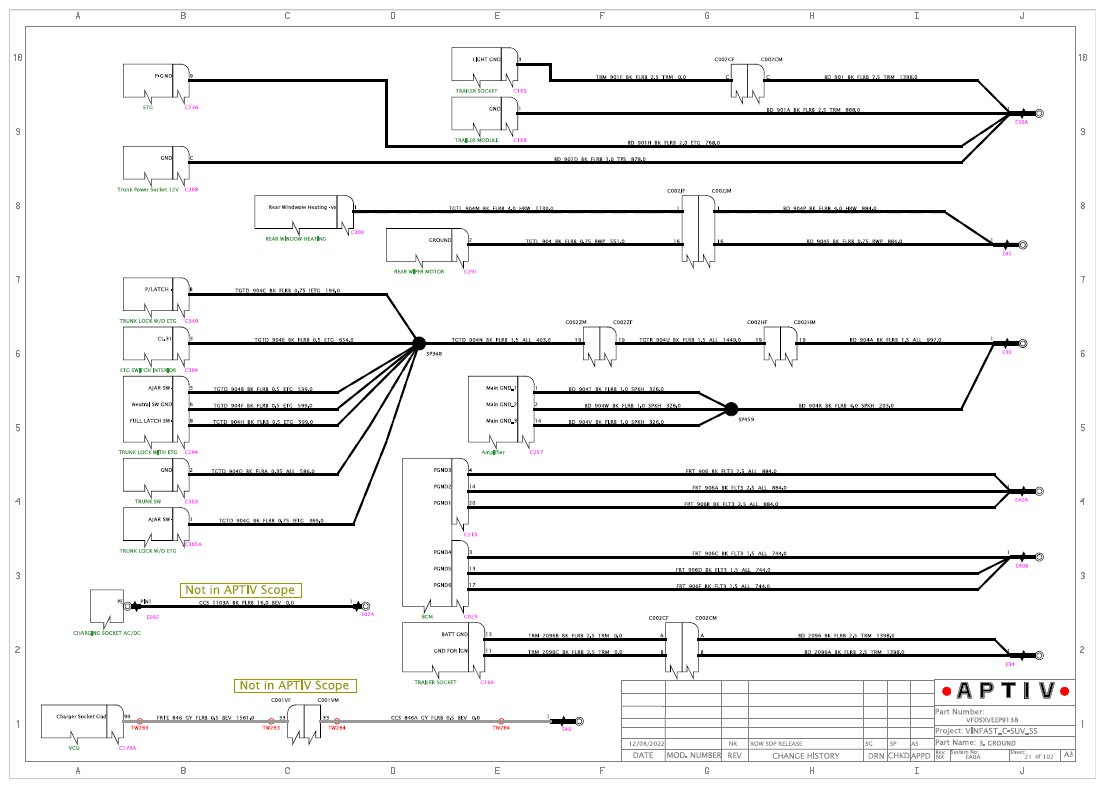

GND1

Courtesy of VINFAST, LLC

GND2

Courtesy of VINFAST, LLC

GND3

Courtesy of VINFAST, LLC

GND4

Courtesy of VINFAST, LLC

GND5

Courtesy of VINFAST, LLC

GND6

Courtesy of VINFAST, LLC

GND7

Courtesy of VINFAST, LLC

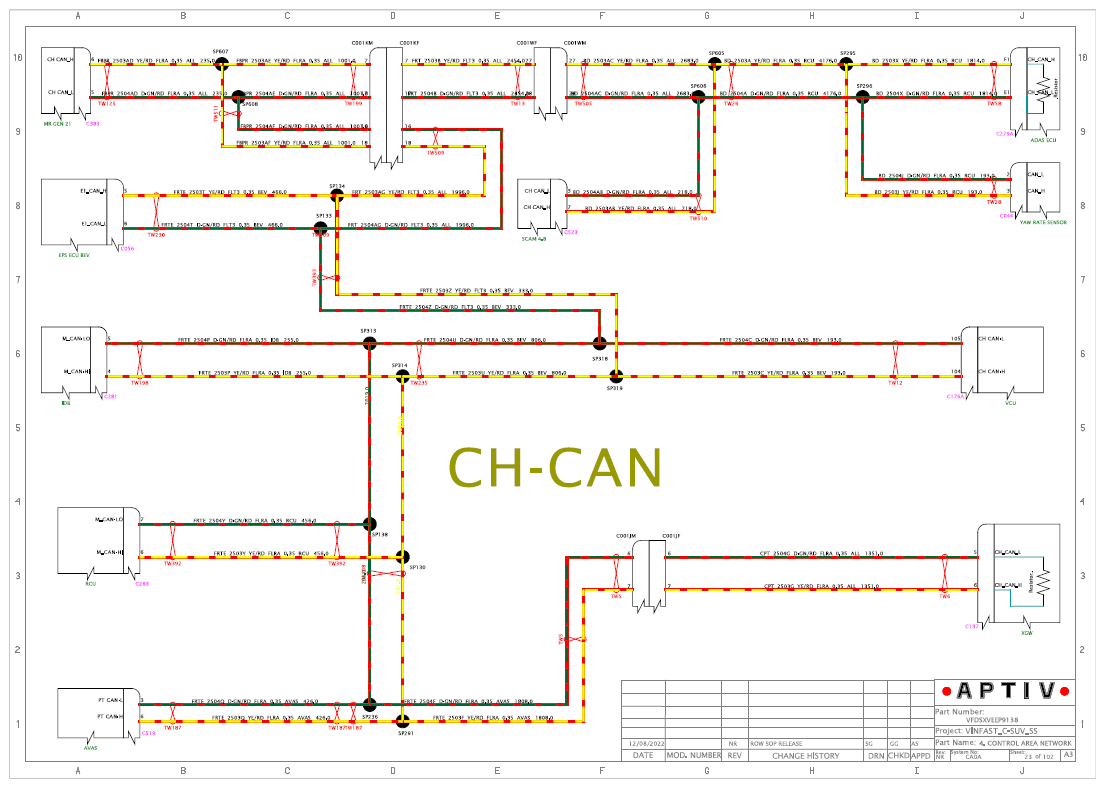

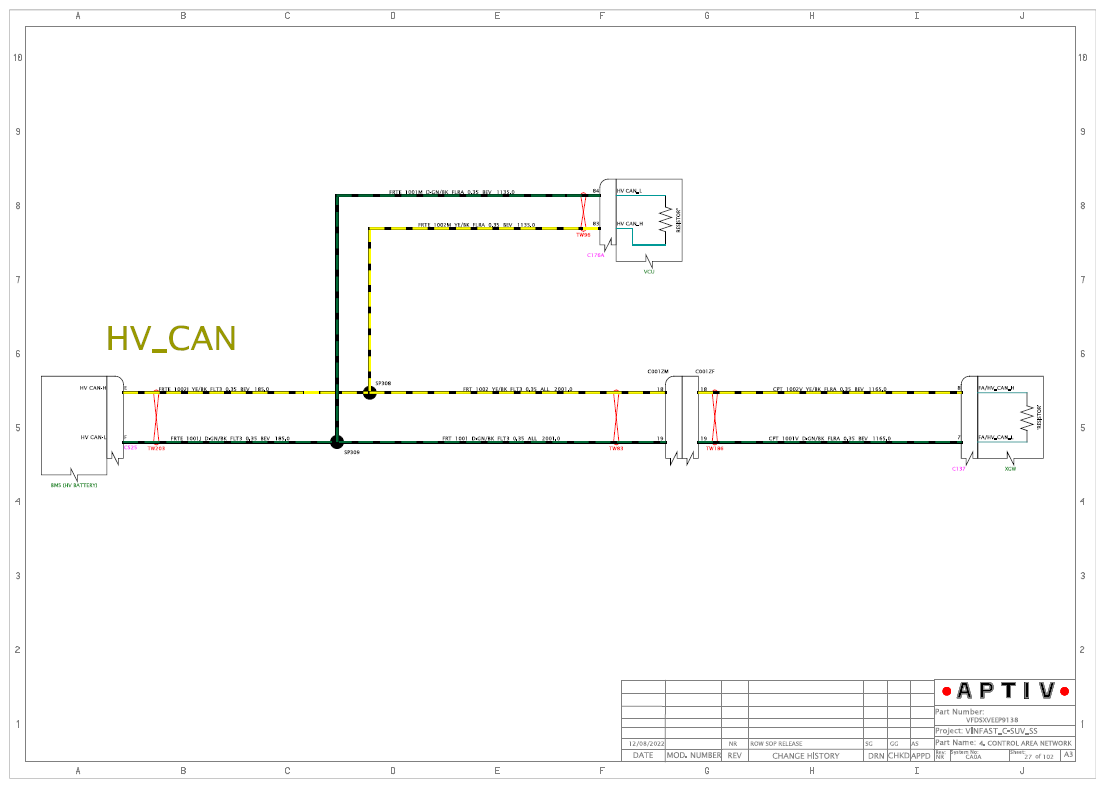

CH CAN

Courtesy of VINFAST, LLC

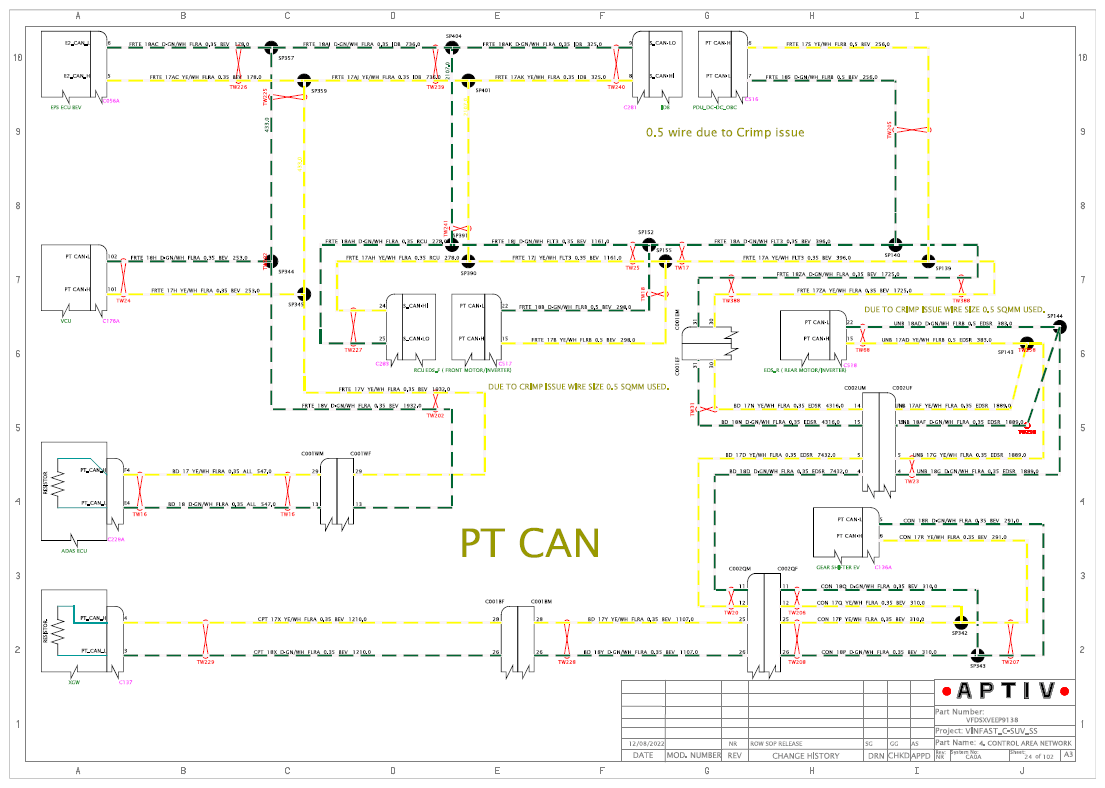

PT CAN

Courtesy of VINFAST, LLC

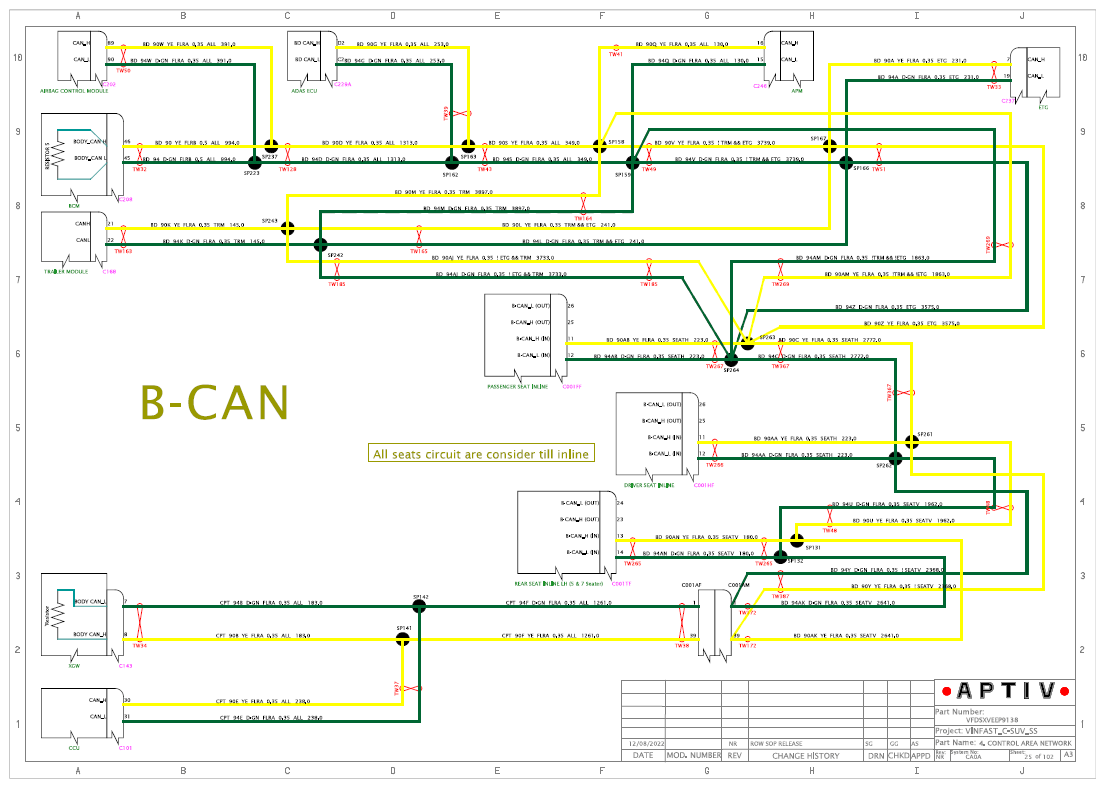

BD CAN

Courtesy of VINFAST, LLC

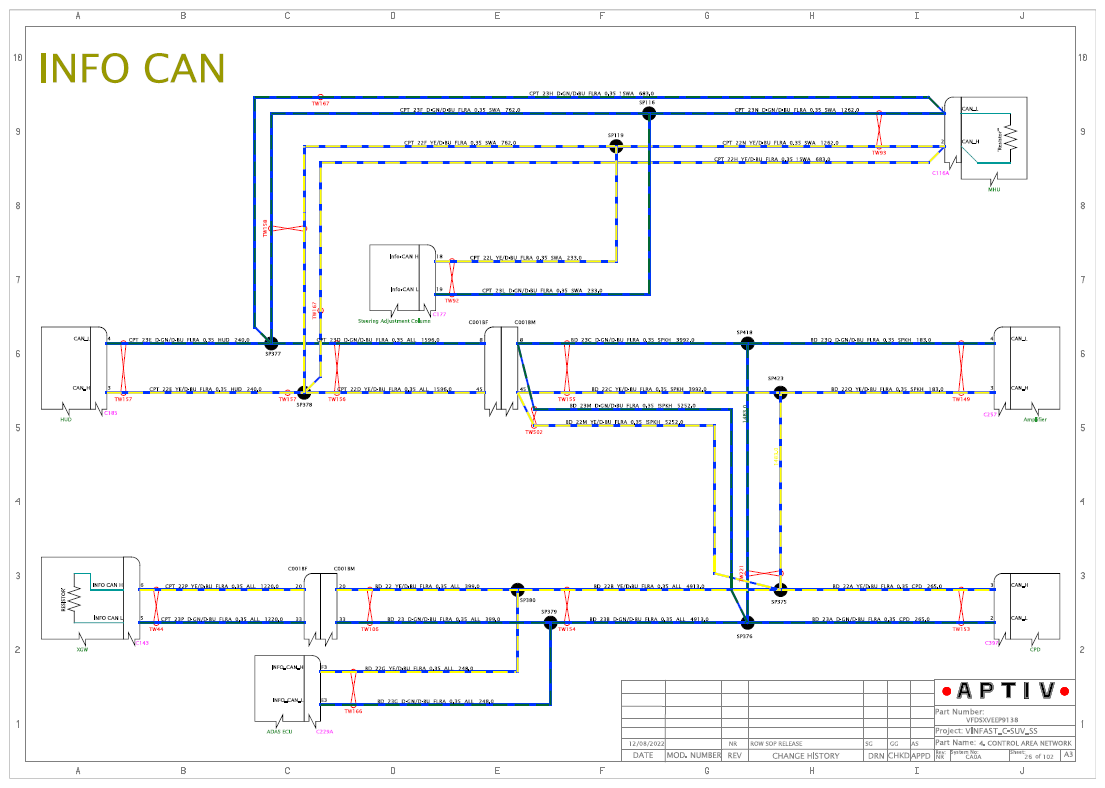

INFO CAN

Courtesy of VINFAST, LLC
FA CAN

Courtesy of VINFAST, LLC

BCM LIN

Courtesy of VINFAST, LLC

OBD 1

Courtesy of VINFAST, LLC

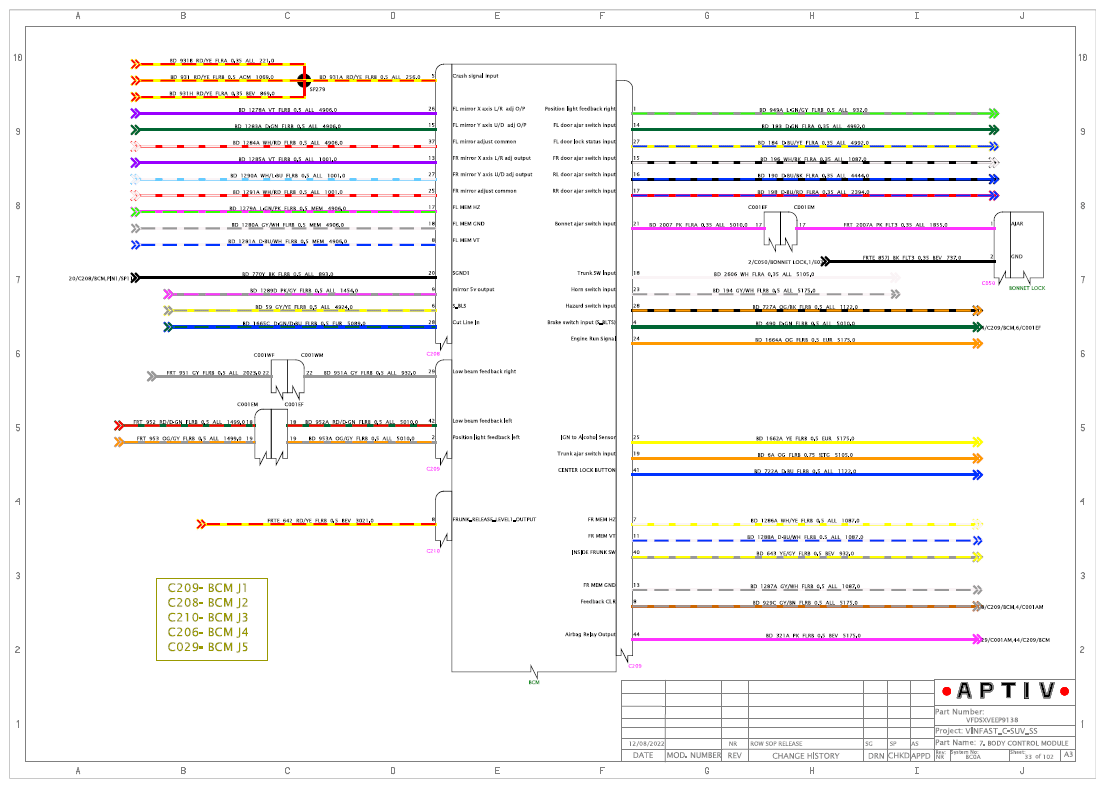

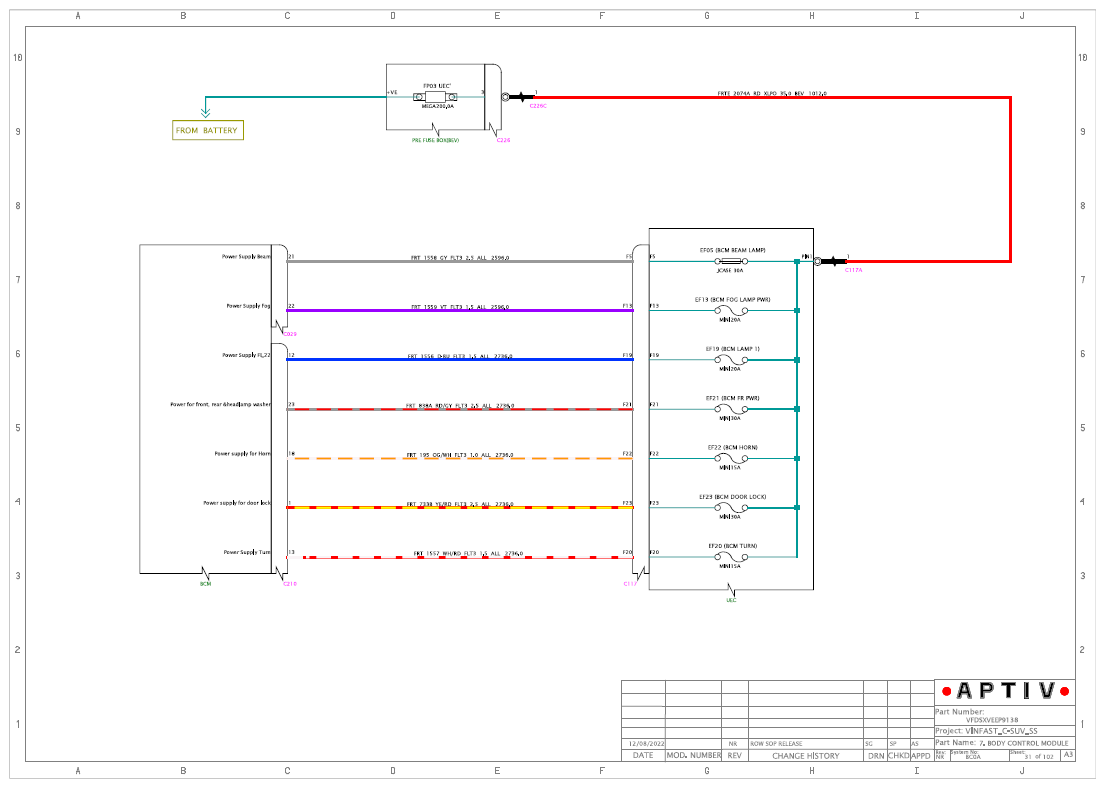

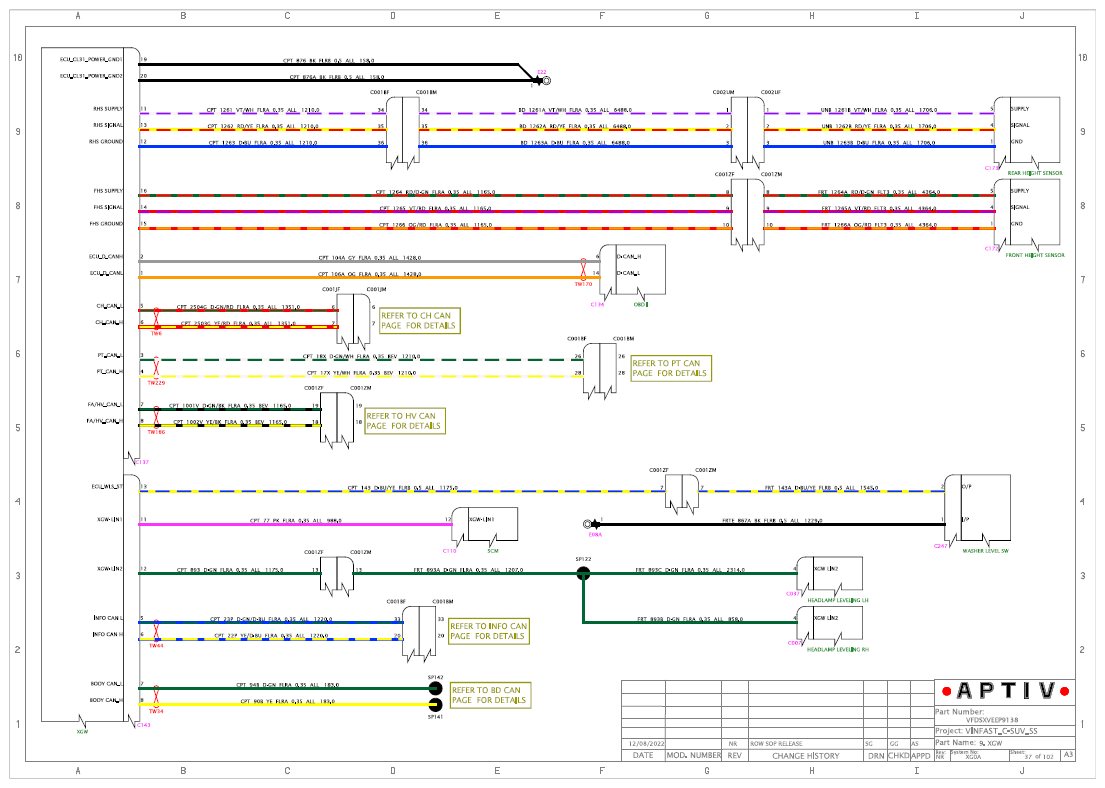

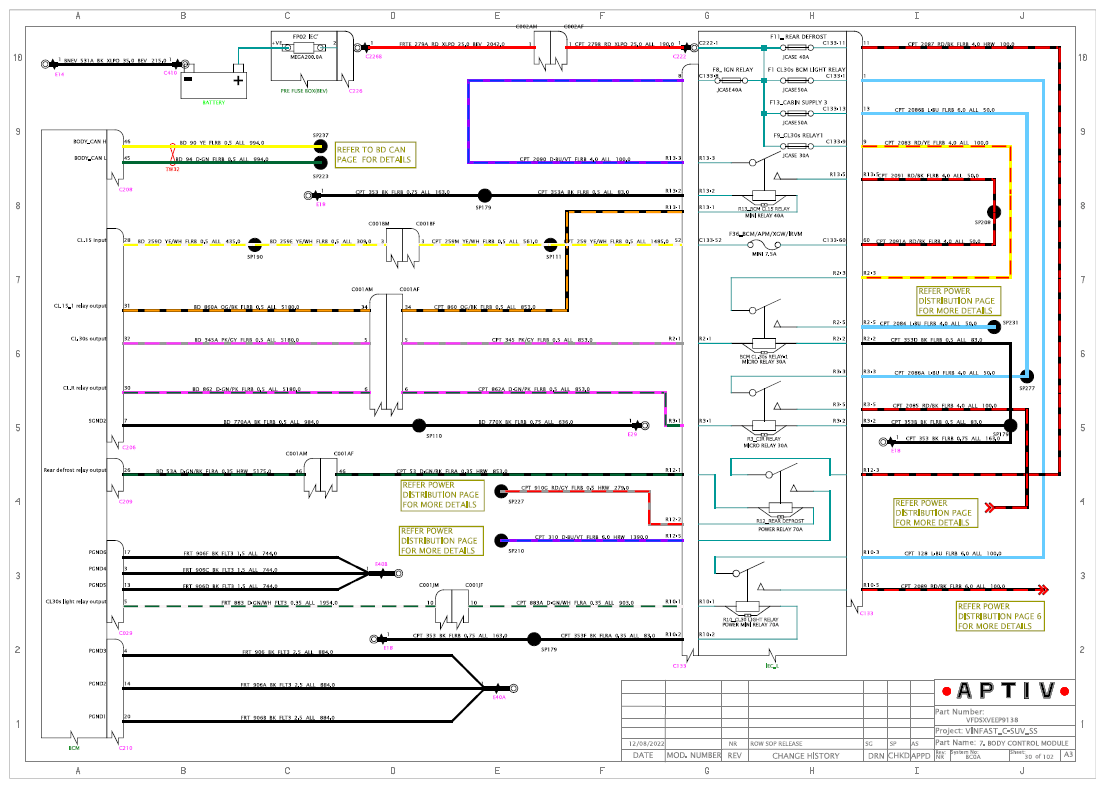

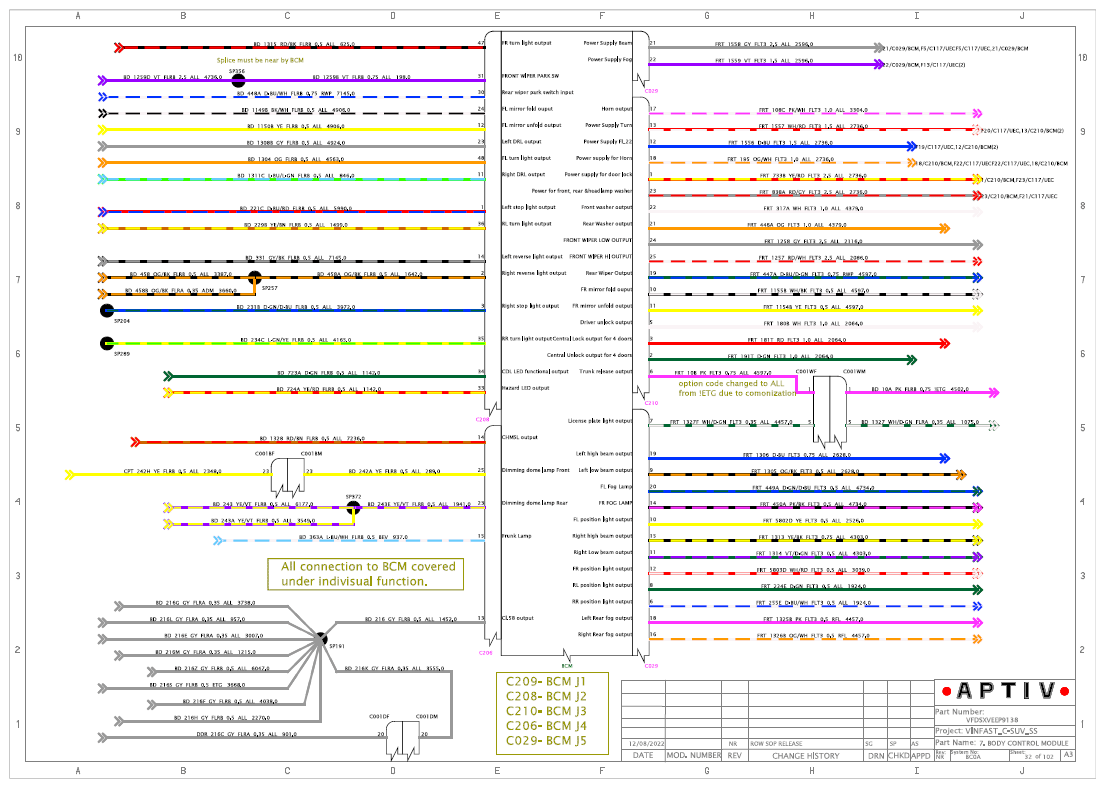

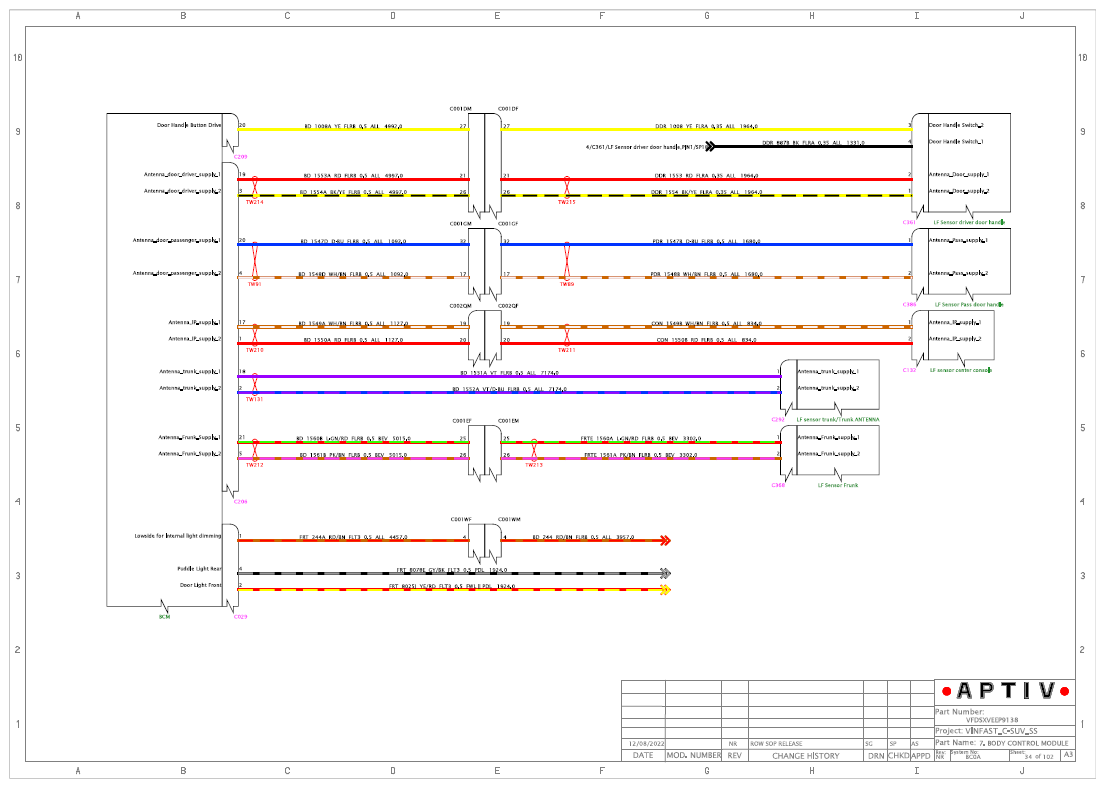

BCM 1

Courtesy of VINFAST, LLC

BCM 2

Courtesy of VINFAST, LLC

BCM 3

Courtesy of VINFAST, LLC

BCM4

Courtesy of VINFAST, LLC

BCM 5

Courtesy of VINFAST, LLC

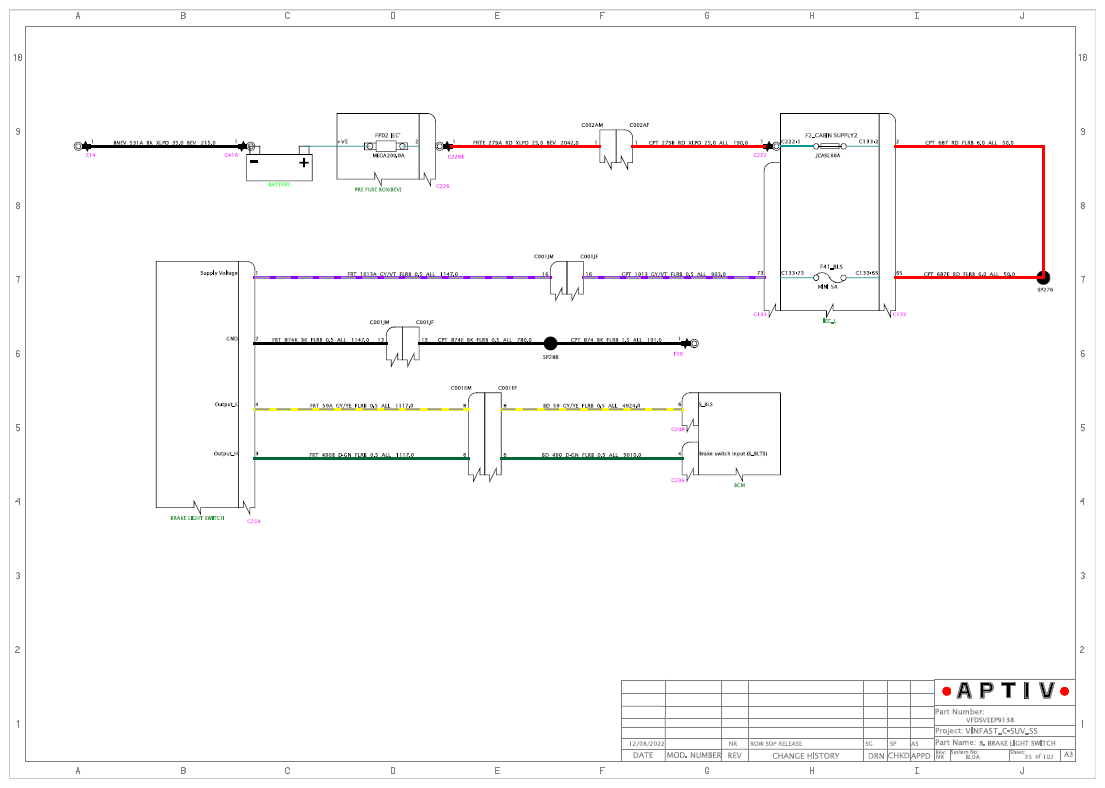

BKS

Courtesy of VINFAST, LLC

XGW1

Courtesy of VINFAST, LLC

XGW2

Courtesy of VINFAST, LLC

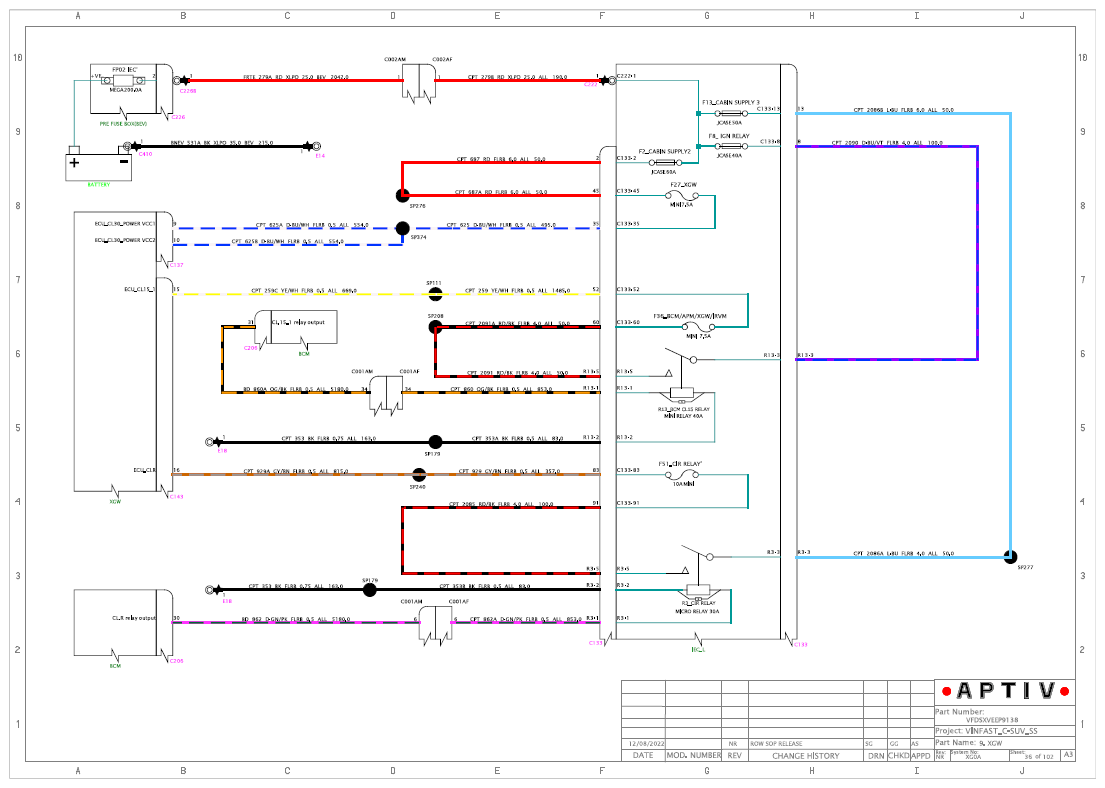

SCM

Courtesy of VINFAST, LLC

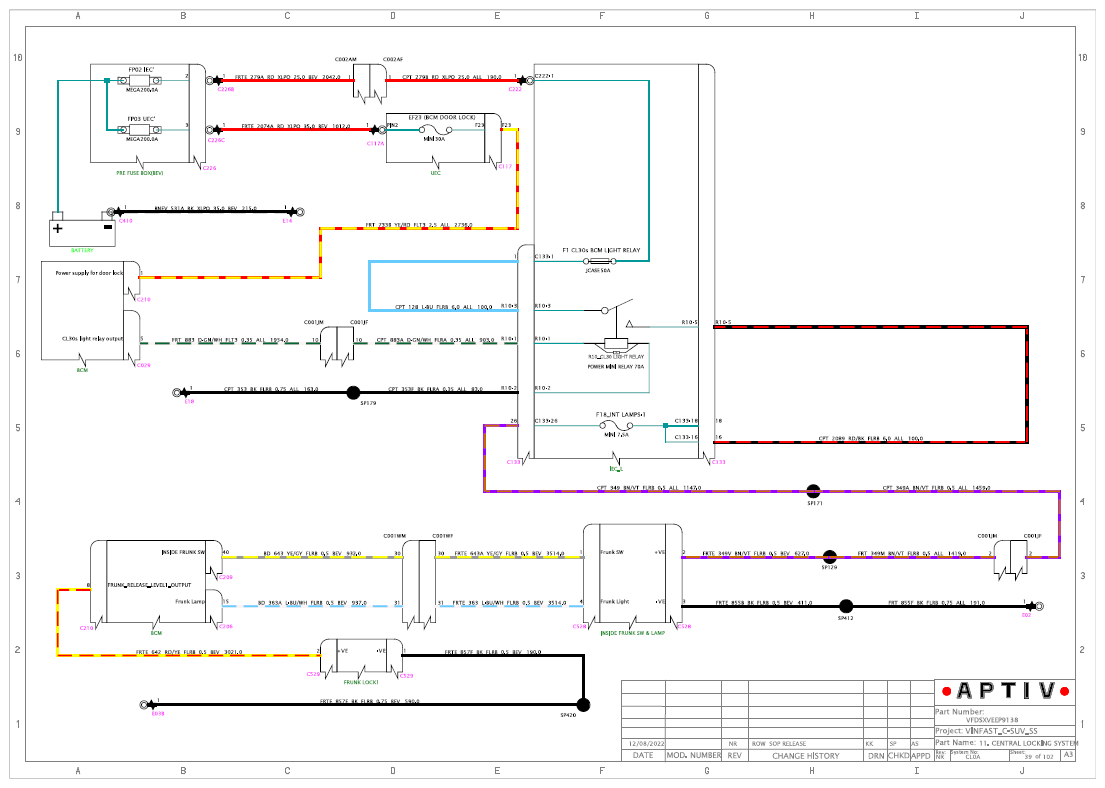

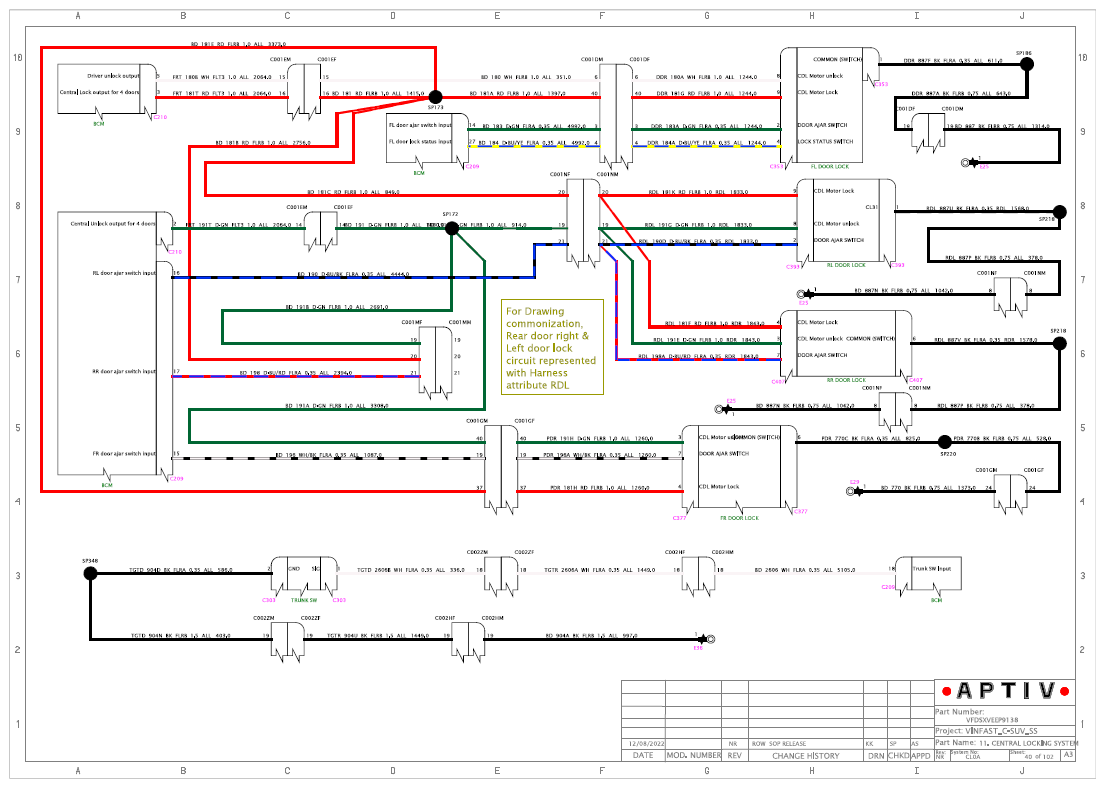

CLS1

Courtesy of VINFAST, LLC

CLS2

Courtesy of VINFAST, LLC

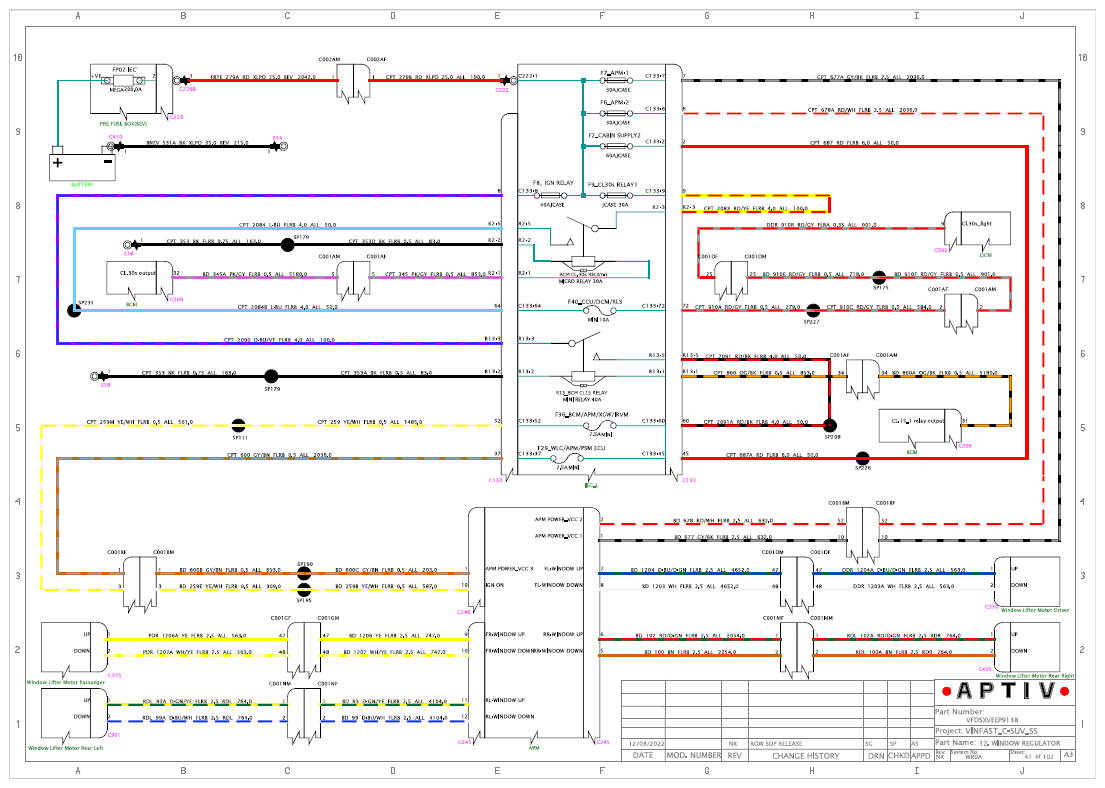

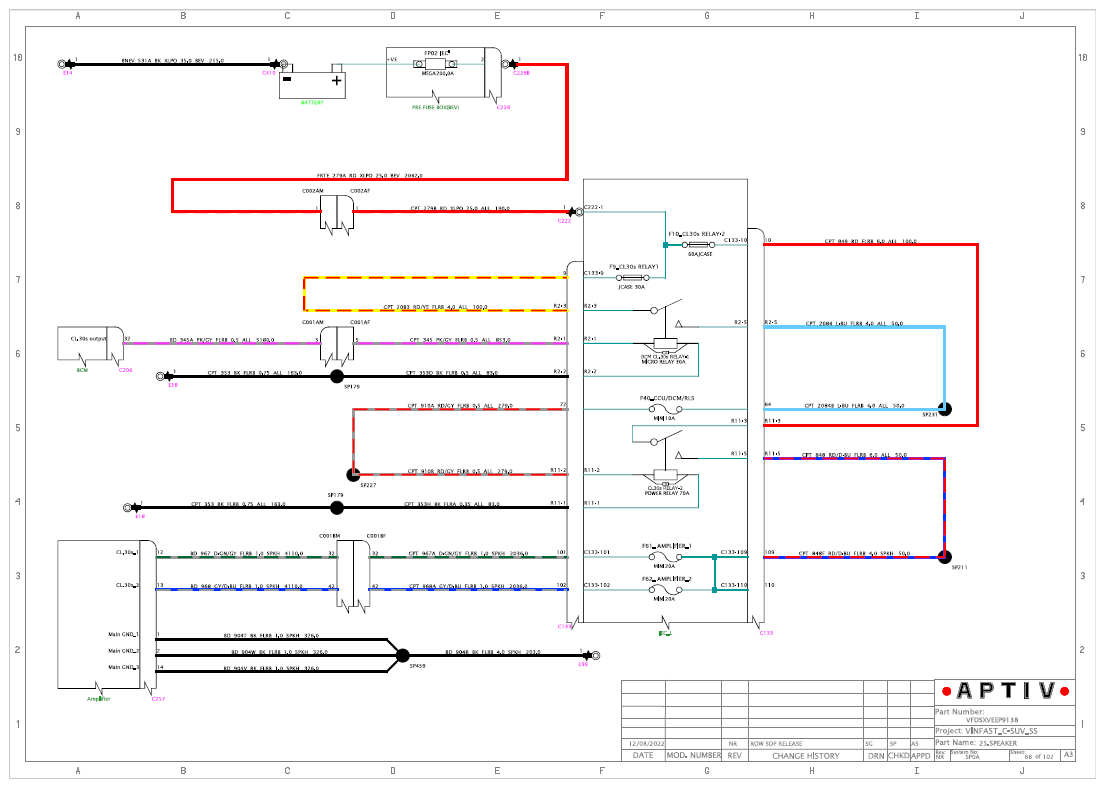

APM-1

Courtesy of VINFAST, LLC

APM-2

Courtesy of VINFAST, LLC

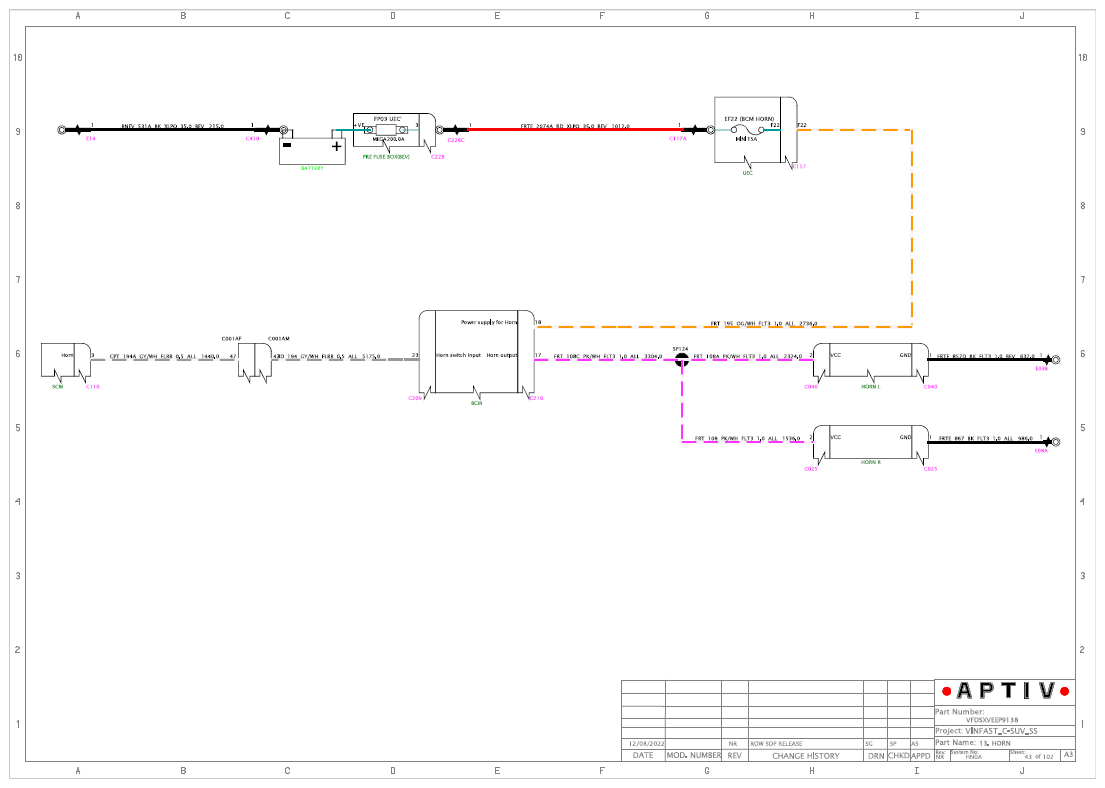

HORN

Courtesy of VINFAST, LLC

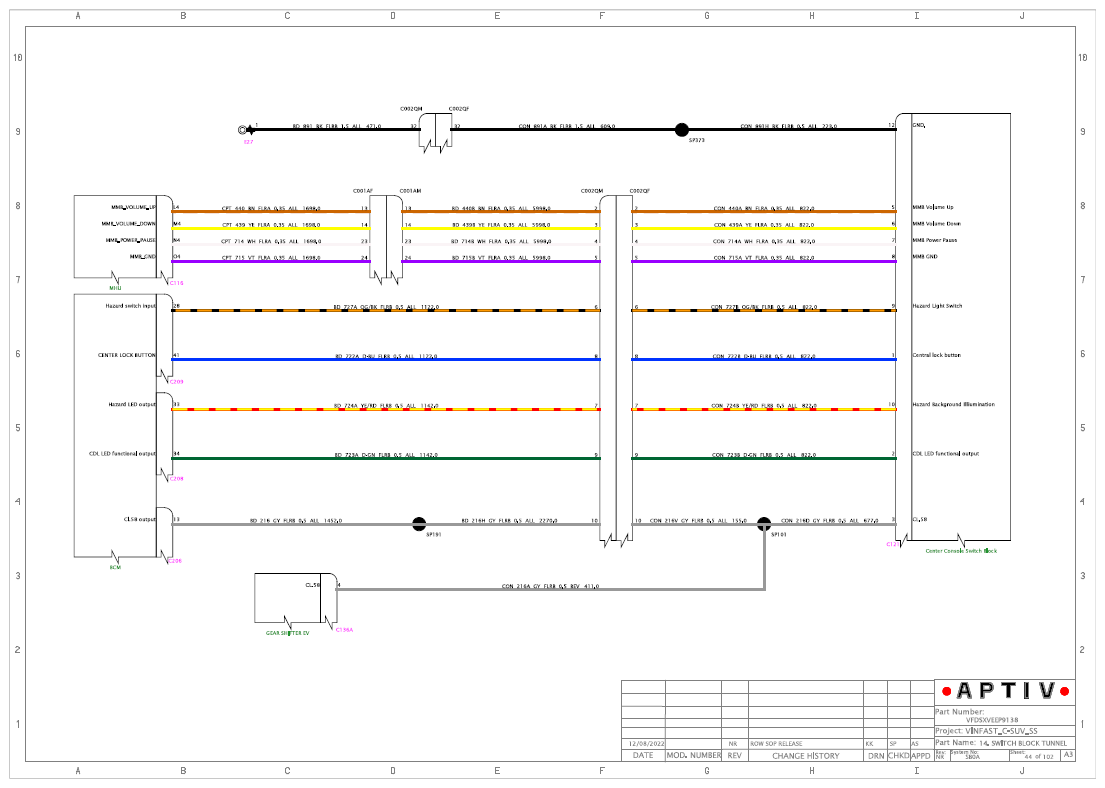

SBT

Courtesy of VINFAST, LLC

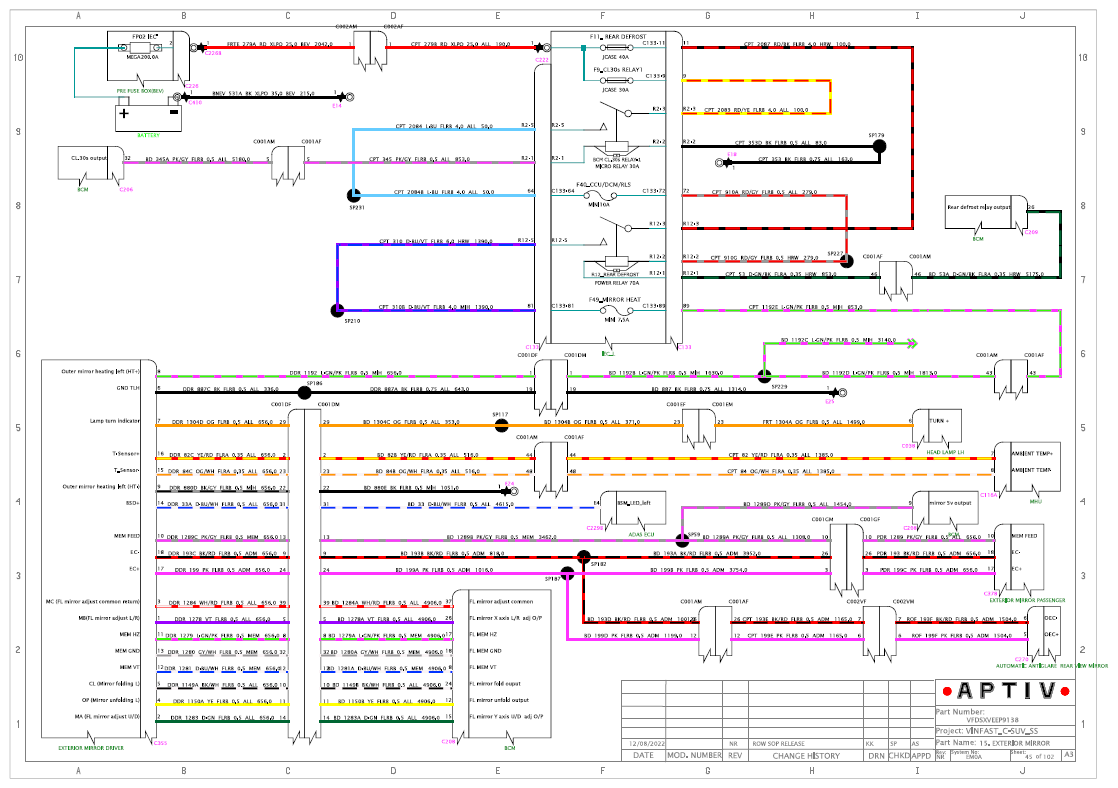

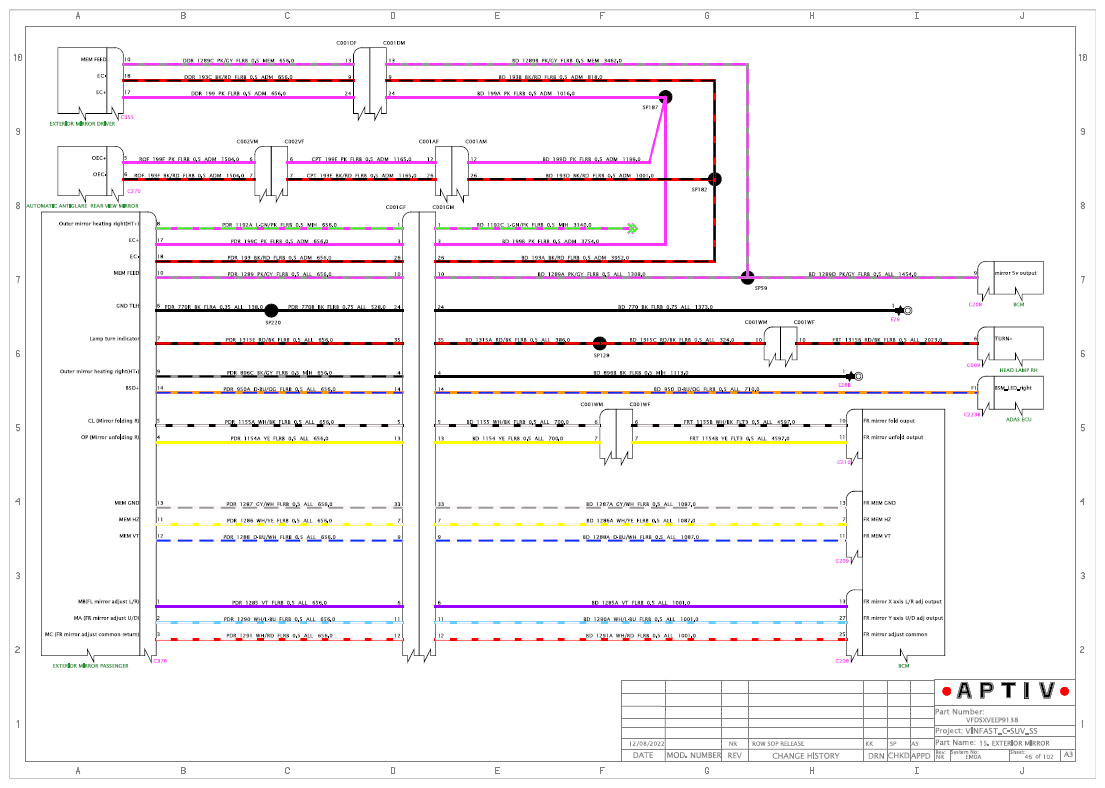

DRIVER SIDE MIRROR

Courtesy of VINFAST, LLC

PASSENGER SIDE MIRROR

Courtesy of VINFAST, LLC

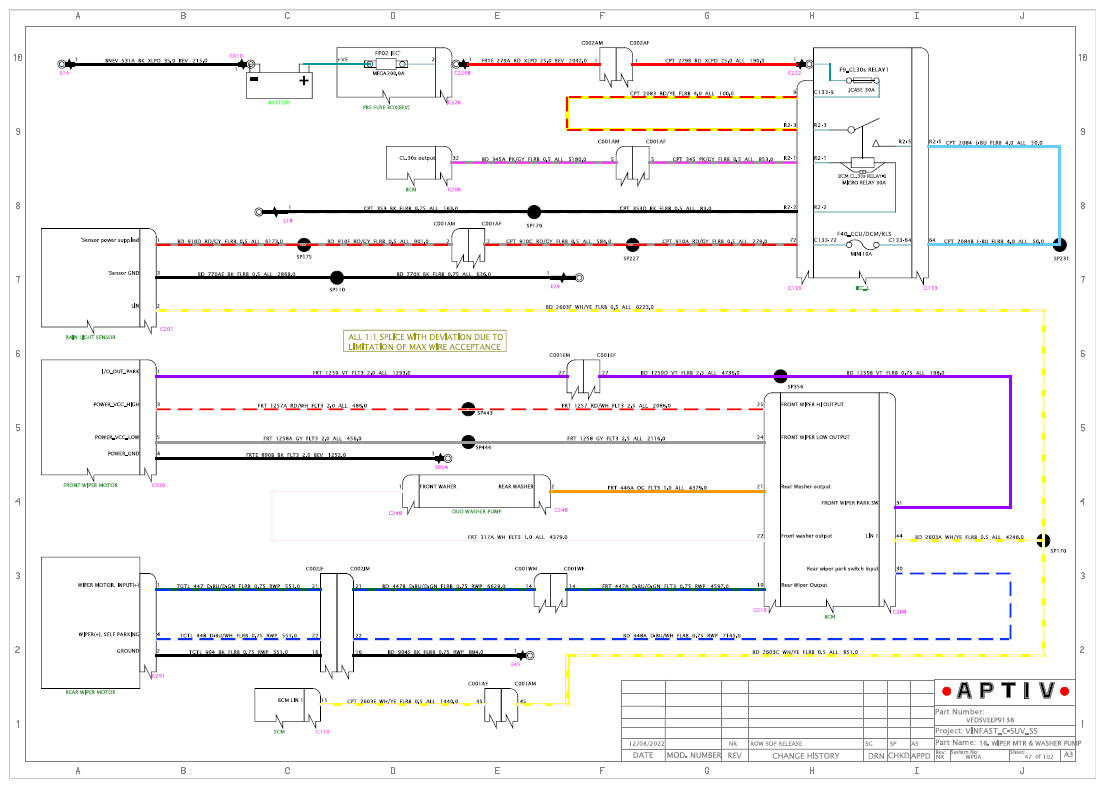

WP MTR & FRT WSHR PMP

Courtesy of VINFAST, LLC

RWH

Courtesy of VINFAST, LLC

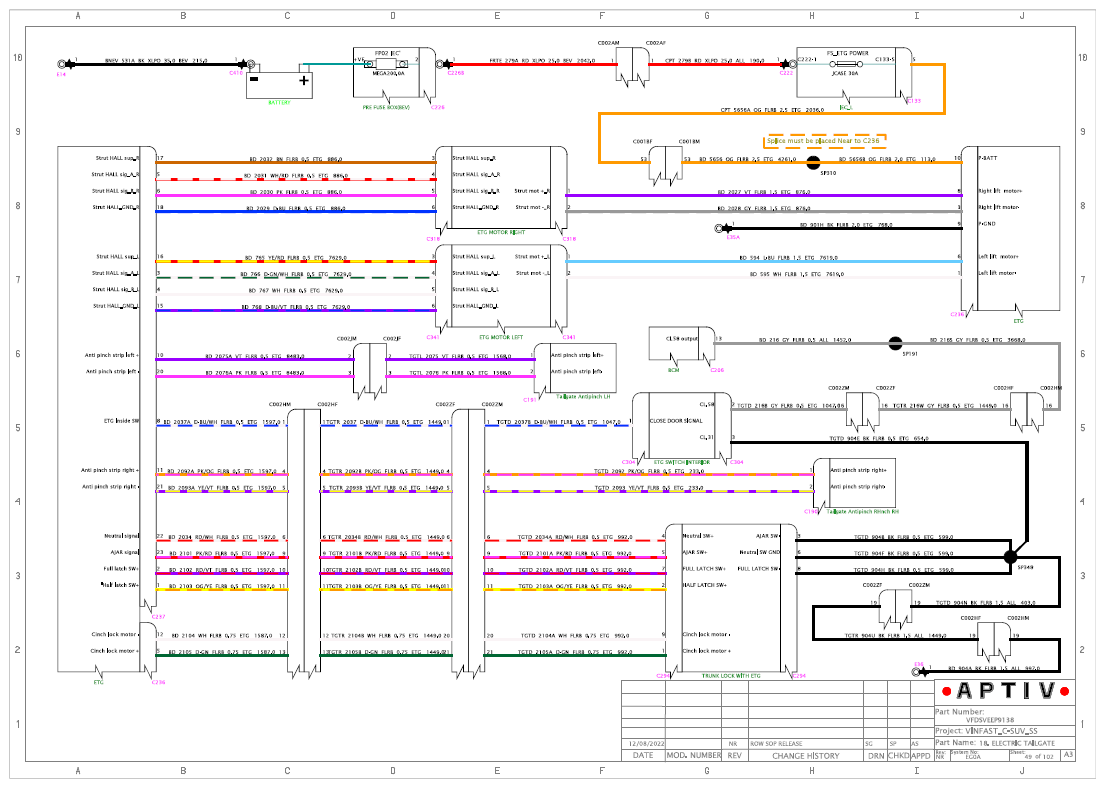

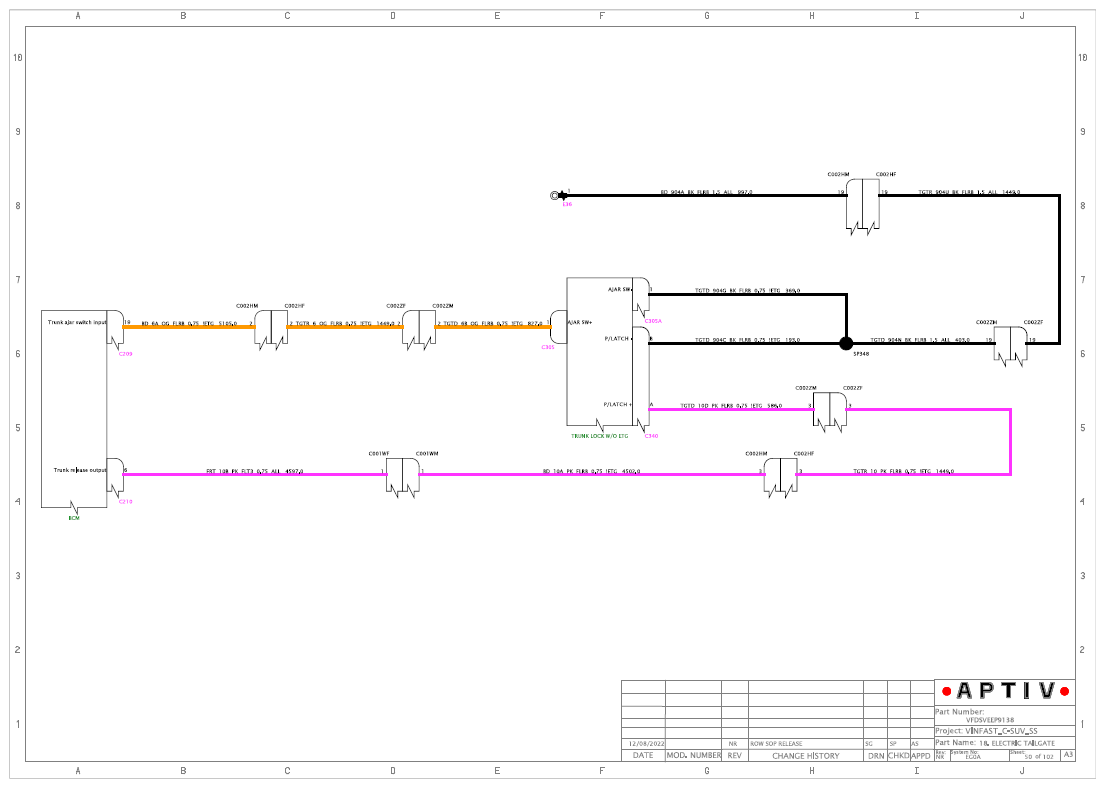

ETG

Courtesy of VINFAST, LLC

ETG2

Courtesy of VINFAST, LLC

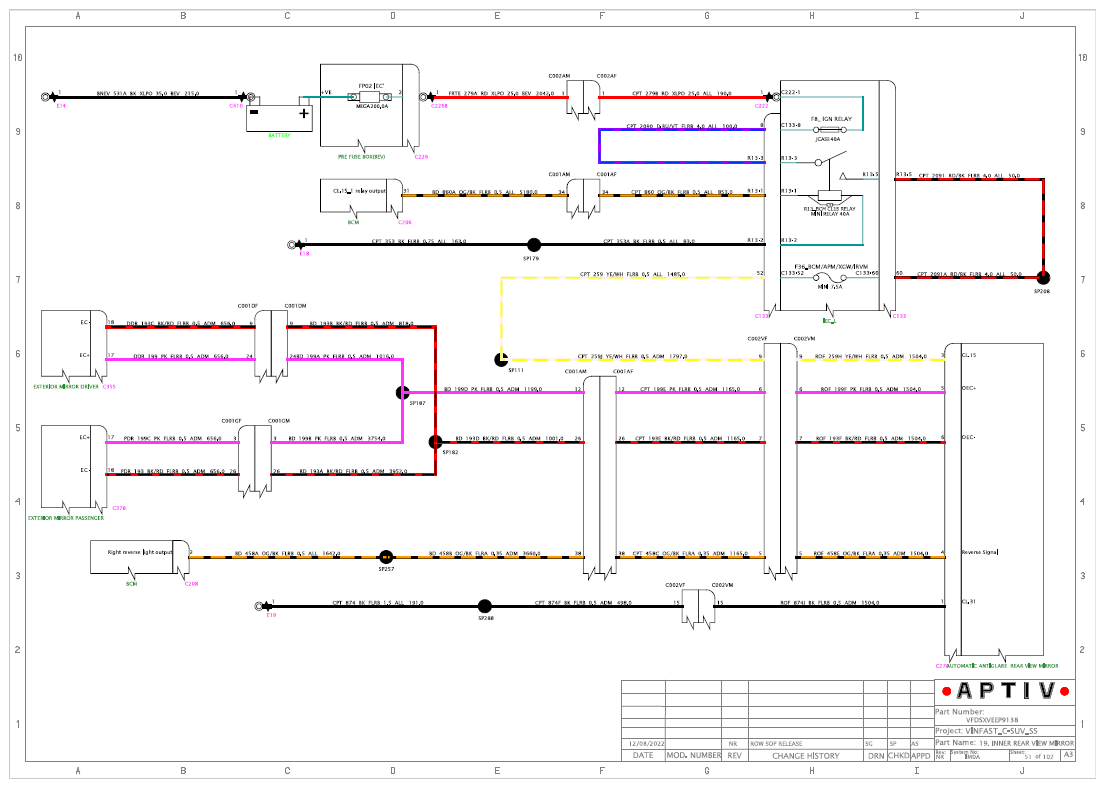

ECMI

Courtesy of VINFAST, LLC

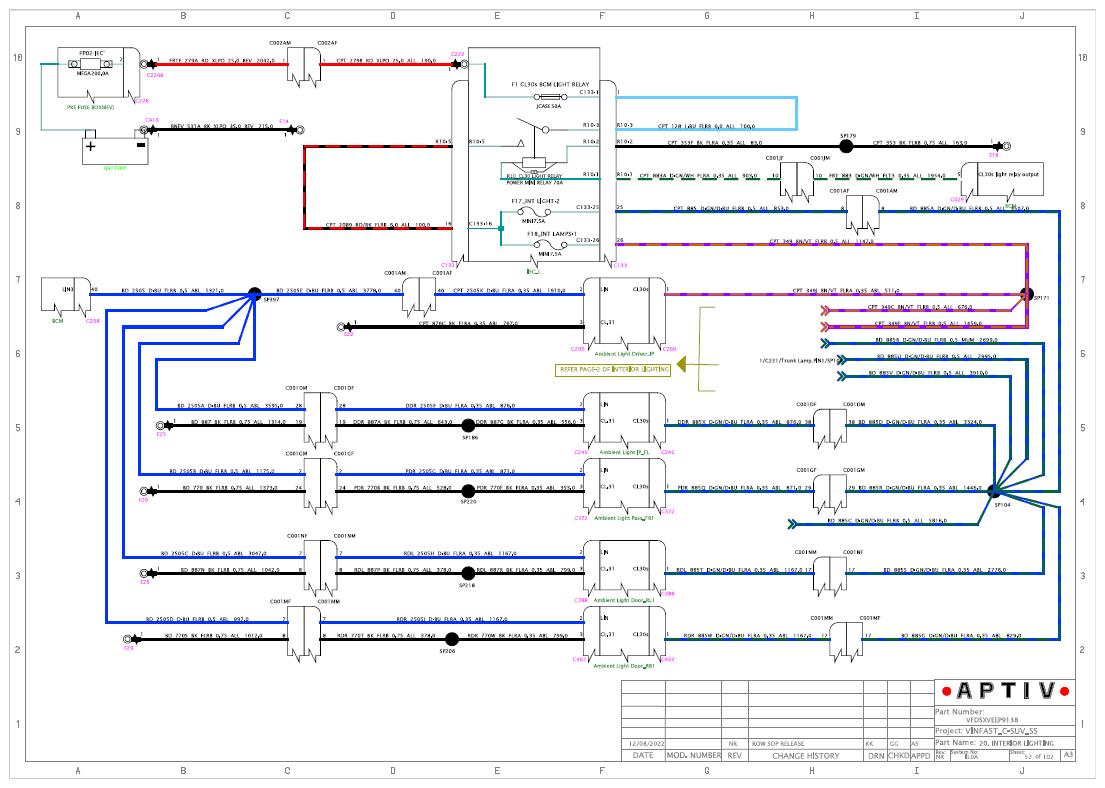

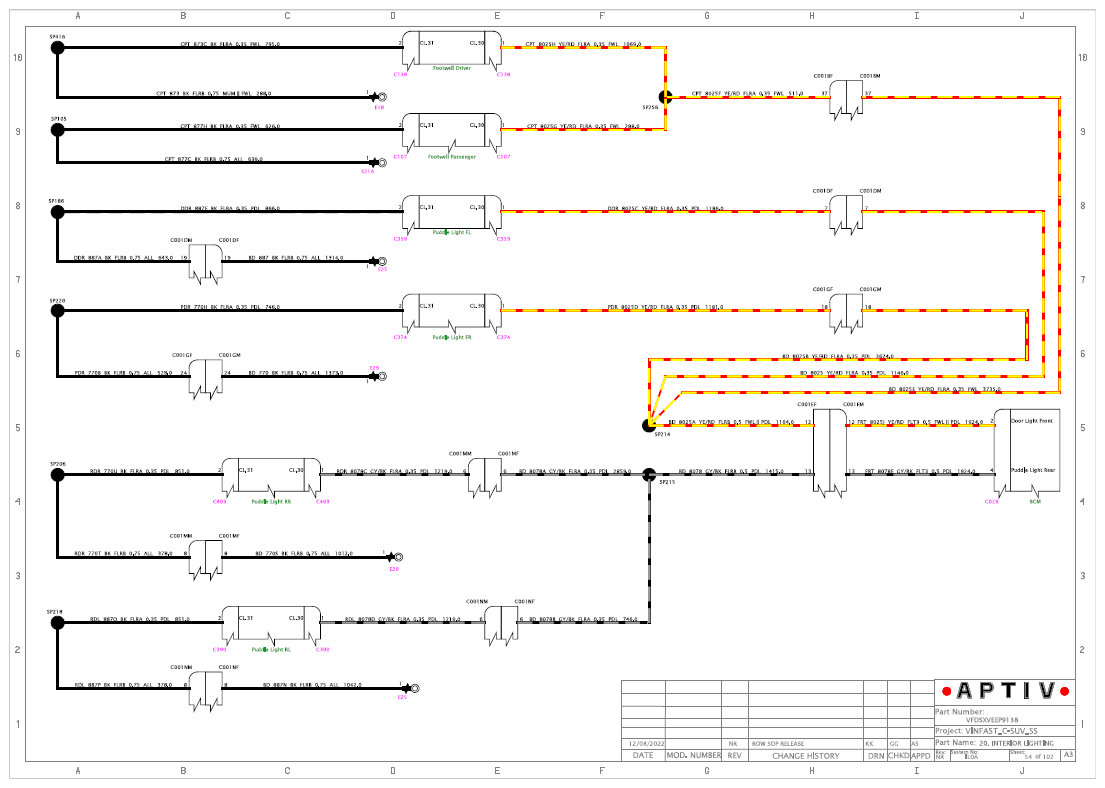

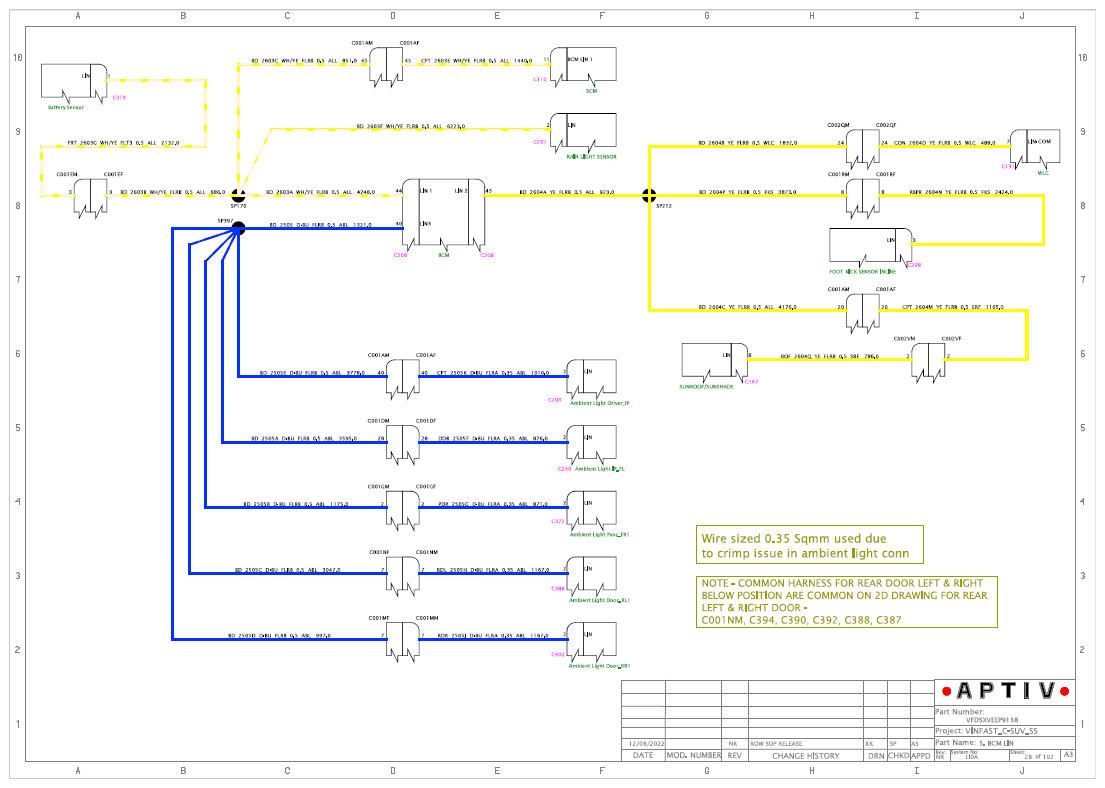

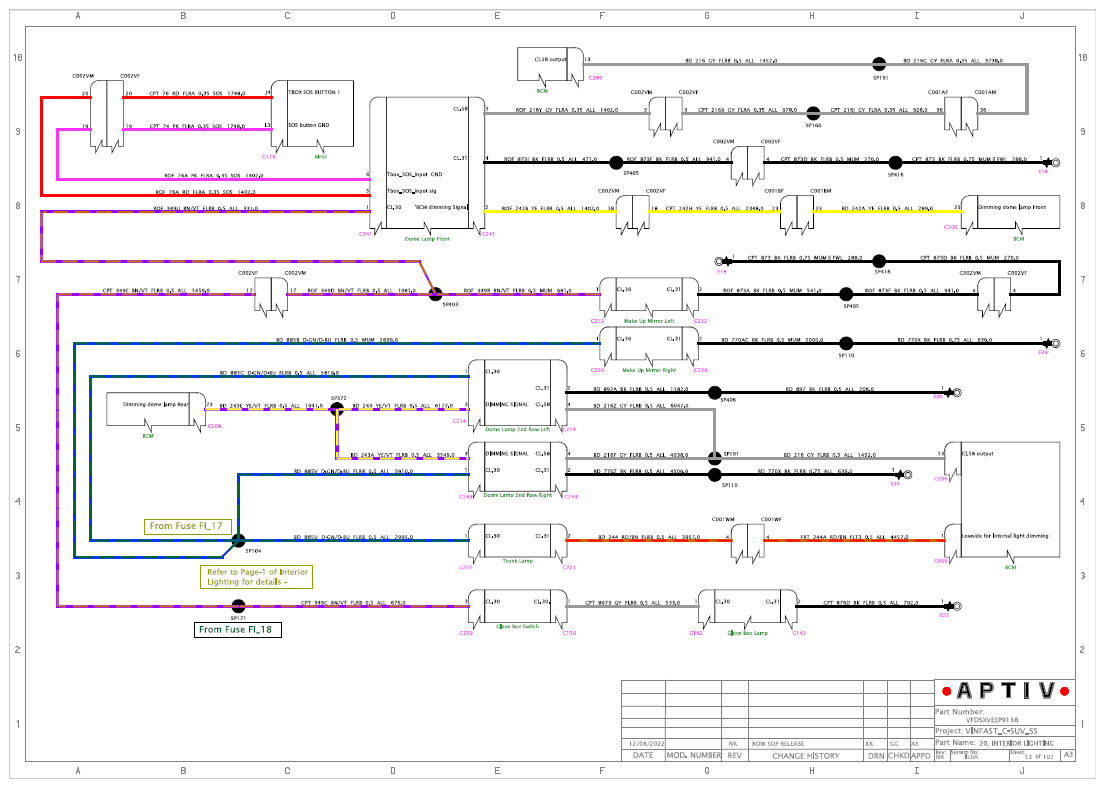

IEL1

Courtesy of VINFAST, LLC

IEL2

Courtesy of VINFAST, LLC

IEL3

Courtesy of VINFAST, LLC

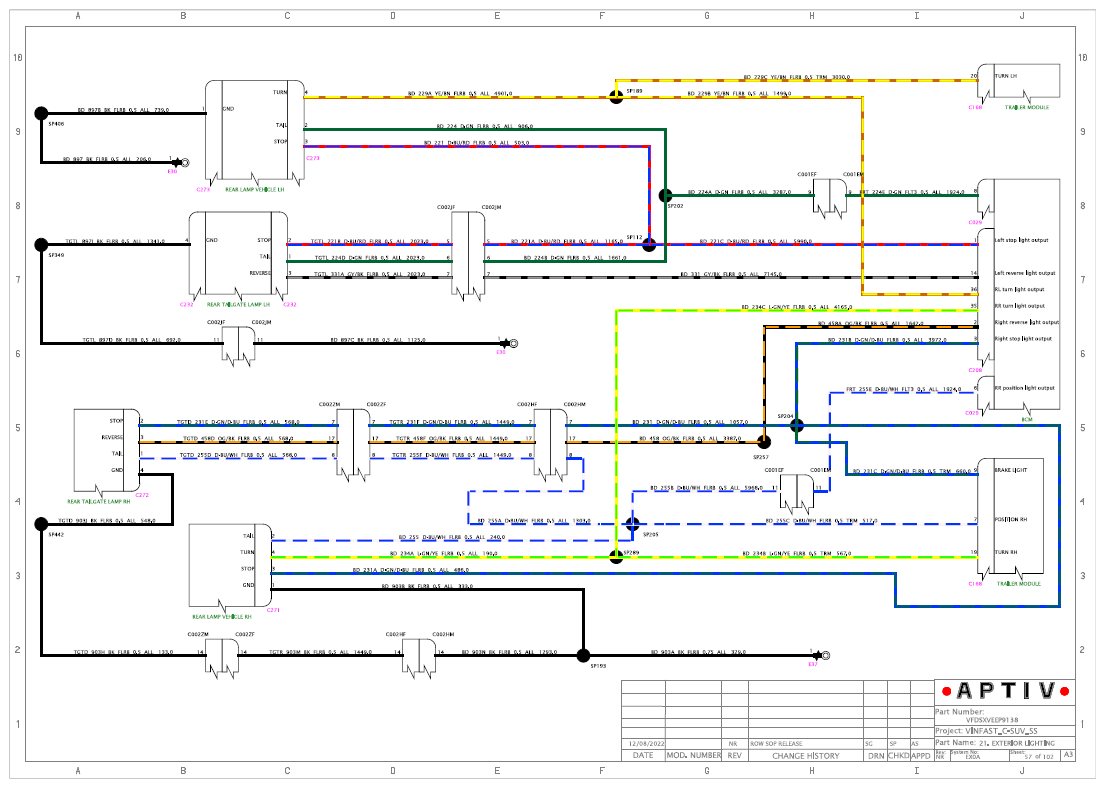

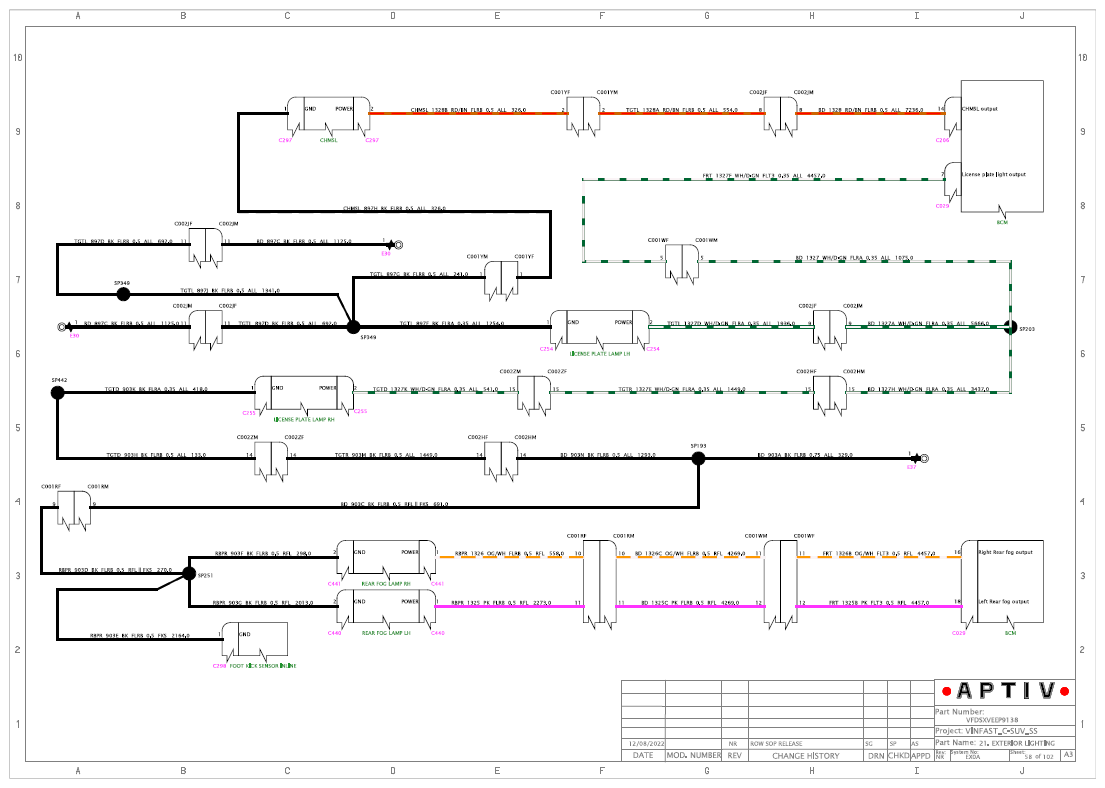

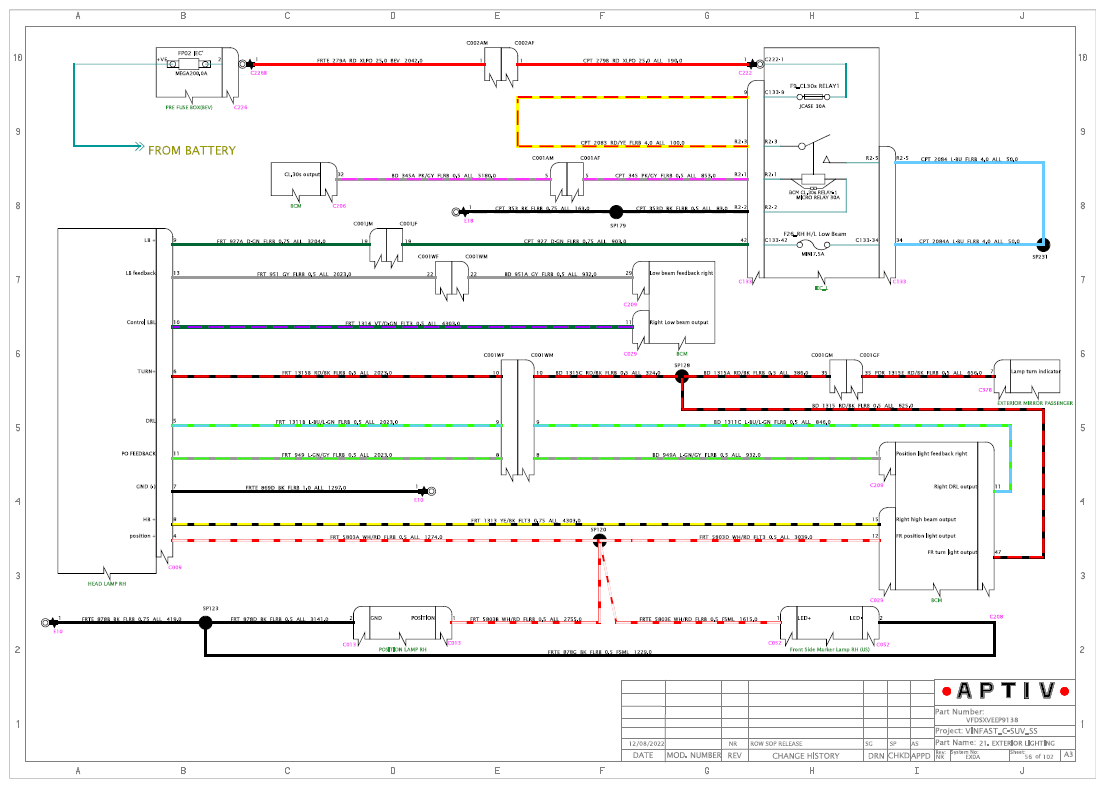

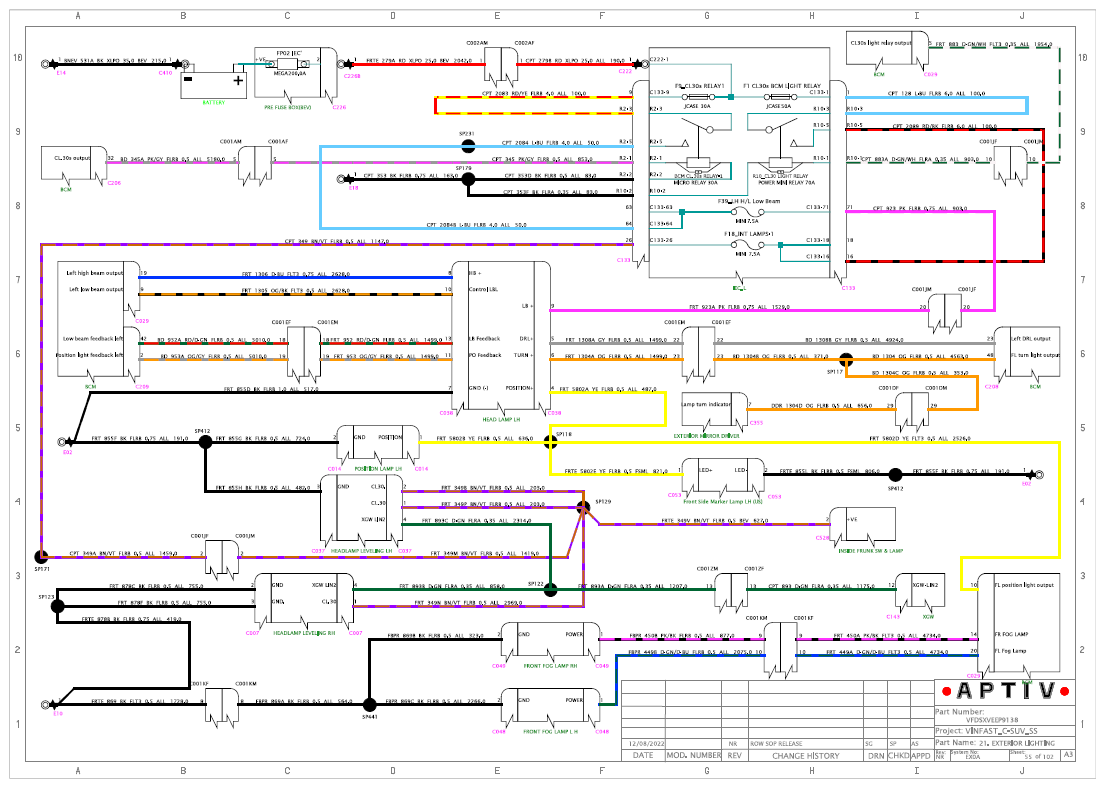

ELS1

Courtesy of VINFAST, LLC

ELS2

Courtesy of VINFAST, LLC

ELS3

Courtesy of VINFAST, LLC

ELS4

Courtesy of VINFAST, LLC

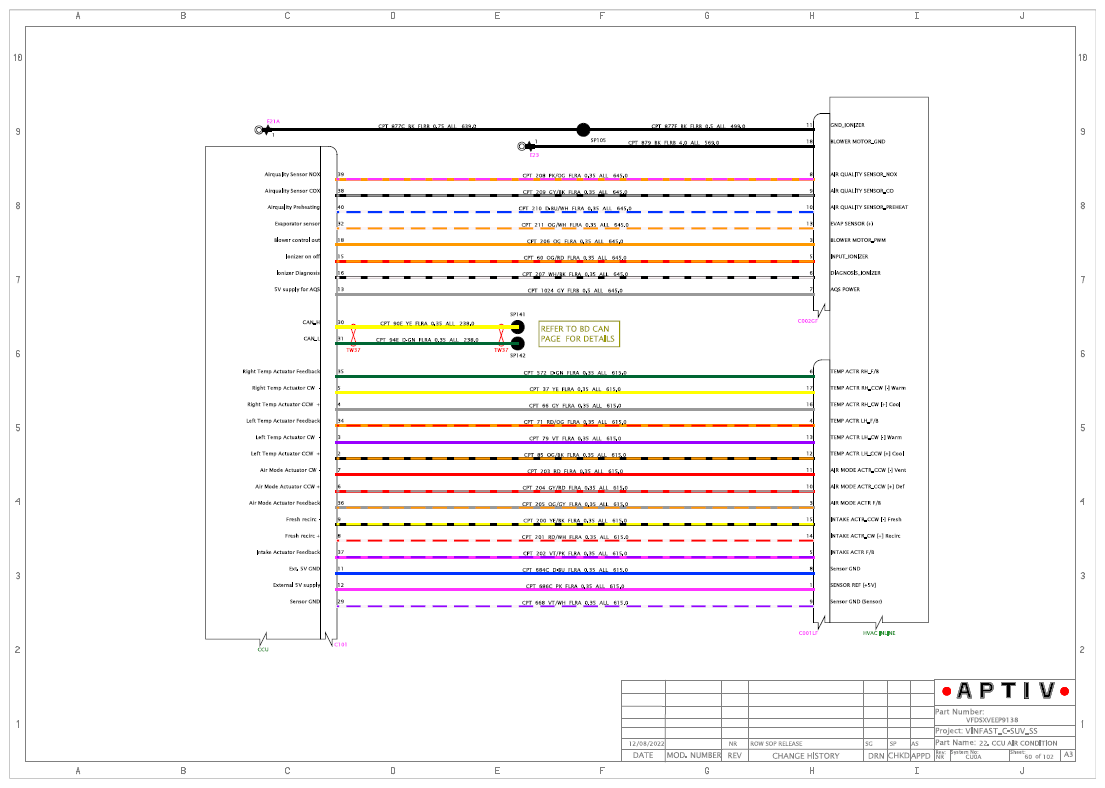

CCU 1

Courtesy of VINFAST, LLC

CCU 2

Courtesy of VINFAST, LLC

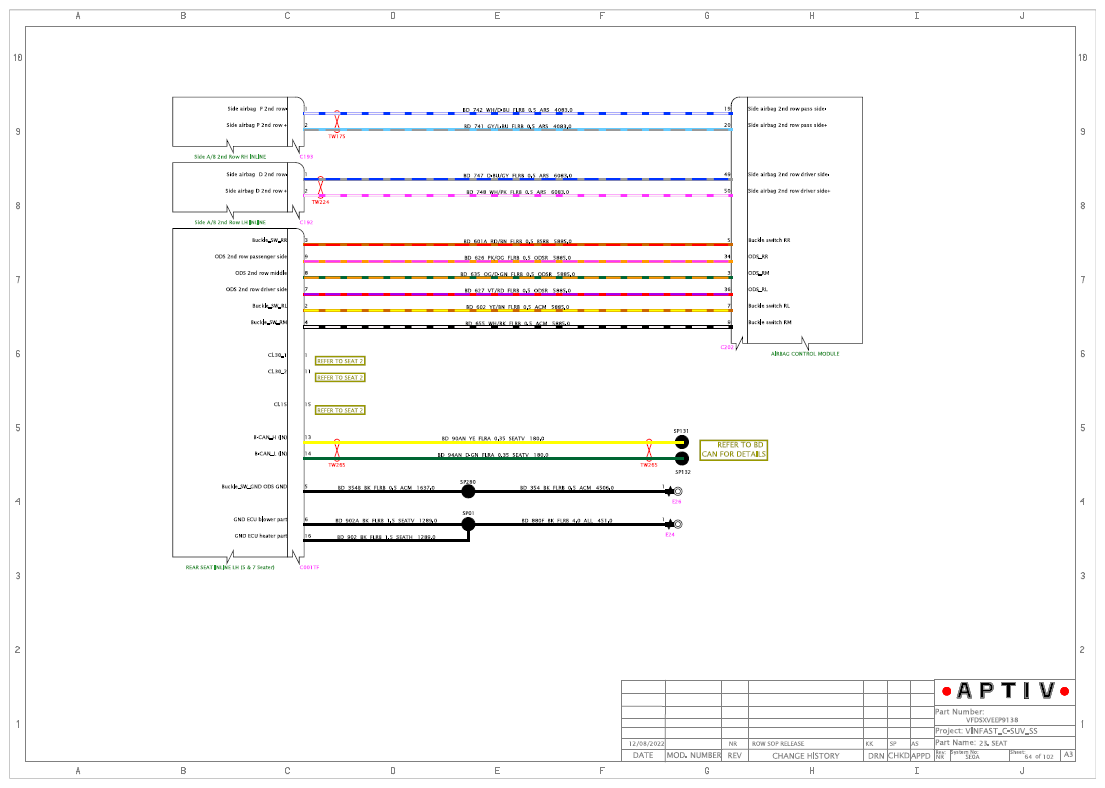

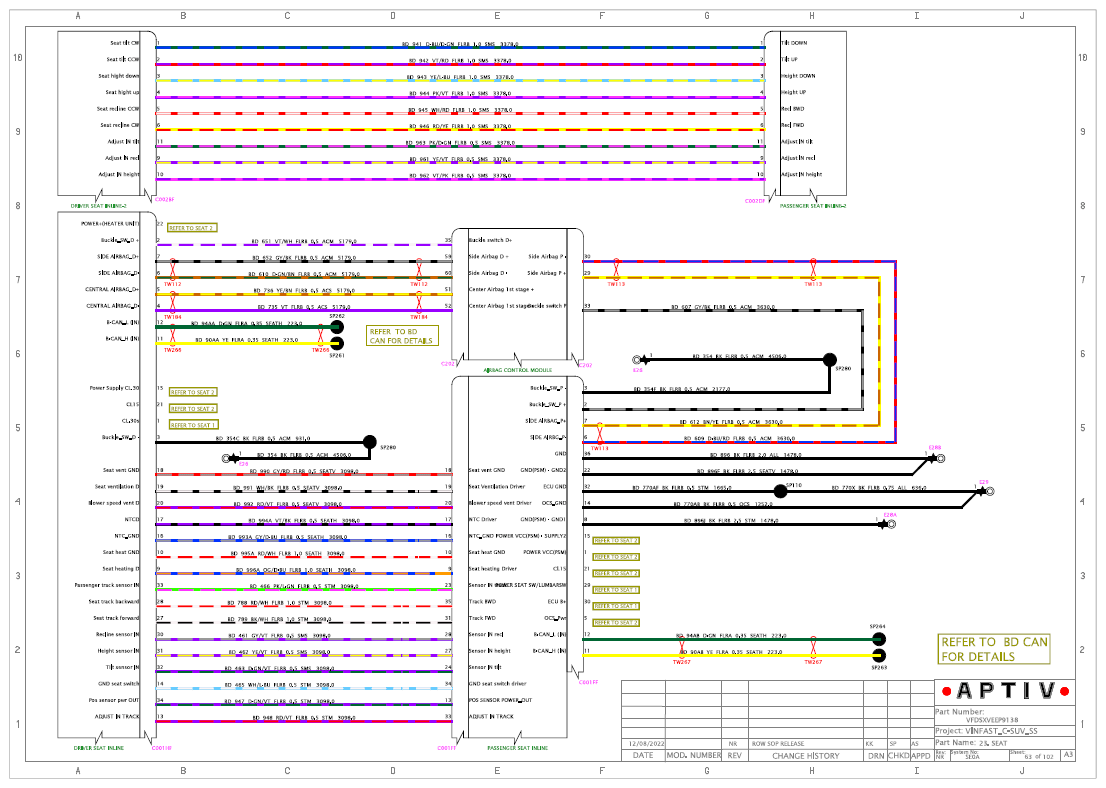

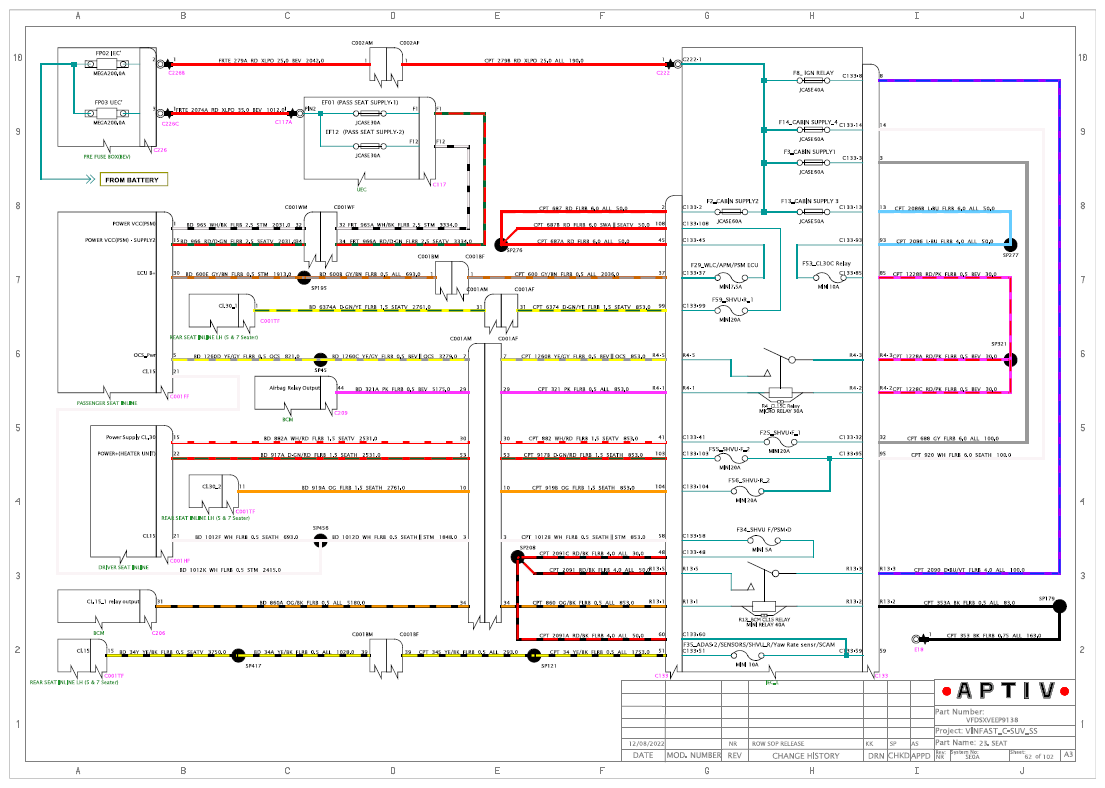

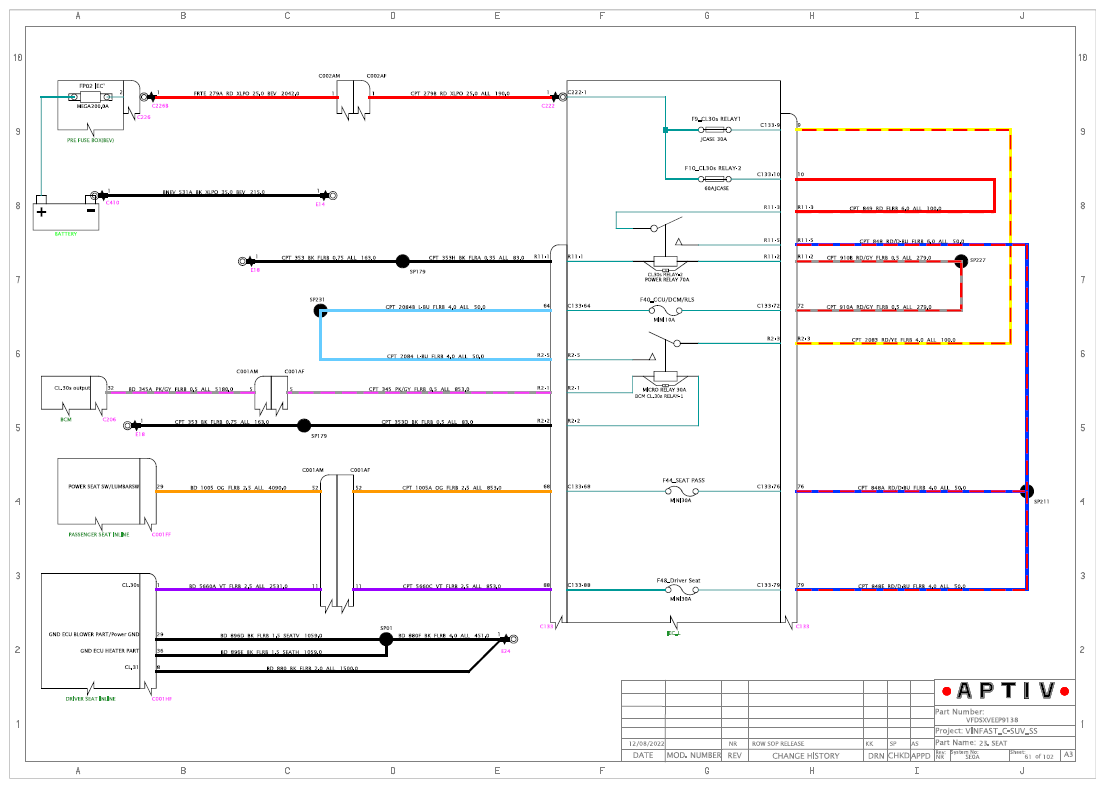

SEAT 1

Courtesy of VINFAST, LLC

SEAT 2

Courtesy of VINFAST, LLC

SEAT 3

Courtesy of VINFAST, LLC

SEAT 4

Courtesy of VINFAST, LLC

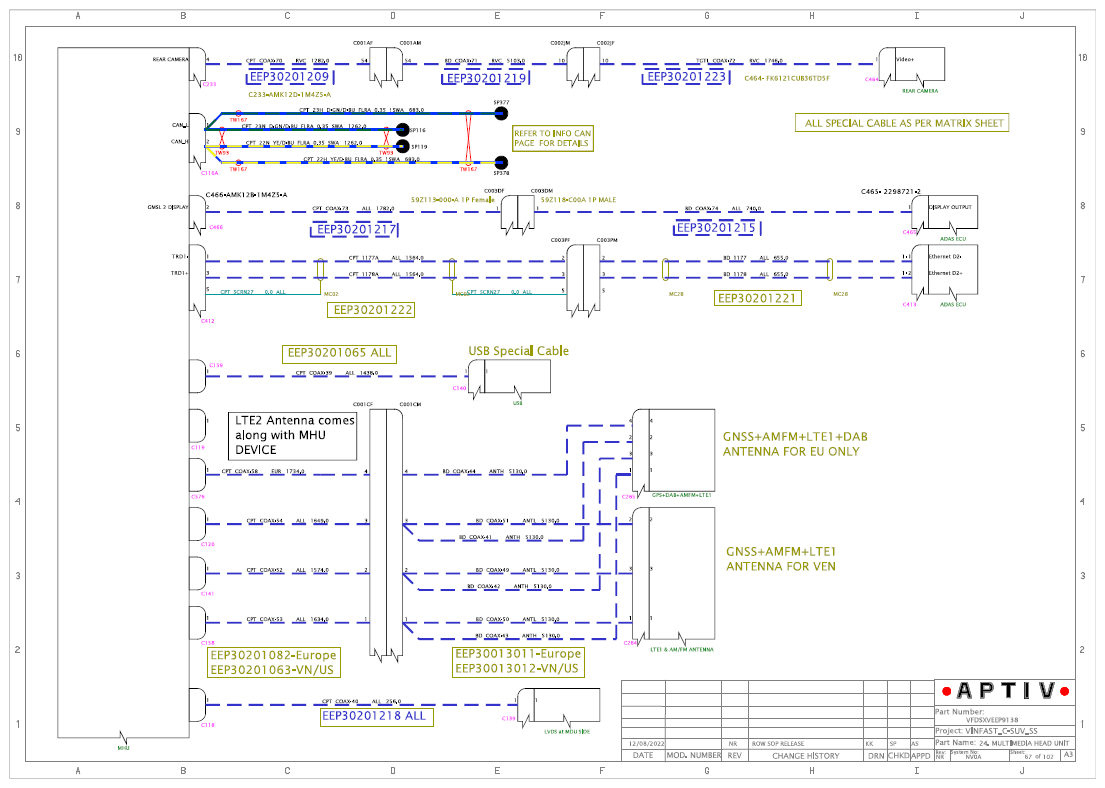

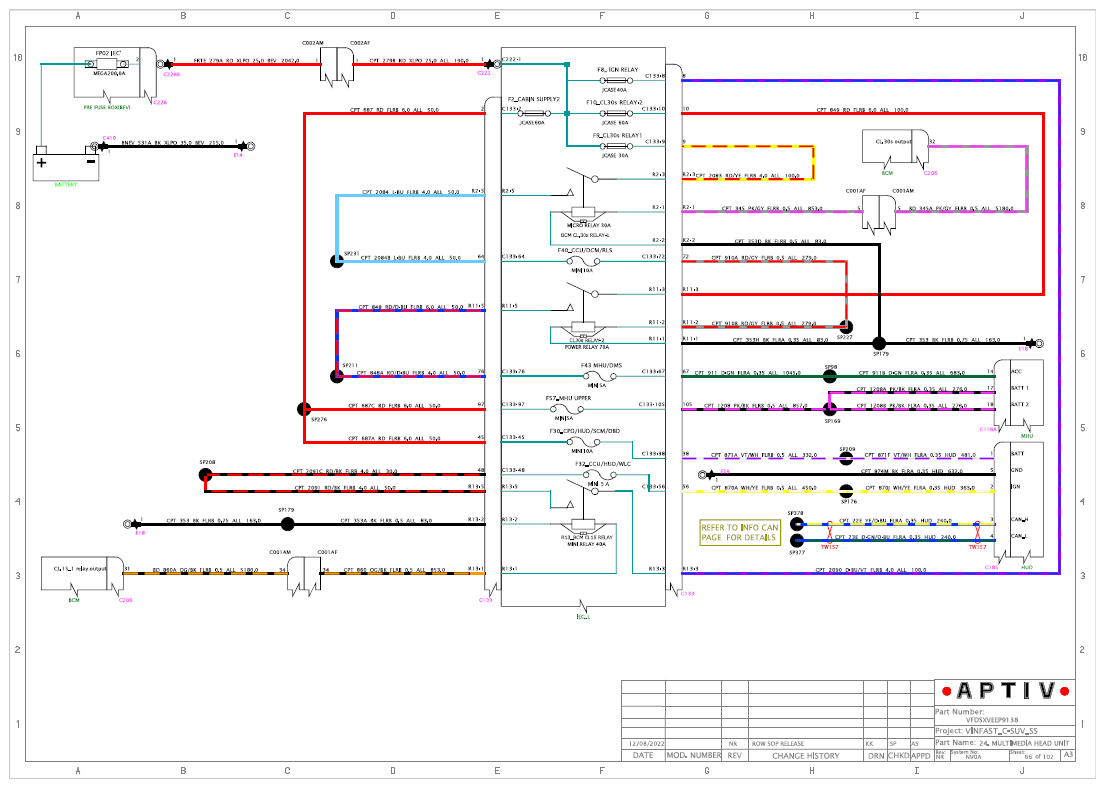

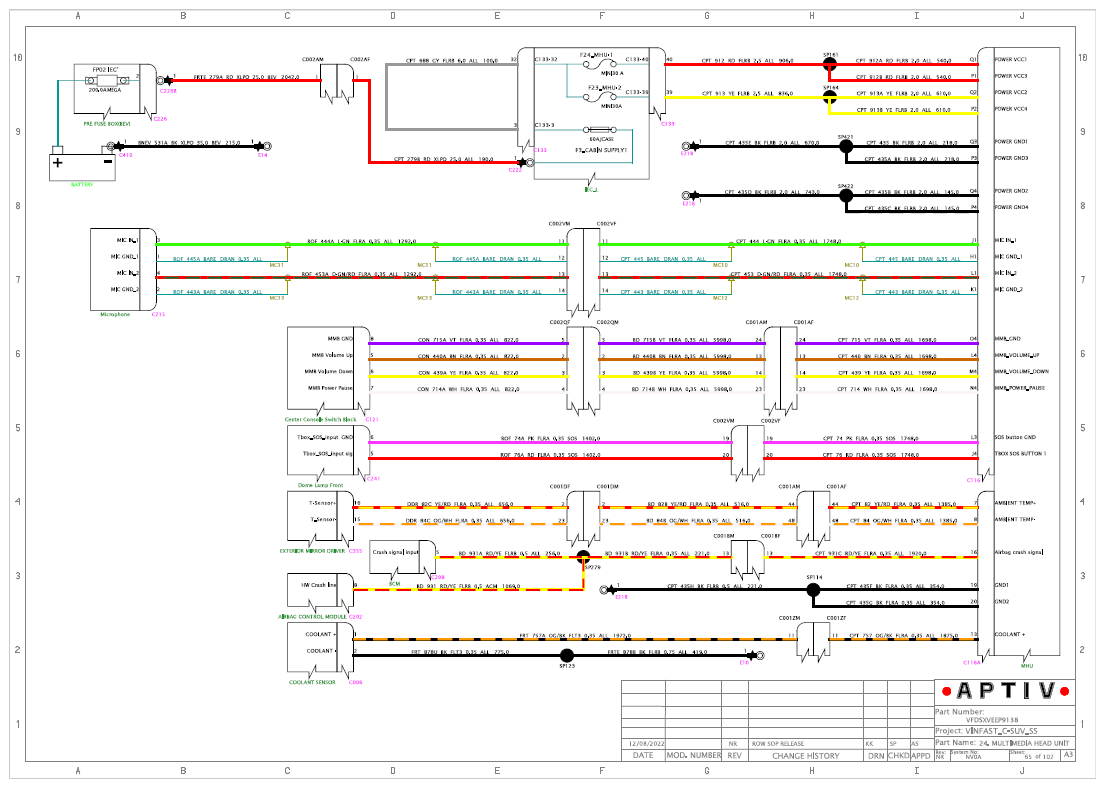

MHU 1

Courtesy of VINFAST, LLC

MHU 2

Courtesy of VINFAST, LLC

MHU 3

Courtesy of VINFAST, LLC

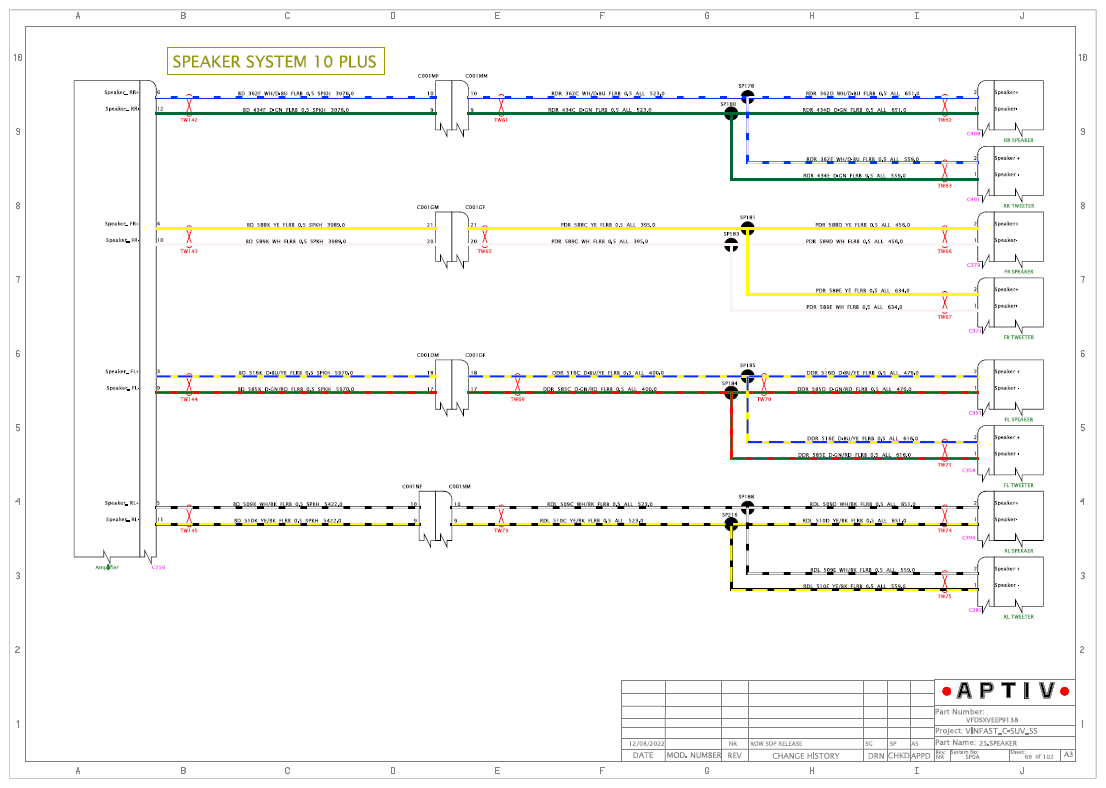

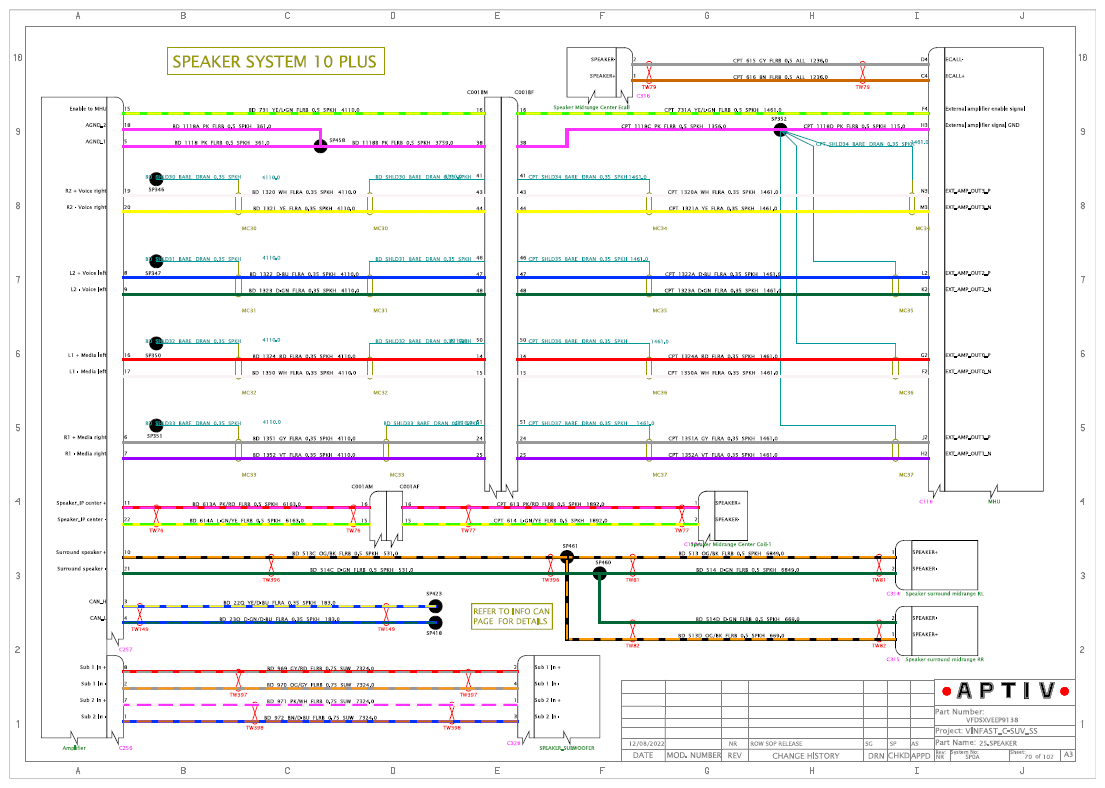

SPEAKER 1

Courtesy of VINFAST, LLC

SPEAKER 2

Courtesy of VINFAST, LLC

SPEAKER 3

Courtesy of VINFAST, LLC

SPEAKER 4

Courtesy of VINFAST, LLC

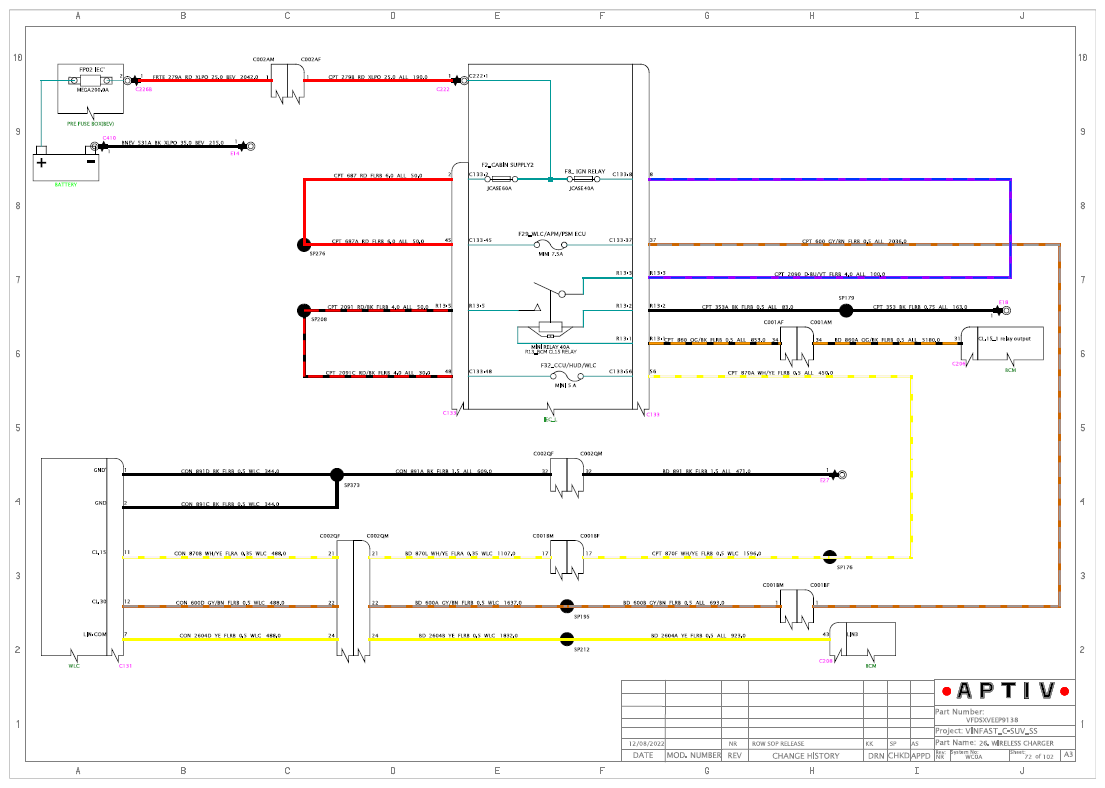

WLC

Courtesy of VINFAST, LLC

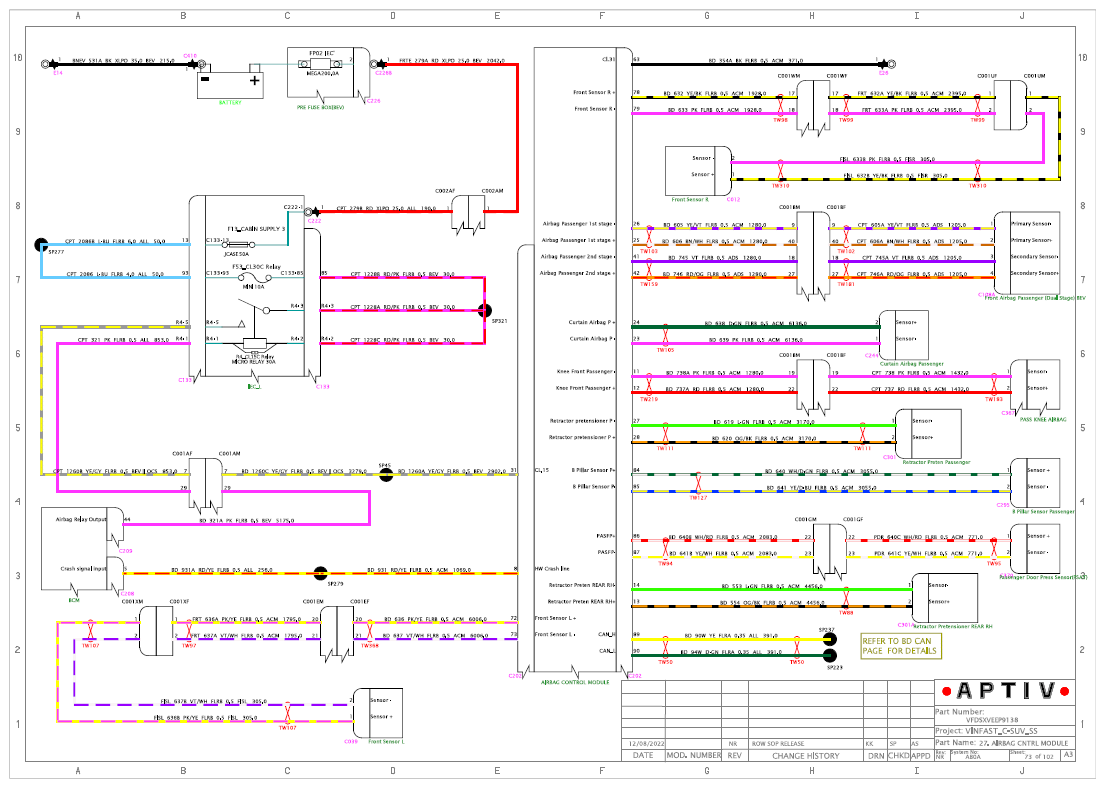

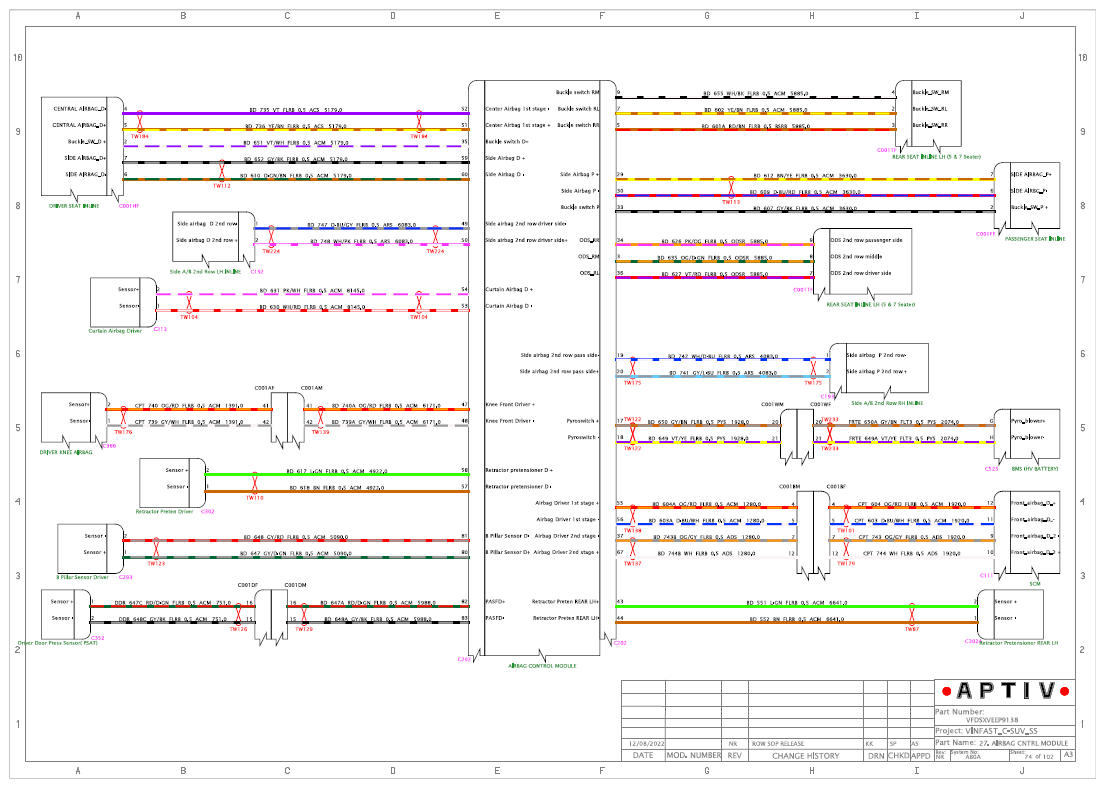

ACM-1

Courtesy of VINFAST, LLC

ACM-2

Courtesy of VINFAST, LLC

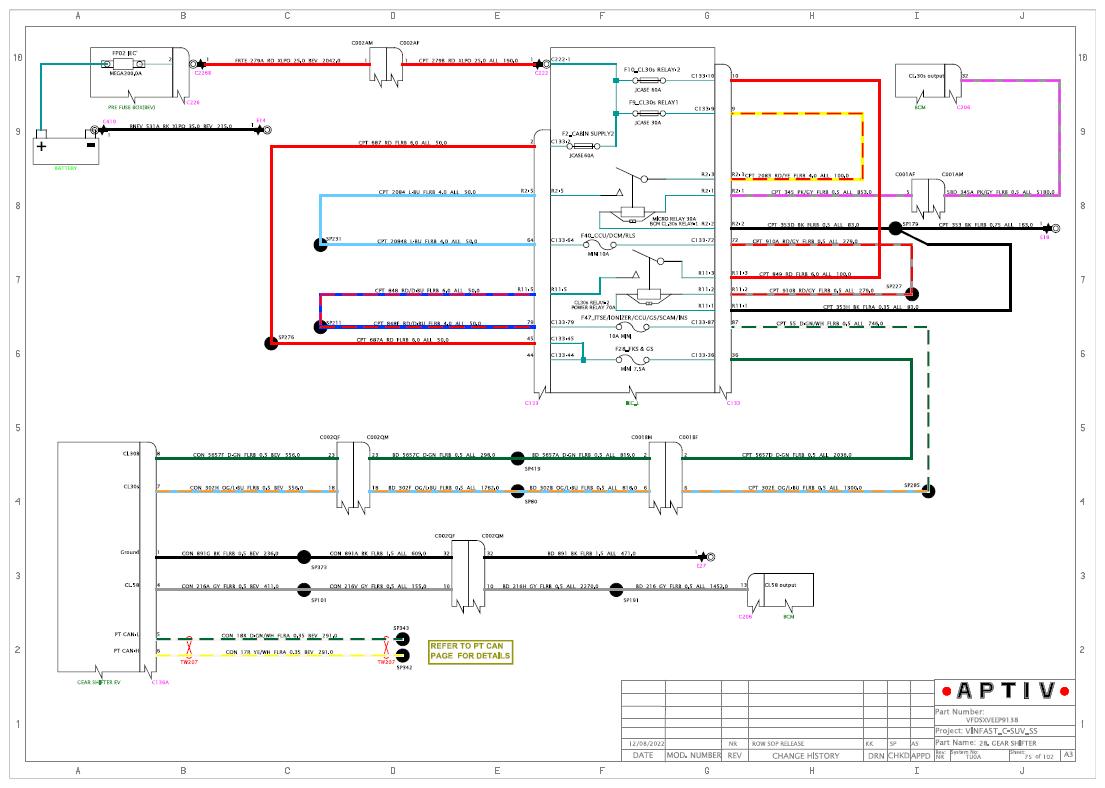

GS

Courtesy of VINFAST, LLC

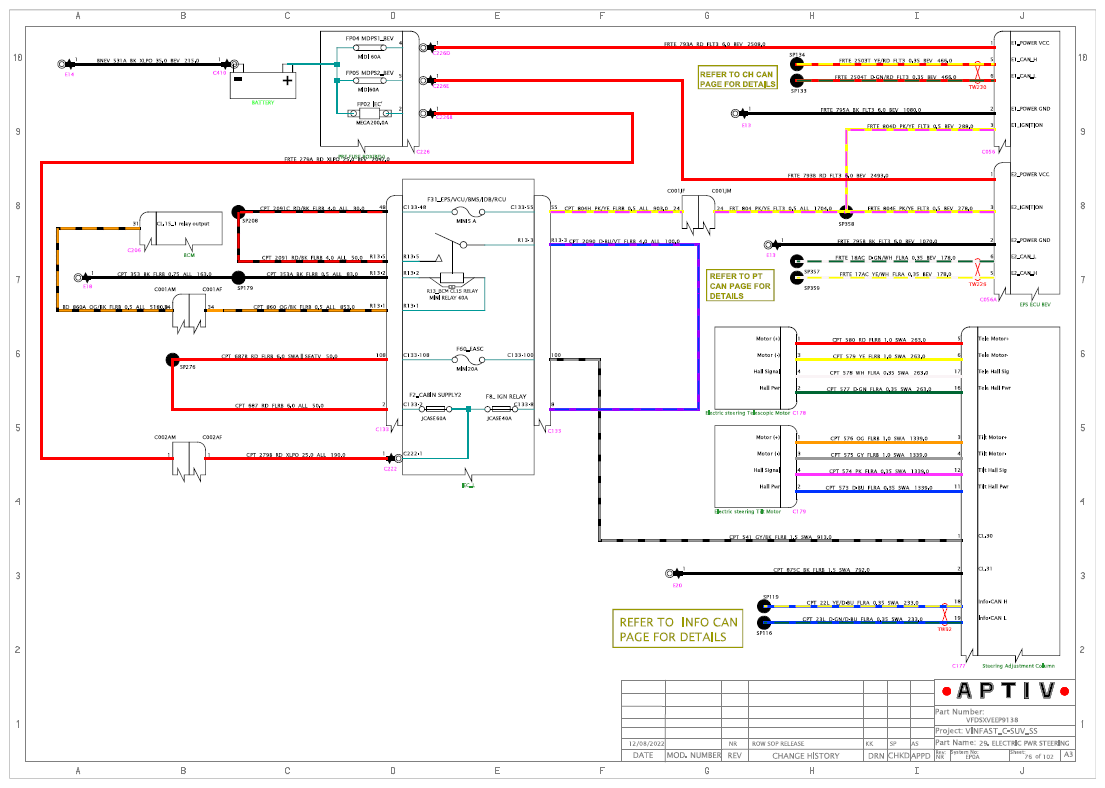

EPS

Courtesy of VINFAST, LLC

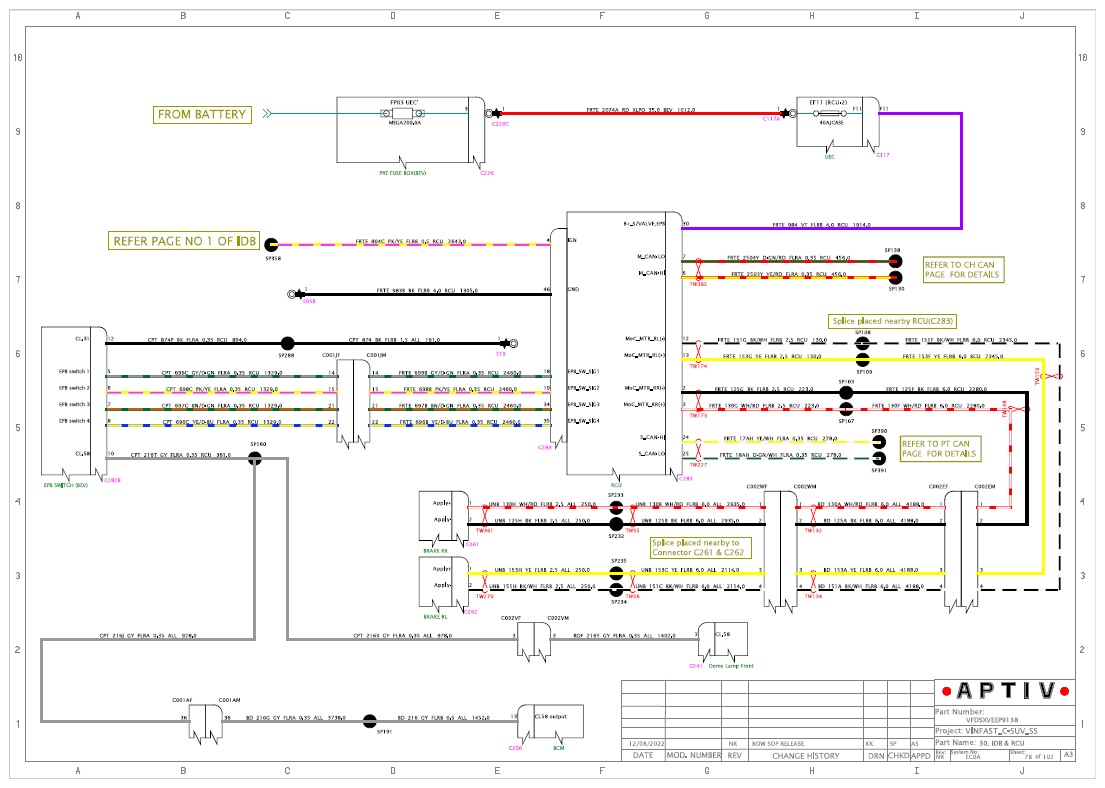

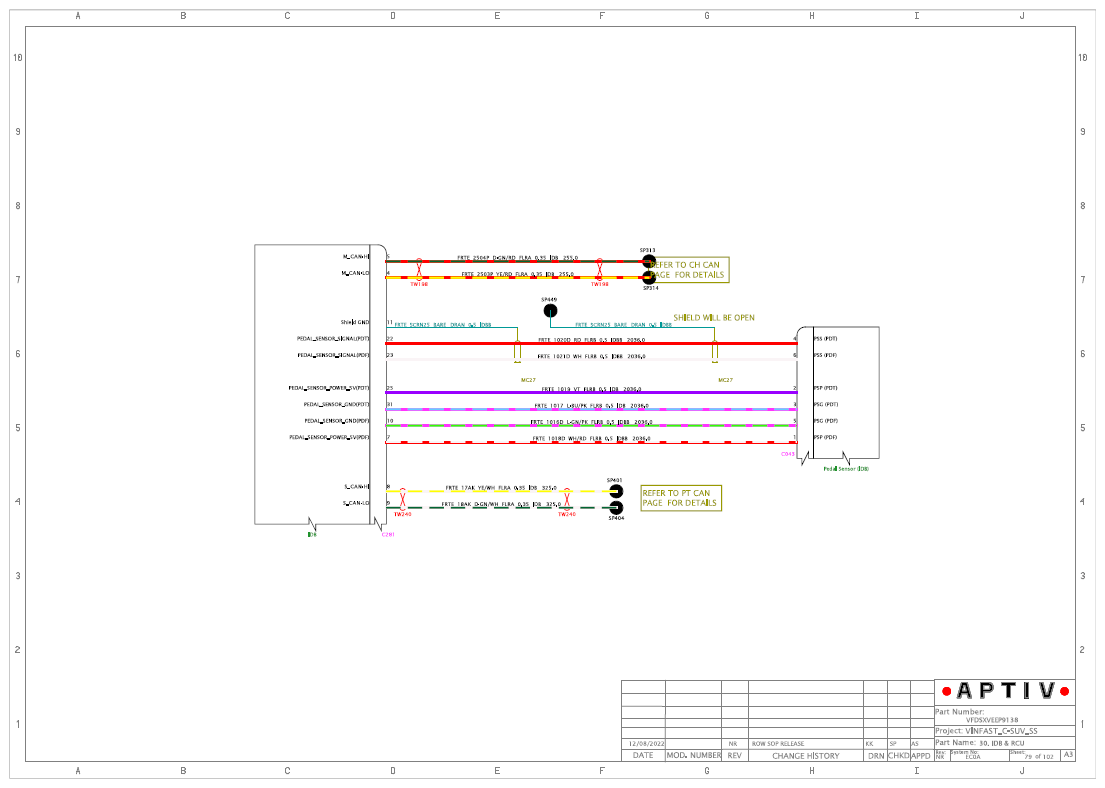

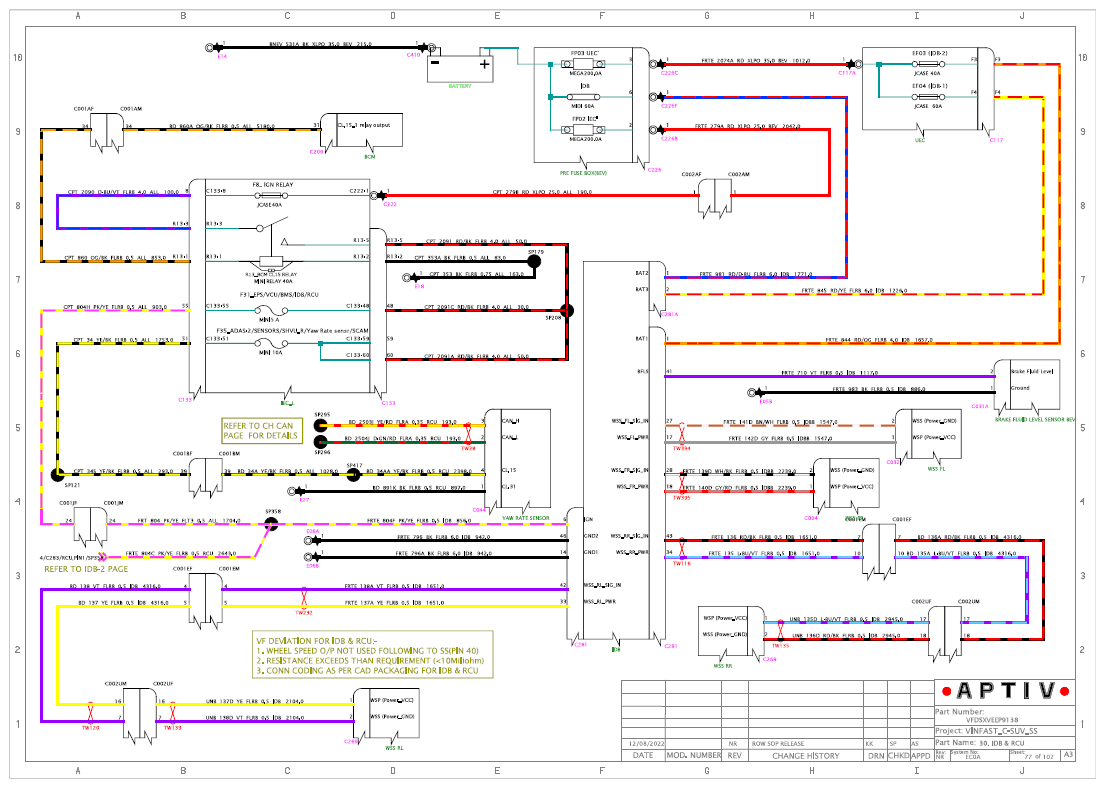

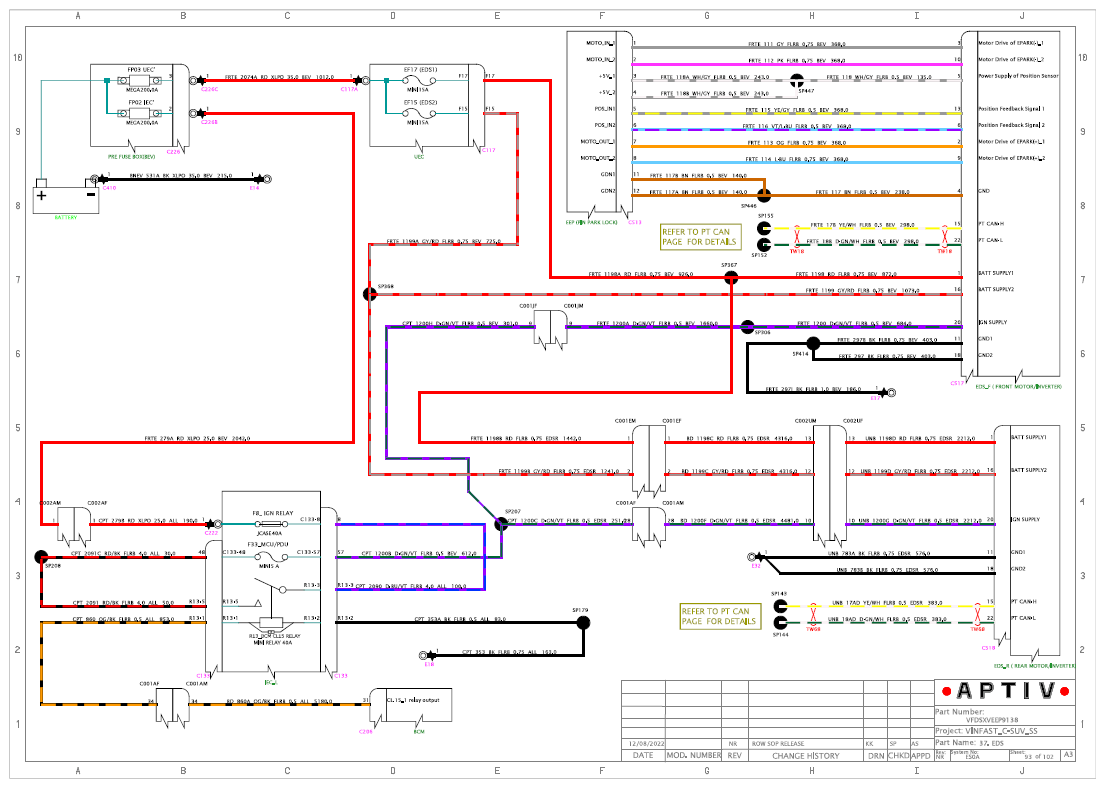

IDB1

Courtesy of VINFAST, LLC

IDB2

Courtesy of VINFAST, LLC

IDB3

Courtesy of VINFAST, LLC

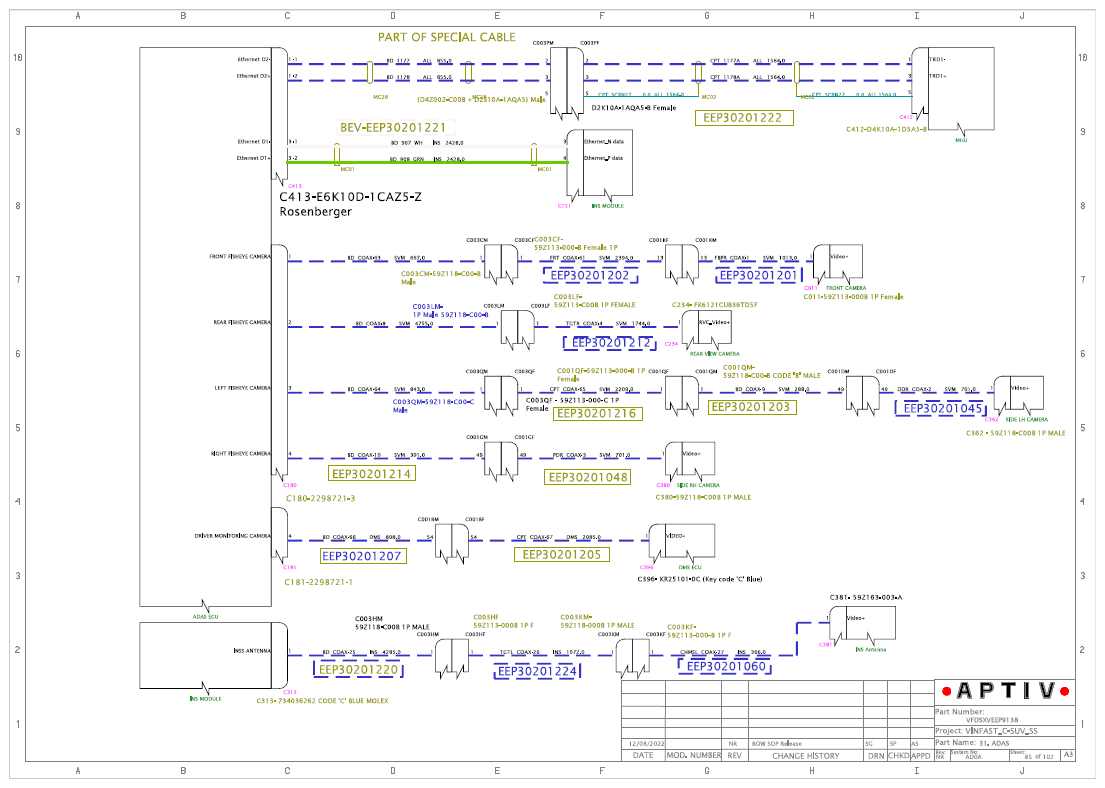

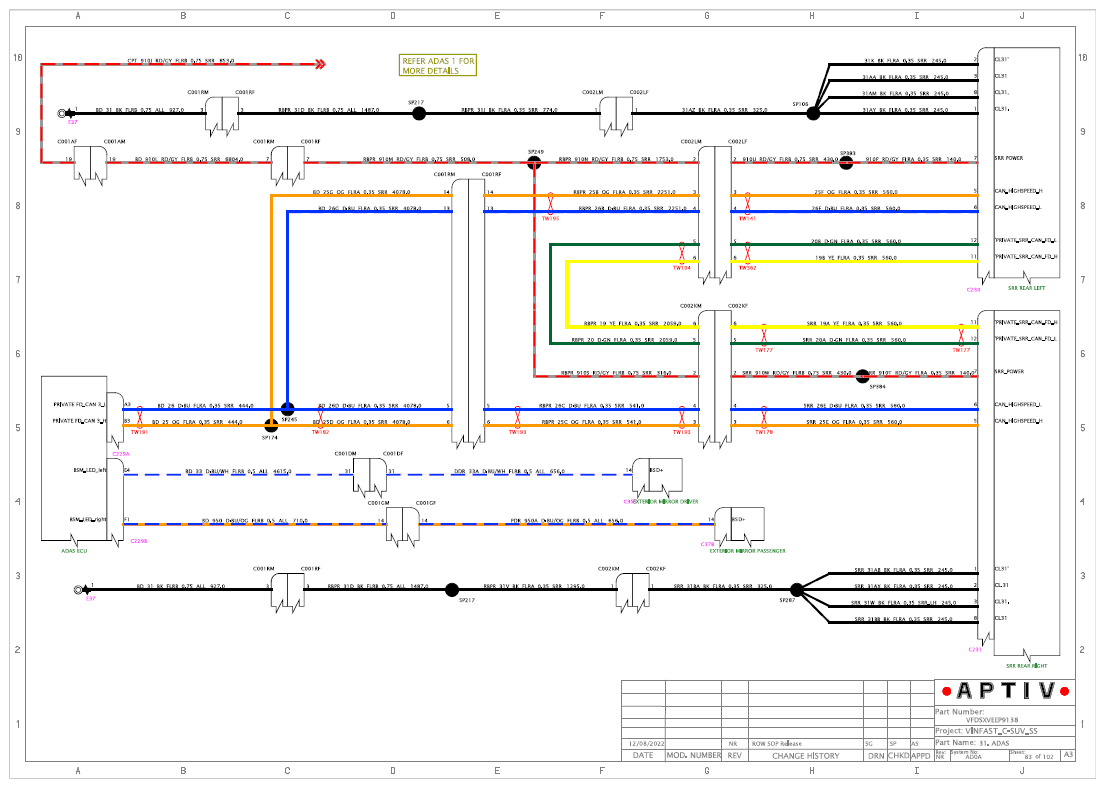

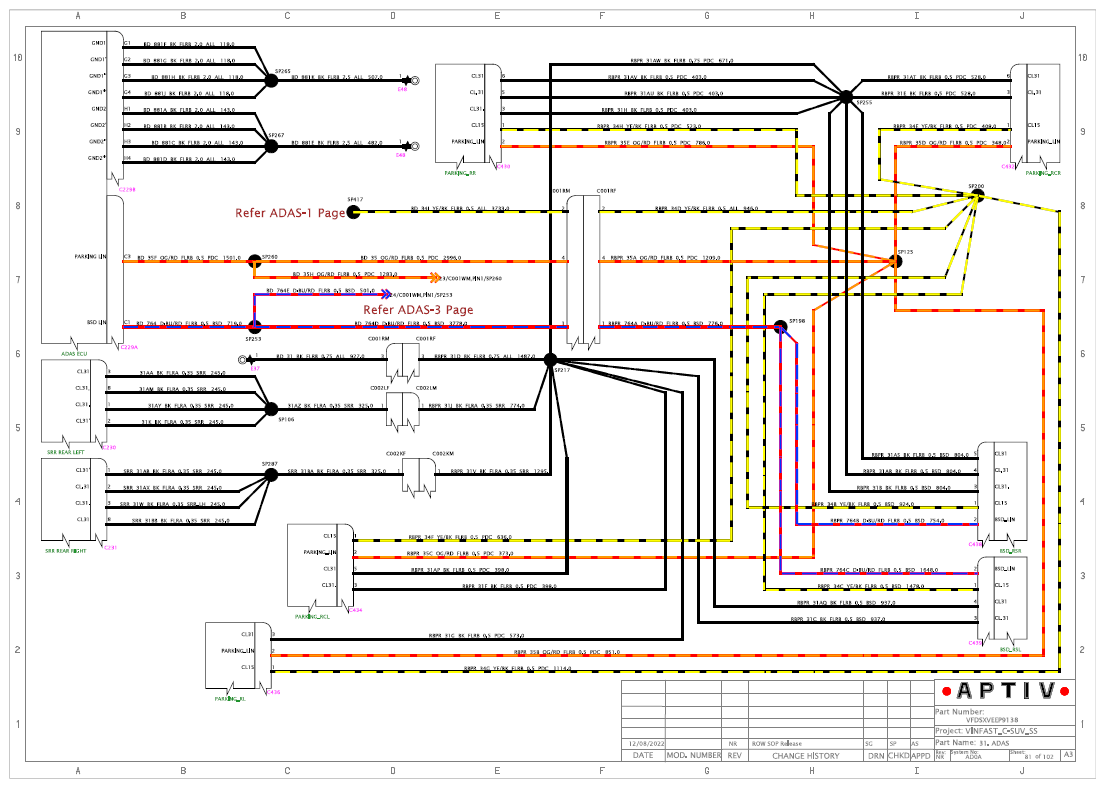

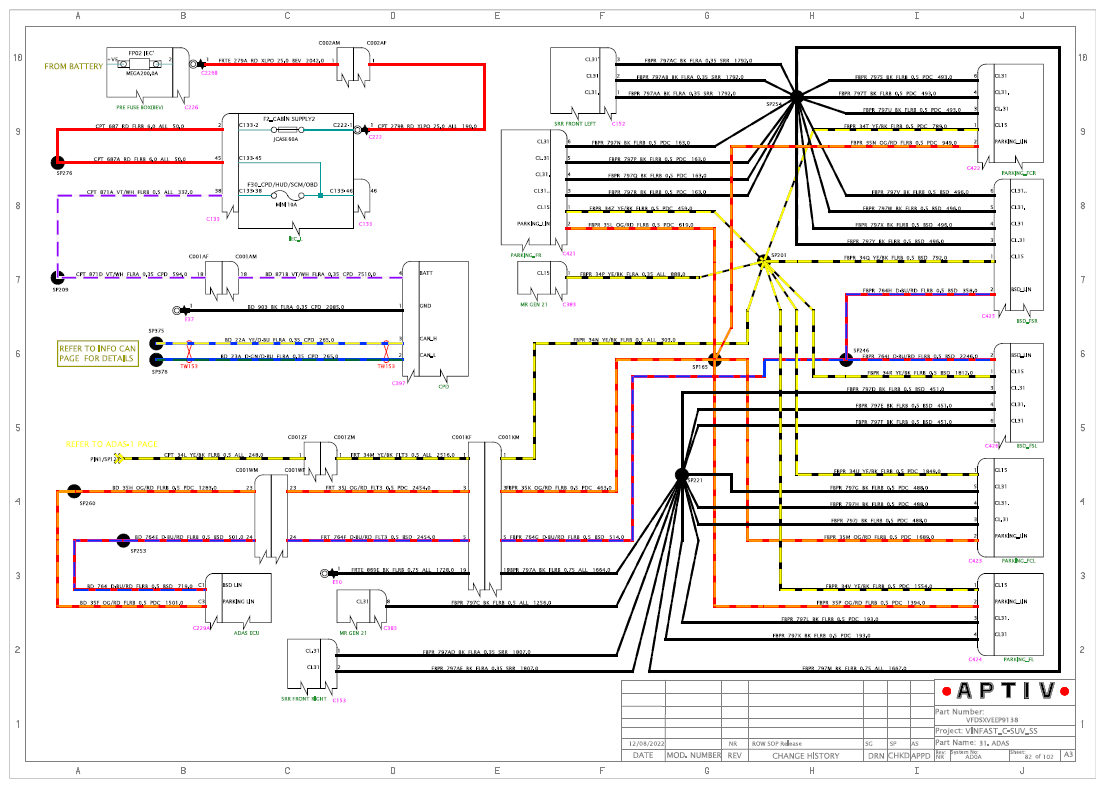

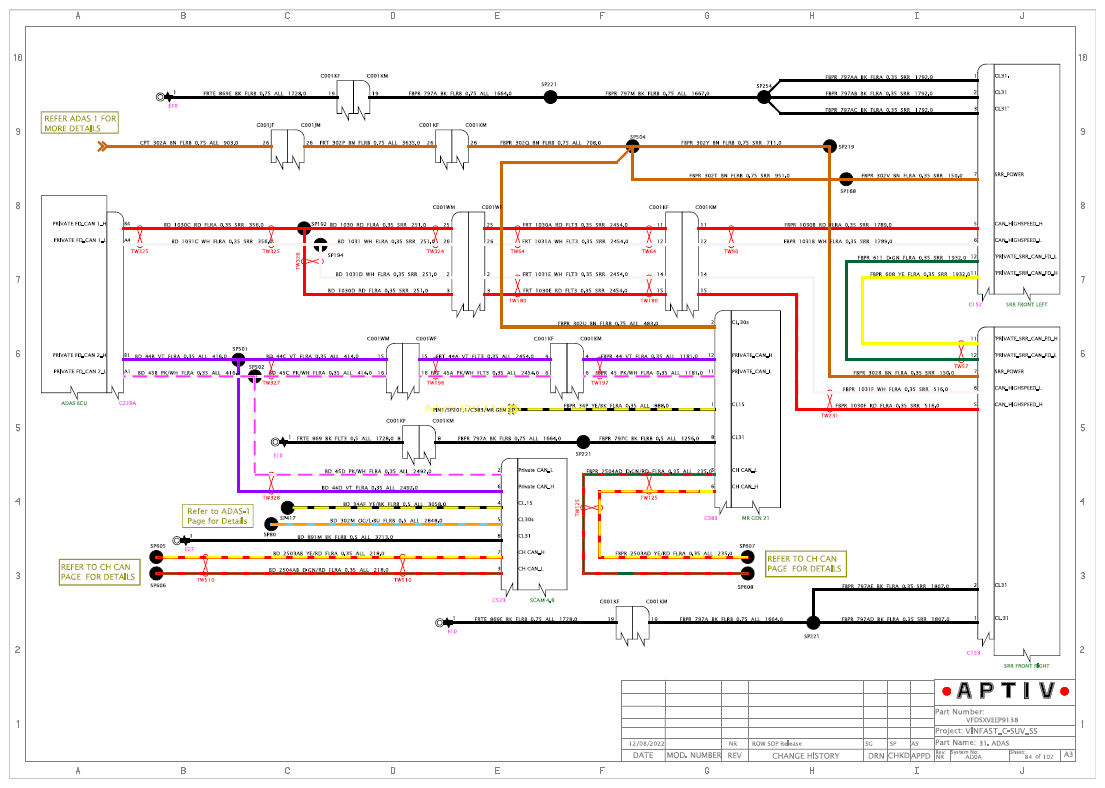

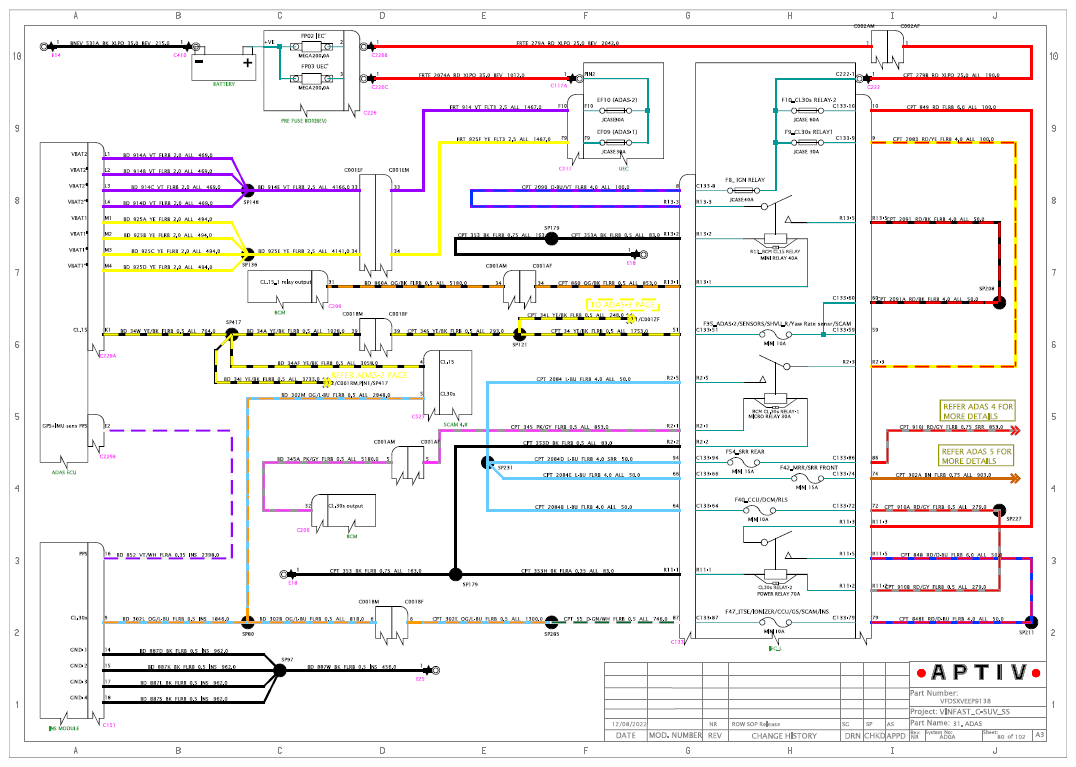

ADAS 1

Courtesy of VINFAST, LLC

ADAS 2

Courtesy of VINFAST, LLC

ADAS 3

Courtesy of VINFAST, LLC

ADAS 4

Courtesy of VINFAST, LLC

ADAS 5

Courtesy of VINFAST, LLC

ADAS 6

Courtesy of VINFAST, LLC

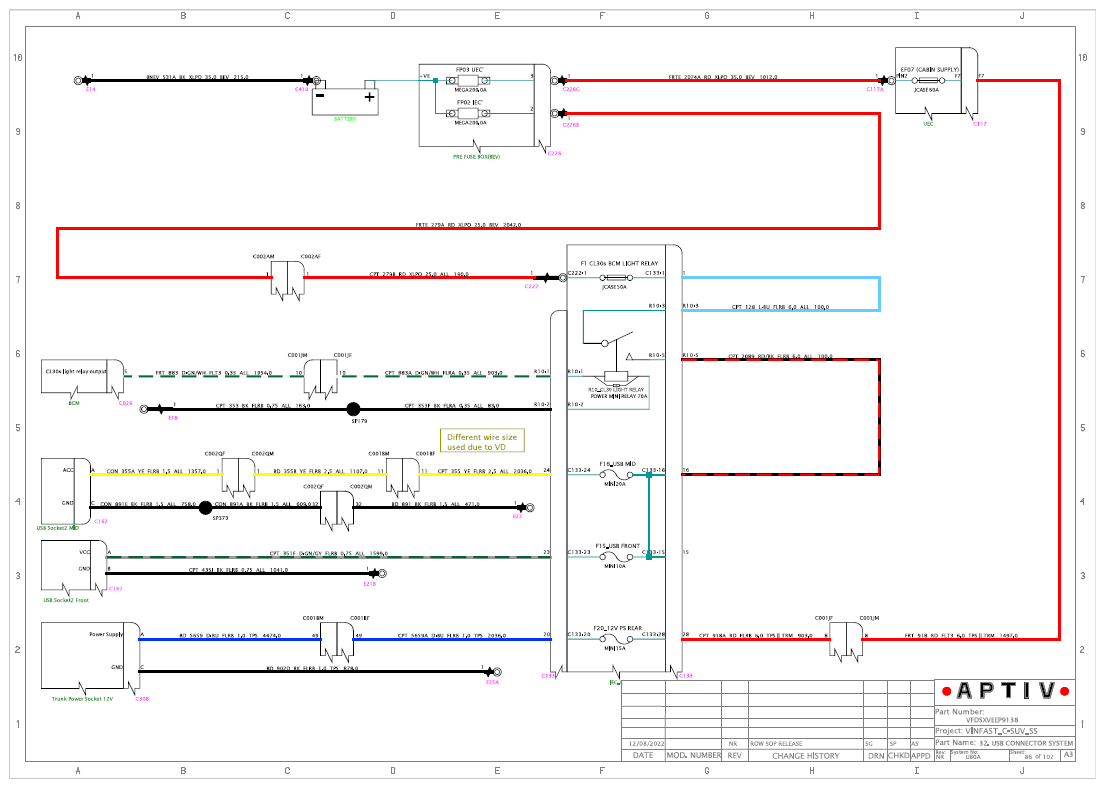

USB 1

Courtesy of VINFAST, LLC

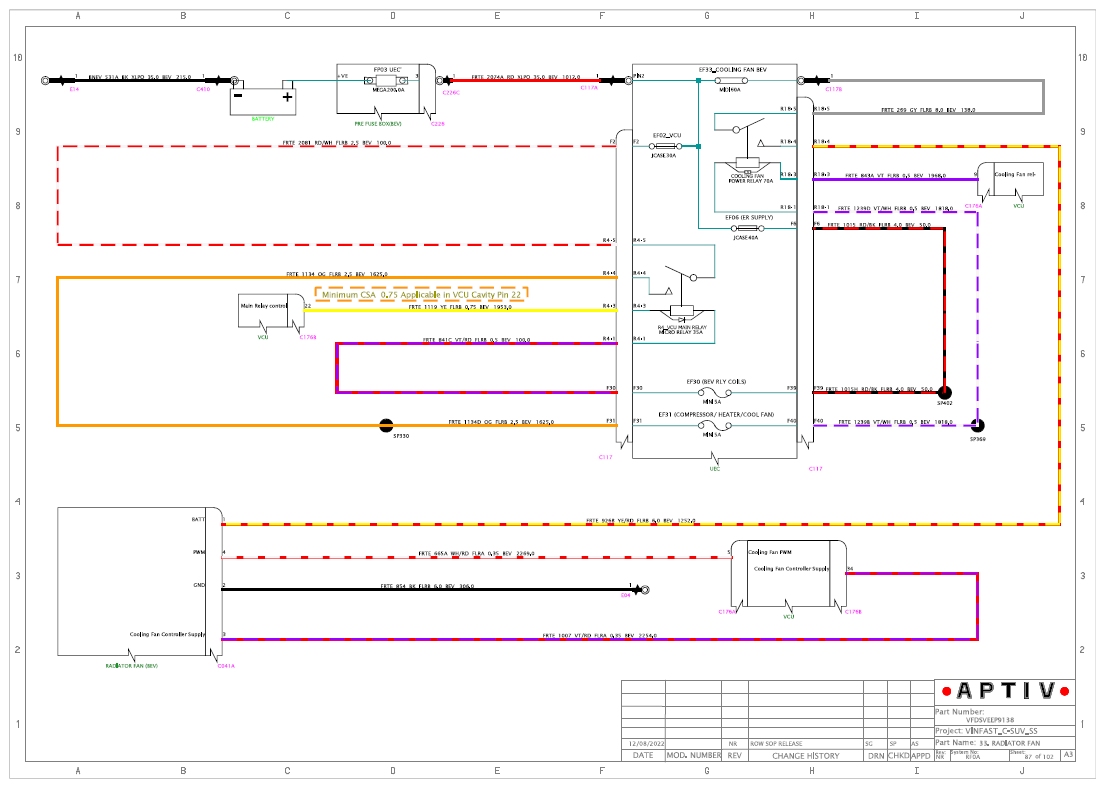

RDF

Courtesy of VINFAST, LLC

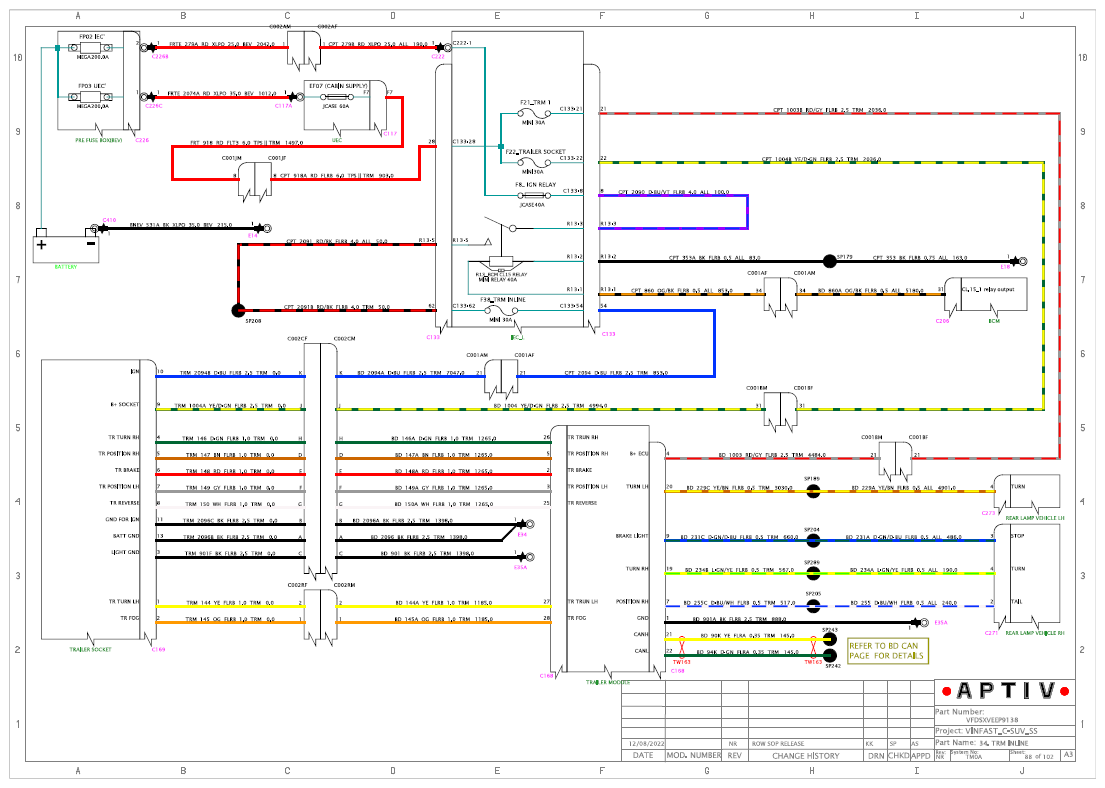

TRM

Courtesy of VINFAST, LLC

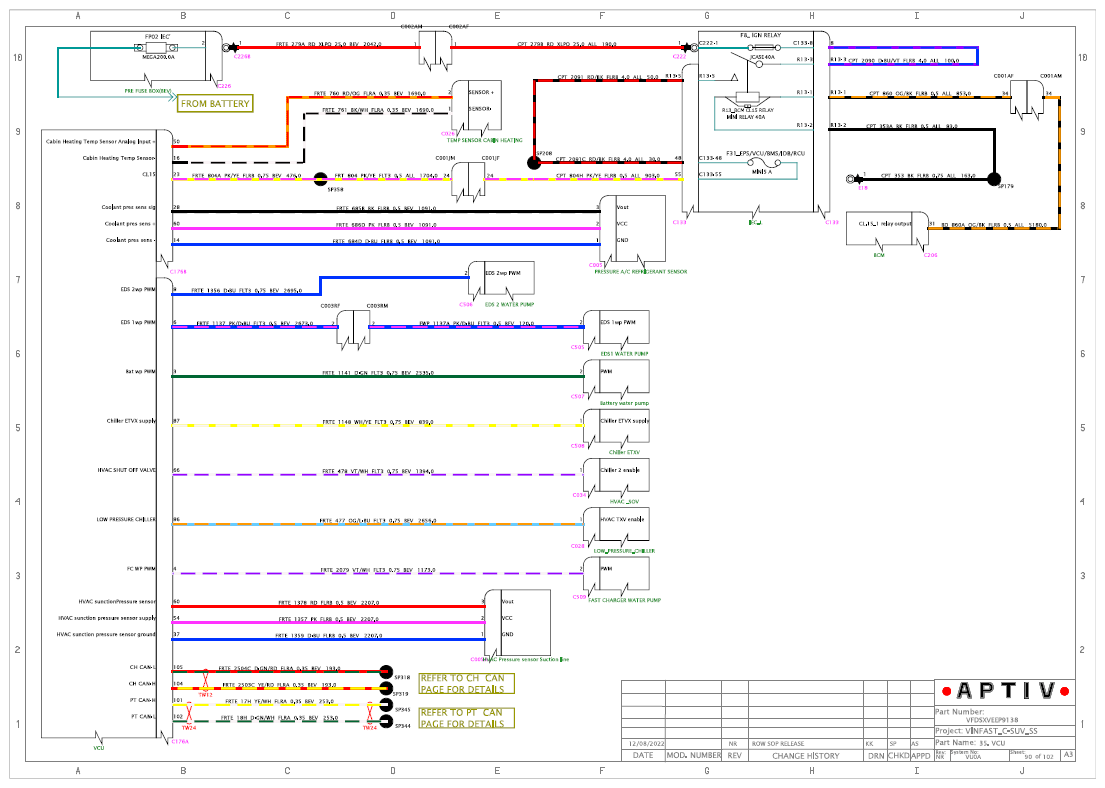

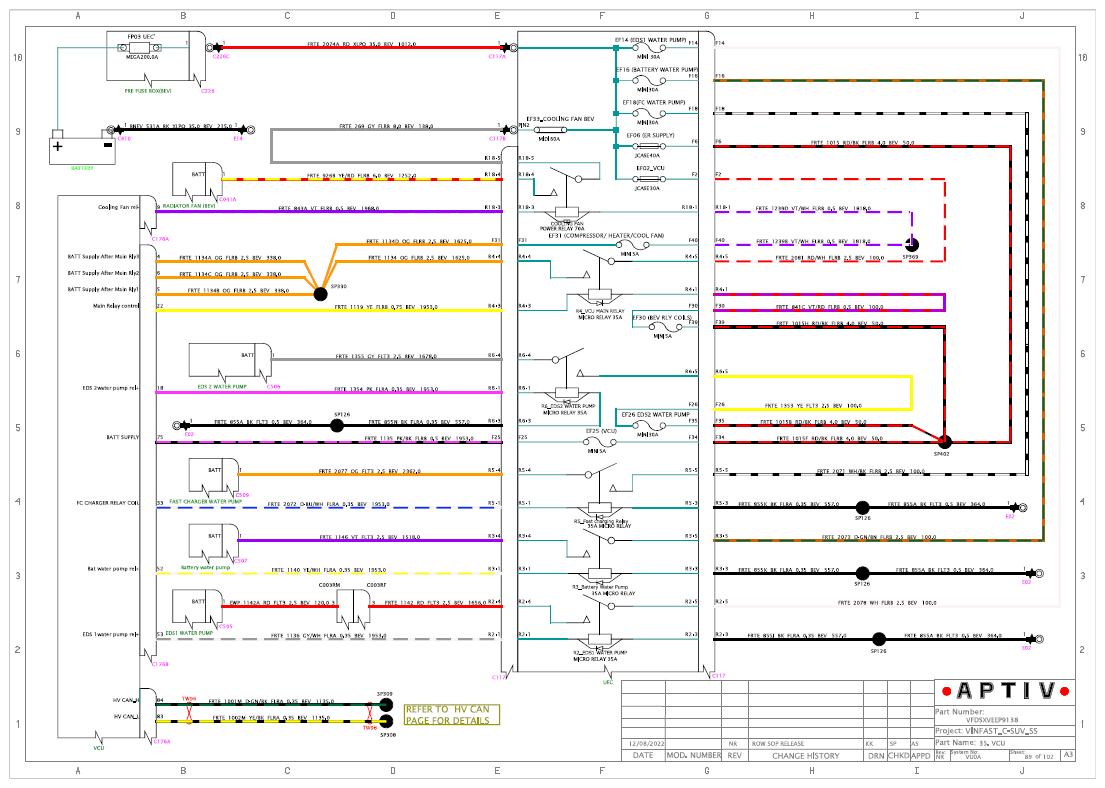

VCU 1

Courtesy of VINFAST, LLC

VCU 2

Courtesy of VINFAST, LLC

VCU 3

Courtesy of VINFAST, LLC

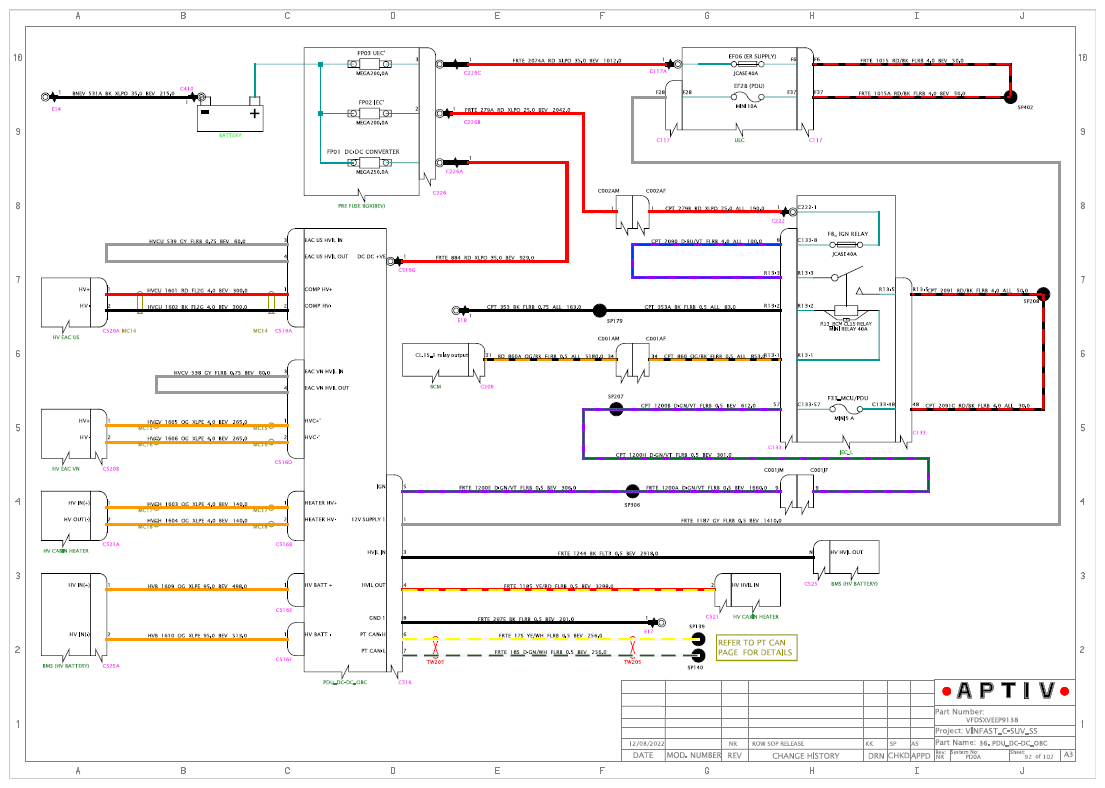

PDU_DC-DC_OBC

Courtesy of VINFAST, LLC

EDS

Courtesy of VINFAST, LLC

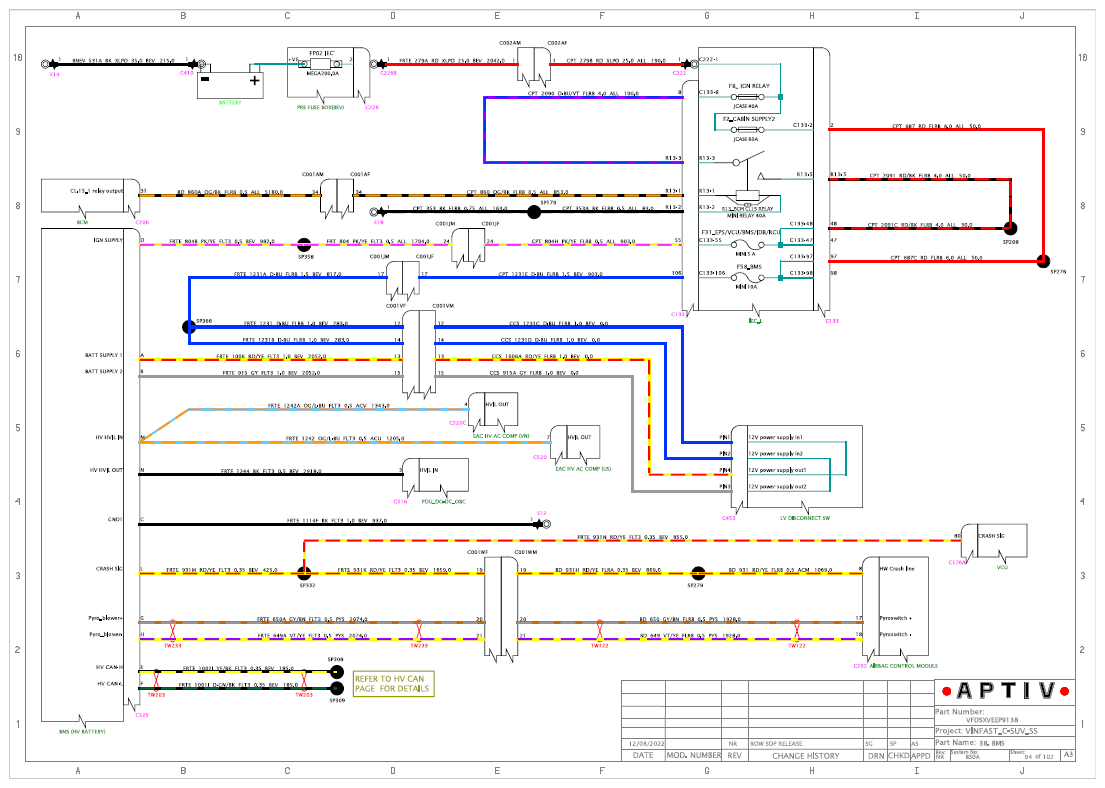

BMS

Courtesy of VINFAST, LLC

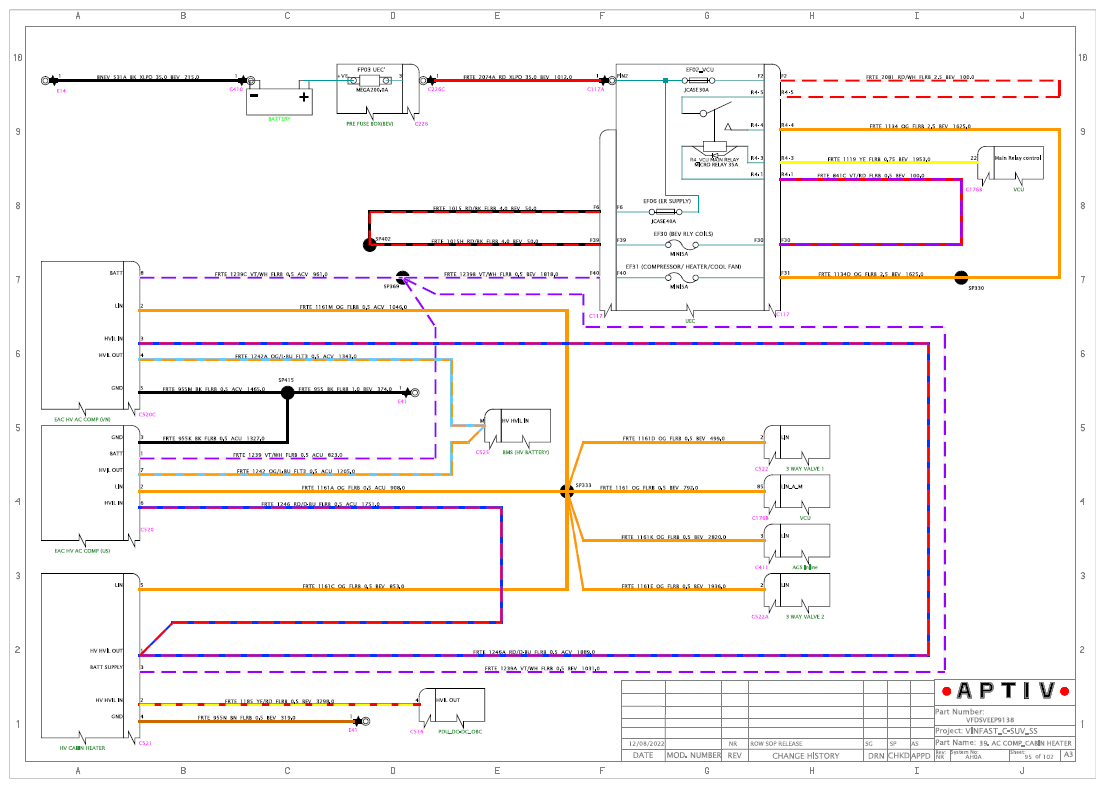

AC COMPRESSOR_CABIN HEATER

Courtesy of VINFAST, LLC

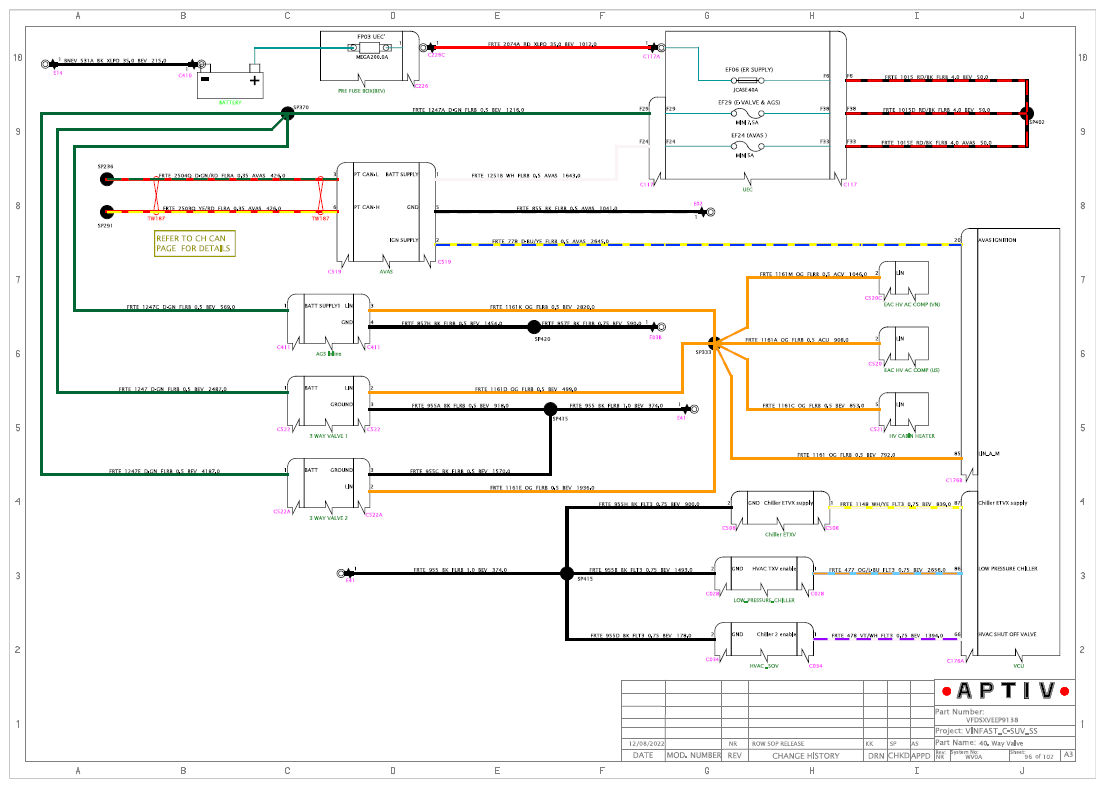

Way Valve

Courtesy of VINFAST, LLC

FKS

Courtesy of VINFAST, LLC

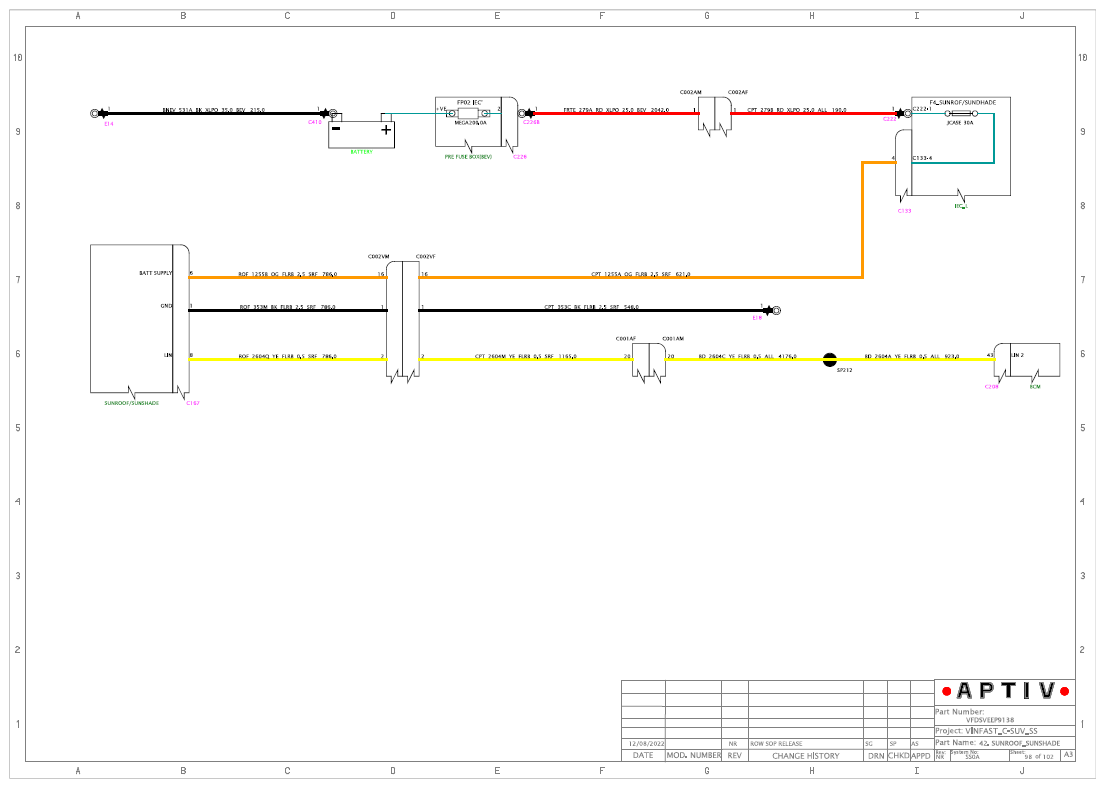

SUNROOF SUNSHADE

Courtesy of VINFAST, LLC

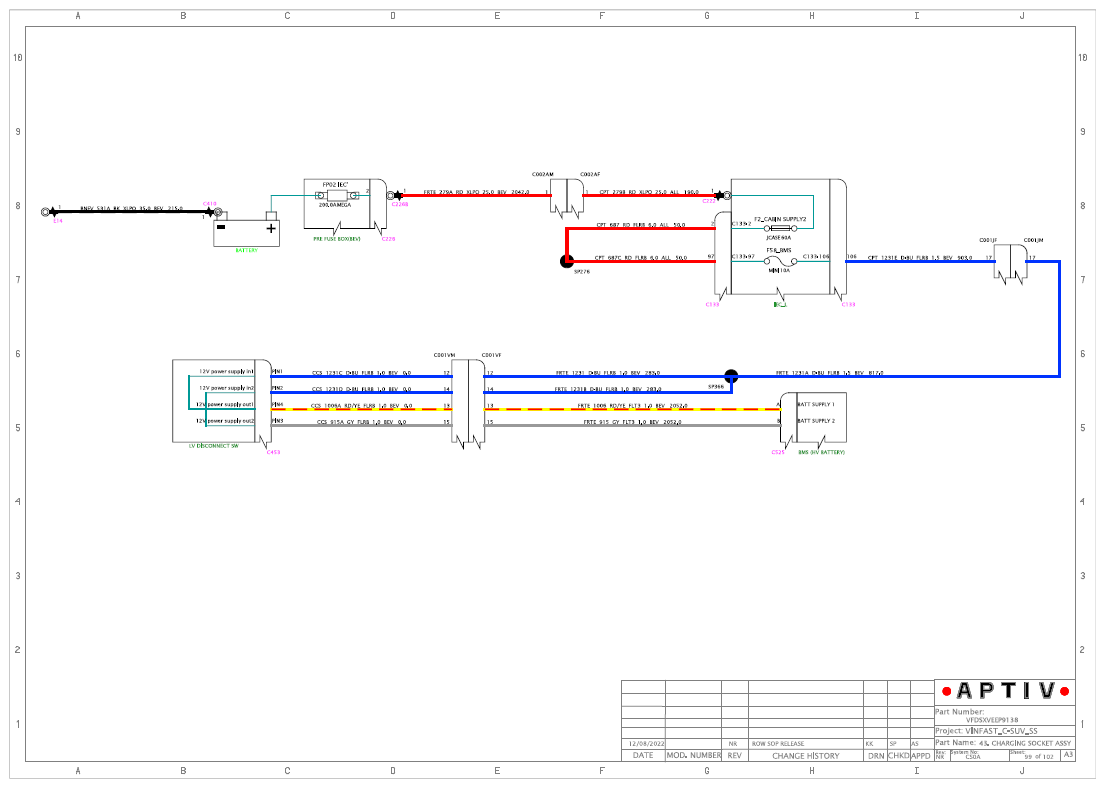

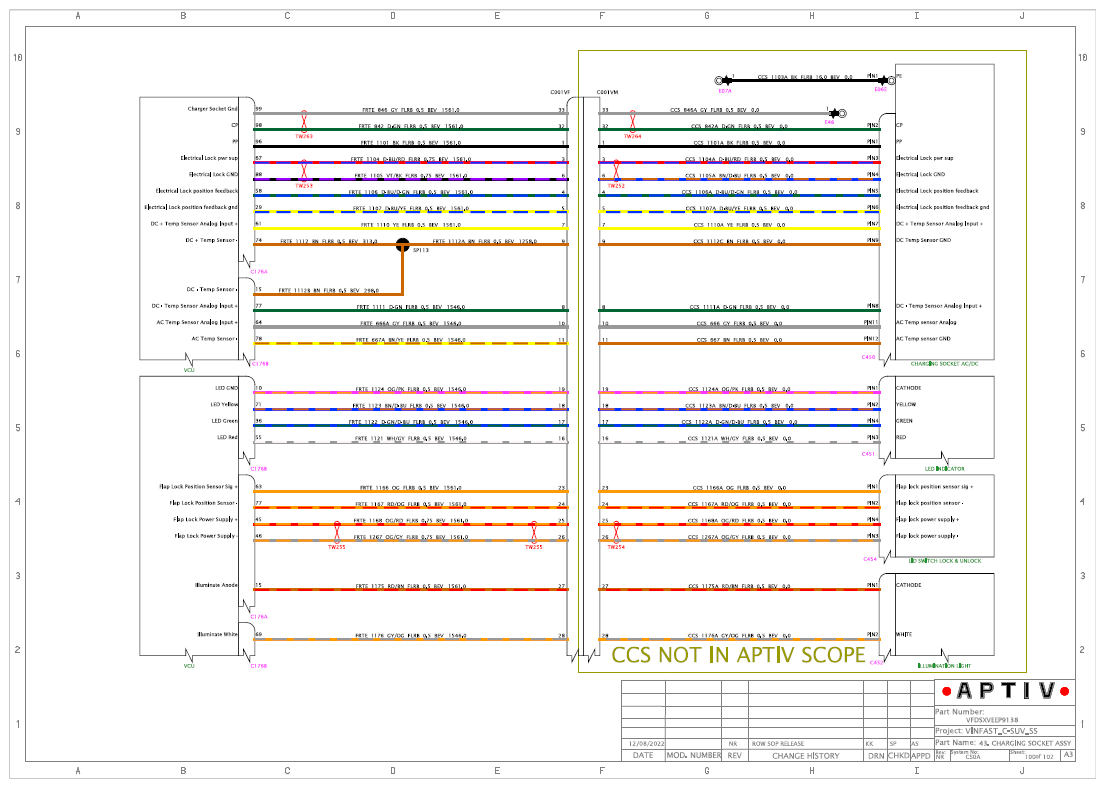

CCS1

Courtesy of VINFAST, LLC

CCS2

Courtesy of VINFAST, LLC

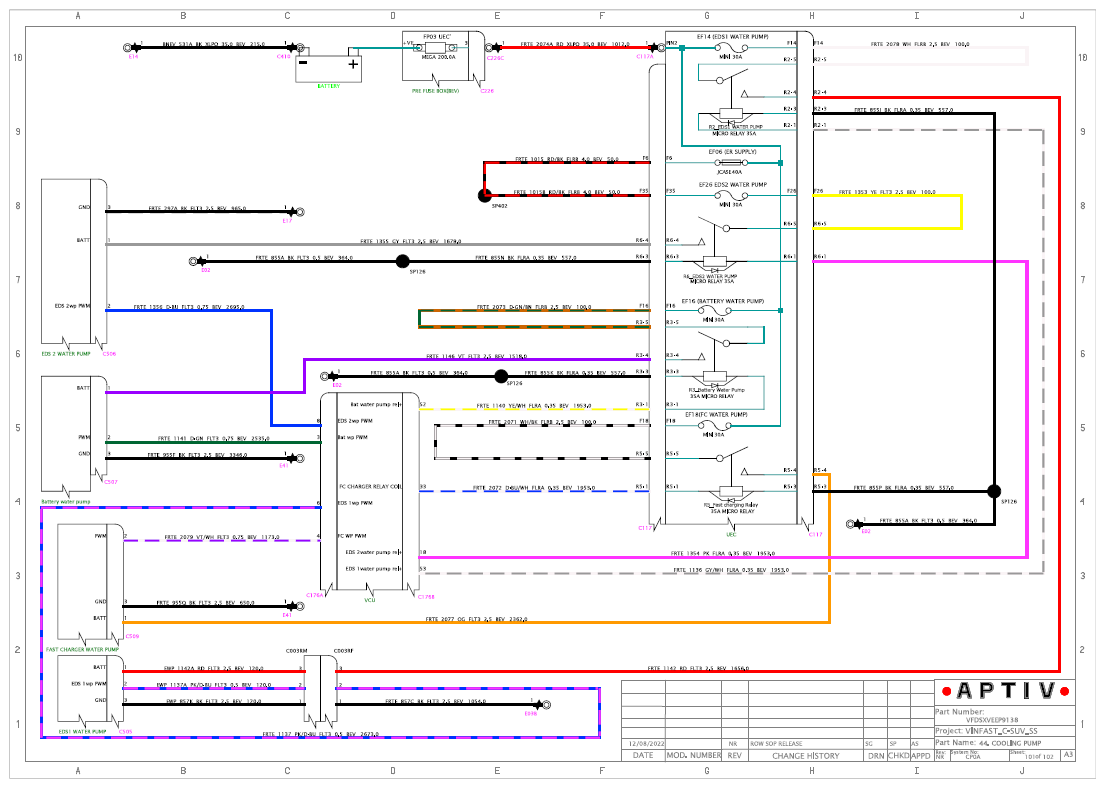

COOLING PUMP

Courtesy of VINFAST, LLC

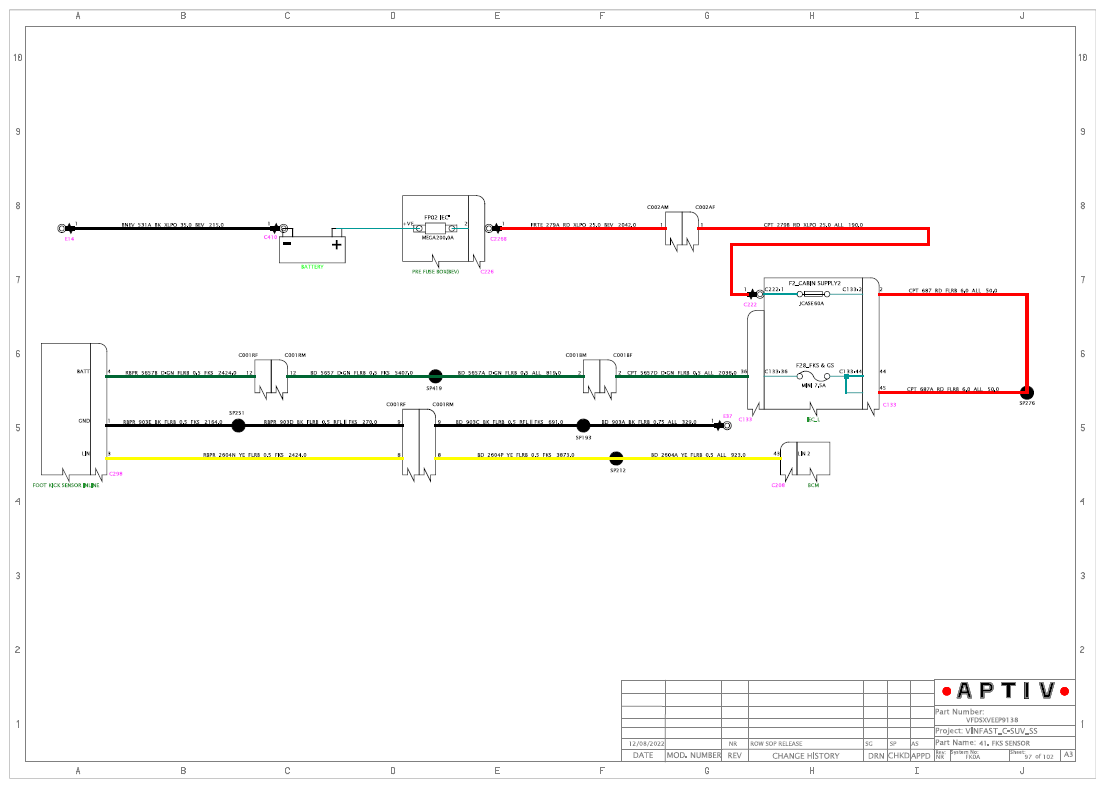

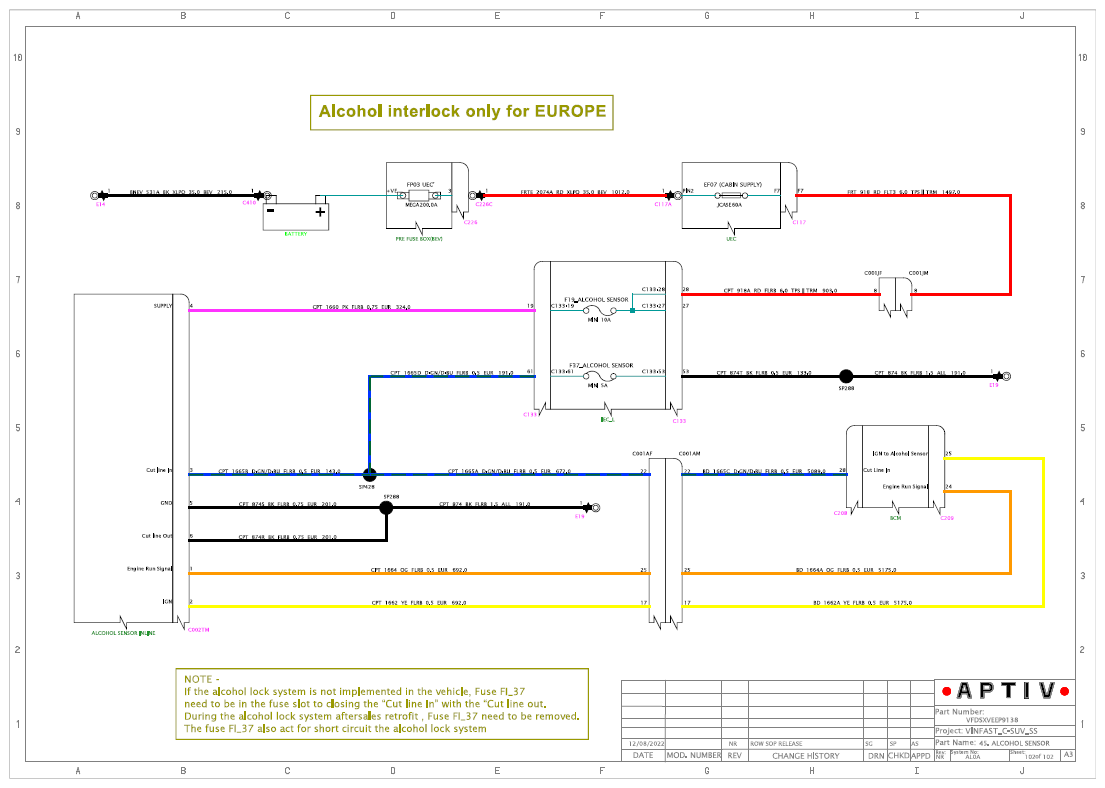

ALCOHOL SENSOR

Courtesy of VINFAST, LLC
