Instrument Panel Fuse Block Access Hole Cover Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

Courtesy of VINFAST, LLC

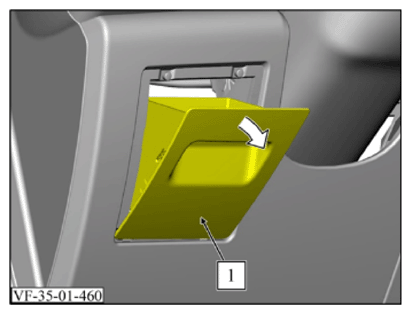

1. Open the instrument panel fuse block access hole cover (1) in arrow direction.

   Courtesy of VINFAST, LLC

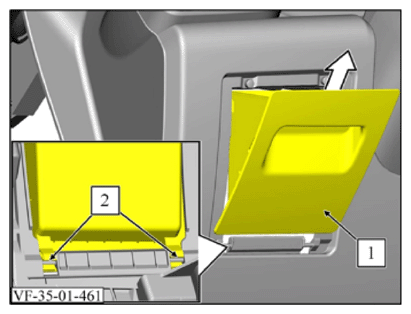

2. Unclip the instrument panel fuse block access hole cover (1) upwards from both mountings (2).

   Courtesy of VINFAST, LLC

3. Remove the instrument panel fuse block access hole cover (1).

Installation Procedure:

1. Installation is the reverse of removal procedure.
