Shock Tower Brace Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

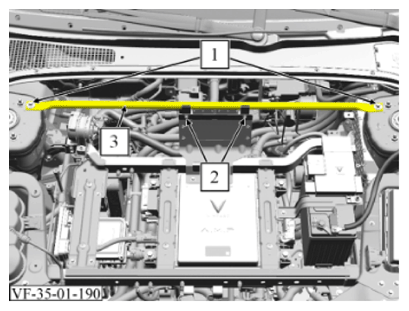

2. Remove 2 bolts (1).

   Torque: 27.5 Nm

3. Remove 2 bolts (2).

   Torque: 8 Nm

4. Remove shock tower brace (3).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
