Engine Fuse Box Cover and Label Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

Courtesy of VINFAST, LLC

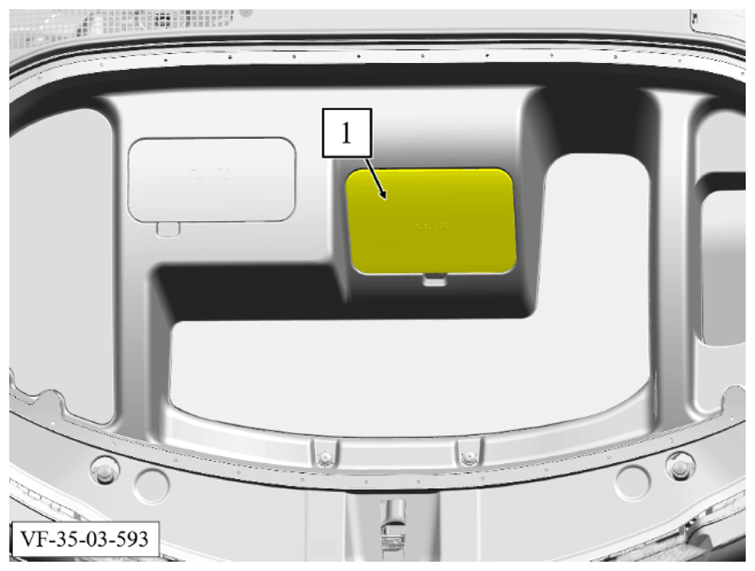

1. Remove the maintenance cap (1).

   Courtesy of VINFAST, LLC

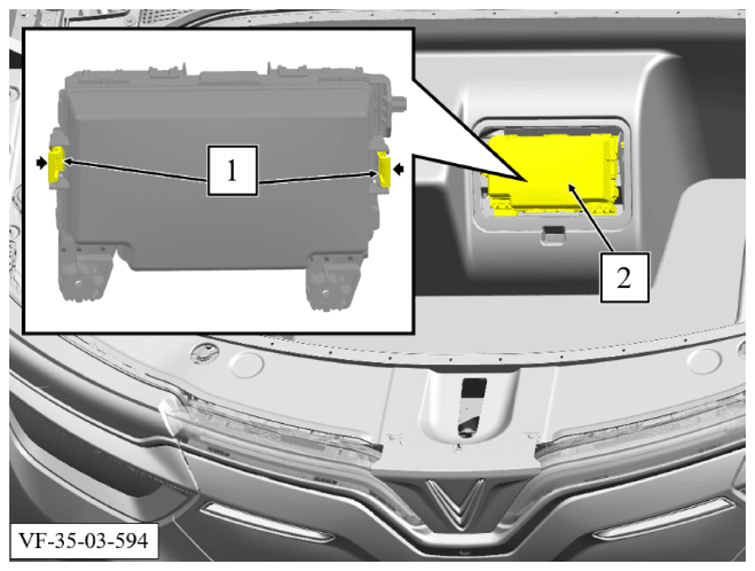

2. Unclip the latches (1) and remove the engine fuse box cover and label (2).

   Installation note: The latches have to audibly engage when installing.

Installation Procedure:

1. Installation is the reverse of removal procedure.
